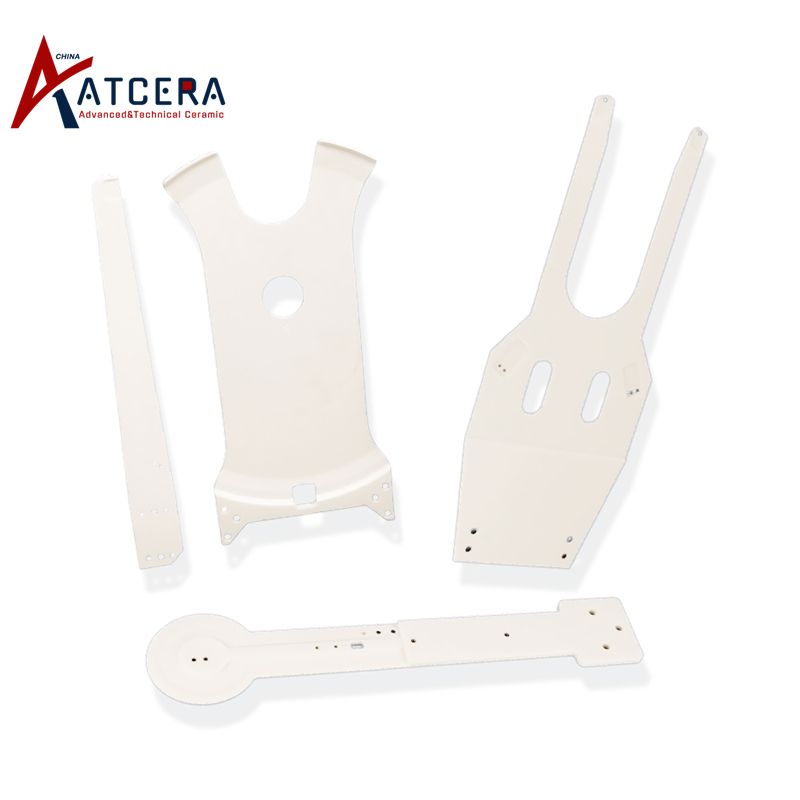

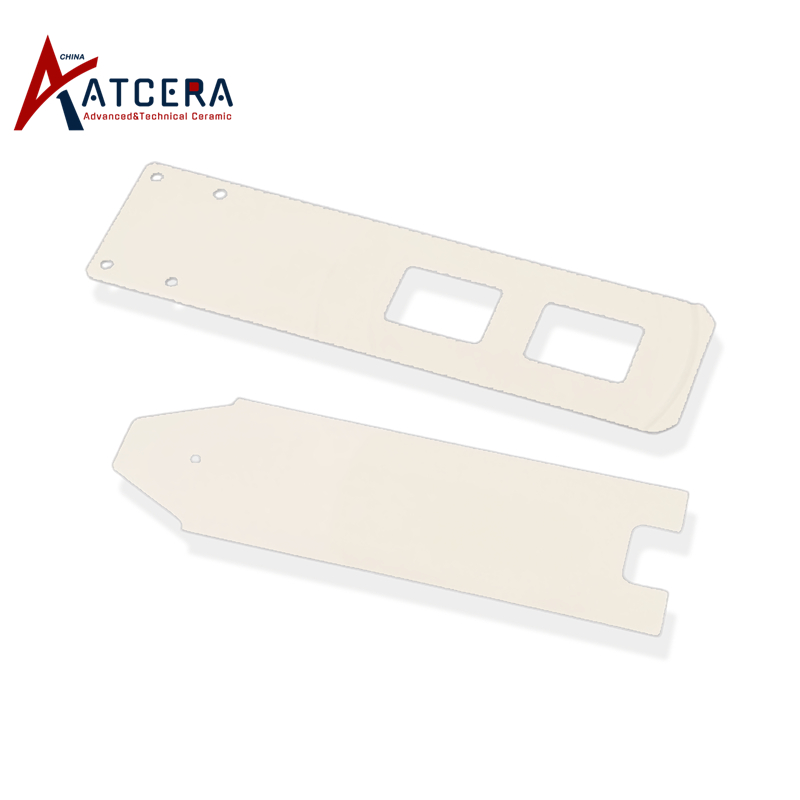

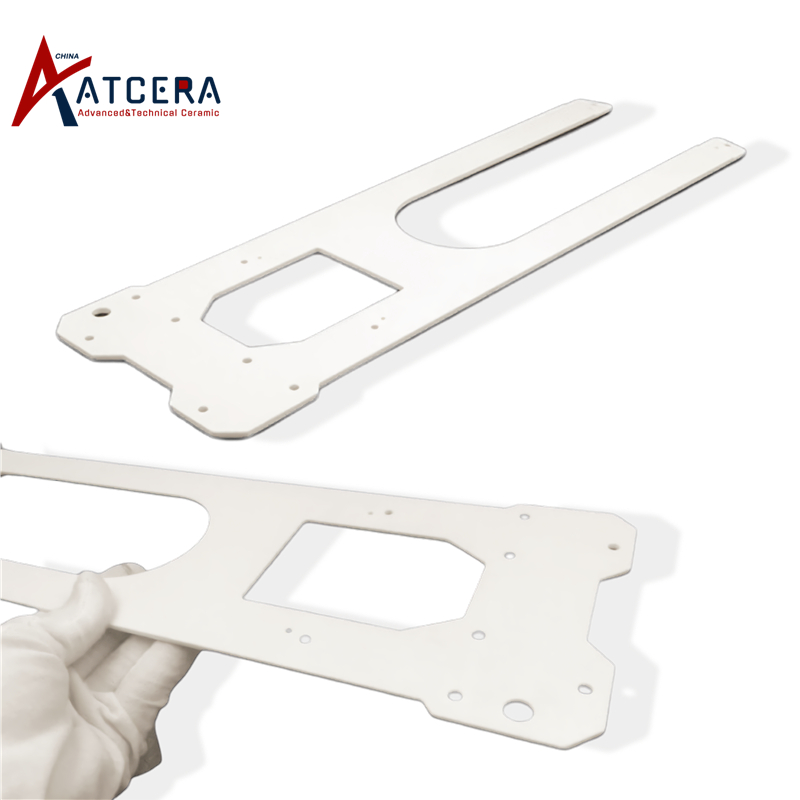

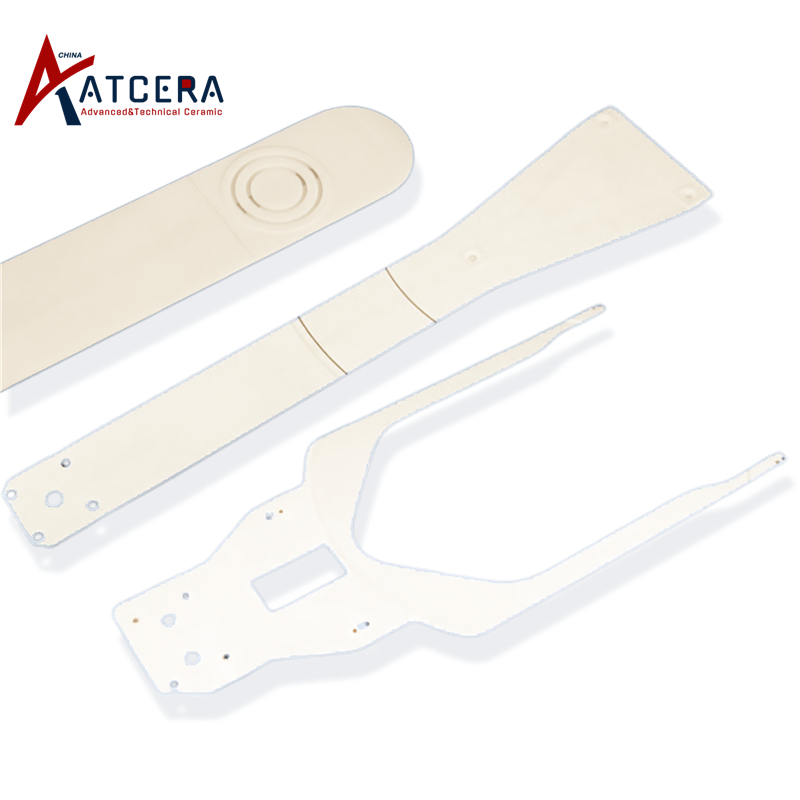

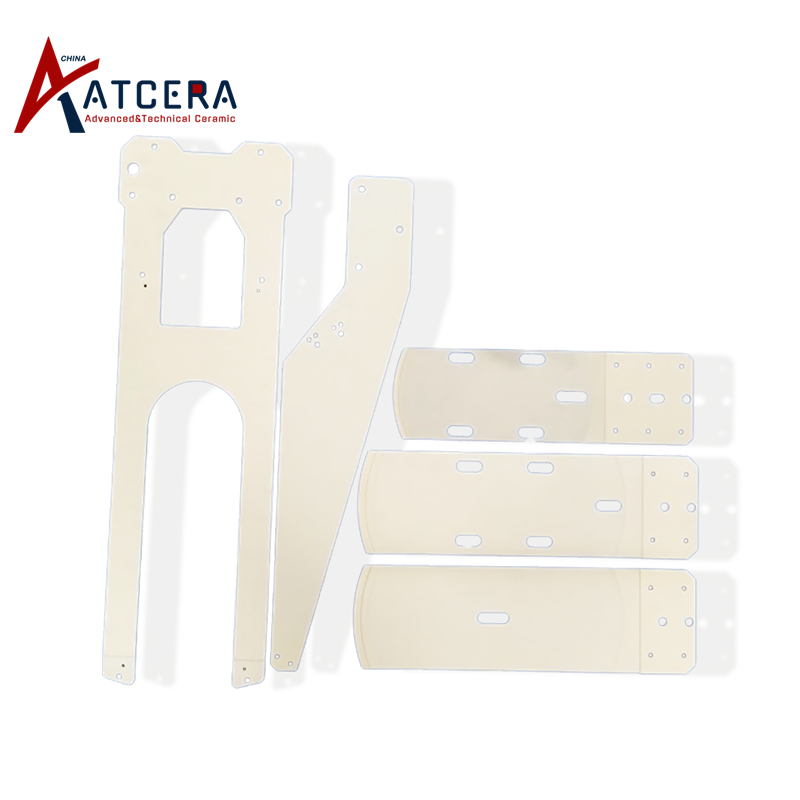

Alumina Ceramic Robot Arm for Semiconductor Wafer Handling

The alumina ceramic robot arm is crafted from high-purity alumina ceramic and is installed at the terminal of industrial robots. It is utilized in automated production lines for industries such as semiconductors, facilitating the handling or fixation of products on the production line. Depending on its structural design, it can be classified into various types, including clamping, load-bearing, and vacuum suction.

Brand:
ATCERA
Item NO.:
AT-YHL-JXB001

Materials
Alumina
Shapes
Mechanical Parts
Applications
Electronics and Electricity , Photovoltaic Cell Industry

Inquire Now

Properties of Alumina Robot Arm

1. The alumina ceramic robot arm boasts high hardness, excellent wear resistance, corrosion resistance, superior electrical insulation, and non-magnetic properties. It leaves no contaminating fine particles or electric charges on contacted items, ensuring pollution-free contact.

2. The robot arm is heat-resistant, enduring temperatures up to 1600°C, fulfilling the demands of normal operation under high-temperature conditions.

3. With a density half that of steel, the alumina ceramic robot arm is lightweight, significantly reducing equipment load.

Applications of Alumina Robot Arm

The alumina ceramic robot arm is mounted at the terminal of industrial robots, serving the automated production lines in industries such as semiconductors. It handles or fixes products on the production line, including wafers, electronic components, and more.

Custom Design for Alumina Robot Arm

We are committed to delivering optimal alumina robot arms tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parameter specifications if customization requirements needed.

al2o3 robot arm

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Prior to installation, thoroughly inspect the surface of the alumina ceramic robot arm to ensure its smoothness, evenness, and absence of cracks, ensuring optimal functionality.

2. Conduct equipment debugging and testing of the ceramic robot arm's clamping or suction force before official use. Only proceed with usage once the requirements are met.

3. Regularly inspect the ceramic robot arm, promptly clearing debris and dirt. Replace it immediately if cracks or damage are detected.

Valuable Information

Alumina Robot Arm Packing

Alumina robot arms are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
