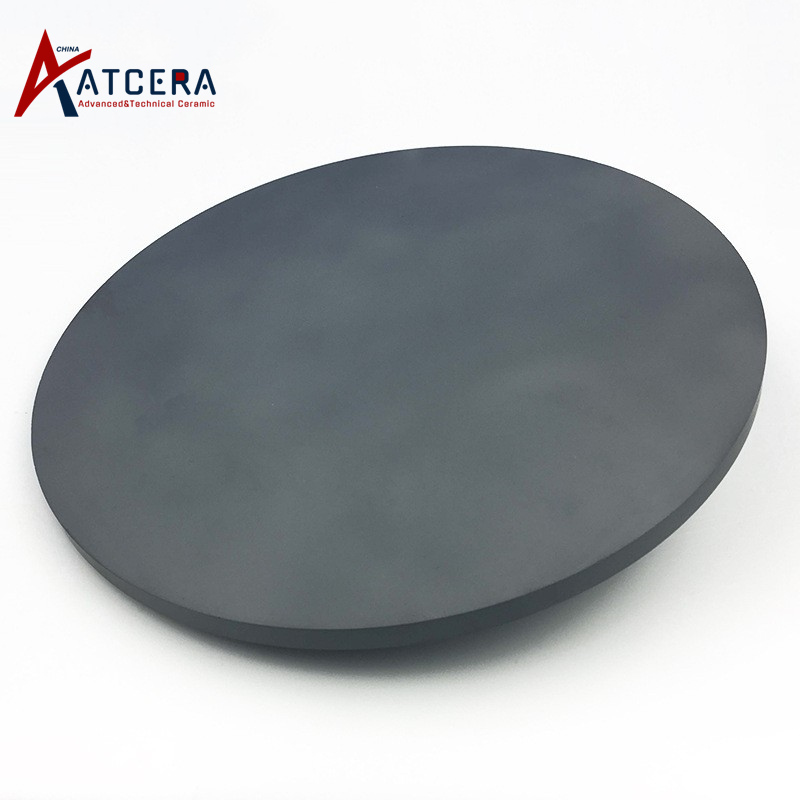

Hot Pressed Aluminum Nitride Plate

Hot pressed aluminum nitride plate has high resistivity, excellent electrical insulation,also with excellent thermal conductivity, wear and corrosion resistance. It is usually used in high temperature environment and wear occasions.

Brand:
ATCERA
Item NO.:
AT-AIN-RY1001

Materials
Aluminum Nitride (AlN) Ceramic
Shapes
Plate
Applications
Semiconductor , Electronics and Electricity , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Hot Pressed Aluminum Nitride Plate

Hot pressed aluminum nitride plate has excellent insulation, breakdown voltage is higher than 19KV/mm, also with excellent thermal conductivity, which can be up to 180W/(m*K). It has high mechanical strength, good wear and corrosion resistance, and can withstand erosion of various acids, alkali and molten metals.

Applications of Hot Pressed Aluminum Nitride Plate

Hot pressed aluminum nitride plates are widely used in high temperature environments and wear occasions, such as high temperature heaters, integrated circuits and electronic components heat sinks, metallurgical equipment, nuclear magnetic resonance equipment, etc.

Product Parameters
Material Parameters

Customization Design for Hot Pressed Aluminum Nitride Plate

We are committed to delivering prime aluminum nitride plates tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Provide drawing and parameter requirements, the maximum available size is 500mm (length or diameter)

Send Requirements for Custom Design

Hot Pressed Aluminum Nitride Plate Rectangular
Item no.	Max. Length(mm)	Max. Width（mm)	Max. Height（mm)
AT-AIN-RY1001	＜500	＜500	＜350

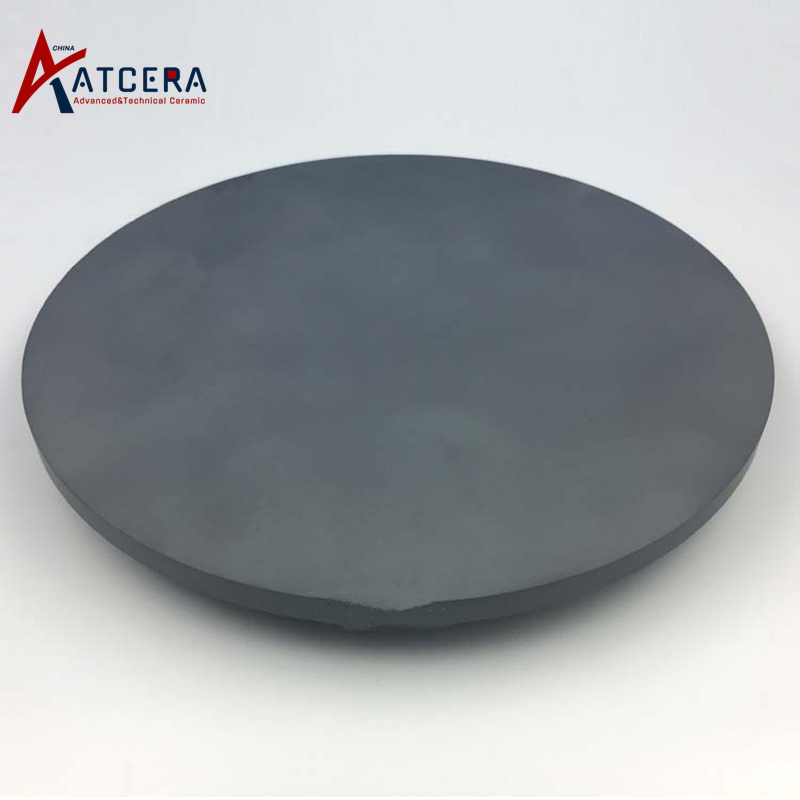

Hot Pressed Aluminum Nitride Plate Round
Item no.	Max. Outer Dia.(mm)	Max. Height(mm)
AT-AIN-RY2001	＜500	＜500

Technical Data of Aluminum Nitride Materials

AlN Type	ALN-170	ALN-200	ALN-230
Density (g/cm³)	3.3	3.28	3.25
Flexture strength (MPa)	450	400	350
Young Modulus (GPa)	320	/	/
Hardness (Hv)	1100	1100	1100
Fracture toughness (MPa*m^1/2)	3	2.6	2.4
Maximum working temperature (℃)	1100	1100	1100
Thermal conductivity (W/m*K)	180	200	230
Thermal expansion coefficient (/℃)	4*10^-6	4*10^-6	4*10^-6
Dielectric Constant (at 1MHz)	9	8.7	8.5
Breakdown Voltage (kV/mm)	>15	>15	>15

*This chart illustrates the standard characteristics of the aluminum nitride materials commonly employed in the manufacturing of our AlN products and parts. Please be aware that the attributes of customized aluminum nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Valuable Information

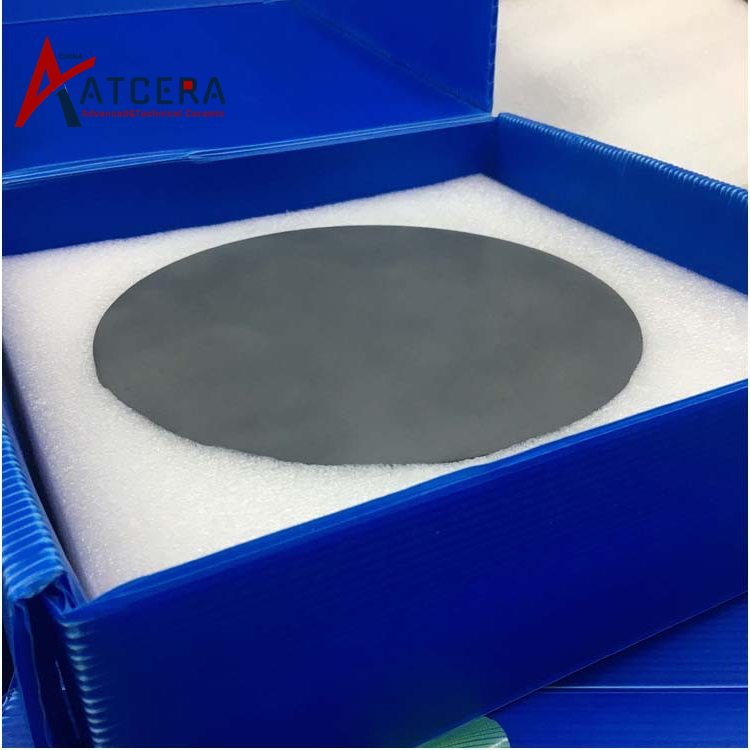

Hot Pressed Aluminum Nitride Plate Packing

Aluminum nitride plates are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
