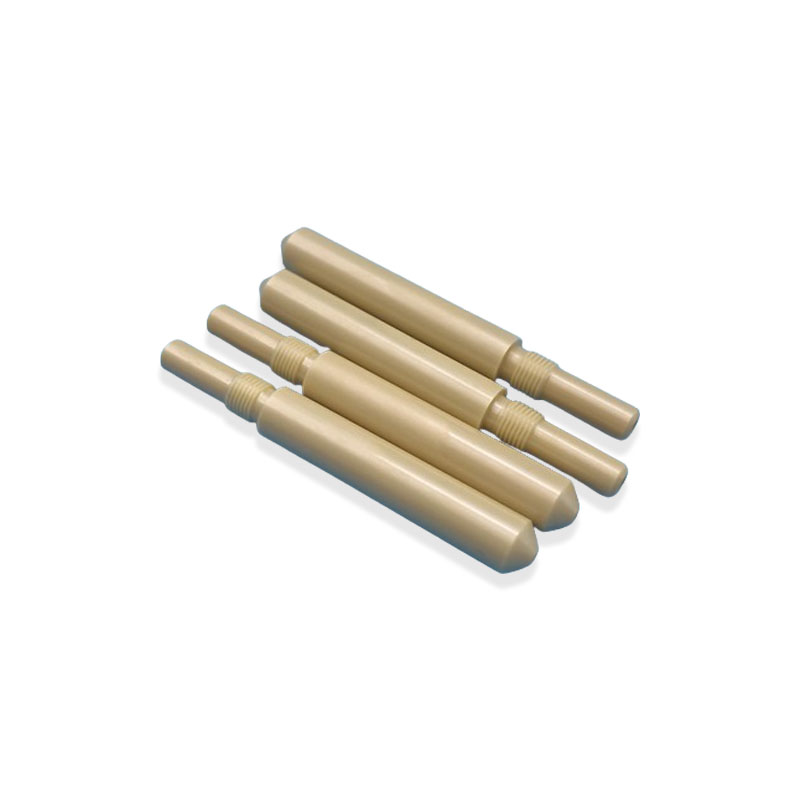

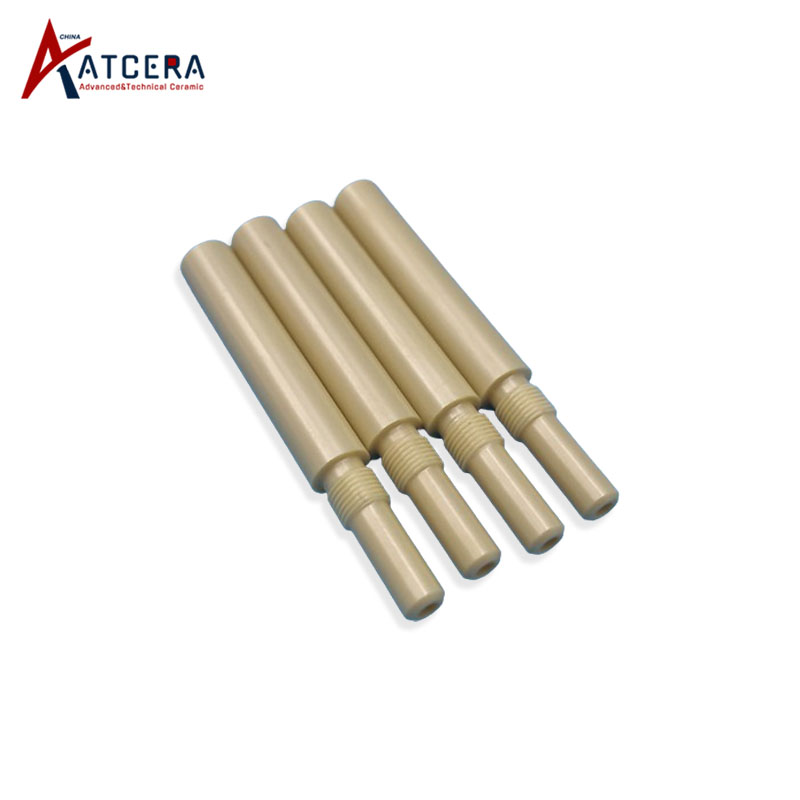

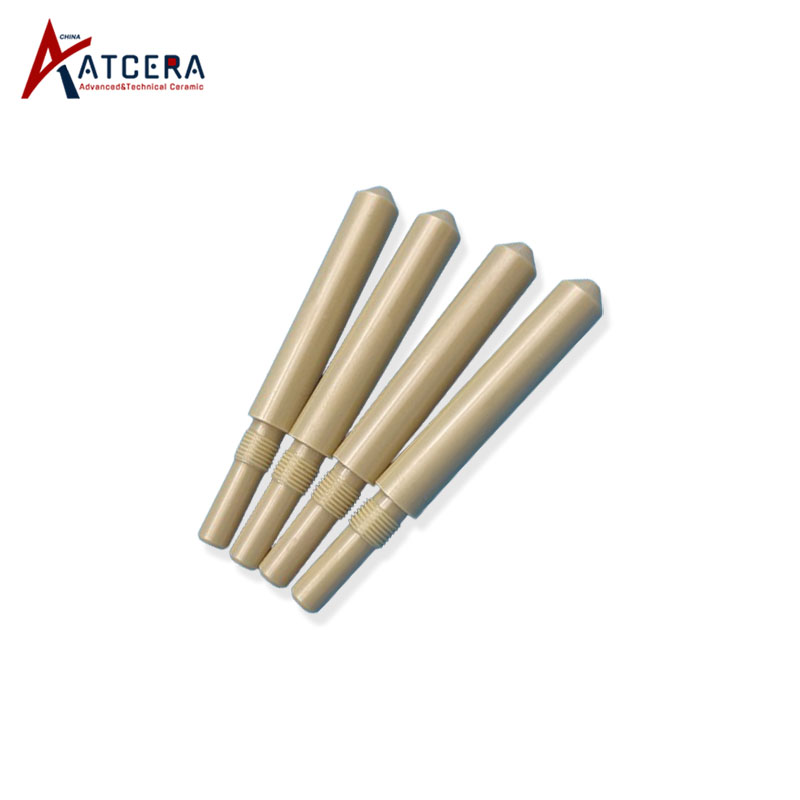

Magnesia Stablized Zirconia Ceramic Pin

Magnesia stablized zirconia ceramic pin is made of zirconia ceramics with magnesia as stabilizer, with high mechanical strength, resistance to abrasion, high temperature and corrosion. It is used for positioning and fixing of workpieces during machining, avoiding their movements or rotations, as well as component connection to equipment, preventing loosening or misalignment.

Brand:
ATCERA
Item NO.:
AT-MGO-X001

Materials
Magnesia Stablized Zirconia (MSZ) Ceramic
Shapes
Mechanical Parts
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Magnesia Stablized Zirconia Ceramic Pin

1. Magnesia stablized zirconia ceramic pin has high hardness, good wear resistance, high temperature resistance, oxidation resistance, corrosion resistance, can adapt to a variety of harsh working environment.

2. Magnesia stablized zirconia ceramic pin electrical insulation is good, non conductive, will not lead to leakage, will not cause galvanic corrosion to components.

3. Magnesia stablized zirconia ceramic pin have large modulus of elasticity, with small deformation, high positioning accuracy and good fixing effect.

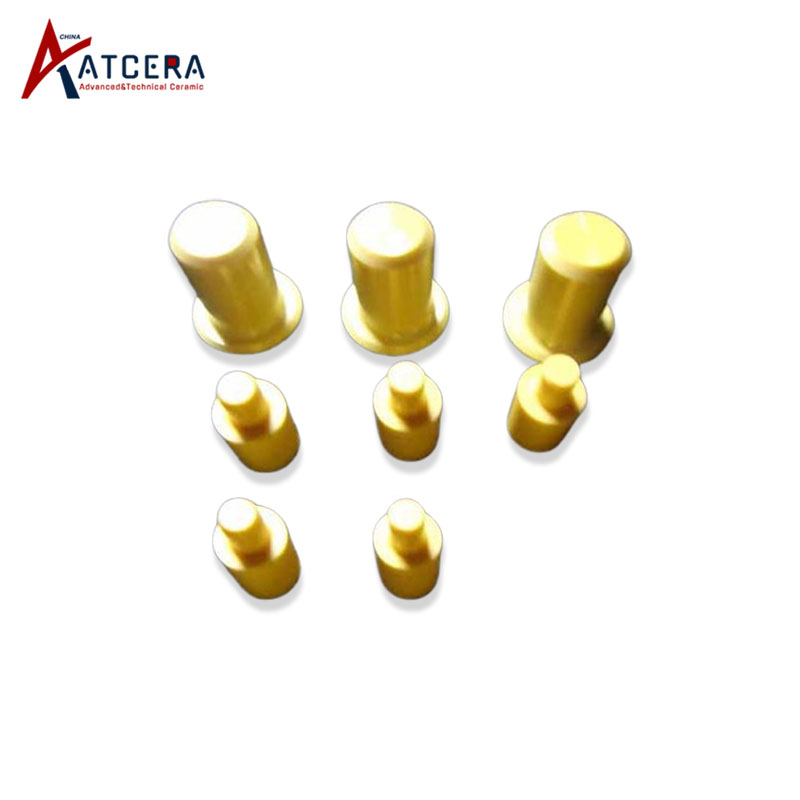

Applications of Magnesia stablized zirconia ceramic pin 3

Applications of MSZ Ceramic Pin

MSZ ceramic pin is used for positioning and fixing of workpieces during machining, avoiding their movements or rotations, as well as component connection to equipment, preventing loosening or misalignment.

Size Chart of Magnesia Stablized Zirconia Ceramic Pin

We are committed to delivering magnesia stablized zirconia ceramic pin tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parameter requirements for customization.

Magnesia Stablized Zirconia Ceramic Pin
Item NO.	Specifications
AT-MGO-X001	Customized

Technical Data of Mg-PSZ Materials

Material	Magnesia stablized zirconia (MSZ)
Density (g/cm3)	5.7
Flexture strength (MPa)	540
Young Modulus (GPa)	250
Poisson's ratio	0.31
Compressive strength (MPa)	2500
Hardness (HV)	1100
Fracture toughness (MPa*m1/2)	7.5
Maximum working temperature (℃)	1200
Thermal conductivity (W/m*K)	18
Thermal expansion coefficient (/℃)	*810-6**
Thermal shock resistance (ΔT ℃)	250

*This chart illustrates the standard characteristics of the magnesia stablized zirconia materials commonly employed in the manufacturing of our magnesia stablized zirconia products and parts. Please be aware that the attributes of customized msz products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Select the correct type and size of magnesia stablized zirconia ceramic pin according to the structural design of the component and the working environment.

2. The ceramic pin needs to be installed with special tools and equipment, avoid excessive knocking or impact, so as not to damage the ceramic pin.

3. Make sure that they fit well with the holes of the components when installing and using them to avoid loosening or falling off.

4. Check the condition of the pins regularly and replace them in time if they are found to be worn or damaged.

Valuable Information

Machining Precision

1. Diameter Tolerance: ±0.01mm

2. Hole Depth Tolerance: ±0.005mm

3. Surfance Roughness: Ra0.5

4. Cylindricity: ±0.004mm

5. Concentricity: ±0.003mm

6. Parallelism: ±0.002mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
