Metalized Alumina Substrate DBC DPC Ceramic Substrate

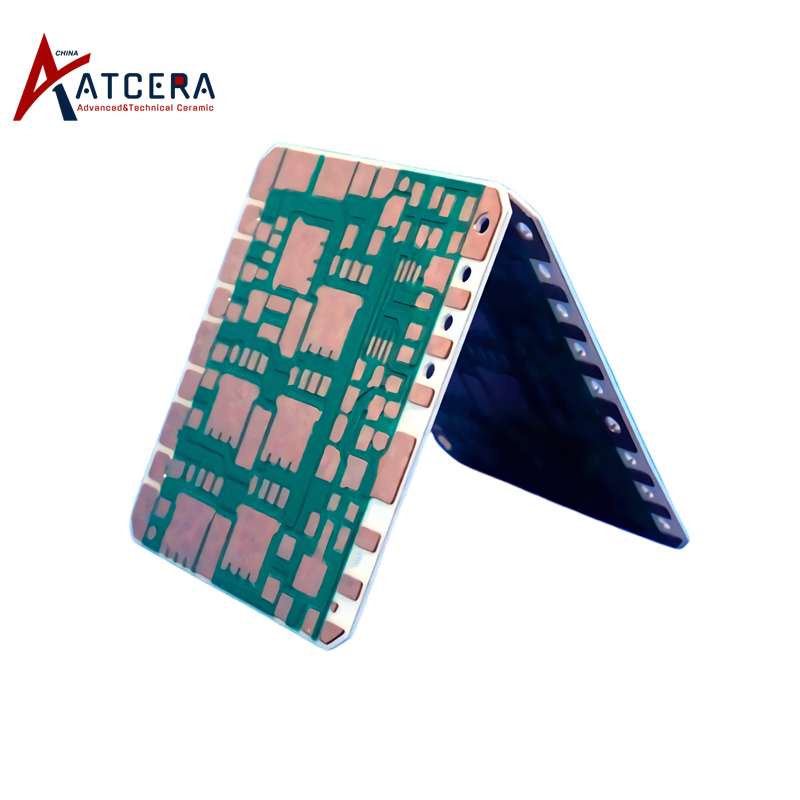

Alumina ceramic metalized substrates are ceramic copper-clad plates with electrical conductivity, thermal conductivity, and high insulation properties, formed by metalizing alumina ceramic substrates with copper. The alumina metalized substrates can be processed through various techniques. When combined with the DBC (direct bond copper) process, they become DBC alumina ceramic copper-clad substrates. Similarly, when integrated with the DPC (direct plated copper) process, they transform into DPC alumina copper-clad substrates.

Brand:
ATCERA
Item NO.:
AT-DBC-C001

Materials
Alumina
Shapes
Substrate
Applications
Semiconductor

Inquire Now

Properties of Alumina Metalized Substrate

1. The thermal expansion coefficient of DBC DPC alumina metalized substrates is close to that of silicon chips, eliminating the need for transition layers such as Mo sheets, thereby reducing material and processing costs.

2. DBC DPC alumina ceramic substrates reduce the number of solder layers, simplify packaging and assembly, lower thermal resistance, minimize voids, and enhance product yield.

3. Metalized alumina ceramic substrates exhibit excellent thermal conductivity and high current-carrying capacity, enabling compact chip packaging, significantly increasing power density, and improving the reliability of systems and devices.

Applications of Alumina Metalized Substrate

Alumina metalized substratess can be applied in automotive electronics, aerospace, solar panel arrays, communication equipment, laser devices, and other fields.

It serves not only as carrier plates to support components but also function as heat dissipation and insulation materials. Additionally, they enable interlayer circuit interconnection, achieving superior electrical performance. They are widely used in automotive electronics, sensors, power modules, high-frequency switching power supplies, relays, communication modules, LED modules, and other applications.

Size Chart of Alumina Metalized Substrate

Dedicated to delivering well-performed metalized alumina substrates customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of tailor-made sizes to meet your unique requirements.

Please provide necessary parameters including the substrate dimension drawing, PCB design drawing (if etching is not required), metal material, number of layers, and thickness.

Send Requirements for Custom Design

Alumina Metalized Substrate Rectangular
Item NO.	Length (mm)	Width (mm)	Thickness (mm)	Thickness of Copper Foil (mm)	Copper Coating Thickness (mm)	Purity (%)
AT-DBC-C001	10	5	0.25	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-C002	18	11	0.25	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-C003	20	15	0.38	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-C004	28	9	0.635	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-C005	32	24	0.55	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-C006	55	30	6	0.1-0.6	0.035	96
AT-DBC-C007	70	52	0.76	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-C008	84	35	1	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-C009	103	90	0.635	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-C010	127	105	2	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-C011	156	84	3	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-C012	178	138	5	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-C013	188	138	4.6	0.1-0.6	0.075-0.1	96-99.7

Alumina Metalized Substrate Square
Item NO.	Length (mm)	Width (mm)	Thickness (mm)	Thickness of Copper Foil (mm)	Copper Coating Thickness (mm)	Purity (%)
AT-DBC-Z001	10	10	0.25	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-Z002	15	15	0.25	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-Z003	18	18	0.25	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-Z004	25	25	0.38	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-Z005	31.5	31.5	0.635	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-Z006	33	33	0.76	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-Z007	40	40	0.76	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-Z008	60	60	1	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-Z009	72	72	1	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-Z010	100	100	3	0.1-0.6	0.075-0.1	96-99.7
AT-DBC-Z011	127	127	1	0.1-0.6	0.035	99.7
AT-DBC-Z012	138	138	5	0.1-0.6	0.075-0.1	96-99.7

Specification of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Metalized alumina ceramic substrates should avoid prolonged exposure to high-temperature environments and contact with organic solvents to prevent performance degradation.

2. Before use, inspect the surface of the substrate for scratches, cracks, or other defects and only use it after confirming its integrity.

3. Ensure proper connection of the metalized alumina ceramic substrate to the power source and correct grounding to prevent electrostatic damage to the substrate.

Valuable Information

Alumina Metalized Substrate Packing

Metalized alumina substrates are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
