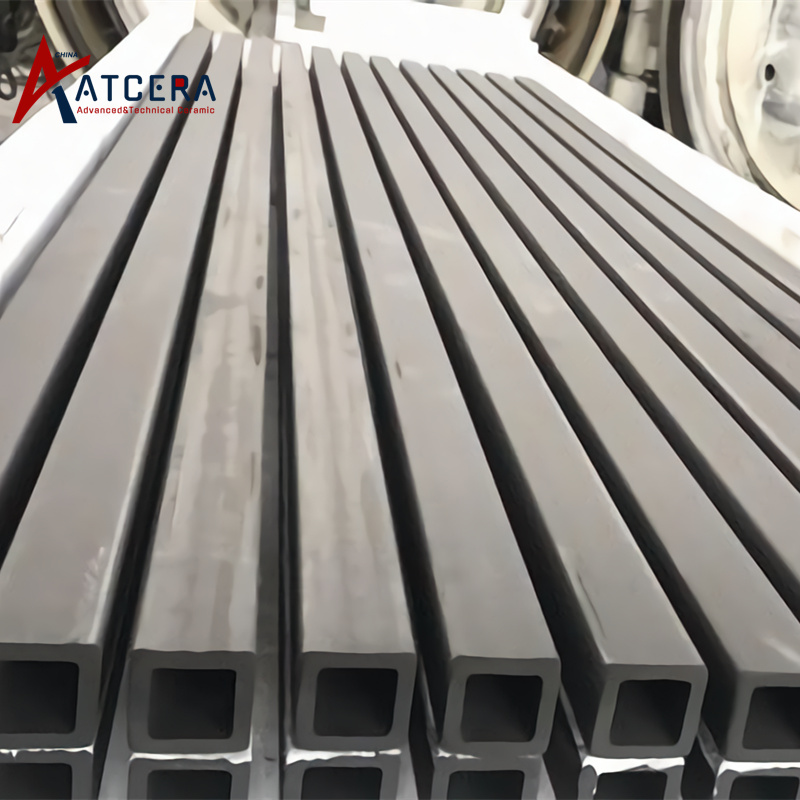

Nitride Bonded Silicon Carbide Beam NBSIC Beam

Nitride-bonded silicon carbide beam is produced with silicon carbide as the main raw material, adding a certain proportion of silicon powder, and sintering in nitrogen environment at high temperature, widely used as bearing structure in a variety of ceramic sintering kiln. It has the characteristics of high temperature resistance, good thermal conductivity, strong oxidation resistance, the maximum use temperature of 1500℃, also with long service life and high mechanical strength. It can reduce the dimension of the beam itself, improve the utilization space ratio and production capacity of the kiln.

Brand:
ATCERA
Item NO.:
AT-NBSIC-FL001

Materials
Nitride Bonded Silicon Carbide (NBSIC) Ceramic
Shapes
Mechanical Parts
Applications
Metallurgy Industry

Inquire Now

Advantages of Nitride Bonded Silicon Carbide Beam

1. NBSiC beam is high temperature resistant, the maximum use temperature can reach 1500℃, with good oxidation resistance and thermal shock resistance, can be well adapted to the ceramic sintering environment.

2. With high compressive and bending strength, can reduce the dimension of beam itself, improve the utilization space rate and production capacity of the kiln.

3. NBSiC beam has small thermal expansion coefficient, stable structure, no slag when used, no pollution to sintered ceramics.

Applications of nitride bonded silicon carbide beam

Applications of NBSIC Beam

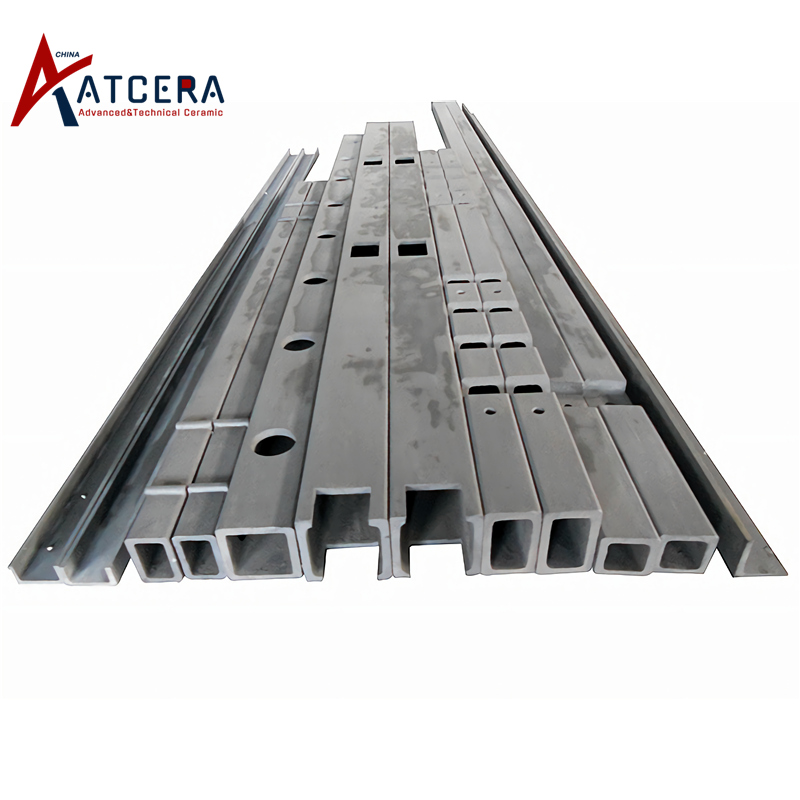

NBSiC beam is used as bearing structure in a variety of ceramic sintering kilns, including tunnel kiln, shuttle kiln, roller kiln, push plate kiln, the function is to support the structure of the kiln and loading the ceramic that needs to be sintered.

Size Chart of NBSIC Beam

Committed to providing optimal NBSIC beams customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Usage scenario information, specification requirements and drawings shall be provided if customized design request.

Dimension Tolerance: length ±3mm, width ±2mm, wall thickness ±0.5mm.

NBSIC Beam
Item No.	Cross-sectional Height (mm)	Cross-sectional Width (mm)	Wall Thickness (mm)	Length (mm)
AT-NBSIC-FL001	20	20	4	50-4500mm
AT-NBSIC-FL002	20	20	5	50-4500mm
AT-NBSIC-FL003	20	30	4	50-4500mm
AT-NBSIC-FL004	20	30	5	50-4500mm
AT-NBSIC-FL005	20	40	5	50-4500mm
AT-NBSIC-FL006	25	30	5	50-4500mm
AT-NBSIC-FL007	30	30	4	50-4500mm
AT-NBSIC-FL008	30	30	5	50-4500mm
AT-NBSIC-FL009	30	40	4	50-4500mm
AT-NBSIC-FL010	30	40	5	50-4500mm
AT-NBSIC-FL011	30	40	6	50-4500mm
AT-NBSIC-FL012	30	50	4	50-4500mm
AT-NBSIC-FL013	30	50	5	50-4500mm
AT-NBSIC-FL014	30	50	6	50-4500mm
AT-NBSIC-FL015	30	60	5	50-4500mm
AT-NBSIC-FL016	30	60	6	50-4500mm
AT-NBSIC-FL017	45	50	4	50-4500mm
AT-NBSIC-FL018	45	50	5	50-4500mm
AT-NBSIC-FL019	45	50	6	50-4500mm
AT-NBSIC-FL020	40	40	5	50-4500mm
AT-NBSIC-FL021	40	40	6	50-4500mm
AT-NBSIC-FL022	40	40	7	50-4500mm
AT-NBSIC-FL023	40	50	6	50-4500mm
AT-NBSIC-FL024	40	50	7	50-4500mm
AT-NBSIC-FL025	40	60	5	50-4500mm
AT-NBSIC-FL026	40	60	6	50-4500mm
AT-NBSIC-FL027	40	60	7	50-4500mm
AT-NBSIC-FL028	45	45	5	50-4500mm
AT-NBSIC-FL029	45	45	6	50-4500mm
AT-NBSIC-FL030	45	45	7	50-4500mm
AT-NBSIC-FL031	50	50	5	50-4500mm
AT-NBSIC-FL032	50	50	6	50-4500mm
AT-NBSIC-FL033	50	50	7	50-4500mm
AT-NBSIC-FL034	50	60	6	50-4500mm
AT-NBSIC-FL035	50	60	7	50-4500mm
AT-NBSIC-FL036	50	60	8	50-4500mm
AT-NBSIC-FL037	50	70	6	50-4500mm
AT-NBSIC-FL038	50	70	7	50-4500mm
AT-NBSIC-FL039	50	70	8	50-4500mm
AT-NBSIC-FL040	60	60	6	50-4500mm
AT-NBSIC-FL041	60	60	7	50-4500mm
AT-NBSIC-FL042	60	60	8	50-4500mm
AT-NBSIC-FL043	60	60	9	50-4500mm
AT-NBSIC-FL044	60	70	7	50-4500mm
AT-NBSIC-FL045	60	70	8	50-4500mm
AT-NBSIC-FL046	60	70	9	50-4500mm
AT-NBSIC-FL047	60	80	7	50-4500mm
AT-NBSIC-FL048	60	80	8	50-4500mm
AT-NBSIC-FL049	60	80	9	50-4500mm
AT-NBSIC-FL050	60	90	7	50-4500mm
AT-NBSIC-FL051	60	90	8	50-4500mm
AT-NBSIC-FL052	60	90	9	50-4500mm
AT-NBSIC-FL053	70	70	7	50-4500mm
AT-NBSIC-FL054	70	70	8	50-4500mm
AT-NBSIC-FL055	70	70	9	50-4500mm

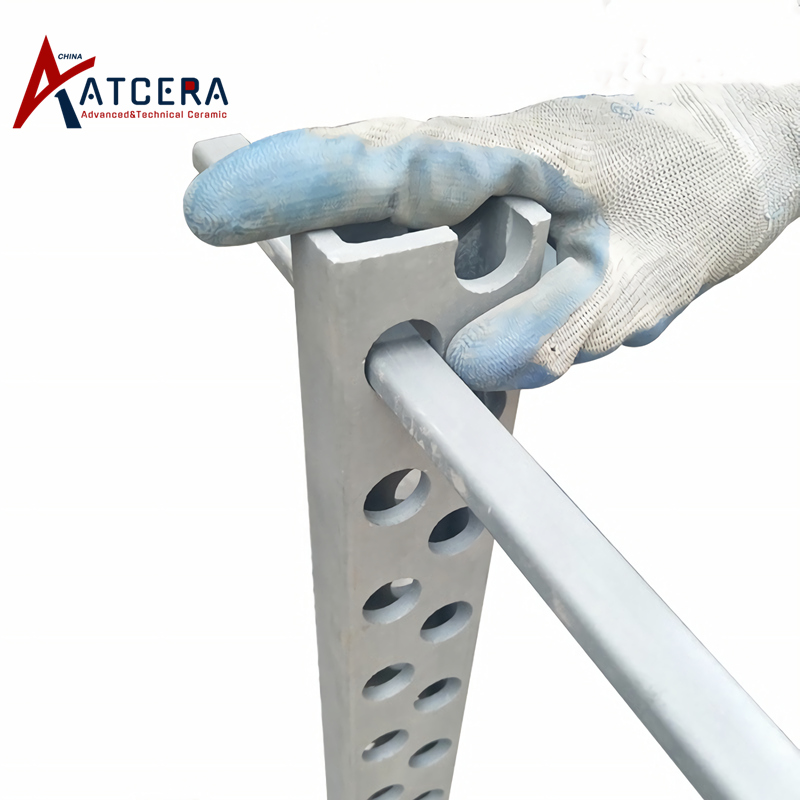

NBSIC Beam Semi-opened
Item No.	Cross-sectional Height (mm)	Cross-sectional Width (mm)	Wall Thickness (mm)	Length (mm)
AT-NBSIC-FL056	50	20	5	50-4500mm
AT-NBSIC-FL057	50	20	6	50-4500mm
AT-NBSIC-FL058	50	20	7	50-4500mm
AT-NBSIC-FL059	50	20	8	50-4500mm
AT-NBSIC-FL060	60	25	6	50-4500mm
AT-NBSIC-FL061	60	25	7	50-4500mm
AT-NBSIC-FL062	60	25	8	50-4500mm
AT-NBSIC-FL063	60	25	9	50-4500mm
AT-NBSIC-FL064	70	30	7	50-4500mm
AT-NBSIC-FL065	70	30	8	50-4500mm
AT-NBSIC-FL066	70	30	9	50-4500mm

Technical Data of NBSiC Materials

Material	Nitride Bonded Silicon Carbide (NBSiC)
SiC (W%)	80
Free SiC (W%)	0
Si₃N₄ (W%)	20
Maximum Working Temperature (℃)	≤1550
Density (g/cm3)	2.8
Porosity (%)	12
Bending Strength (Mpa)	160(20℃)
Bending Strength (Mpa)	180(1200℃)
Modulus of Elasticity (Gpa)	1200
Thermal conductivity (W/m*K)	15(1000℃)
Thermal expansion coefficient (K-1×10-6)	5
Hardness (kg/mm²)	2600

*This chart illustrates the standard characteristics of the nitride bonded silicon carbide materials commonly employed in the manufacturing of our nbsic products and parts. Please be aware that the attributes of customized nbsic products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. In the process of transportation and use of NBSiC beam, it is necessary to avoid violent impact to avoid damage.

2. Need to control the use temperature and the rate of temperature change, so as not to cause rupture.

3. Avoid being in a humid environment for a long time when not in use, so as not to affect its performance.

Achieve Peak Efficiency with NBSiC Bearing Beams

Valuable Information

$NBSIC refractory plates$

NBSIC Beam Packing

NBSIC beams are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Silicon Carbide Tubes: 15-Yr Corrosion Solution for Chemicals

Revolutionizing Chemical Processing: How Silicon Carbide Tubes Solve $20k/Day Downtime Challenges The chemical industry loses $5.3 billion annually to corrosion-related equipment failures (NACE International, 2022). At the heart of this crisis lies inadequate material performance in extreme environments. This article reveals why silicon carbide (SiC) tubes are replacing traditiona...

The Role of Zirconia Rods in Modern Industrial Applications

In today’s fast-paced industrial world, the demand for materials that combine strength, durability, and versatility is higher than ever. From high-performance equipment to critical components used in challenging environments, industries across the globe rely on advanced materials to meet their complex needs. One such material that has gained significant traction in modern manufacturin...

Why Quartz Glass Cuvettes Are Essential for Accurate Spectroscopy Measurements

In scientific research, spectroscopy plays a vital role in analyzing the properties of various substances by examining how light interacts with them. Whether it's determining the concentration of a solution or identifying chemical compounds, the accuracy of spectroscopy measurements is crucial. One of the most important factors in ensuring precise spectroscopic results is the choice of cuvette. Wh...

Applications of Alumina Substrates in the Automotive Industry

In recent years, the automotive industry has seen significant technological advancements, driven by the need for higher efficiency, sustainability, and performance. One of the materials playing a crucial role in this evolution is alumina. This ceramic material, known for its excellent thermal, mechanical, and electrical properties, has become indispensable in a range of automotive applications. Fr...

Why Silicon Nitride Tubes Are the Future of High-Temperature Applications

In the world of high-performance materials, the demand for solutions that can withstand extreme conditions is ever-growing. From aerospace and automotive to energy and electronics, industries are increasingly relying on materials that can handle not only high stress and pressure but also high temperatures. One such material that has emerged as a game-changer in these applications is silicon nitrid...

How Alumina Mechanical Parts Help Achieve Precision in High-Stress Environments

In industries that rely on high-performance machinery and equipment, precision and durability are critical. From aerospace to medical devices and semiconductor manufacturing, components must withstand extreme conditions while maintaining accuracy and reliability. One material that excels in these demanding environments is alumina, a form of aluminum oxide (Al2O3) used in the production of mechanic...

Comparing Silicon Carbide Crucibles to Other Crucible Materials: Which is Best for Your Process?

Crucibles are essential tools used in various industrial processes, particularly in metallurgy, casting, and chemical manufacturing. They provide a vessel for melting or holding high-temperature materials, and selecting the right crucible material is crucial to achieving optimal results. Among the wide variety of crucible materials available, Silicon Carbide (SiC) crucibles are often regarded as o...

Why is High-Purity Quartz Crucible Vital for Semiconductor Manufacturing and ATCERA's Innovation?

High-Purity Quartz Crucible: Essential for Semiconductor Manufacturing by ATCERA With the rapid development of science and technology, the semiconductor industry, as the cornerstone of modern information technology, is facing unprecedented challenges and opportunities. In the semiconductor manufacturing process, quartz glass crucible with its unique thermal stability and low reactivity, has...

Why is High-Purity Quartz Crucible Essential for Semiconductor & Solar PV Manufacturing?

High-Purity Quartz Crucible: Essential for Semiconductor & Solar PV Fields The purity of quartz crucible has a direct effect on the quality of its internal processing materials. In the high-tech industry, especially in the semiconductor and solar photovoltaic fields, the purity of the quartz crucible is directly related to the performance and reliability of the final product. As a brand...

How is High Purity Quartz Crucible Prepared and Why is it Crucial for High-Tech Industries?

High Purity Quartz Crucible: Preparation & Applications by ATCERA In the field of modern high-tech material preparation, high purity quartz (HPQ) crucible plays a crucial role. These crucibles are made of natural quartz minerals, mainly silica (SiO2), and are deeply purified to achieve the desired purity level. With its excellent technical strength, ATCERA brand focuses on the productio...

Nitride Bonded Silicon Carbide Tube NBSiC Protection Tube

$nitride bonded silicon carbide refractory plate$

Nitride Bonded Silicon Carbide Refractory Plate NBSIC Refractory Slab

Nitride Bonded Silicon Carbide Riser Tube NBSIC Riser Tube

Nitride Bonded Silicon Carbide Crucible NBSIC Crucible

Zirconia Ceramic Sleeve

Aluminum Nitride Ceramic Plate AlN Plate

Quartz Ceramic Roller For Furnace

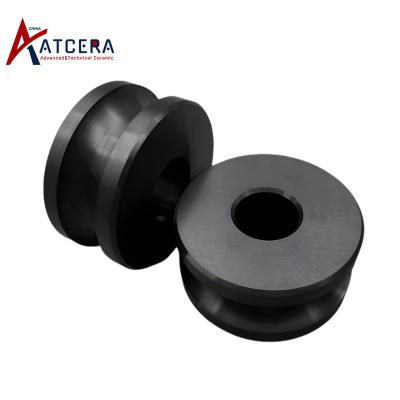

Silicon Nitride Ceramic Wire Wheel
