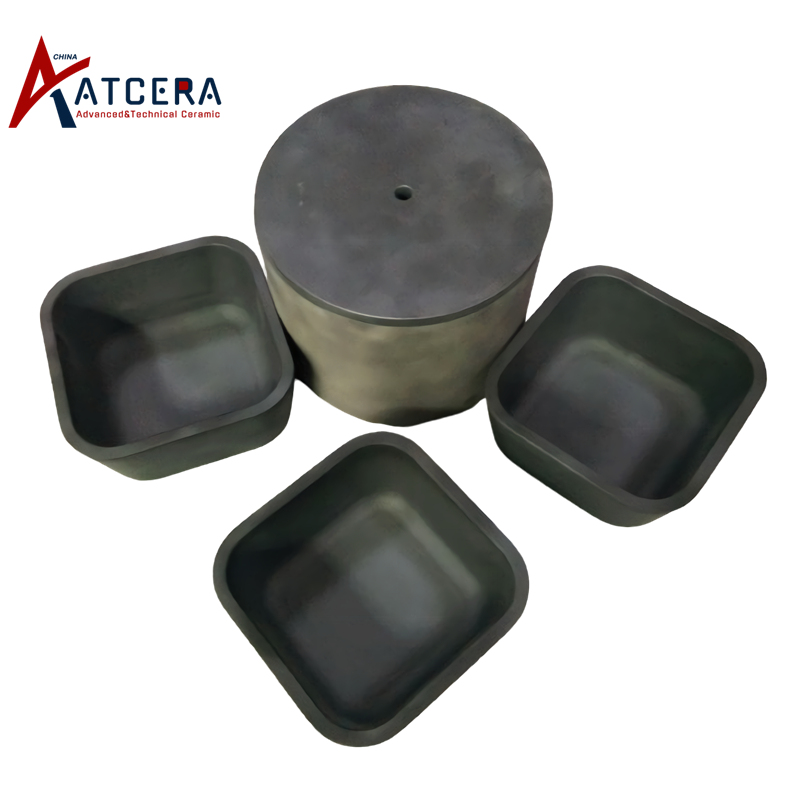

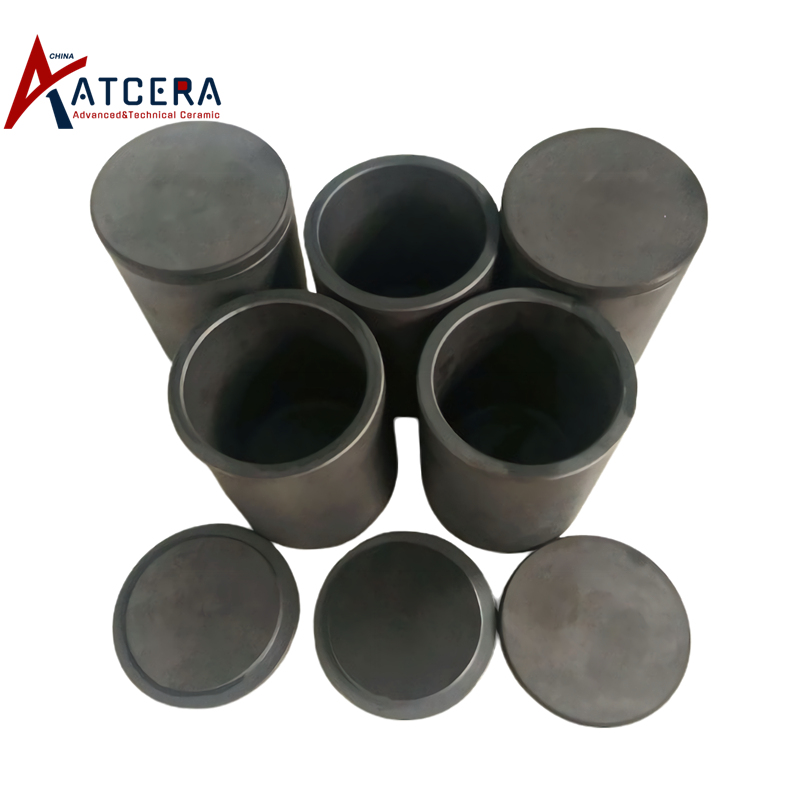

Silicon Carbide Crucible Pressureless Sintered SiC Crucible

The silicon carbide crucible boasts an array of remarkable properties such as high temperature resistance, excellent thermal shock stability, minimal expansion coefficient, resilience against strong acids and alkalis, resistance to spalling, good anti-powdering characteristics, and superior high-temperature creep resistance. Furthermore, its rapid heat conduction ensures uniform heating of the products being fired, effectively reducing energy consumption, accelerating the firing process, and enhancing production output. This crucible finds widespread application in the sintering of lithium-ion battery materials, electronic components, magnetic materials, highly corrosive substances, and various ceramic powders.

Brand:
ATCERA
Item NO.:
AT-SIC-G1001

Materials
SiC
Shapes
Crucible
Applications
Petrochemical Industry , Metallurgy Industry , Laboratory Equipment and Instruments

Inquire Now

Properties of Silicon Carbide Crucible

1. Outstanding Thermal Conductivity

Its thermal conductivity far surpasses other corrosion-resistant materials, enabling the use of smaller heat exchange areas for the same heat transfer efficiency.

2. Remarkable Corrosion Resistance

Possesses exceptional corrosion, oxidation, and erosion resistance, enduring high concentrations of sulfuric acid, nitric acid, phosphoric acid, mixed acids, strong alkalis, and oxidizing agents, thus offering an excellent service life.

3. Superior Thermomechanical Properties

Boasts high strength and hardness, along with exceptional wear resistance and impermeability under extreme high temperatures and pressures. It allows media to pass through at high speeds and can operate normally at temperatures up to 1300℃.

Applications of Pressureless Sintered SiC Crucible

1. Metallurgy

Widely used for melting and containing aluminum, copper, and other metals and their alloys.

2. Casting Industry: Employed for melting and casting various metals, including iron, steel, and bronze.

3. Glass Manufacturing

Utilized for melting and refining glass materials.

4. Semiconductor Industry

Plays a crucial role, especially in the production of silicon carbide semiconductor wafers.

Design Size for Silicon Carbide Crucible

We are committed to delivering optimal silicon carbide crucible tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

For custom orders, please provide the following specifications: outer diameter, inner diameter, wall thickness, height, and purity level.

Send Requirements for Custom Design

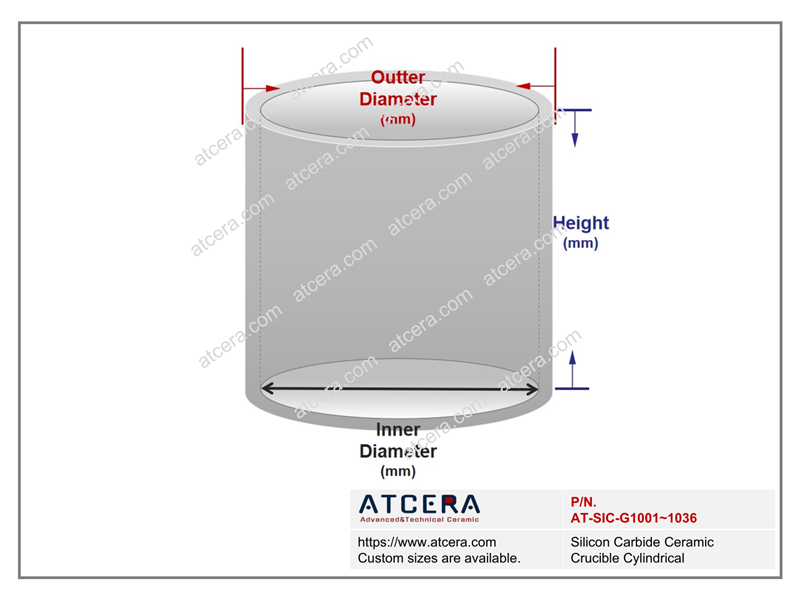

drawing of Silicon Carbide Ceramic Crucib Cylindrical

Silicon Carbide Ceramic Crucib Cylindrical
Item NO.	Outer Diameter (mm)	Inner Diameter (mm)	Height (mm)	Thickness (mm)
AT-SIC-G1001	10.0	7.8	19.0	1.1
AT-SIC-G1002	12	8	26	2
AT-SIC-G1003	14.5	10.5	33.5	2
AT-SIC-G1004	20	16	31	2
AT-SIC-G1005	22	16	80	3
AT-SIC-G1006	23	19	81	2
AT-SIC-G1007	28	21	110	3.5
AT-SIC-G1008	29	22	17.5	3.5
AT-SIC-G1009	29	24	19.7	2.5
AT-SIC-G1010	32.5	26.5	29	3
AT-SIC-G1011	38	29	32.5	4.5
AT-SIC-G1012	38	29.8	45	4.1
AT-SIC-G1013	41	33	71.5	4
AT-SIC-G1014	42	33	73	4.5
AT-SIC-G1015	45	38	18	3.5
AT-SIC-G1016	47.5	38	74	4.75
AT-SIC-G1017	51	41	122	5
AT-SIC-G1018	51	44	73	3.5
AT-SIC-G1019	52	39	144	6.5
AT-SIC-G1020	53	42	124	5.5
AT-SIC-G1021	60	51	100	4.5
AT-SIC-G1022	61	51	102	5
AT-SIC-G1023	61	52	102	4.5
AT-SIC-G1024	61.5	53	122	4.25
AT-SIC-G1025	63	52	103.5	5.5
AT-SIC-G1026	65	55	64.5	5
AT-SIC-G1027	71	61	111	5
AT-SIC-G1028	72.5	62.5	113	5
AT-SIC-G1029	73	62.5	125.5	5.25
AT-SIC-G1030	80	58	91	11
AT-SIC-G1031	93	83	103	5
AT-SIC-G1032	94	83.5	104.5	5.25
AT-SIC-G1033	100	92	132	4
AT-SIC-G1034	104	90	182	7
AT-SIC-G1035	105	95	135.5	5
AT-SIC-G1036	380	344	255	18

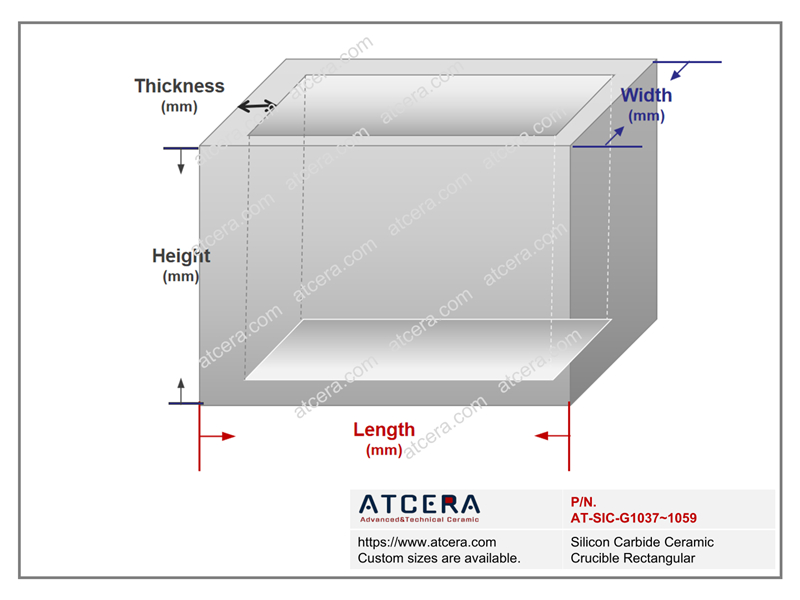

drawing of Silicon Carbide Ceramic Crucib Rectangular

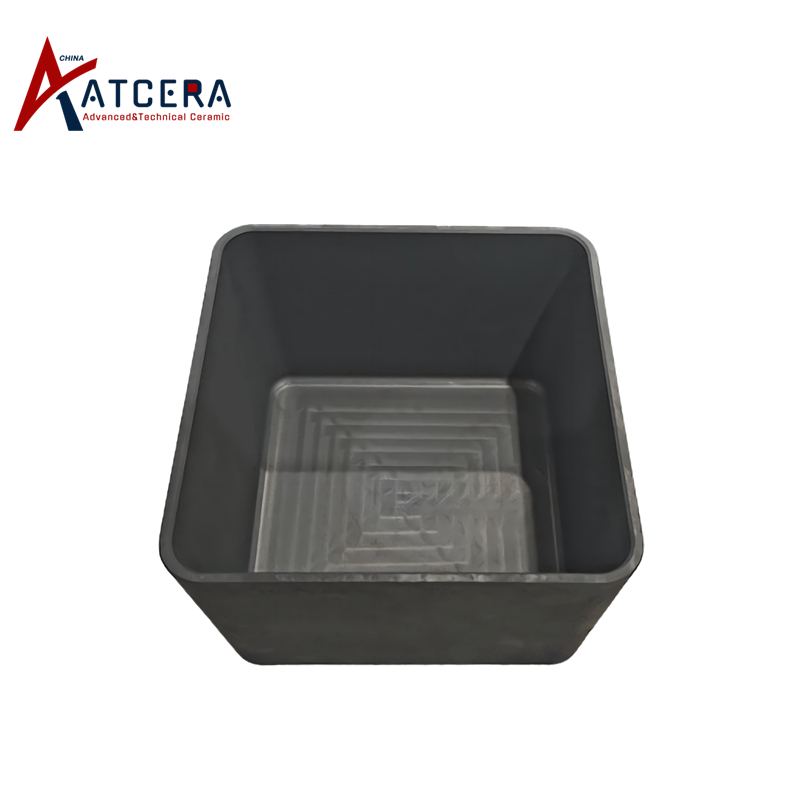

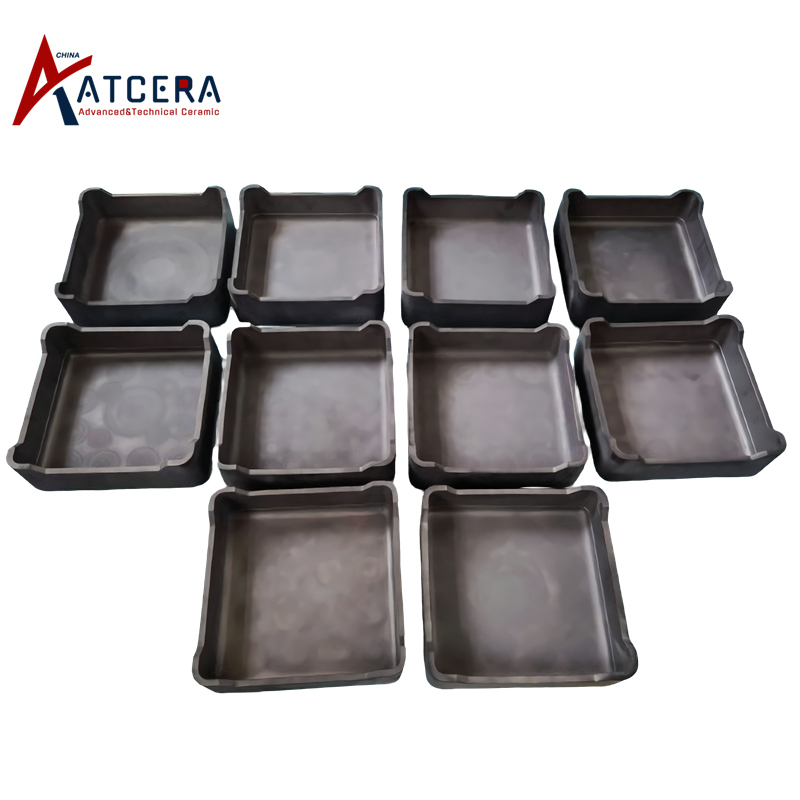

Silicon Carbide Ceramic Crucib Rectangular
Item NO.	Length (mm)	Width (mm)	Height (mm)	Thickness (mm)
AT-SIC-G1037	51.5	25.5	20.5	3.5
AT-SIC-G1038	70	70	25	5
AT-SIC-G1039	80.5	67.5	21	5
AT-SIC-G1040	100	100	30	4
AT-SIC-G1041	100	30	25	5
AT-SIC-G1042	122	49	37	5
AT-SIC-G1043	150	150	80	5.5
AT-SIC-G1044	160	160	72	7
AT-SIC-G1045	175	175	50	6
AT-SIC-G1046	180	70	35	5.5
AT-SIC-G1047	190	80	40	6
AT-SIC-G1048	200	35	8	5.5
AT-SIC-G1049	265	175	20	8
AT-SIC-G1050	300	300	110	6
AT-SIC-G1051	300	300	150	6.5
AT-SIC-G1052	300	300	175	7.5
AT-SIC-G1053	320	320	110	6.5
AT-SIC-G1054	320	320	48	5.5
AT-SIC-G1055	320	320	60	6
AT-SIC-G1056	320	320	75	6
AT-SIC-G1057	320	320	80	7
AT-SIC-G1058	320	320	85	8
AT-SIC-G1059	490	255	50	10

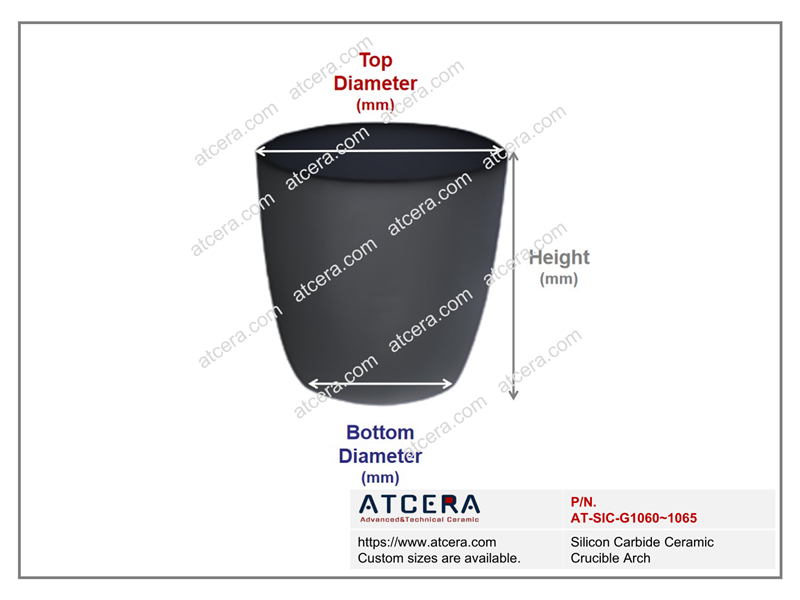

drawing of Silicon Carbide Ceramic Crucib Arch

Silicon Carbide Ceramic Crucib Arch
Item NO.	Top Diameter (mm)	Bottom Diameter (mm)	Height (mm)	Thickness (mm)
AT-SIC-G1060	53	30	52	3
AT-SIC-G1061	60	45	50	3.5
AT-SIC-G1062	65	30	55	4
AT-SIC-G1063	85	58	75	4.2
AT-SIC-G1064	89	70	112	4.8
AT-SIC-G1065	100	70	110	5.5

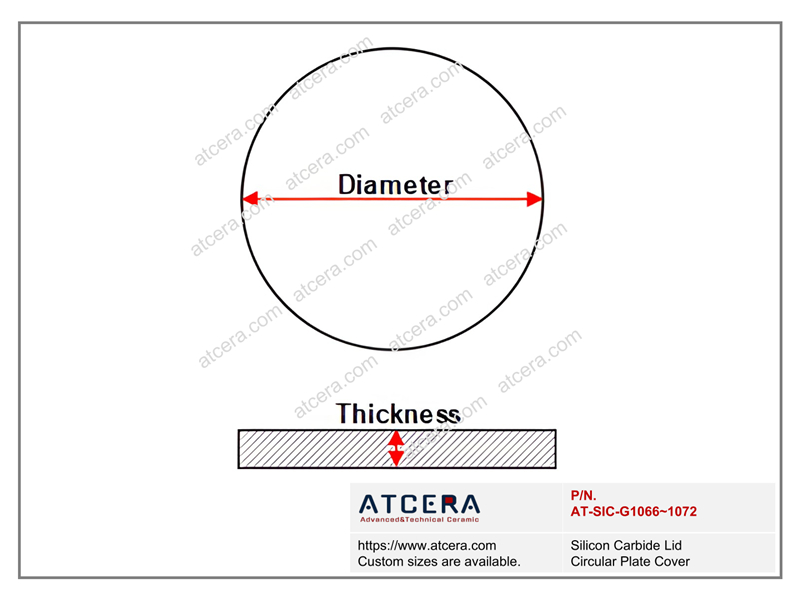

drawing of Silicon Carbide Lid Circular Plate Cover

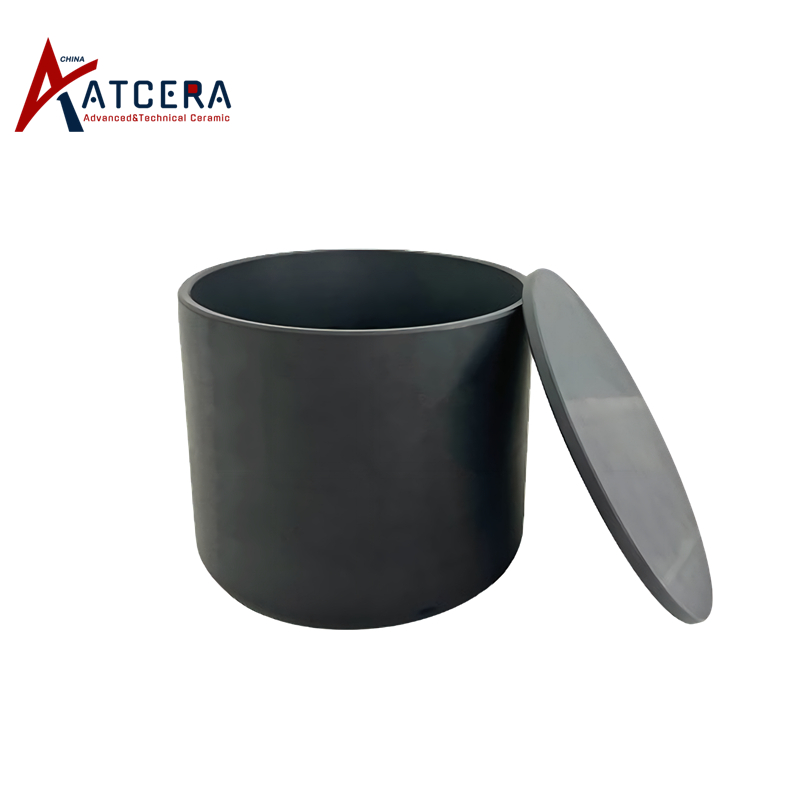

Silicon Carbide Lid Circular Plate Cover
Item NO.	Diameter (mm)	Thickness (mm)
AT-SIC-G1066	20	2
AT-SIC-G1067	32.5	3
AT-SIC-G1068	45	3.5
AT-SIC-G1069	51	5
AT-SIC-G1070	72.5	5
AT-SIC-G1071	100	4
AT-SIC-G1072	104	7

Technical Data of Silicon Carbide Materials

Item		Unit	Index Data
Item		Unit	Reaction-sintered SiC (SiSiC)	Silicon Nitride Bonded With SiC (NBSiC)	Sintered SiCn Without Pressure (SSiC)
SiC Content		%	85	80	99
Free Silicon Content		%	15	0	0
Max. Service Temp.		℃	1380	1550	1600
Density		g/cm3	3.02	2.72	3.1
Porosity		%	0	12	0
Bending Strength	20℃	Mpa	250	160	380
Bending Strength	1200℃	Mpa	280	180	400
Modulus of Elasticity	20℃	Gpa	330	220	420
Modulus of Elasticity	1200℃	Gpa	300	/	/
Thermal Conductivity	1200℃	W/m.k	45	15	74
Coefficient of Thermal Expansion		K-1×10-6	4.5	5	4.1
Vickers Hardness	HV	kg/mm2	2500	2500	2800

*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Preheat the crucible before melting or casting metals to avoid sudden temperature changes. During heating, support the crucible with a mud triangle bracket at the bottom. Avoid rapid cooling after use as the crucible's resistance to strain is limited, and excessive temperature followed by a sudden drop can pose potential hazards.

2. When adding heating materials to the crucible, pour slowly and leave sufficient space for air circulation to enhance melting efficiency. Overfilling may cause metal to spill out during the smelting process, posing a risk to operators.

3. Given the high efficiency of the silicon carbide crucible, when nearing evaporation, it is crucial to maintain concentration and use residual heat for evaporation instead of allowing the crucible to dry completely. The evaporation process should be slowly cooled down and handled appropriately. It is essential to carefully read and follow the relevant operating instructions to avoid improper handling.

Valuable Information

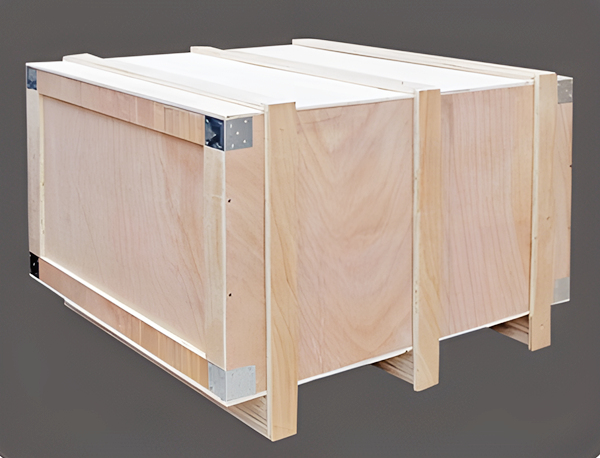

SiC Crucible Packing

Silicon carbide crucibles are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
