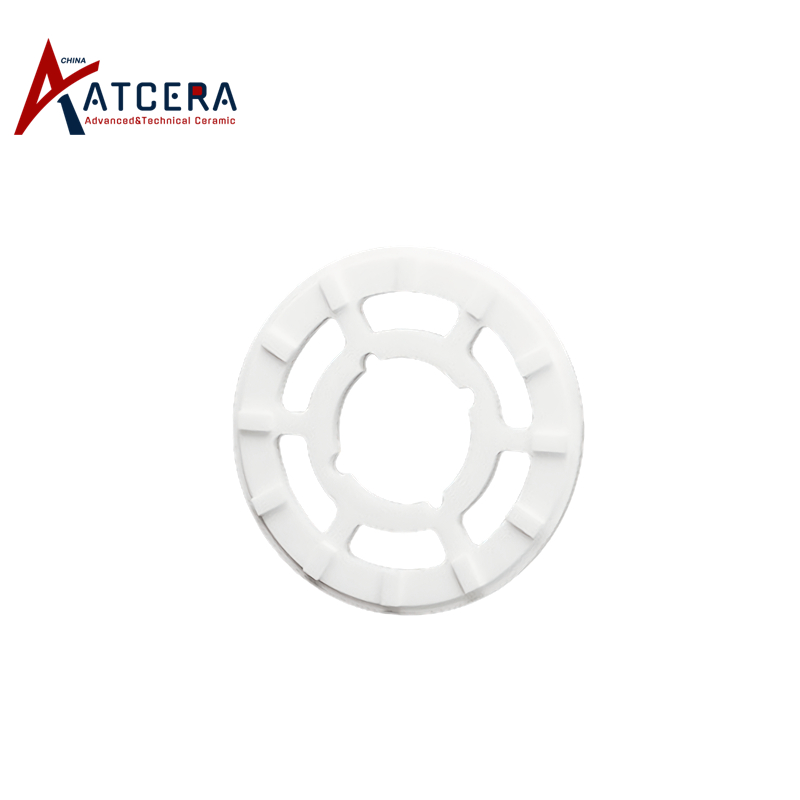

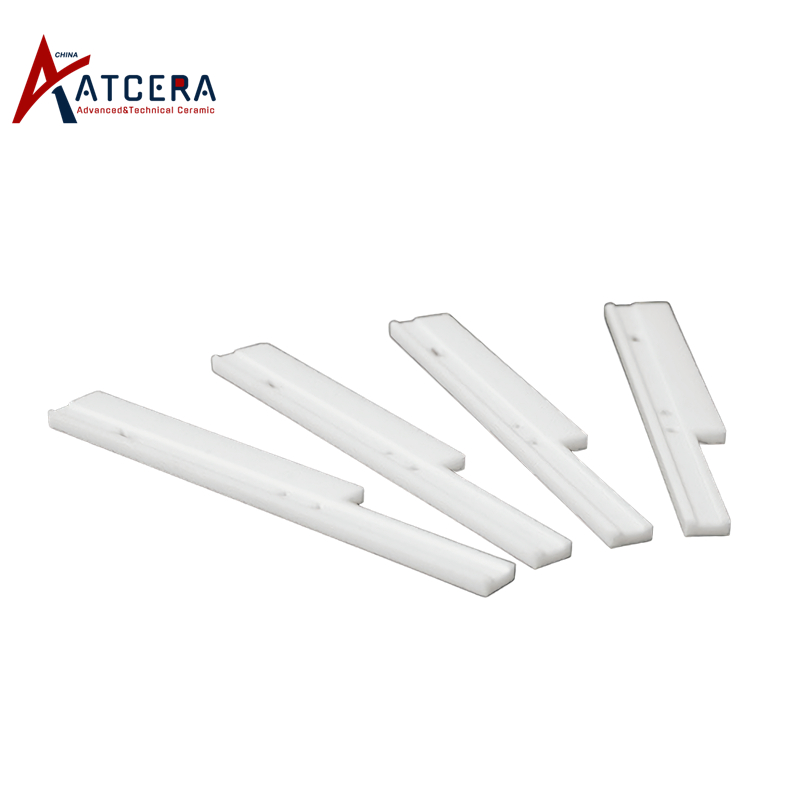

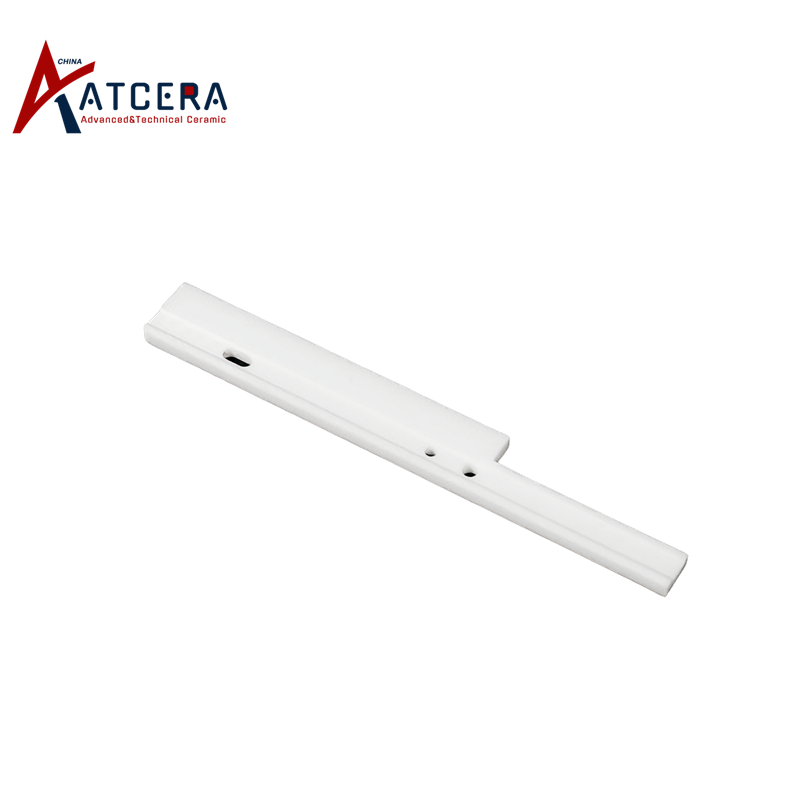

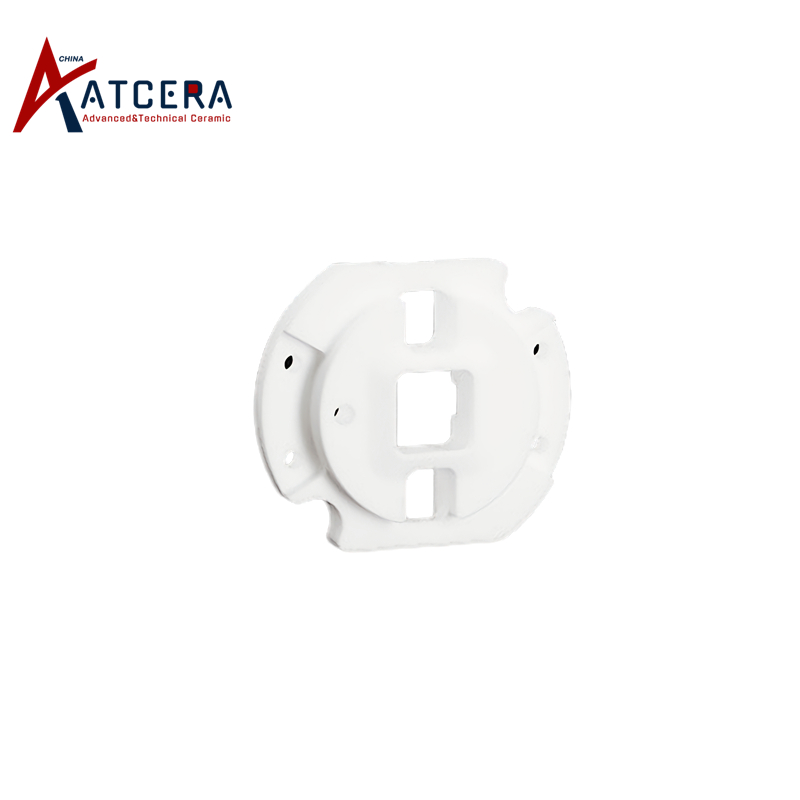

Zirconia Ceramic Jig and Fixture

Zirconia ceramic jigs and fixtures are designed to support, secure, and precisely position workpieces for machining or inspection. These fixtures are renowned for their exceptional mechanical strength, wear resistance, high-temperature tolerance, and corrosion resistance, ensuring minimal deformation and a long service life.

  • Brand:

    ATCERA
  • Item NO.:

    AT-YHG-ZJ1001
  • Materials

    Zirconia
  • Shapes

    Mechanical Parts
  • Applications

    Mechanical Parts
zirconia ceramic jig and fixture

Properties of Zirconia Ceramic Jig and Fixture







1. The zirconia ceramic locating pin possesses high hardness, superior wear resistance, heat resistance, oxidation resistance, and corrosion resistance, making it suitable for various harsh working environments.









2. The zirconia ceramic locating pin exhibits excellent electrical insulation, preventing electrical conductivity, leakage, and electrochemical corrosion of components.

ZrO2 jig and fixture

Applications of Zirconia Jig and Fixture











Zirconia ceramic jigs and fixtures are extensively utilized in machining equipment, inspection instruments, heat treatment equipment, and other applications, where they support, secure, and precisely position workpieces for machining or inspection.



















Customization Design of Zirconia Ceramic Jig and Fixture

We are committed to delivering optimal zirconia  jigs and fixtures tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.







Please provide drawings and parametric specifications for customization.



ceramic jig and fixture







Technical Data of Zirconium Oxide Materials

Material Zirconia (ZrO2)+ Stabilizing agent
Thermal Conductivity 3.0w/m.k
Temperature resistance 1000℃
Density 5.65-6.05g/cm3
Thermal Expansion Coefficient 0.00001/℃
Bending Strength 480-1000MPa
Hardness (Hv) 1200-1450HV1
Fracture Toughness 6-8MPa*m1/2
Hazardous Substances In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products  and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.











Usage Instructions




1. When installing zirconia ceramic jigs and fixtures, ensure they are correctly and securely mounted on the equipment to prevent loosening or detachment.




2. Regular maintenance and upkeep, including cleaning, lubrication, and inspections, are essential to maintain the fixtures' optimal performance and extend their service life.




3. During operation, prioritize safety and avoid any potential risks of personnel injury or equipment damage due to improper handling or negligence.

Valuable Information



Zirconia Ceramic Jig and Fixture Packing

Zirconia Ceramic Jig and Fixture Packing









Zirconia ceramic  jigs and fixtures are carefully packaged in appropriate containers to avoid any potential damage.

















Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
