Zirconia ceramic refractory plates are refractory materials manufactured using zirconia powder and stabilizers as raw materials. They are formed and then sintered at high temperatures. Depending on the composition of the stabilizer, they can be classified into two series: yttrium-stabilized zirconia ceramic plates and calcium-stabilized zirconia ceramic plates. These plates exhibit high temperature resistance, excellent thermal shock resistance, and superior chemical corrosion resistance, making them suitable for use as sintering plates in the sintering process of ceramic components, powder metallurgy, and other products.
Brand:
ATCERAItem NO.:
AT-YHG-C1001Materials
Zirconia CeramicShapes
PlateApplications
Petrochemical Industry , Metallurgy Industry
1. Zirconia ceramic refractory plates possess high temperature resistance and excellent thermal shock resistance, with a maximum operating temperature of up to 1600°C.
2. These plates exhibit superior chemical corrosion resistance and high-temperature resistance, resisting erosion from various metal oxides, non-metal oxide melts, and without undergoing chemical reactions or adhesion with the sintered ceramic components.
3. Zirconia ceramic refractory plates possess high mechanical strength and load-bearing capacity, enabling the reduction of plate size and the enhancement of single-batch capacity in furnaces.
Zirconia refractory plates are used as sintering plates for dielectric ceramics, powder metallurgy, chip capacitors, ferrite magnetic materials, and other products. They prevent adhesion during the sintering process, ensuring product stability and qualification rates.
We are committed to delivering optimal zirconia refractory plates tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.
Please provide drawings and parametric specifications for customization.
Machining Tolerance: ±0.1mm

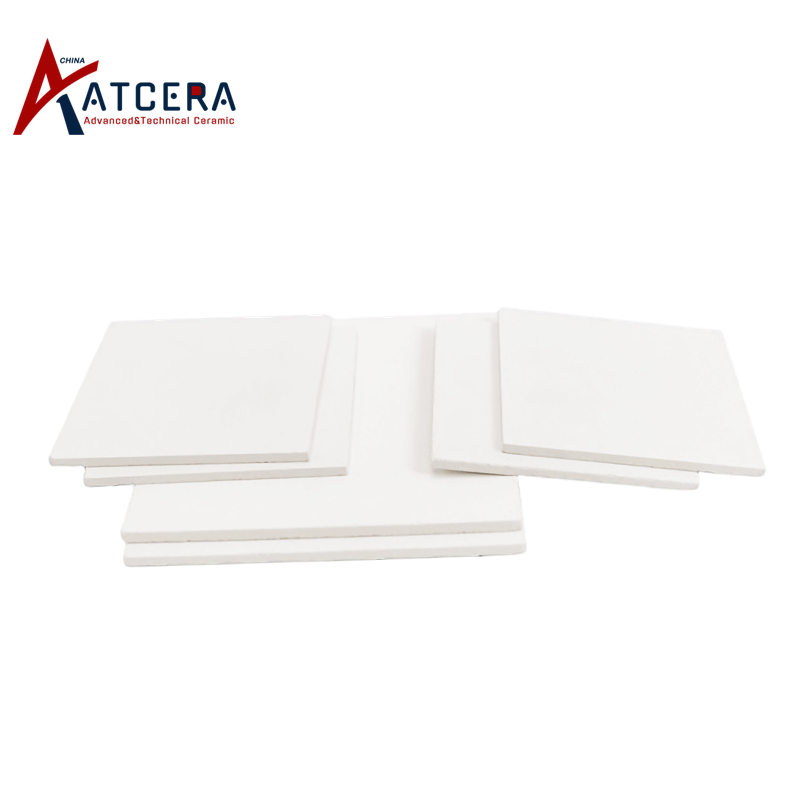

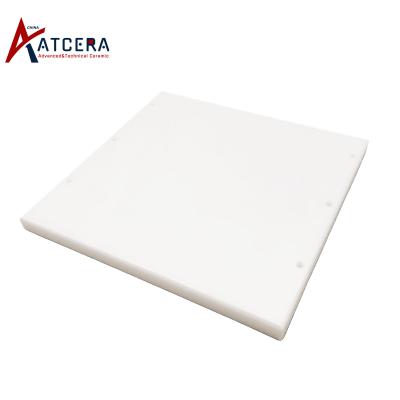

| Zirconia Ceramic Refractory Flat Plate | |||
| Item no. | Length x Width (mm) |
Thickness (mm) |
Remark |
| AT-YHG-C1001 | 75×75±0.8 | 3.5±0.2 | Suitable for sintering circular ceramic capacitors and magnetic materials. |
| AT-YHG-C1002 | 90×72±0.8 | 3.5±0.2 | |
| AT-YHG-C1003 | 98×85±0.8 | 3.5±0.2 | |
| AT-YHG-C1004 | 98×98±0.8 | 3.5±0.2 | |
| AT-YHG-C1005 | 100×75±0.8 | 3.5±0.2 | |
| AT-YHG-C1006 | 100×100±0.8 | 3.5 or 4.0±0.2 | |
| AT-YHG-C1007 | 106×75±0.8 | 3.5 or 4.0±0.2 | |
| AT-YHG-C1008 | 115×60±0.8 | 3.5 or 4.0±0.2 | |
| AT-YHG-C1009 | 140×140±1.0 | 4.0±0.3 | |
| AT-YHG-C1010 | 150×150±1.0 | 4.0±0.3 | |

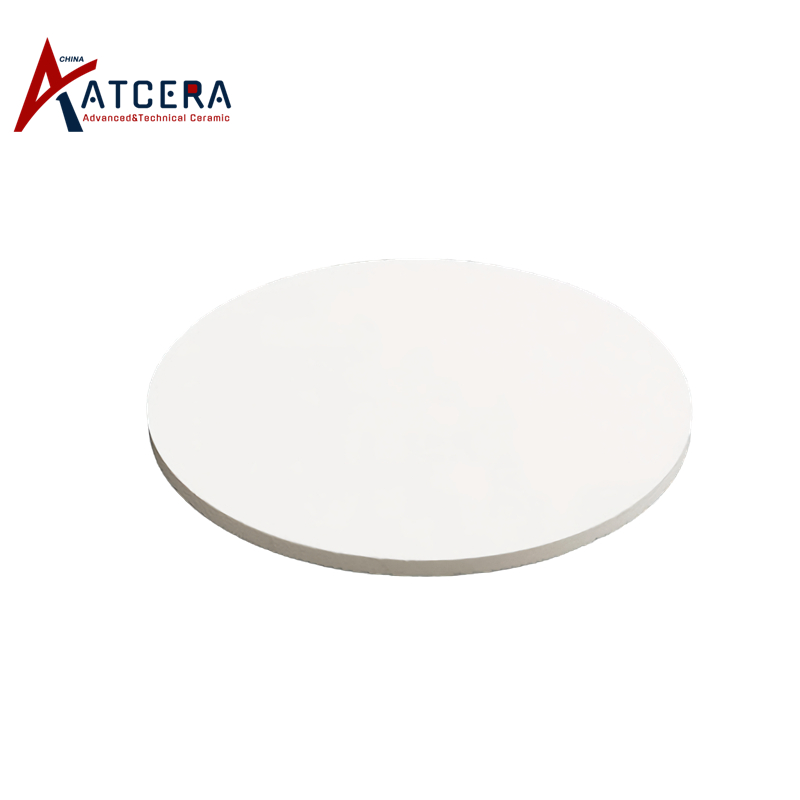

| AT-YHG-C1011 | Φ95±0.8 | 3.5±0.2 | |
| AT-YHG-C1012 | Φ115±0.8 | 3.5±0.2 | |

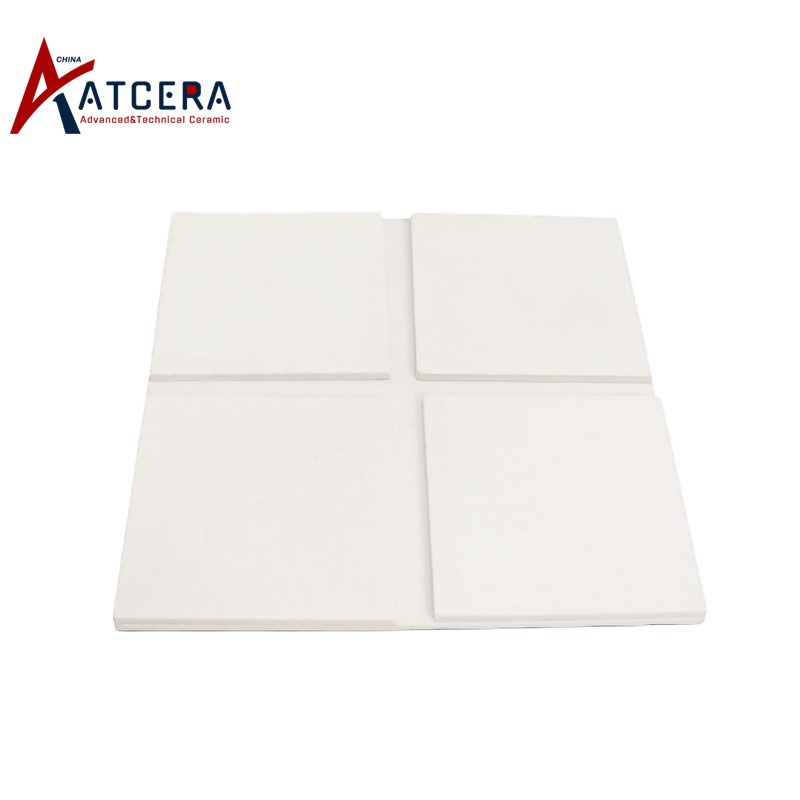

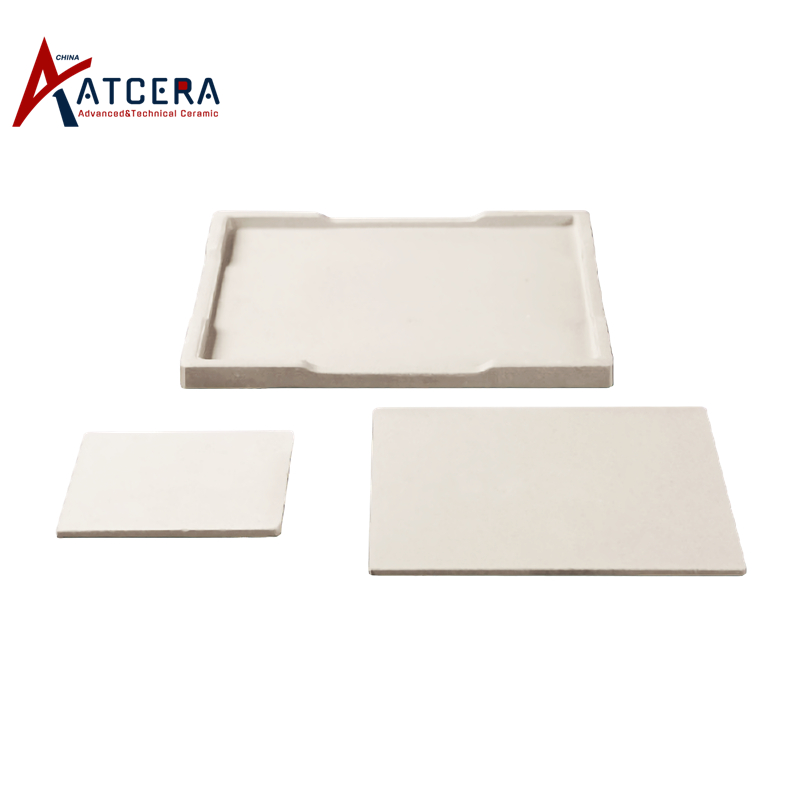

| Zirconia Ceramic Refractory Trough Plate | ||||
| Item no. | Length x Width (mm) |
Thickness (mm) |
Height of Trough (mm) |
Remark |
| AT-YHG-C1013 | 75×75±0.8 | 3.5±0.3 | 4.5±0.3 | Smooth Zirconia Trough Plate: With a smooth surface, small pore diameter, high strength, and excellent thermal stability, it resists deformation at high temperatures. The trough structure facilitates airflow, making it suitable for high-temperature sintering of various ceramic capacitors, chip inductors, and other electronic components. |
| AT-YHG-C1014 | 100×100±0.8 | 5.0±0.3 | 10±0.3 | |
| AT-YHG-C1015 | 115×60±0.8 | 4.0±0.3 | 4.5±0.3 | |
| AT-YHG-C1016 | 115×60±0.8 | 4.0±0.3 | 5.5±0.3 | Rough Zirconia Trough Plate: Characterized by coarse particles, high porosity, and easy slurry absorption, it ensures a sufficient atmosphere for the sintering of low-frequency ceramic capacitors (MLCC). Its excellent thermal shock resistance and chemical stability guarantee a long service life. |
| AT-YHG-C1017 | 115×60±0.8 | 4.5±0.3 | 6.0±0.3 | |
| AT-YHG-C1018 | 140×70±1.0 | 5.0±0.3 | 8.0±0.3 | |
| AT-YHG-C1019 | 150×150±1.0 | 5.5±0.3 | 13±0.3 | |
| Material | Zirconia (ZrO2)+ Stabilizing agent |
| Thermal Conductivity | 3.0w/m.k |
| Temperature resistance | 1000℃ |
| Density | 5.65-6.05g/cm3 |
| Thermal Expansion Coefficient | 0.00001/℃ |
| Bending Strength | 480-1000MPa |
| Hardness (Hv) | 1200-1450HV1 |
| Fracture Toughness | 6-8MPa*m1/2 |
| Hazardous Substances | In compliance with EU ROHS standards |
*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.
Zirconia ceramic refractory plates are carefully packaged in appropriate containers to avoid any potential damage.
1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.
2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.
3. Flexible business cooperation mechanism, support at least one piece of quantity customization.
4. Quickly provide samples and test reports to confirm that the product meets your needs.
5. Provide product use and maintenance suggestions to reduce your cost of use.
