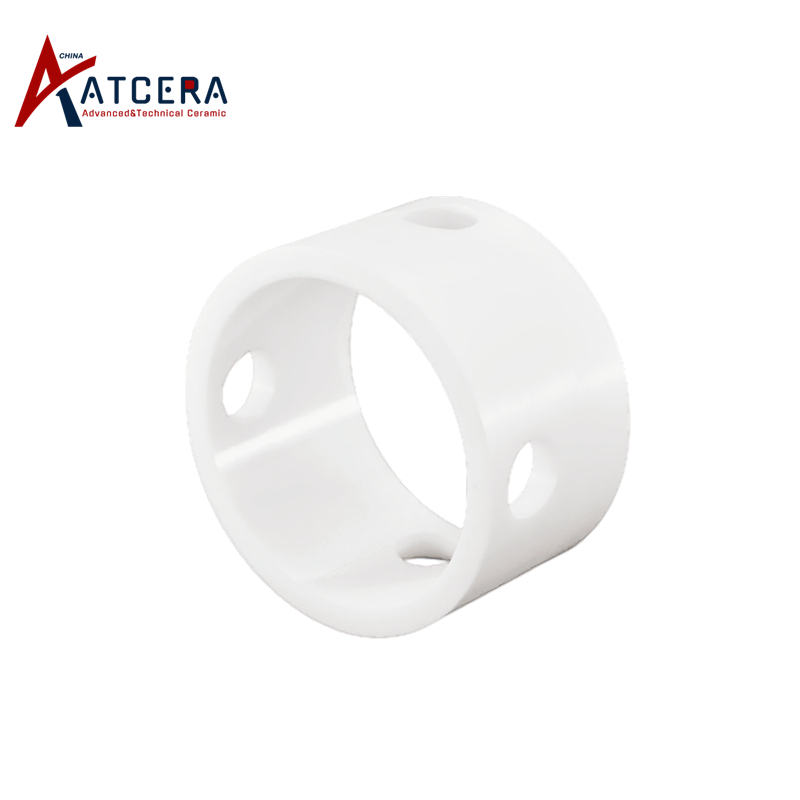

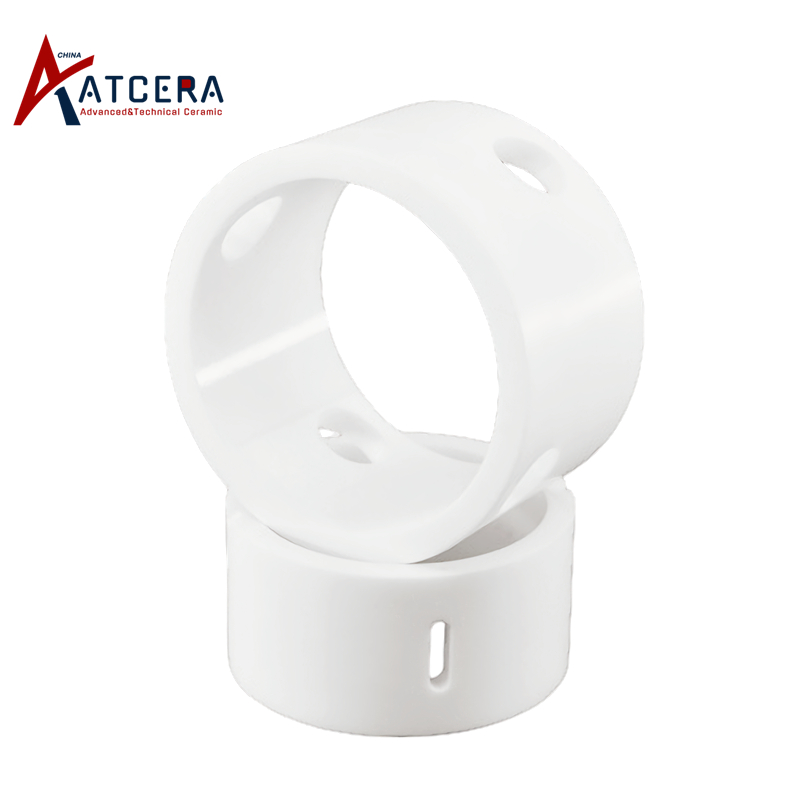

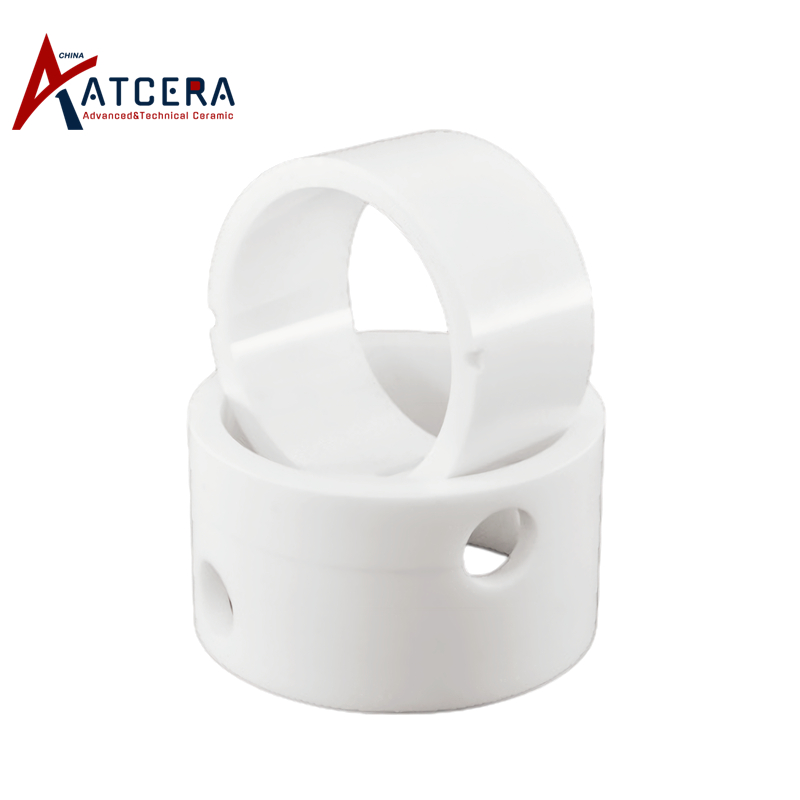

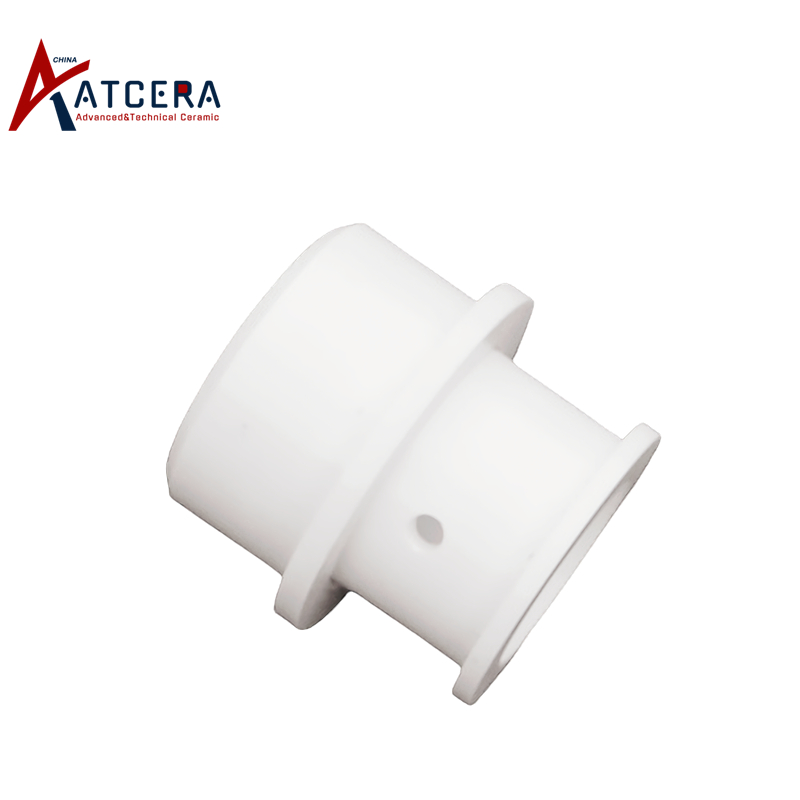

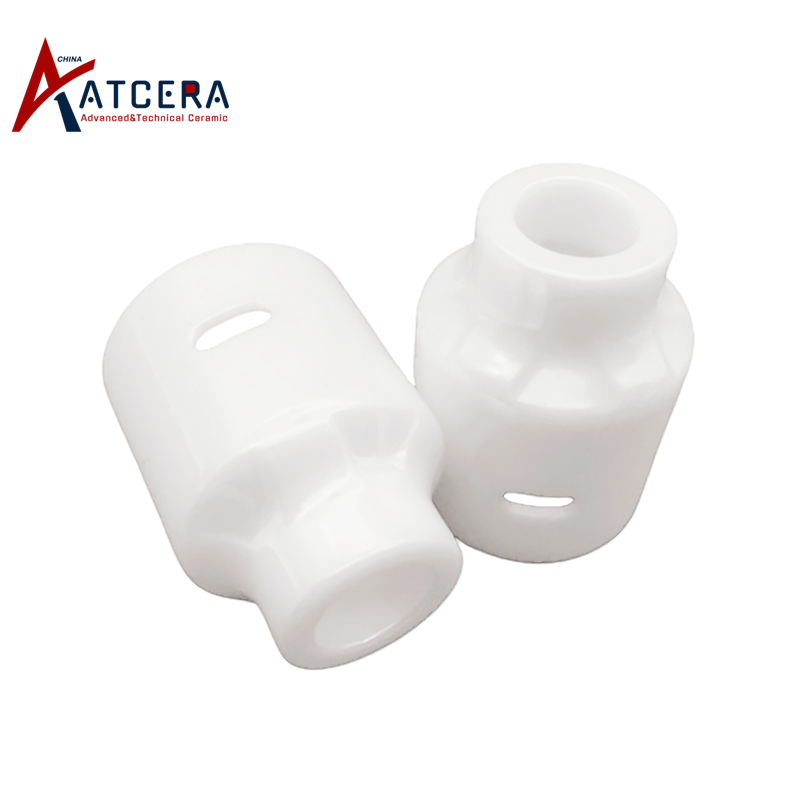

Zirconia Ceramic Shaft Sleeve

A shaft sleeve is a crucial component in mechanical devices, positioned between the bearing and the shaft. It serves a dual purpose of protection and cushioning, reducing friction and wear, thereby extending the service life of both the shaft and the bearing. Primarily utilized in rotating machinery such as engines, motors, reducers, and pumps, the shaft sleeve ensures smooth and efficient operation.

Brand:
ATCERA
Item NO.:
AT-YHG-ZT001

Materials
Zirconia Ceramic
Shapes
Mechanical Parts
Applications
Mechanical Parts

Inquire Now

Properties of Zirconia Ceramic Shaft Sleeve

1. Zirconia ceramic shaft sleeves exhibit exceptional mechanical strength, toughness, and wear resistance, providing crucial support and protection for the shaft, preventing direct wear and subsequent failure.

2. With its high temperature tolerance and excellent corrosion resistance, the zirconia shaft sleeve effectively separates the shaft from the bearing, preventing direct contact with high-temperature environments or corrosive media.

3. The self-lubricating property of zirconia ceramic shaft sleeves ensures low noise and easy installation, making them suitable for applications where lubrication is challenging or impossible, such as in vacuum and high-temperature environments.

Applications of Zirconia Shaft Sleeve

Zirconia ceramic shaft sleeves, positioned between bearings and shafts, offer crucial support, minimizing shaft wear and reducing friction between the shaft and bearing. This reduces operational resistance and enhances the longevity of equipment, making them a popular choice in industries such as machinery manufacturing, aerospace, automotive manufacturing, and medical devices.

Size Chart of Zirconia Ceramic Shaft Sleeve

We are committed to delivering optimal zirconia shaft sleeves tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parametric specifications for customization.

Zirconia Ceramic Shaft Sleeve
Item no.	Dimension (mm)	Outer Diameter (mm)	Inner Diameter (mm)	Length (mm)
AT-YHG-ZT001	17.51420	17.5	14	20
AT-YHG-ZT002	191550	19	15	50
AT-YHG-ZT003	203250	20	32	50
AT-YHG-ZT004	25×17×19	25	17	19
AT-YHG-ZT005	292325	29	23	25
AT-YHG-ZT006	30.22232.5	30.2	22	32.5
AT-YHG-ZT007	338573.5	33	5	73.5
AT-YHG-ZT008	365575	36	55	75
AT-YHG-ZT009	452097	45	20	97
AT-YHG-ZT010	4525109	45	25	109
AT-YHG-ZT011	523340	52	33	40
AT-YHG-ZT012	553296	55	32	96
AT-YHG-ZT013	553596	55	35	96
AT-YHG-ZT014	83.57047	83.5	70	47

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Selection of Appropriate Shaft Sleeve

Based on the specific operating environment and equipment dimensions, it is crucial to select a zirconia shaft sleeve with suitable parameters and dimensions.

2. Correct Installation

Zirconia ceramic shaft sleeves must be correctly aligned with the shaft and the inner ring of the bearing to ensure even load distribution.

3. Regular Inspection

During operation, regular inspections should be conducted to monitor the wear condition of the shaft sleeve. Prompt replacement is recommended if severe wear or cracks are observed.

Valuable Information

Zirconia Ceramic Shaft Sleeve Packing

Zirconia ceramic shaft sleeves are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
