Zirconia Crucible Zirconium Oxide Ceramic Crucible Cylindrical

The zirconia crucible endures high temperatures, acids, and alkalis, exhibiting excellent corrosion resistance and thermal shock resistance. It is frequently employed in chemical analysis experiments conducted at elevated temperatures, as well as industrial material testing and analysis, used to heat and melt various materials for the examination of their physical and chemical properties.

  • Brand:

    ATCERA
  • Item NO.:

    AT-YHG-Y001
  • Materials

    Zirconia Ceramic
  • Shapes

    Crucible
  • Applications

    Mechanical Parts , Petrochemical Industry , Metallurgy Industry , Lithium Battery Production
zirconia ceramic crucibles

Advantages of ZrO2 Ceramic Crucible Cylindrical



1. High temperature resistance, the highest working temperature can reach up to 2200℃.



2. Good thermal shock resistance, can maintain good thermal stability at high temperature.



3. Cylindrical crucible can be made into large volume and easy to operate.

Applications of Yttria Stabilized Zirconia (YSZ) Crucible

Applications of Zirconia Ceramic Crucible Cylindrical



1. Zirconia crucible can be used in various industrial thermal analysis, melting metal and non-metallic material samples.



2. Zirconia crucible is widely used in metal processing, glass melting, jewelry industry gem purification and other high temperature applications.



3. Cylindrical crucible is suitable for melting and processing of various materials, good consistency, to meet the needs of batch analysis or production.



Size Chart of Zirconia Ceramic Crucible Cylindrical



We are committed to delivering optimal zirconium oxide cylindrical crucible tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Requirements for Custom Design
1. Drawing (requirements of material, size, tolerance standard, etc. could be attached) and other specification requirements.
2. Application scenario



Drawing of Zirconia Ceramic Crucible Cylindrical

Zirconia Ceramic Crucible Cylindrical
Item No. Outer Diamete
(mm)
Inner Diameter
(mm)
Height
(mm)
Wall Thickness
(mm)
Volume
(ml)
ZrO2's Purity
(%)
AT-YHG-Y001 20.0  16.0  19.0  2.0  95
AT-YHG-Y002 24.0  20.0  50.0  2.0  15  95
AT-YHG-Y003 29.5  22.7  29.6  3.4  11  95
AT-YHG-Y004 32.0  24.0  26.0  4.0  11  95
AT-YHG-Y005 32.0  23.0  30.0  4.5  12  95
AT-YHG-Y006 33.5  27.0  59.0  3.3  33  95
AT-YHG-Y007 33.5  27.5  69.5  3.0  40  95
AT-YHG-Y008 35.0  28.0  31.0  3.5  18  95
AT-YHG-Y009 39.0  34.0  62.0  2.5  55  95
AT-YHG-Y010 40.0  31.0  55.0  4.5  40  95
AT-YHG-Y011 42.5  34.0  59.0  4.3  52  95
AT-YHG-Y012 29.5  23.0  100.0  3.3  41  95
AT-YHG-Y013 44.8  36.0  30.0  4.4  28  95
AT-YHG-Y014 45.0  37.0  103.0  4.0  109  95
AT-YHG-Y015 50.0  40.0  106.0  5.0  130  95
AT-YHG-Y016 50.5  42.0  71.0  4.3  95  95
AT-YHG-Y017 51.0  42.0  84.3  4.5  114  95
AT-YHG-Y018 51.0  42.0  84.0  4.5  113  95
AT-YHG-Y019 51.0  44.0  102.0  3.5  152  95
AT-YHG-Y020 59.0  51.0  91.0  4.0  182  95
AT-YHG-Y021 62.0  55.0  97.0  3.5  226  95
AT-YHG-Y022 69.0  50.0  118.0  9.5  222  95
AT-YHG-Y023 70.0  50.0  200.0  10.0  383  95
AT-YHG-Y024 70.0  60.0  12.0  5.0  27  95
AT-YHG-Y025 72.5  50.0  135.0  11.3  254  95
AT-YHG-Y026 77.0  69.0  85.0  4.0  310  95
AT-YHG-Y027 78.0  57.0  89.0  10.5  214  95
AT-YHG-Y028 80.0  59.0  143.0  10.5  377  95
AT-YHG-Y029 85.0  75.0  109.0  5.0  471  95
AT-YHG-Y030 86.0  69.0  160.0  8.5  582  95
AT-YHG-Y031 87.0  69.0  165.0  9.0  600  95
AT-YHG-Y032 107.0  82.0  128.0  12.5  643  95
AT-YHG-Y033 118.0  83.0  133.0  17.5  672  95
AT-YHG-Y034 59.0  51.0  92.0  4.0  184  95
AT-YHG-Y035 23.0  18.0  94.0  2.5  24  95
AT-YHG-Y036 11.5  8.8  55.6  1.4  95
AT-YHG-Y037 11.5  8.8  45.8  1.4  95
AT-YHG-Y038 16.8  9.2  9.2  3.8  95
AT-YHG-Y039 15.0  12.0  13.0  1.5  95
AT-YHG-Y040 51.0  43.0  85.0  4.0  121  95
AT-YHG-Y041 40.0  35.0  32.0  2.5  30  95
AT-YHG-Y042 43.0  34.0  102.0  4.5  91  95
AT-YHG-Y043 29.0  25.0  30.0  2.0  14  95
AT-YHG-Y044 42.0  35.0  102.0  3.5  96  95
AT-YHG-Y045 50.0  40.0  118.0  5.0  145  95
AT-YHG-Y046 26.0  21.0  85.0  2.5  29  95
AT-YHG-Y047 41.0  35.0  58.0  3.0  54  95
AT-YHG-Y048 29.0  25.0  42.0  2.0  20  95
AT-YHG-Y049 31.0  26.0  76.0  2.5  40  95
AT-YHG-Y050 32.0  23.0  30.0  4.5  12  95
AT-YHG-Y051 37.0  28.0  33.0  4.5  19  95
AT-YHG-Y052 62.0  55.0  97.0  3.5  226  95
AT-YHG-Y053 85.0  76.0  110.0  4.5  489  95
AT-YHG-Y054 10.5  7.7  25.0  1.4  95
AT-YHG-Y055 13.0  10.2  25.0  1.4  95
AT-YHG-Y056 18.0  16.0  26.0  1.0  95
AT-YHG-Y057 22.0  18.8  33.0  1.6  95
AT-YHG-Y058 15.0  11.0  100.0  2.0  95
AT-YHG-Y059 50.0  44.0  80.0  3.0  120  95
AT-YHG-Y060 30.0  26.0  60.0  2.0  35  95
AT-YHG-Y061 42.0  38.0  53.0  2.0  37  95
AT-YHG-Y062 57.0  53.0  65.0  2.0  100  95
AT-YHG-Y063 48.0  44.0  52.0  2.0  50  95
AT-YHG-Y064 38.0  34.0  45.0  2.0  30  95
AT-YHG-Y065 9.0  6 15.0  1.5 2 95
AT-YHG-Y066 16.0  11.0  12.0  2.5  95
AT-YHG-Y067 16.0  11.0  95.0  2.5  10  95
AT-YHG-Y068 32.0  26.0  80.0  3.0  40  95
AT-YHG-Y069 34.0  28.0  80.0  3.0  50  95
AT-YHG-Y070 36.0  30.0  80.0  3.0  60  95
AT-YHG-Y071 40.0  34.2  50.0  2.9  50  95
AT-YHG-Y072 40.0  34.2  80.0  2.9  70  95
AT-YHG-Y073 45.0  39.2  50.0  2.9  50  95
AT-YHG-Y074 50.0  42.0  80.0  4.0  100  95
AT-YHG-Y075 57.0  49.0  75.0  4.0  120  95
AT-YHG-Y076 66.0  59.4  66.0  3.3  120  95
AT-YHG-Y077 80.0  73.0  80.0  3.5  300  95









Technical Data of Zirconium Oxide Materials

Material Zirconia (ZrO2)+ Stabilizing agent
Thermal Conductivity 3.0w/m.k
Temperature resistance 1000℃
Density 5.65-6.05g/cm3
Thermal Expansion Coefficient 0.00001/℃
Bending Strength 480-1000MPa
Hardness (Hv) 1200-1450HV1
Fracture Toughness 6-8MPa*m1/2
Hazardous Substances In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products  and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.




Usage Instructions

1. Can not use gasoline spray gun, acetylene gun, alcohol burner to heat the zirconia crucible directly.

2. Before using the zirconia crucible for the first time, put it in the oven at about 105℃ for 120 minutes to remove the water on crucible surface.

3. Heating/cooling speed should not be too fast, below 1200℃ shall not over 5℃/ min; and above 1200℃ shall be controlled within 4℃/ min, too fast heating or cooling may lead to crucible cracking.

4. The distance between the crucible and the heating body (silicon carbon heting tube, heating rod or heating wire) should be no less than 2cm.

5. The bottom should not be in direct contact with the bottom of the furnace. It is recommended to use corundum pieces and other temperature resistant substances to lift the crucible to form air convection.

6. The material should be added according to the volume of the crucible, and should not be squeezed too tightly to avoid the metal thermal expansion and cause crack of the crucible.

7. When taking out the metal molten liquid, scoop it out with a spoon, in the case that caliper need to be used,   avoid excessive force on the crucible which may shorten the service life.

8. Safety during use: zirconia crucible works at high temperature, and personal protective equipment such as heat-releasing gloves and protective glasses should be worn when using to avoid burns or eye injuries.

9. Storage: when store zirconia crucible, it should be placed in a dry and ventilated place to avoid friction or collision with other items, so as not to scratch or damage the surface of the crucible.

Zirconia Crucible for High-temperature Applications

Valuable Information



Production Process Flow

Production Process Flow



1. Dry pressing forming



2. Hot pressing casting



3. Medium temperature dewaxing



4. High temperature sintering



5. Centerless grinding



6. Internal grinding



7. External grinding



8. Plane grinding



9. Honing and polishing

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.

Related Blog
Silicon Carbide Tubes: 15-Yr Corrosion Solution for Chemicals
Revolutionizing Chemical Processing: How Silicon Carbide Tubes Solve $20k/Day Downtime Challenges   The chemical industry loses $5.3 billion annually to corrosion-related equipment failures (NACE International, 2022). At the heart of this crisis lies inadequate material performance in extreme environments. This article reveals why silicon carbide (SiC) tubes are replacing traditiona...
The Role of Zirconia Rods in Modern Industrial Applications
  In today’s fast-paced industrial world, the demand for materials that combine strength, durability, and versatility is higher than ever. From high-performance equipment to critical components used in challenging environments, industries across the globe rely on advanced materials to meet their complex needs. One such material that has gained significant traction in modern manufacturin...

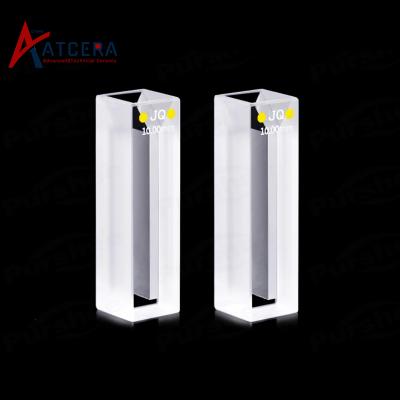

Why Quartz Glass Cuvettes Are Essential for Accurate Spectroscopy Measurements
