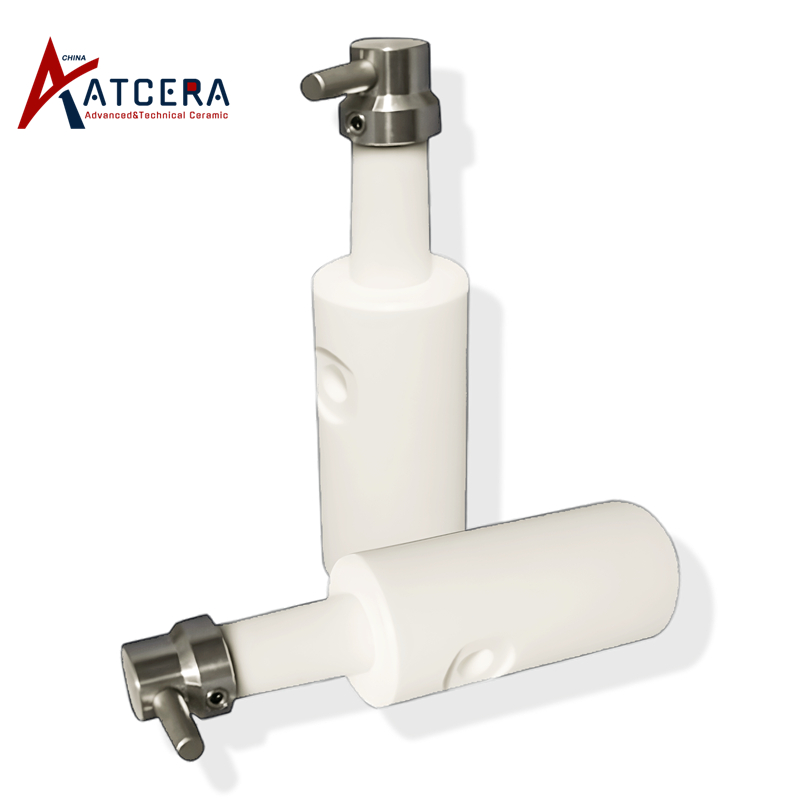

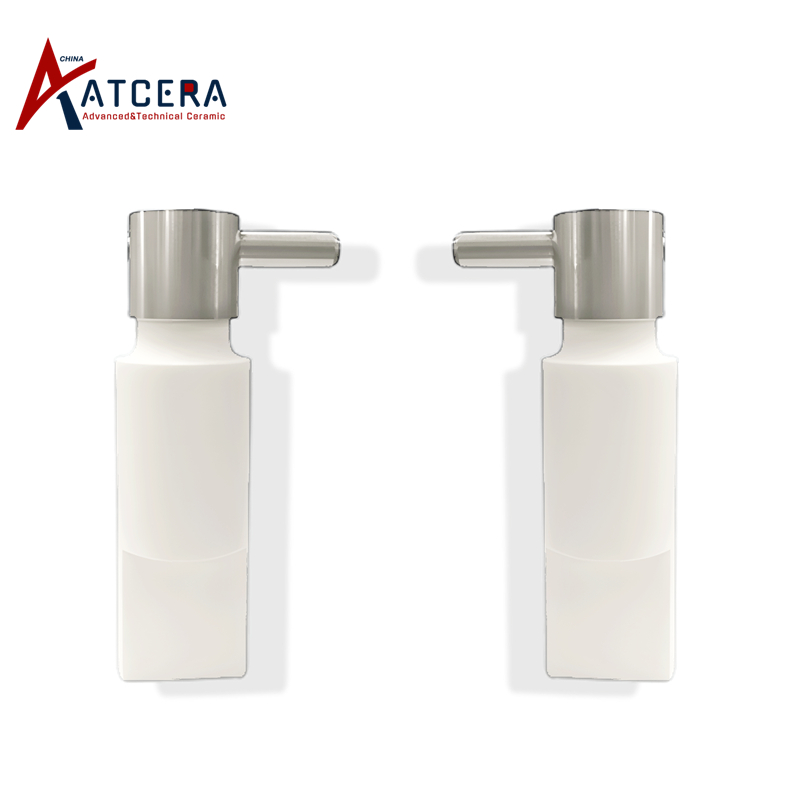

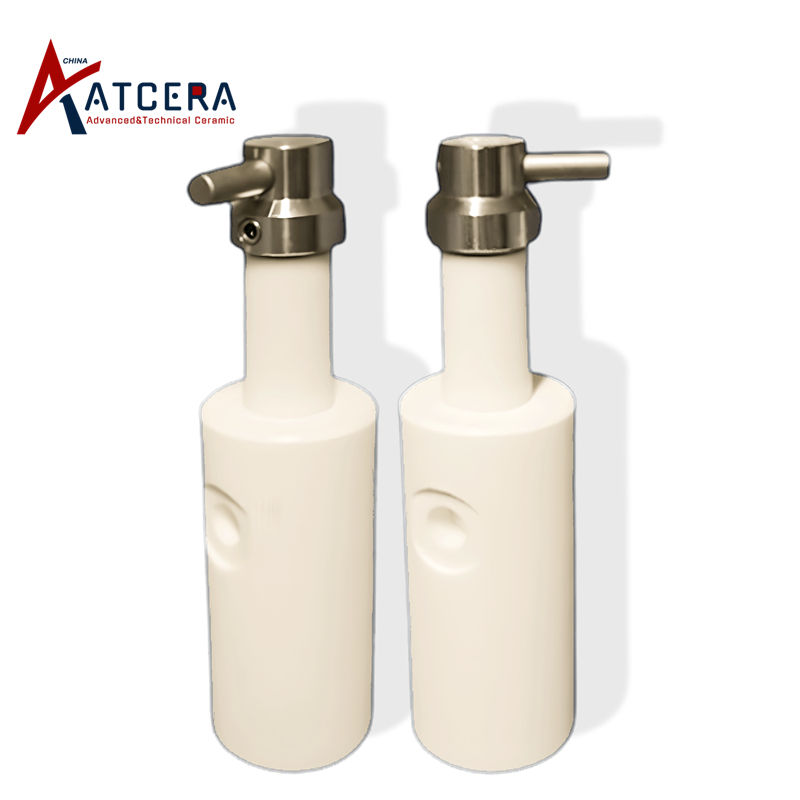

Zirconium Oxide Ceramic Piston Pump Zirconia Pump

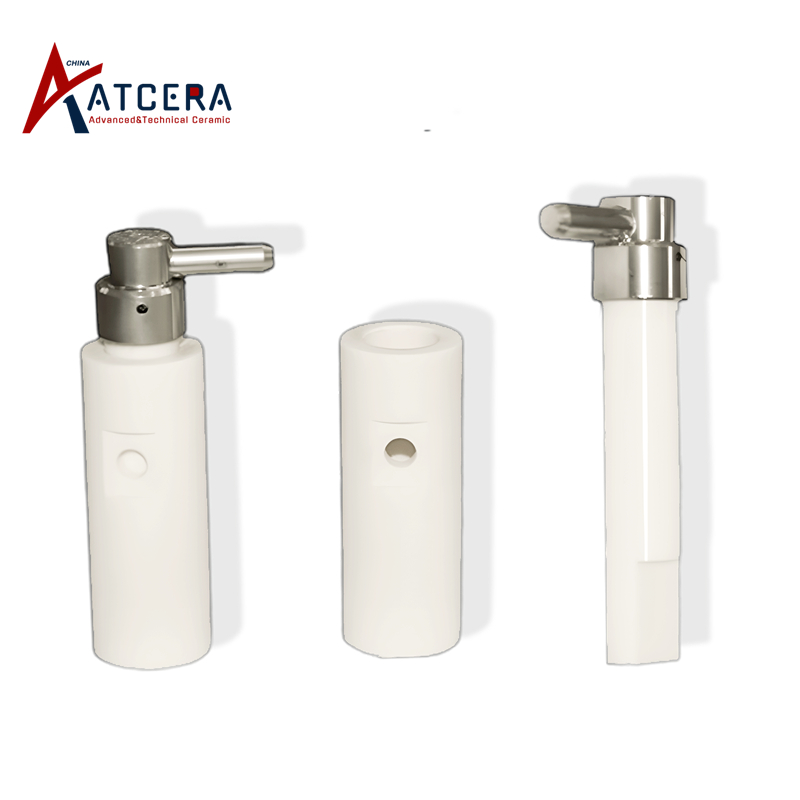

Zirconia ceramic piston pump is composed of piston, connecting rod, pump body with a cylinder, sealing ring and other parts, mainly used for various corrosive liquid transportation, pressurization, etc.

  • Brand:

    ATCERA
  • Item NO.:

    AT-ZP-6001
  • Materials

    Zirconia Ceramic
  • Shapes

    Pump
  • Applications

    Mechanical Parts , Petrochemical Industry , Food Processing , Biology and Medicine
zirconia pump

Properties of Zirconium Oxide Piston Pump



1. Strong corrosion resistance: zirconia ceramic material has good corrosion resistance, can be used to transport a variety of corrosive liquids, and no pollution to liquid;



2. Long life: zirconia ceramic material has high hardness, good wear resistance, so the zirconia service life is long;



3. Small friction coefficient: the piston and the mating surface after polishing have high finish, small friction coefficient, and no lubrication is required.

Applications of Ceramic Piston Pump

Applications of Ceramic Piston Pump



Zirconia ceramic piston pump is mainly used for various liquid pressurization, circulation, transportation, etc.



1. Motor vehicles: automobile engine cooling water cycle, fuel delivery, lubricating oil cycle, etc.



2. Hydraulic system: hydraulic fluid delivery system, used to increase the pressure of the fluid.



Size Chart of Zirconium Oxide Piston Pump

Drawing and specification requirement shall be provided. We are committed to delivering zirconia piston pump tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Machining Tolerance
1. Flow rate: 4-250m3/h
2. Liquid temperature: -40-250
3. Maximum working pressure: 0.6MPa (for higher pressure request please inquire ATCERA)



Zirconium Oxide Piston Pump
Item NO. Volmue (ml) Filling Accuracy (%) ZrO2's Purity (%)
AT-ZP-6001 0.45 >0.5%,<1% 95%
AT-ZP-6002 4.5 >0.3%,<0.5% 95%
AT-ZP-6003 6.5 >0.3%,<0.5% 95%
AT-ZP-6004 8 >0.3%,<0.5% 95%
AT-ZP-6005 35 >0.3%,<0.5% 95%
AT-ZP-6006 82 >0.3%,<0.5% 95%
AT-ZP-6007 176 >0.3%,<0.5% 95%



Technical Data of Zirconium Oxide Materials

Material Zirconia (ZrO2)+ Stabilizing agent
Thermal Conductivity 3.0w/m.k
Temperature resistance 1000℃
Density 5.65-6.05g/cm3
Thermal Expansion Coefficient 0.00001/℃
Bending Strength 480-1000MPa
Hardness (Hv) 1200-1450HV1
Fracture Toughness 6-8MPa*m1/2
Hazardous Substances In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products  and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.



Usage Instructions

1. Installation requirements: When install the zirconia piston pump, ensure that it's firmly fixed to avoid axial and radial movement;

2. Liquid temperature and pressure: The liquid temperature and pressure should be within the specified range to ensure normal operation;

3. Liquid properties: For liquid containing solid particles or high viscosity, it is necessary to pre-treat or select appropriate pump head;

4. Regular maintenance: It is recommeded to regularly check the pump piston, seals and other parts wear, and timely replacement or adjustment if any wear that may affect the pump performance;

5. Pump storage: in the case that zirconia piston pump is not used for a long time, the pump should be cleaned and stored in a dry and cool environment.other items, so as not to scratch or damage the surface of the crucible.
