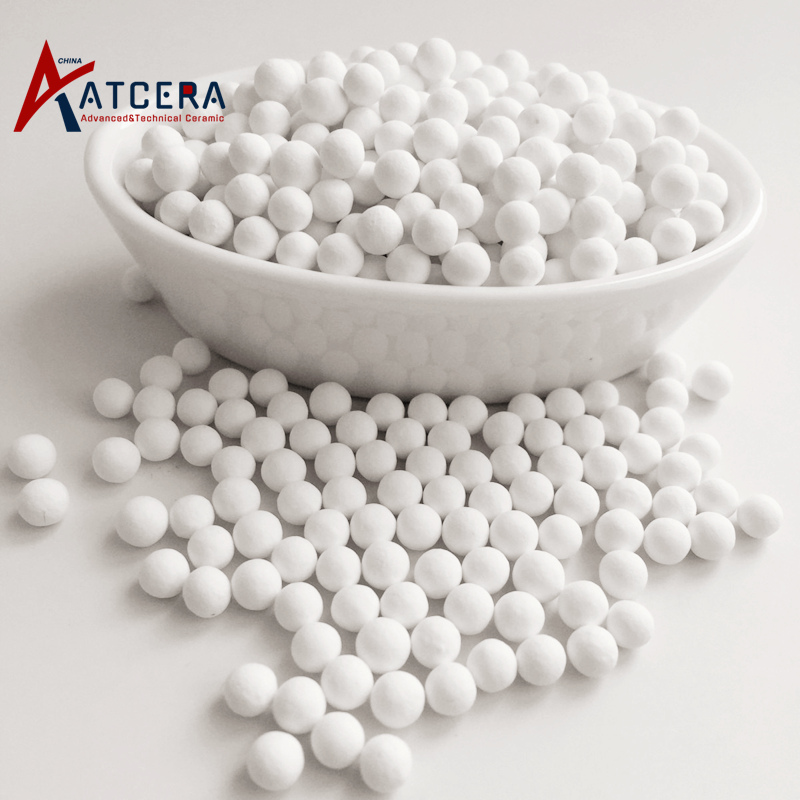

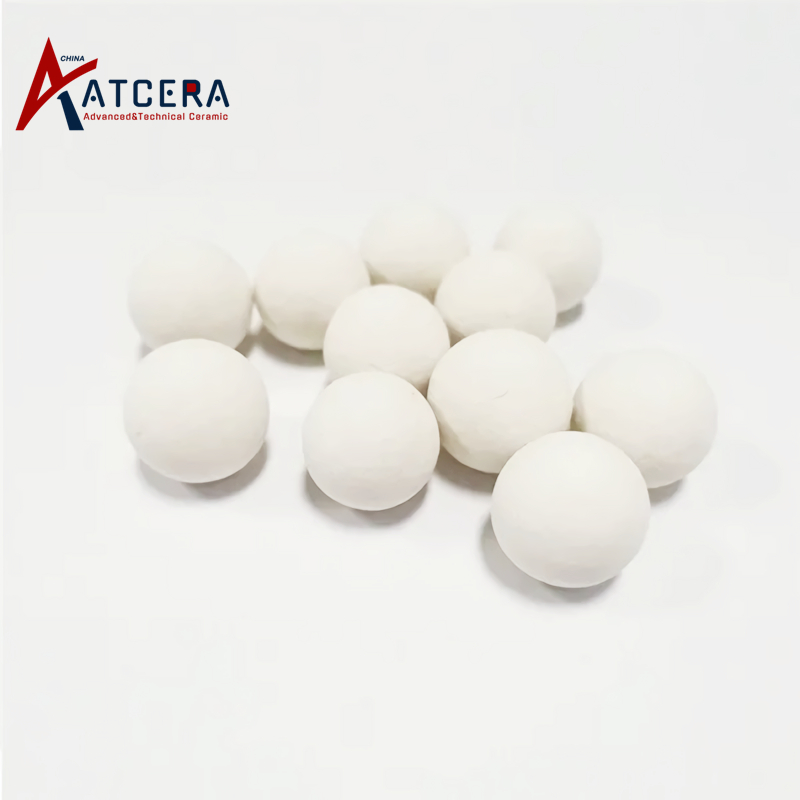

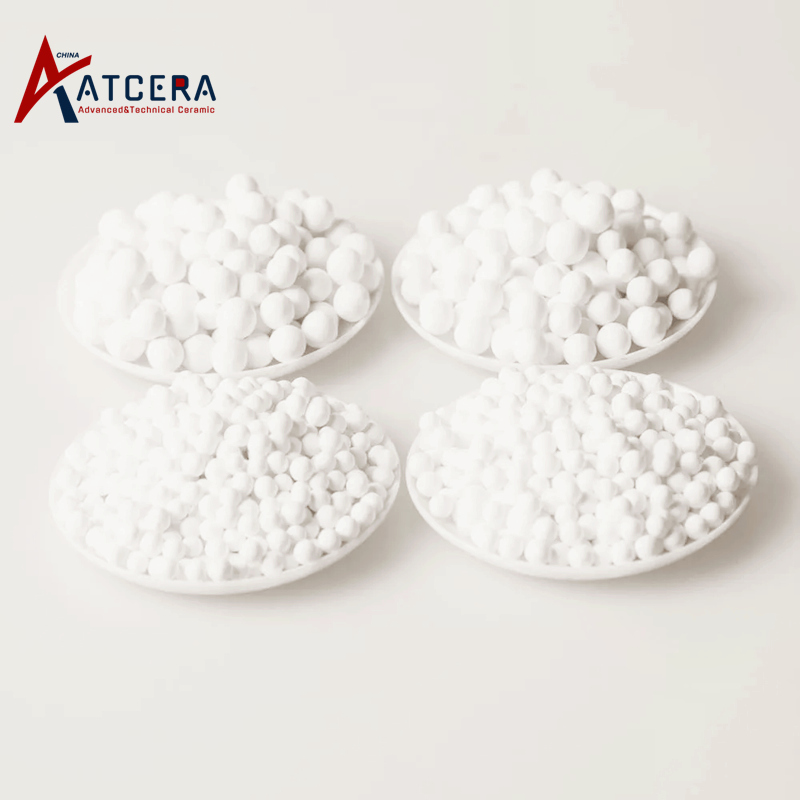

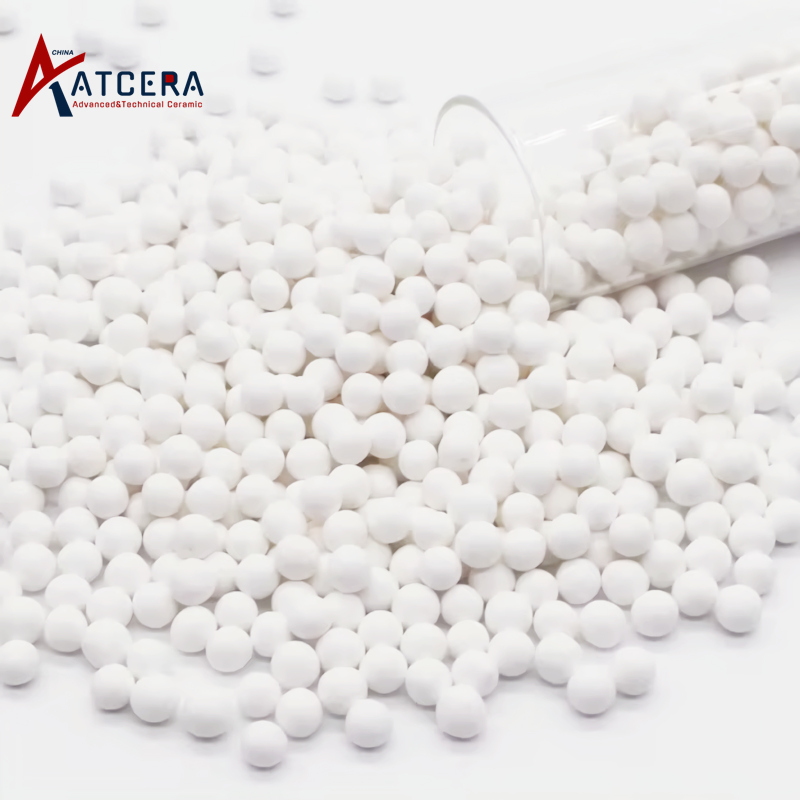

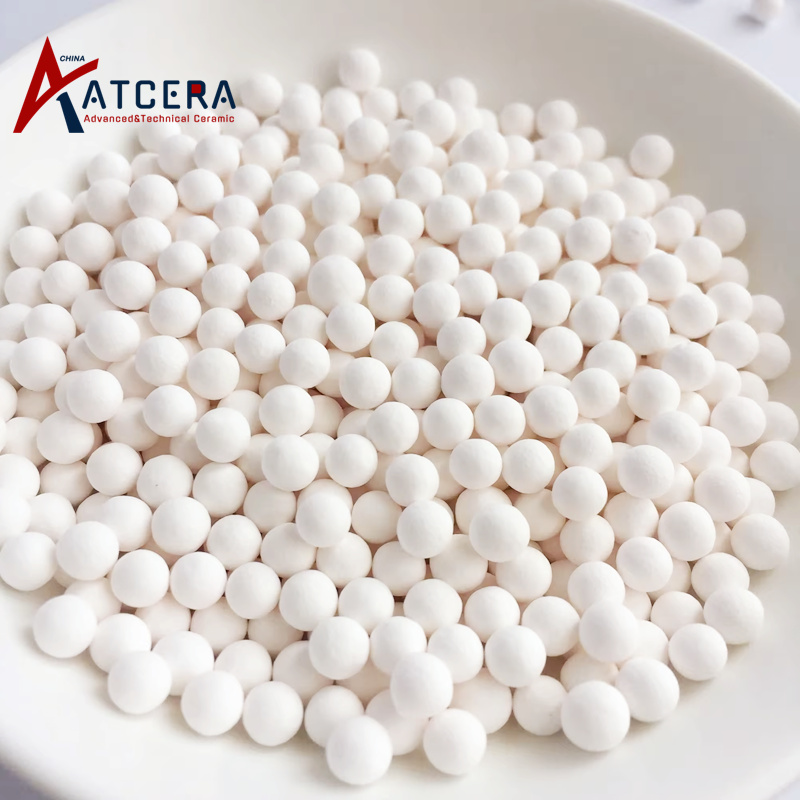

Activated Alumina Catalyst Beads Aluminum Oxide Support Media

Activated alumina balls, primarily composed of alumina, feature a capillary porous structure with a large surface area, high strength, and hardness. They exhibit excellent wear resistance and high temperature resistance. Moreover, they are capable of withstanding corrosion from acids, alkalis, and other organic solvents. They possess remarkable chemical stability and thermal shock resistance, along with excellent surface activity and adsorption capacity. These properties make them suitable for use as adsorbents, desiccants, as well as catalysts and catalyst carriers for chemical reactions.

  • Brand:

    ATCERA
  • Item NO.:

    AT-YM-H001
  • Materials

    Alumina Ceramic
  • Shapes

    Ball
  • Applications

    Petrochemical Industry , Metallurgy Industry
alumina catalyst media

Properties of Activated Alumina Catalyst Beads

Aluminum oxide, commonly known as alumina, has a chemical formula of Al2O3. It appears as a white powder with a density of 3.9 to 4.0 g/cm3, a melting point of 2050°C, and a boiling point of 2980°C. It is insoluble in water but slowly dissolves in concentrated sulfuric acid. Aluminum oxide used as an adsorbent, catalyst, and catalyst carrier is referred to as "activated alumina." It possesses characteristics such as porosity, high dispersion, and a large specific surface area. Activated alumina is widely utilized in industries including petrochemicals, fine chemicals, biotechnology, and pharmaceuticals.



1. Activated alumina balls have uniform particle size, excellent adsorption performance, strong moisture absorption capability, and maintain their original shape after absorbing water without swelling, cracking, or powdering. After reaching adsorption saturation, they can be regenerated by heating to remove water, allowing for multiple reuse.



2. Activated alumina catalyst beads are non-toxic and harmless, containing no substances harmful to humans or the environment. They meet environmental requirements and are insoluble in water, ethanol, and other organic solvents.



3. Activated alumina catalyst media exhibit excellent chemical stability and resistance to acid and alkali corrosion, maintaining superior chemical stability even at high temperatures.



4. Al2o3 activated balls possess high strength and good abrasion resistance, making them durable and long-lasting in use.

activated alumina catalyst medium

Applications of Activated Alumina Balls



1. Metal Catalyst

Activated alumina balls feature uniformly distributed micropores with large pore volume, high water absorption, low apparent density, and excellent physical and chemical stability. The Co-Mo series sulfur-resistant conversion metal catalysts prepared from activated alumina balls exhibit excellent low-temperature activity, wide application temperature range, and short rubber sulfuration time. They are suitable for medium to small-scale ammonia synthesis processes.



2. Absorbent

Activated alumina balls can serve as gas desiccants for industries such as textiles, electronics, petrochemicals, and instrumentation. They are also used as moisture-proof agents and air purifiers in equipment. With fast water absorption and high efficiency, they are ideal for deep drying applications.



3. Peroxide Regenerant

Activated alumina balls remain intact, firm, and non-powdery in water and alkali environments. They possess strong dissolution and regeneration capabilities for anthraquinone compounds, making them suitable as specialized regenerants for the anthraquinone method in the production of hydrogen peroxide.





Size Chart of Activated Alumina Balls



We are committed to delivering high-quality activated alumina ceramic balls tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Please provide the specific application scenarios, dimensions of the ceramic balls, and the required usage parameters if customization requirements needed.



Mechanical Tolerance
Diameter(mm) 2 3-10 13-25 30-60
Tolerance ±0.5mm ±1.0mm ±1.5mm ±2.0mm



Activated Alumina Balls
Item No. Diameter (mm) Al2O3's Purity (%) Tolerance
AT-YM-H001 0.5 93 ±0.2
AT-YM-H002 1 93 ±0.5
AT-YM-H003 2 93
AT-YM-H004 3 93 ±1.0
AT-YM-H005 4 93
AT-YM-H006 5 93
AT-YM-H007 6 93
AT-YM-H008 7 93
AT-YM-H009 8 93
AT-YM-H010 9 93
AT-YM-H011 10 93 ±1.5
AT-YM-H012 11 93
AT-YM-H013 12 93
AT-YM-H014 13 93
AT-YM-H015 14 93

Technical Data of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions



1. Prior to use, activated alumina ceramic balls should be stored in a cool, dry area free from dust contamination to prevent dust settling on the ceramic balls and causing contamination. It's essential to prevent moisture absorption and adsorption of other substances from the air, which may affect their performance.


2. Activated alumina ceramic products have a certain degree of brittleness. During usage, rapid temperature changes should be avoided to prevent the rupture of alumina spheres.


3. During usage, contact between tar-like viscous substances and activated alumina should be avoided to prevent clogging of the pores in activated alumina, which may affect its effectiveness.


4. After being put into use, activated alumina ceramic balls should be inspected regularly each year, surface impurities should be cleaned off promptly, and defective balls should be replaced.


5. When used as a catalyst, before replacing or adding new catalyst, it's necessary to clean and inspect the reactor for any remaining catalyst or waste materials.

Achieve Chemical Stability with Activated Alumina Catalyst Beads

Valuable Information



Alumina Balls Packing

Activated Alumina Catalyst Beads Packing









Alumina catalyst media are carefully packaged in appropriate containers to avoid any potential damage.















Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
