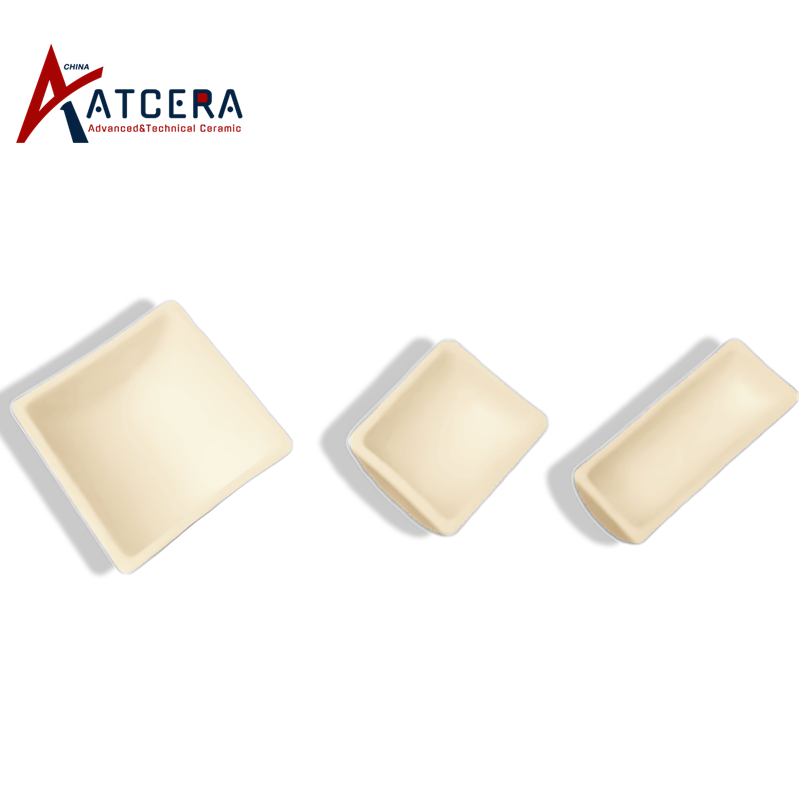

alumina crucible

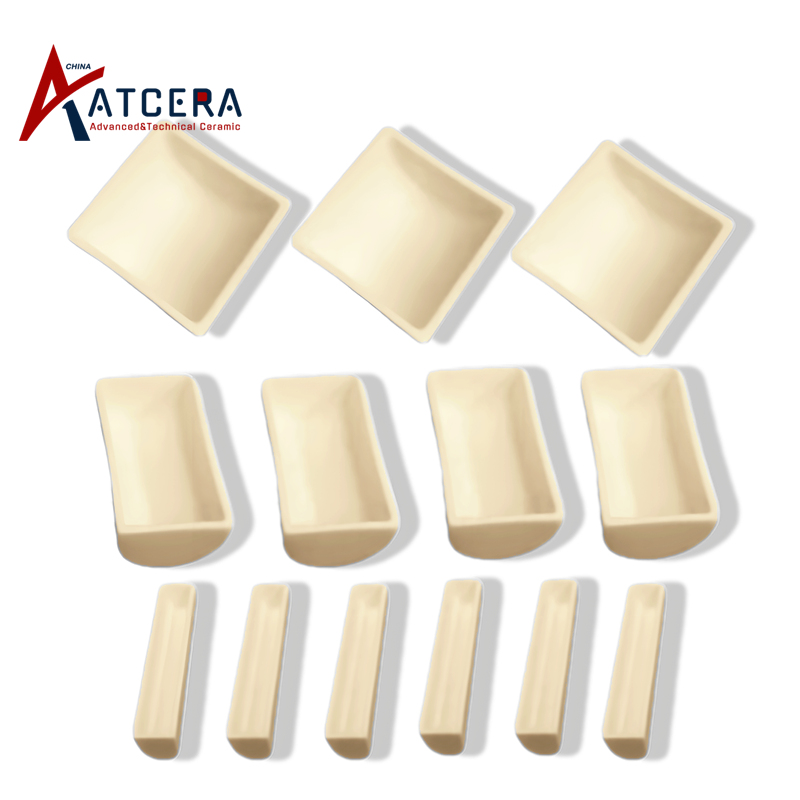

alumina crucible

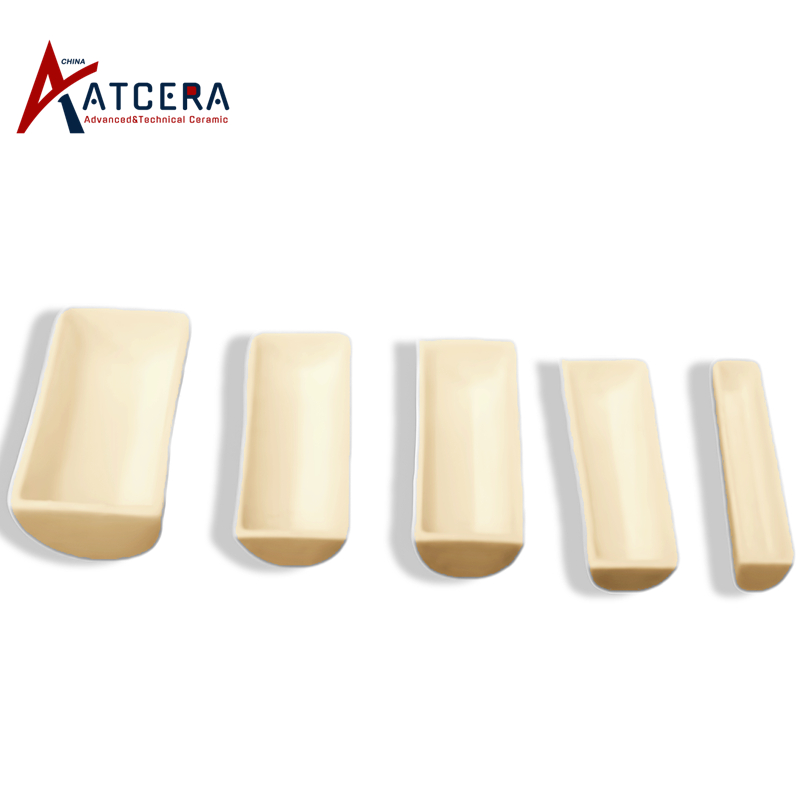

alumina crucible

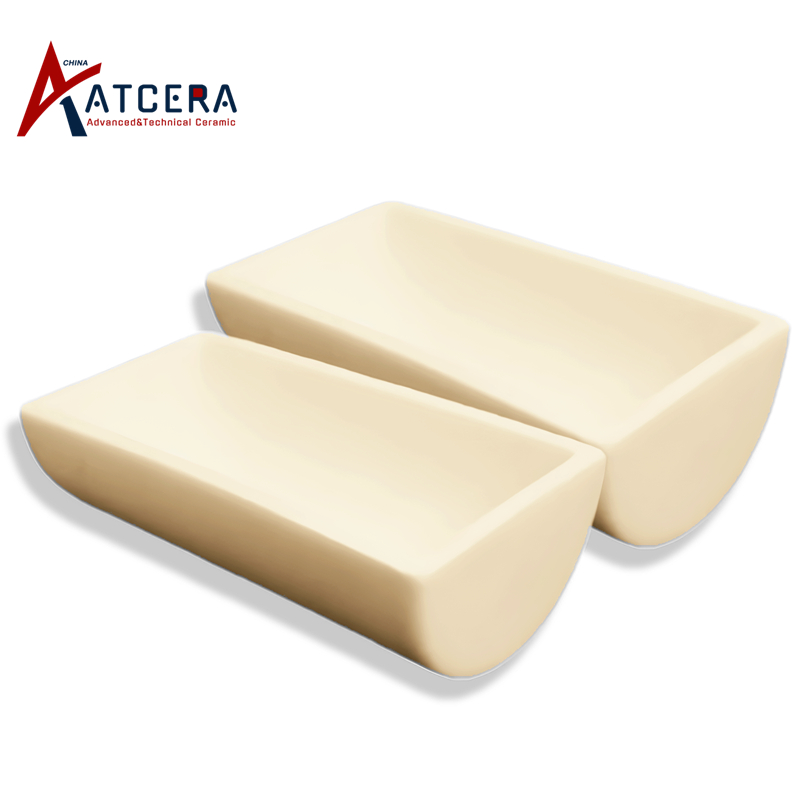

alumina crucible

Alumina Combustion Crucible Boat Aluminum Oxide Ceramic Crucible Round Bottom

The alumina crucible possesses exceptional resistance to high temperatures, acids, and alkalis, featuring superior corrosion resistance and thermal shock tolerance. It is frequently employed in both high-temperature chemical analysis experiments and industrial material testing and analysis, used to heat and melt various materials for the purpose of analyzing their physical and chemical properties.

  • Brand:

    ATCERA
  • Item NO.:

    TE-AS-086-1
  • Materials

    Alumina
  • Shapes

    Crucible
  • Applications

    Petrochemical Industry , Metallurgy Industry , Laboratory Equipment and Instruments
aluminum oxide crucible round bottom

Advantages of Aluminum Oxide Ceramic Crucible Round Bottom



1. Alumina crucible has a long service life, with proper use and maintenance, it can be used repeatedly.



2. Good heat conductivity: alumina crucible has good heat conductivity, available for fast heating and cooling speed, which can improve the experimental efficiency.



3. Crucible with round bottom has stable and uniform heating effect, good thermal stability, it is not easy to break and easy to clean.

alumina combustion crucible boat

Applications of Ceramic Combustion Crucible Boat



1. Crucible with round bottom is suitable for high temperature thermal analysis test of various materials.



2. Through the use of alumina crucible, can prepare a variety of high-performance materials, such as metal alloys, ceramics, glass and so on. By controlling the composition and process conditions of materials, materials with excellent properties can be obtained.



3. In the field of scientific research, alumina crucible can be used as a high temperature stove to study the physical and chemical properties of various materials, such as the phase change behavior of different materials at different temperatures, chemical reaction kinetics, etc.



Size Chart of Aluminum Oxide Ceramic Crucible Round Bottom



We are committed to delivering flawless aluminum oxide crucible round bottom tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Requirements for Custom Design
1. Drawing (can attach material requirements, purity, size, tolerance standard)
2. High temperature resistance requirements
3. Application scenario

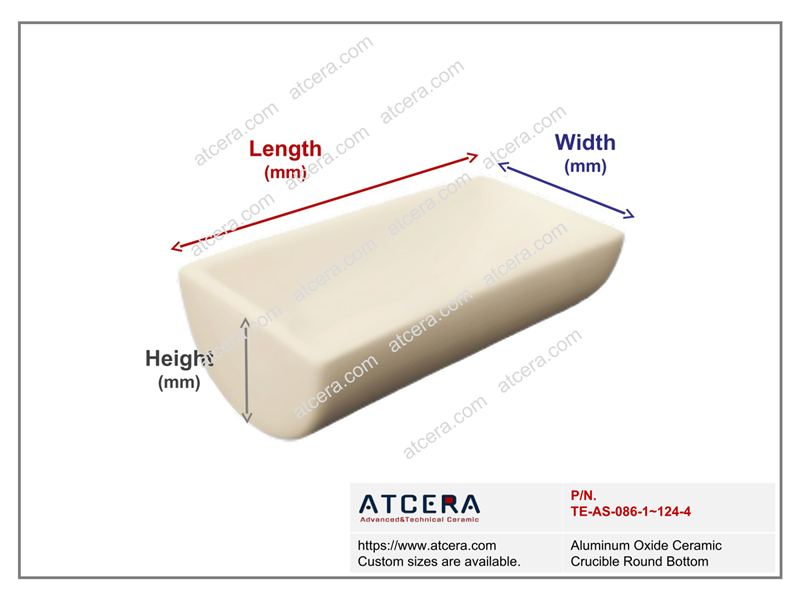

Drawing of Aluminum Oxide Ceramic Crucible Round Bottom

Aluminum Oxide Ceramic Crucible Round Bottom
Item No. Length (mm) Width (mm) Height (mm) Note
TE-AS-086-1 150 40 20 /
TE-AS-087 100 65 30 /
TE-AS-089 100 40 25 /
TE-AS-093 100 20 15 /
TE-AS-093-1 100 20 20 /
TE-AS-093-4 100 30 20 /
TE-AS-093-5 100 40 20 /
TE-AS-094 60 54 24 /
TE-AS-095 65 25 16 /
TE-AS-096 55 35 22 /
TE-AS-097 40 35 25 /
TE-AS-098 40 25 17 /
TE-AS-099 38 34 18 /
TE-AS-099-1 50 40 20 /
TE-AS-099-12 60 30 15 with cover
TE-AS-099-13 160 75 40 /
TE-AS-099-14 103 55 30 /
TE-AS-099-2 80 40 17 /
TE-AS-099-3 245 40 20 /
TE-AS-099-4 290 40 22 /
TE-AS-099-8 100 50 30 /
TE-AS-099-9 250 40 18 /
TE-AS-119 100 40 25 with cover
TE-AS-120 100 40 20 with cover
TE-AS-123 100 20 15 with cover
TE-AS-124 60 54 24 with cover
TE-AS-124-2 100 20 20 with cover
TE-AS-124-3 100 30 20 with cover
TE-AS-124-4 100 50 30 with cover

Specification of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions

1. Cleaning
The alumina crucible should be cleaned before use to remove impurities and dust on the surface. The user can use a soft cloth or brush to gently wipe, do not use a hard object or metal brush to clean, to not scratch the crucible surface.
2. Avoid violent vibration
During the use of crucible, severe vibration or collision should be avoided to not cause damage to the crucible structure.
3. Avoid contact with strong acid and alkali
Alumina crucible has good corrosion resistance to strong acid and alkali, but long-term contact with strong acid and alkali may cause chemical reactions on its surface and affect its service life. During use, contact with strong acids and bases should be avoided as much as possible, and relatively mild reagents should be selected.
4. The preheating temperature is about 105℃, the heating should be slow and uniform, the heating rate should be controlled well, and the furnace door should not be opened often, below 1200℃ should be <5℃/min, above 1200℃ should be<4℃/min.
5. Can not use gasoline spray gun, acetylene gun, alcohol spray burner direct heating to avoid explosive cracking due to uneven heat. The distance between the crucible and the heating body (such as carbon tube, silicon molybdenum rod, heating wire, etc.) should be no less than 2cm, and it's better to not let the bottom of large sized crucible contact with the bottom of furnace directly. It is recommended to use corundum sheet or other temperature resistant substances to lift the crucible to form air convection to extend the service life.
6. It's fine to remove residue on crucible surface when it is still hot, do not clean with acid and alkali substances.
7. Suitable for using anhydrous Na2CO3 and other weakly alkaline substances as molten samples, not suitable for using Na2O2, NaOH and other strongly alkaline substances and acidic substances as molten samples (such as potassium pyrosulfate K2S2O7, etc.).
8. Safety during use: alumina crucible works at high temperature, and personal protective equipment such as heat-releasing gloves and protective glasses should be worn when using to avoid burns or eye injuries.
9. Storage
When store alumina crucible, it should be placed in a dry and ventilated place to avoid friction or collision with other items, so as not to scratch or damage the surface of the crucible.

Valuable Information



Production Process Flow

Production Process Flow



1. Raw material processing



2. Compression mouduling



3. High temperature sintering



4. Primary grinding



5. CNC processing



6. Product inspection

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
