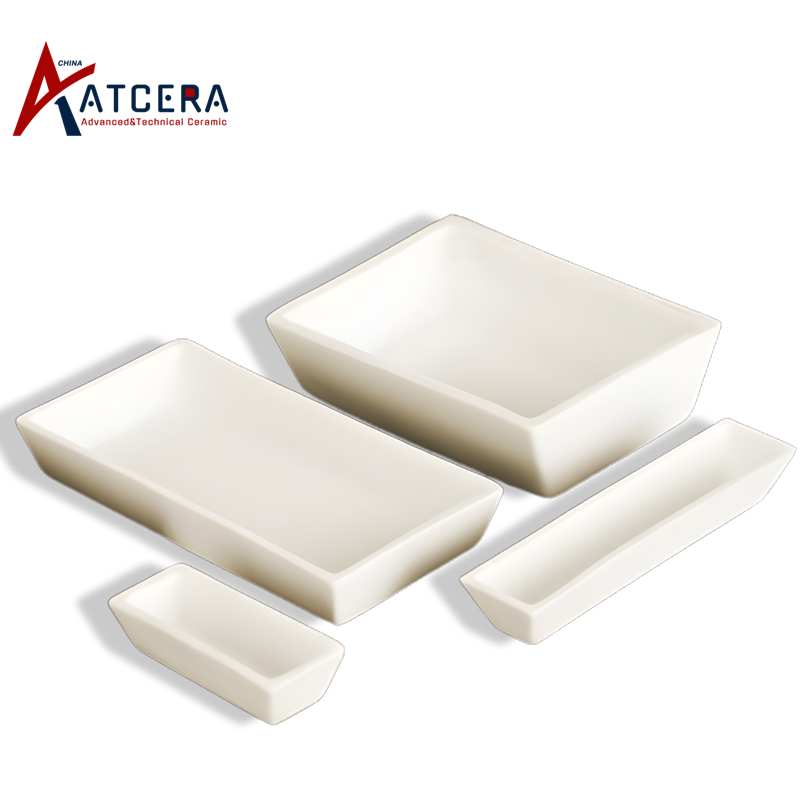

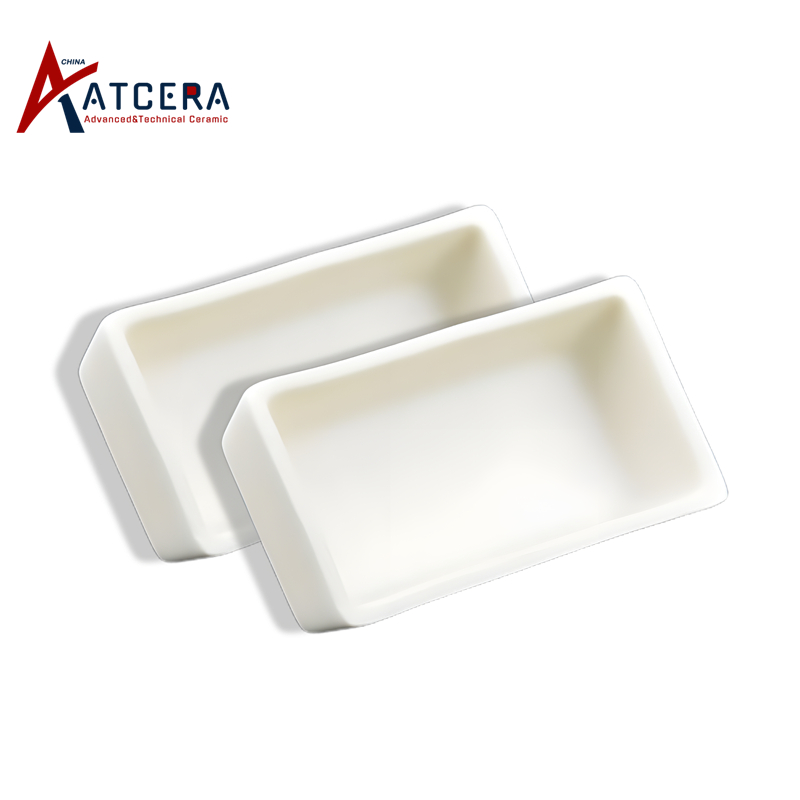

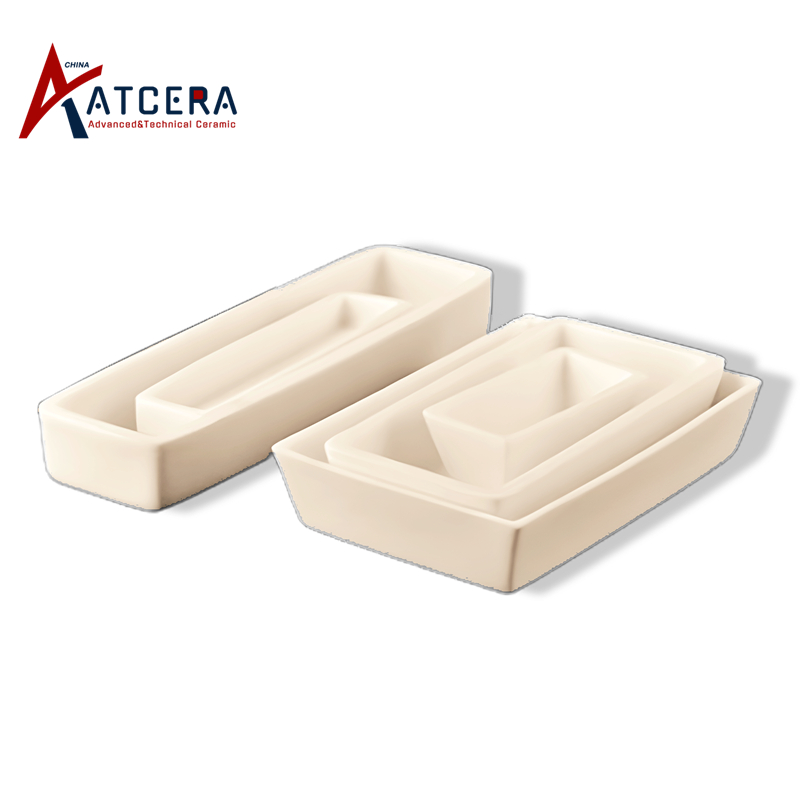

Alumina Tray Aluminum Oxide Ceramic Crucible Trapezoid

The alumina crucible boasts resistance to high temperatures, acids, and alkalis, possessing excellent corrosion resistance and thermal shock tolerance. It is frequently utilized in both chemical analysis experiments conducted at elevated temperatures and industrial material testing and analysis, employed to heat and melt various materials in order to assess their physical and chemical properties.

  • Brand:

    ATCERA
  • Item NO.:

    TE-AS-117-2
  • Materials

    Alumina
  • Shapes

    Crucible
  • Applications

    Petrochemical Industry , Metallurgy Industry , Laboratory Equipment and Instruments
alumina crucible trapezoid

Advantages of Alumina Tray Ceramic Crucible Trapezoid



1. Using high purity alumina as raw material, purity is higher than 99%.



2. Good thermal shock resistance, not easy to burst or crack under rapid heating or cooling.



3. Trapezoid crucible has large heating surface, stable and uniform heating, it is easy to carry and move, easy to pour out melting materials, and easy to operate.

aluminum oxide crucible

Applications of Alumina Tray Crucible Trapezoid



1. In industrial production, alumina crucible can be used to analyze and test raw materials, intermediates and final products. By using alumina crucible for high temperature analysis, the properties and characteristics of the product can be better understood, so as to optimize the production process and improve product quality.



2. Through the use of alumina crucible, can prepare a variety of high-performance materials, such as metal alloys, ceramics, glass and so on. By controlling the composition and process conditions of materials, materials with excellent properties can be obtained.



3. Trapezoid crucible is used for various materials melting, heating, sintering and other experiments, as well as factory mass production or processing.





Size Chart of Alumina Tray Ceramic Crucible Trapezoid



We are committed to delivering efficient alumina tray crucible trapezoid tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Requirements for Custom Design
1. Drawing (can attach material requirements, purity, size, tolerance standard)
2. High temperature resistance requirements
3. Application scenario

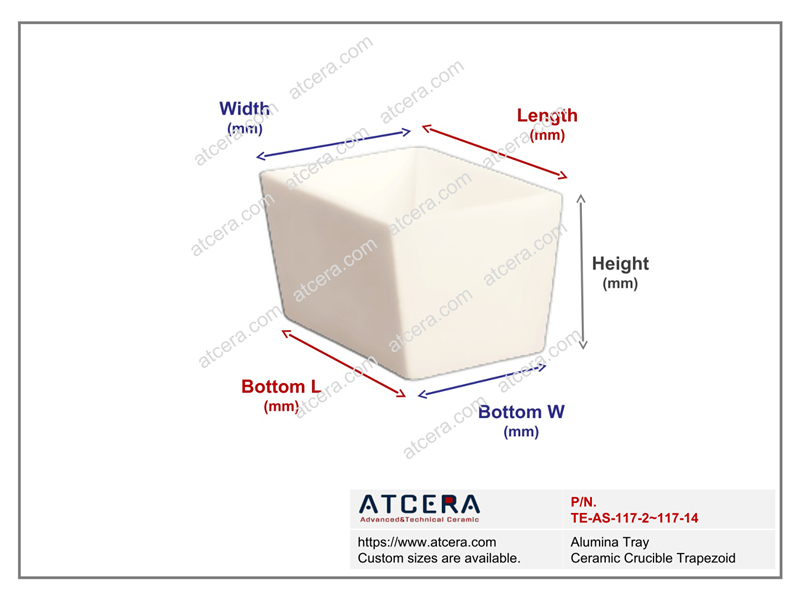

Drawing of Alumina Tray Ceramic Crucible Trapezoid

Alumina Tray Ceramic Crucible Trapezoid
Item No. Volume (ml) Length (mm) Width (mm) Height (mm) Wall Thickness
(mm)
Bottom L
(mm)
Bottom W
(mm)
TE-AS-117-2 5 45 22 14 2 36 14
TE-AS-117-1 6.5 30 20 15 2.2 27 19
TE-AS-117-4 7 60 17 10 2 51 15
TE-AS-117-3 8 55 25 15 2.2 41 21
TE-AS-117-5 10 60 25 15 2.5 50 21
TE-AS-117-7 10 75 17 15 2.5 65 11
TE-AS-117-6 10 60 30 15 2.5 50 21
TE-AS-117-8 20 75 35 15 3 67 30
TE-AS-117-12 25 120 30 15 3 113 21
TE-AS-117-9 25 80 40 18 2.5 74 17
TE-AS-117-10 40 80 55 15 2.8 70 32
TE-AS-117-15 45 120 100 15 3.5 110 90
TE-AS-117-11 65 90 60 18 2.8 80 5
TE-AS-117-13 75 120 60 20 3.3 110 51
TE-AS-117-14 100 100 77 27 3 97 75



Specification of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions

1. Preliminary Cleanup: Before employing the alumina crucible, initiate a thorough cleaning to eradicate surface impurities and dust. Employ a soft cloth or brush for a delicate wipe; eschew hard objects or metal brushes to avert potential scratching of the crucible surface.

2. Vibration Avoidance: Exercise caution during crucible use, steering clear of harsh vibrations or collisions to safeguard the structural integrity of the crucible.

3. Corrosive Substance Caution: While the alumina crucible exhibits robust corrosion resistance to potent acids and alkalis, prolonged exposure may instigate chemical reactions, impacting its longevity. Minimize interaction with strong acids and bases, opting for gentler reagents during use.

4. Temperature Precaution: Establish the preheating temperature at approximately 105℃, ensuring a gradual and even heating process. Maintain meticulous control over the heating rate, limiting the opening of the furnace door. Keep rates below 1200℃ at <5℃/min and above 1200℃ at <4℃/min.

5. Heating Directive: Refrain from using gasoline spray guns, acetylene guns, or alcohol spray burners directly to prevent explosive cracking. Maintain a distance of at least 2cm between the crucible and the heating body. For larger crucibles, elevate using corundum sheets for enhanced air convection and prolonged service life.

6. Residue Clearance: It's permissible to eliminate residue from the crucible surface while still hot; however, avoid using acid and alkali substances for cleaning.

7. Sample Suitability: Recommended for molten samples containing weakly alkaline substances like anhydrous Na2CO3; unsuitable for strongly alkaline or acidic substances, such as Na2O2, NaOH, and potassium pyrosulfate K2S2O7.

8. Safety Guidelines: Due to the elevated operating temperatures, employ personal protective equipment like heat-releasing gloves and protective glasses to mitigate the risk of burns or eye injuries.

9. Storage Recommendations: Store alumina crucibles in a dry, well-ventilated space to prevent friction or collisions, thereby averting potential scratches or damage to the crucible's surface.

Valuable Information



Production Process Flow

Production Process Flow



1. Raw material processing



2. Compression mouduling



3. High temperature sintering



4. Primary grinding



5. CNC processing



6. Product inspection

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
