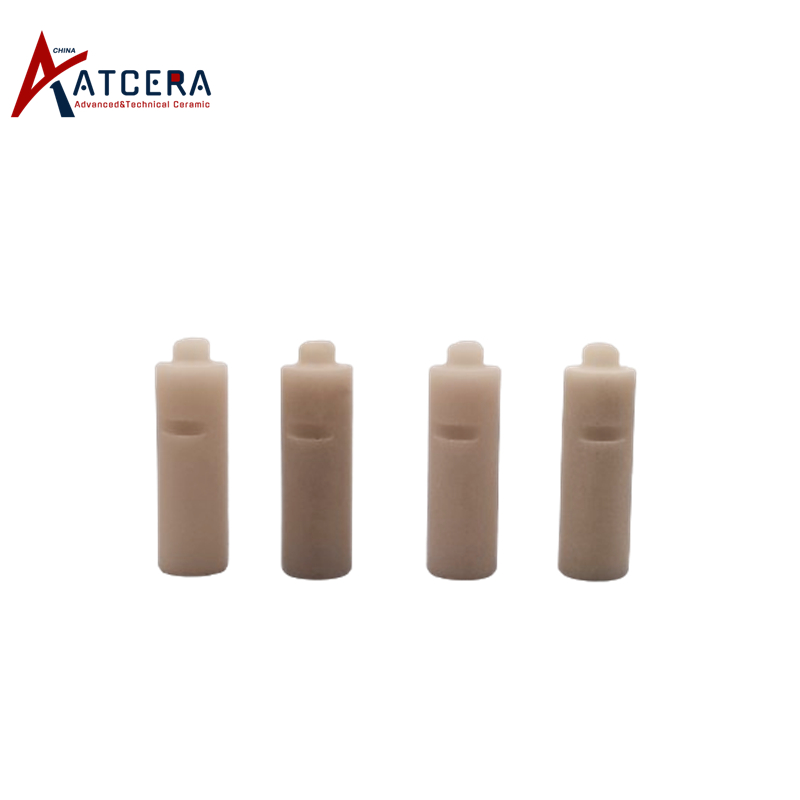

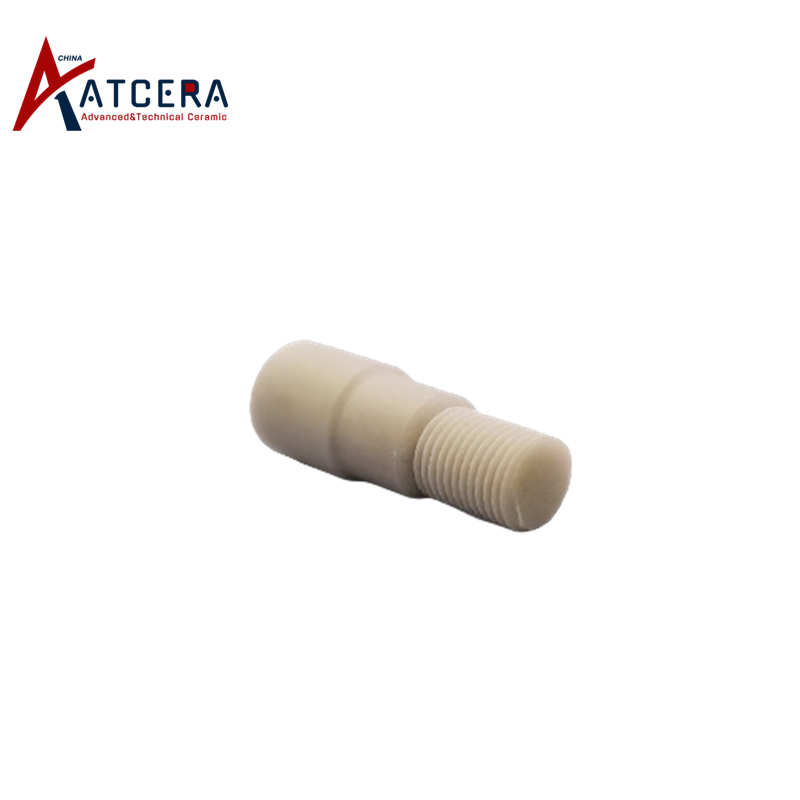

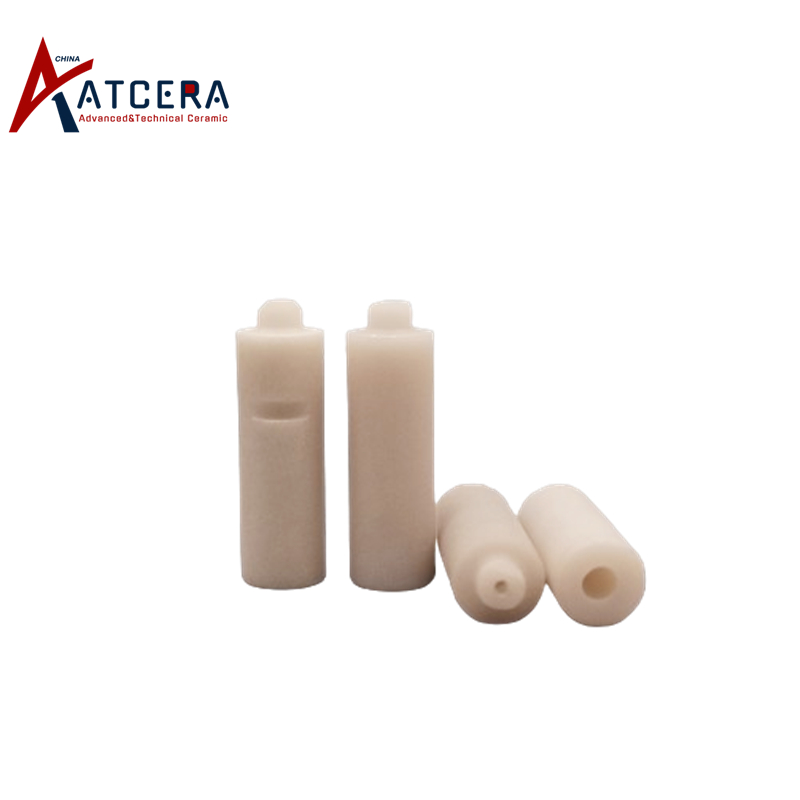

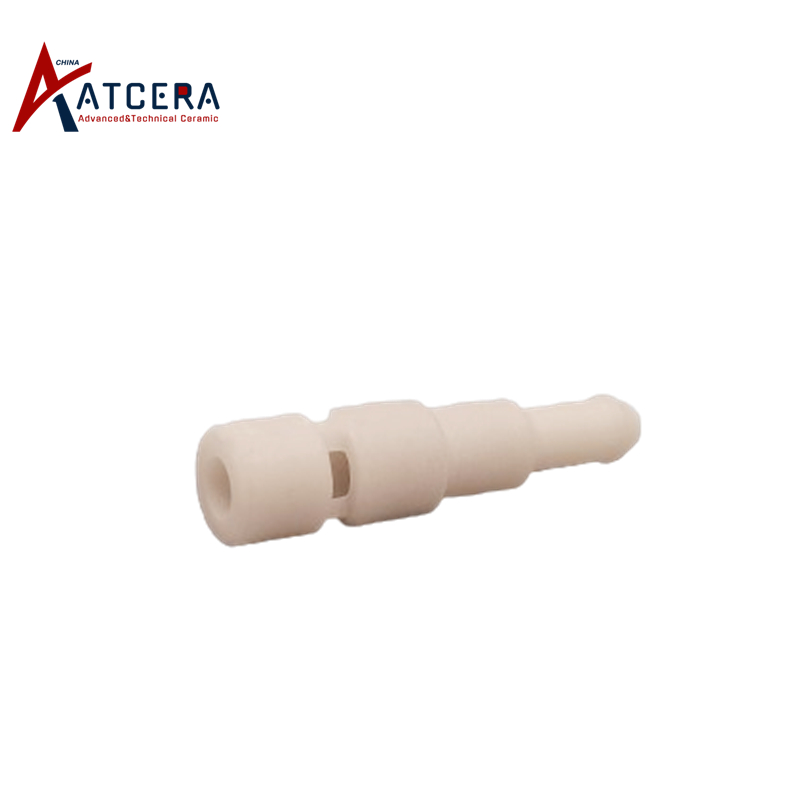

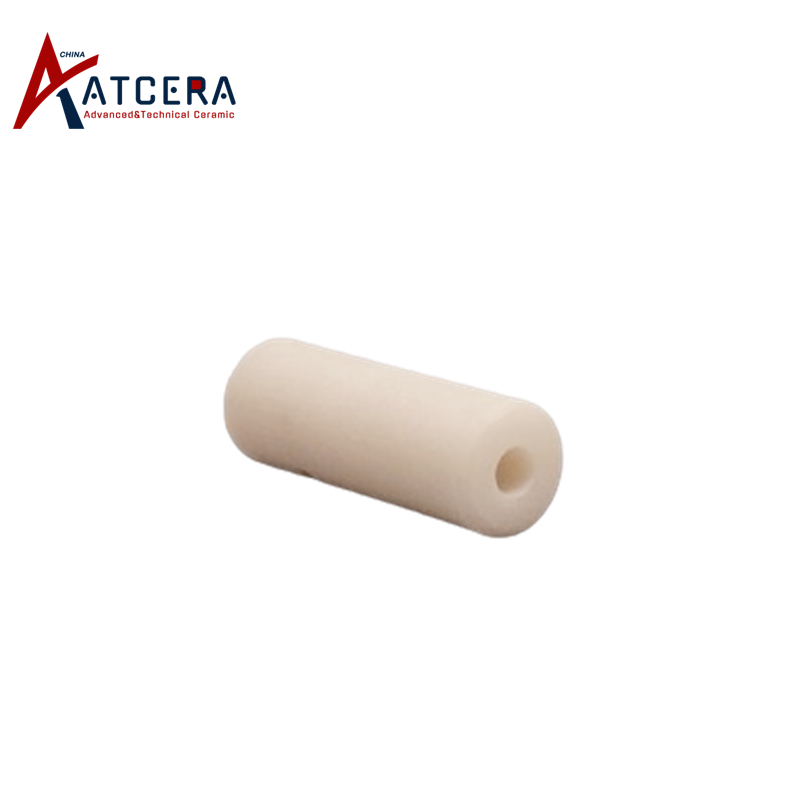

Aluminum Nitride Ceramic Cylinder Used as Structural Components

Aluminum nitride ceramic crucible has high temperature resistance, good thermal conductivity and oxidation resistance, small thermal expansion coefficient, high mechanical strength, good wear and corrosion resistance, it is resistant to corrosion by molten metal or non-metal (such as gallium arsenide) materials, and can be used for melting and calcination test of metal and non-metal materials, and synthesis of gallium arsenide.

Brand:
ATCERA
Item NO.:
AT-AIN-Anc001

Materials
Aluminum Nitride (AlN) Ceramic
Shapes
Rod
Applications
Semiconductor , Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Aluminum Nitride Ceramic Cylinder

1.Aluminum nitride ceramic cylinder has high temperature stability, excellent thermal conductivity and oxidation resistance, it can maintain stable chemical and mechanical properties at high temperature condition;

2. Aluminum nitride cylinder thermal expansion coefficient is small, so at high temperature the thermal stress is small;

3. Aluminum nitride cylinder has good corrosion resistance, it can work stably in corrosive media such as acid, alkali and salt for a long time.

Applications of AlN Cylinder

Aluminum nitride ceramic cylinder can be used to make a variety of structural components, insulation, heat insulation, support, heat dissipation and other functions.

Product Parameters
Material Parameters

Customization Design for AlN Cylinder

We are committed to delivering prime aluminum nitride cylinders tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Provide drawing and parameter requirements.

Send Requirements for Custom Design

AlN Cylinder
Item no.	Outer Dia.（mm）	Height（mm）	Purity（%）	Thermal Conductivity(w/(m·K))
AT-AIN-Anc001	20	200	92-99	170-230
AT-AIN-Anc002	30	150	92-99	170-230
AT-AIN-Anc003	50	100	92-99	170-230
AT-AIN-Anc004	70	120	92-99	170-230
AT-AIN-Anc005	80	180	92-99	170-230
AT-AIN-Anc006	90	300	92-99	170-230
AT-AIN-Anc007	120	350	92-99	170-230
AT-AIN-Anc008	150	400	92-99	170-230

Technical Data of Aluminum Nitride Materials

AlN Type	ALN-170	ALN-200	ALN-230
Density (g/cm³)	3.3	3.28	3.25
Flexture strength (MPa)	450	400	350
Young Modulus (GPa)	320	/	/
Hardness (Hv)	1100	1100	1100
Fracture toughness (MPa*m^1/2)	3	2.6	2.4
Maximum working temperature (℃)	1100	1100	1100
Thermal conductivity (W/m*K)	180	200	230
Thermal expansion coefficient (/℃)	4*10^-6	4*10^-6	4*10^-6
Dielectric Constant (at 1MHz)	9	8.7	8.5
Breakdown Voltage (kV/mm)	>15	>15	>15

*This chart illustrates the standard characteristics of the aluminum nitride materials commonly employed in the manufacturing of our AlN products and parts. Please be aware that the attributes of customized aluminum nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Valuable Information

Aluminum Nitride Ceramic Cylinder Packing

Aluminum nitride cylinders are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
