Boron carbide plate Boron carbide neutron absorber

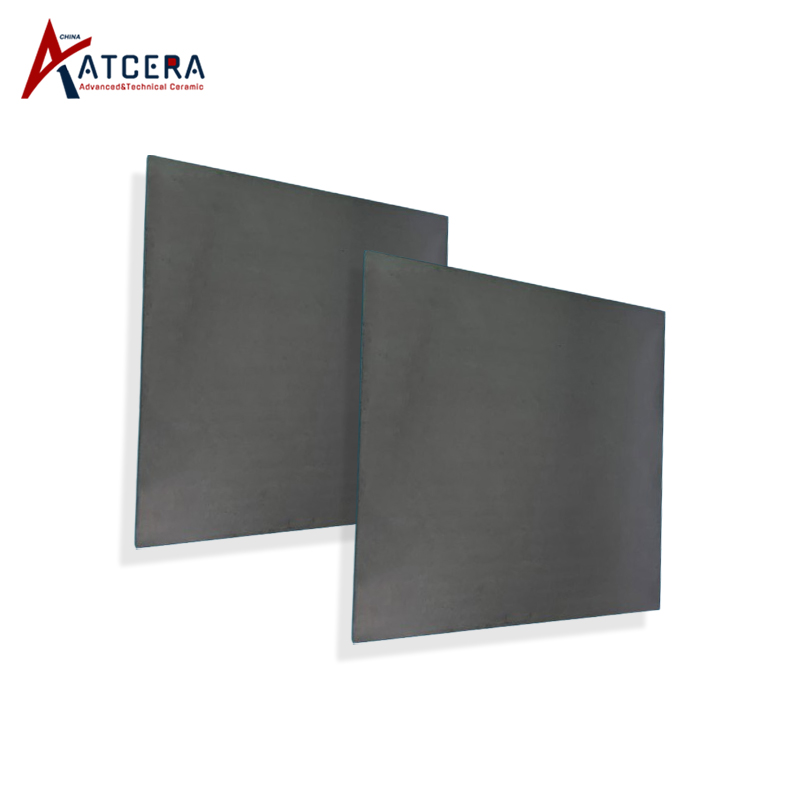

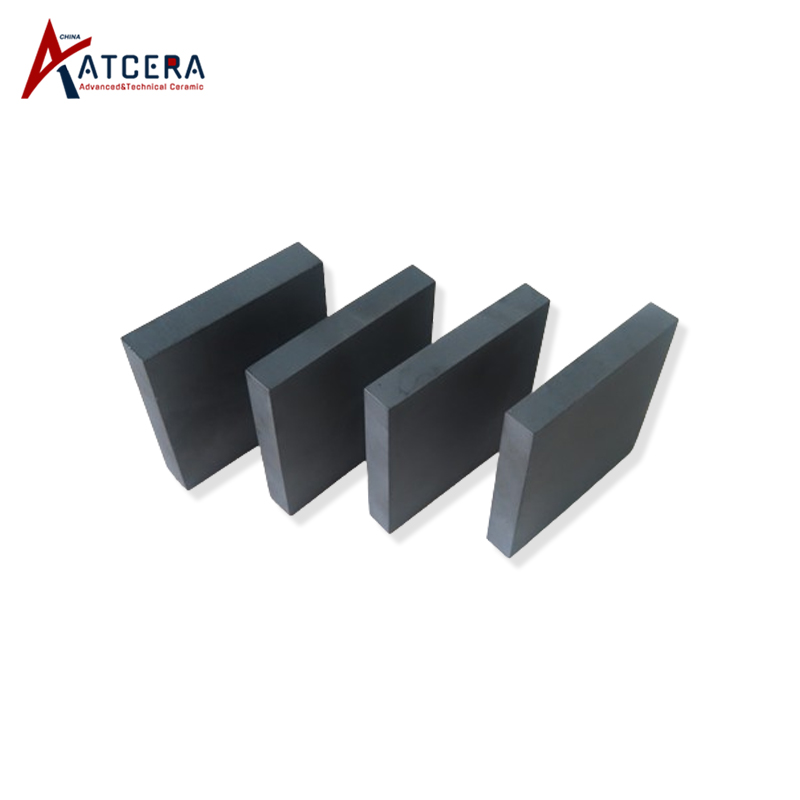

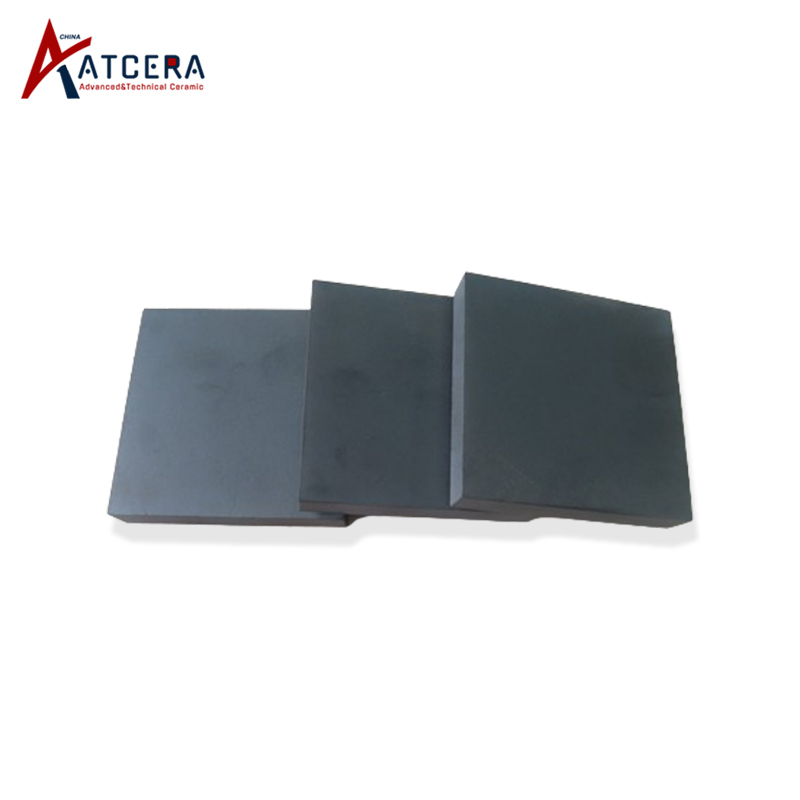

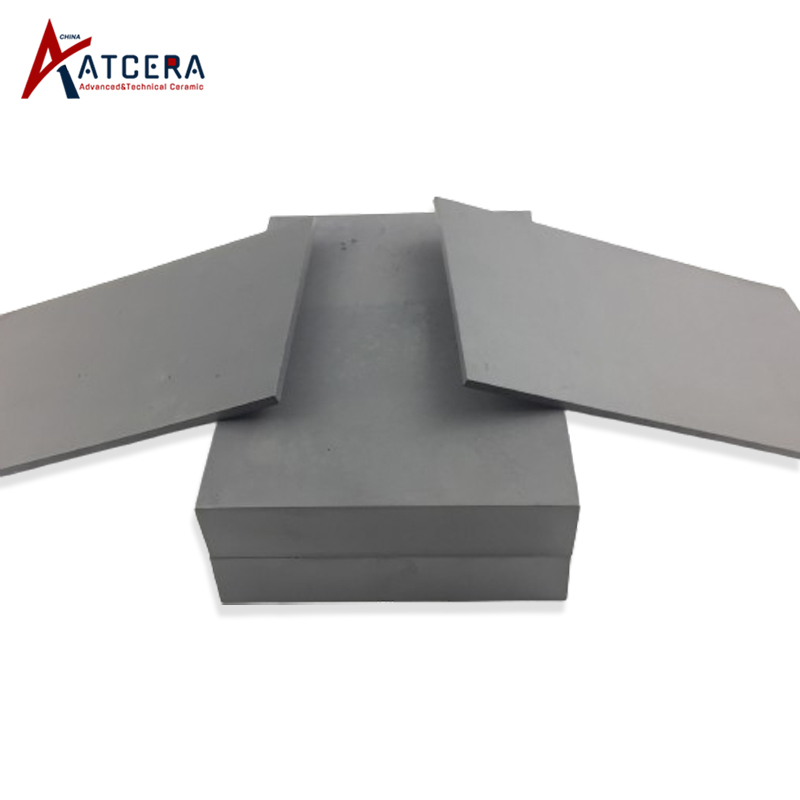

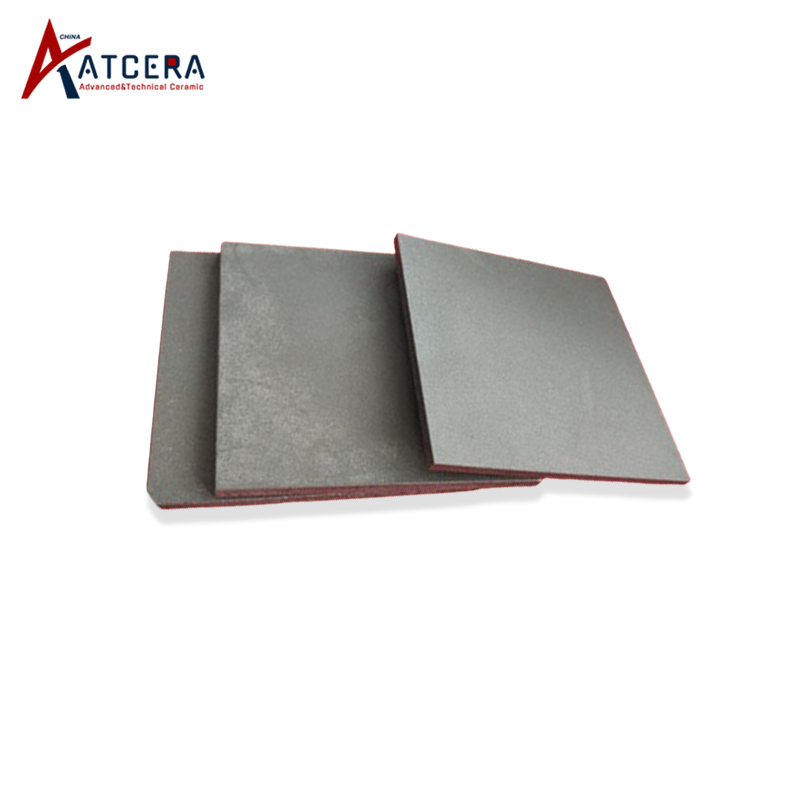

Boron Carbide Ceramic Plate B4C Plates

Boron carbide ceramic plate is made of boron carbide as raw material after forming high temperature sintering, it has high temperature and good corrosion resistance, good wear resistance, also the density is low and weight is light. It is widely used as wear-resistant and high temperature protection plate for machinery, metallurgy, chemical industry, aerospace and other industries, also can be used as radiation protection shielding material for nuclear energy industry.

Brand:
ATCERA
Item NO.:
AT-BC-B1001

Materials
Boron Carbide (B4C) Ceramic
Shapes
Plate
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Boron Carbide Ceramic Plate

1. Boron carbide ceramic plate has high hardness, very good wear resistance, low density, light weight, also elastic modulus is large.

2. Boron carbide plate has good corrosion resistance, good chemical stability.

3. It has high temperature resistance, small thermal expansion coefficient,can keep stable mechanical performance at high temperature.

4. The neutron absorption capacity of boron carbide is very strong.

Applications of Boron Carbide Ceramic Plate

Boron carbide ceramic plate is widely used as wear-resistant and high temperature protection plate for machinery, metallurgy, chemical industry, aerospace and other industries, also can be used as radiation protection shielding material for nuclear energy industry.

Size Chart of Boron Carbide Ceramic Plate

We are committed to delivering high-quality alumina ceramic tubes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Drawing and technical requirements shall be provided if customized design request.

Machining Tolerance:

1. Diameter: ±0.003mm

2. Hole Depth: ±0.005mm

3. Surfance Roughness:Ra0.02

4. Cylindricity: ±0.002mm

5. Concentricity: ±0.002mm

6. Parallelism: ±0.002mm

Send Requirements for Custom Design

Boron Carbide Ceramic Plate Square and Rectangular
Item No.	Length (mm)	Width (mm)	Thickness （mm)
AT-BC-B1001	10	10	5
AT-BC-B1002	10	10	7
AT-BC-B1003	40	50	10
AT-BC-B1004	50	50	3
AT-BC-B1005	50	50	4
AT-BC-B1006	50	50	6
AT-BC-B1007	50	50	8
AT-BC-B1008	50	50	10
AT-BC-B1009	50	50	11
AT-BC-B1010	100	100	10
AT-BC-B1011	150	150	5
AT-BC-B1012	150	150	9
AT-BC-B1013	150	150	10
AT-BC-B1014	150	300	10
AT-BC-B1015	300	300	10
AT-BC-B1016	380	380	10

Boron Carbide Ceramic Plate Round
Item No.	Diameter (mm)	Thickness （mm)
AT-BC-B200110	10	5
AT-BC-B2002	20	5
AT-BC-B2003	22	4
AT-BC-B2004	51	5
AT-BC-B2005	100	5
AT-BC-B2006	100	10
AT-BC-B2007	150	5
AT-BC-B2008	150	10
AT-BC-B2009	380	10

Technical Data of Boron Carbide Materials

		Index Data
		B4C
Hardness	GPa	≥24
Porosity Rate	%	＜0.2
Density	g/cm3	＞2.44
Compressive Strength	MPa	2500
Flexural Strength	MPa	480
Coefficient of Heat Expansion	10-6/℃	4
Thermal Conductivity	W/(M·K)	40
Content of B4C	%	≥90
Elastic Modulus	GPa	450
Operating Temperature	℃	1400

*This chart illustrates the standard characteristics of the boron carbide materials commonly employed in the manufacturing of our B4C products and parts. Please be aware that the attributes of customized boron carbide products and parts may vary depending on the specific processes involved.

00:00 / 00:00

Boron Carbide Plate for Aerospace, Metallurgy & Chemical Industries

Boron Carbide Ceramic Plate Packing

Boron carbide ceramic plate are carefully packaged in appropriate containers to avoid any potential damage.

Valuable Information

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Silicon Carbide Tubes: 15-Yr Corrosion Solution for Chemicals

Revolutionizing Chemical Processing: How Silicon Carbide Tubes Solve $20k/Day Downtime Challenges The chemical industry loses $5.3 billion annually to corrosion-related equipment failures (NACE International, 2022). At the heart of this crisis lies inadequate material performance in extreme environments. This article reveals why silicon carbide (SiC) tubes are replacing traditiona...

The Role of Zirconia Rods in Modern Industrial Applications

In today’s fast-paced industrial world, the demand for materials that combine strength, durability, and versatility is higher than ever. From high-performance equipment to critical components used in challenging environments, industries across the globe rely on advanced materials to meet their complex needs. One such material that has gained significant traction in modern manufacturin...

Why Quartz Glass Cuvettes Are Essential for Accurate Spectroscopy Measurements

In scientific research, spectroscopy plays a vital role in analyzing the properties of various substances by examining how light interacts with them. Whether it's determining the concentration of a solution or identifying chemical compounds, the accuracy of spectroscopy measurements is crucial. One of the most important factors in ensuring precise spectroscopic results is the choice of cuvette. Wh...

Applications of Alumina Substrates in the Automotive Industry

In recent years, the automotive industry has seen significant technological advancements, driven by the need for higher efficiency, sustainability, and performance. One of the materials playing a crucial role in this evolution is alumina. This ceramic material, known for its excellent thermal, mechanical, and electrical properties, has become indispensable in a range of automotive applications. Fr...

Why Silicon Nitride Tubes Are the Future of High-Temperature Applications

In the world of high-performance materials, the demand for solutions that can withstand extreme conditions is ever-growing. From aerospace and automotive to energy and electronics, industries are increasingly relying on materials that can handle not only high stress and pressure but also high temperatures. One such material that has emerged as a game-changer in these applications is silicon nitrid...

How Alumina Mechanical Parts Help Achieve Precision in High-Stress Environments

In industries that rely on high-performance machinery and equipment, precision and durability are critical. From aerospace to medical devices and semiconductor manufacturing, components must withstand extreme conditions while maintaining accuracy and reliability. One material that excels in these demanding environments is alumina, a form of aluminum oxide (Al2O3) used in the production of mechanic...

Comparing Silicon Carbide Crucibles to Other Crucible Materials: Which is Best for Your Process?

Crucibles are essential tools used in various industrial processes, particularly in metallurgy, casting, and chemical manufacturing. They provide a vessel for melting or holding high-temperature materials, and selecting the right crucible material is crucial to achieving optimal results. Among the wide variety of crucible materials available, Silicon Carbide (SiC) crucibles are often regarded as o...

Why is High-Purity Quartz Crucible Vital for Semiconductor Manufacturing and ATCERA's Innovation?

High-Purity Quartz Crucible: Essential for Semiconductor Manufacturing by ATCERA With the rapid development of science and technology, the semiconductor industry, as the cornerstone of modern information technology, is facing unprecedented challenges and opportunities. In the semiconductor manufacturing process, quartz glass crucible with its unique thermal stability and low reactivity, has...

Why is High-Purity Quartz Crucible Essential for Semiconductor & Solar PV Manufacturing?

High-Purity Quartz Crucible: Essential for Semiconductor & Solar PV Fields The purity of quartz crucible has a direct effect on the quality of its internal processing materials. In the high-tech industry, especially in the semiconductor and solar photovoltaic fields, the purity of the quartz crucible is directly related to the performance and reliability of the final product. As a brand...

How is High Purity Quartz Crucible Prepared and Why is it Crucial for High-Tech Industries?

High Purity Quartz Crucible: Preparation & Applications by ATCERA In the field of modern high-tech material preparation, high purity quartz (HPQ) crucible plays a crucial role. These crucibles are made of natural quartz minerals, mainly silica (SiO2), and are deeply purified to achieve the desired purity level. With its excellent technical strength, ATCERA brand focuses on the productio...

Related Products

$zirconum oxide refractory plate$

Zirconia Ceramic Refractory Plate

Alumina Plate for Bulletproof Alumina Plate for Armor

Silicon Nitride Ceramic Fasteners Si3N4 Screw and Bolt

Aluminum Nitride Ceramic Rod Used As Mechanical Parts

Beryllium Oxide Ceramic Crucible BeO Crucibles

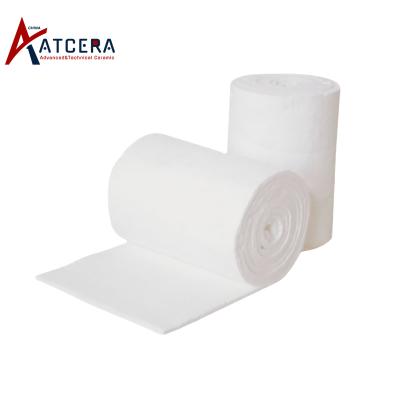

Alumina Ceramic Fiber Blanket
