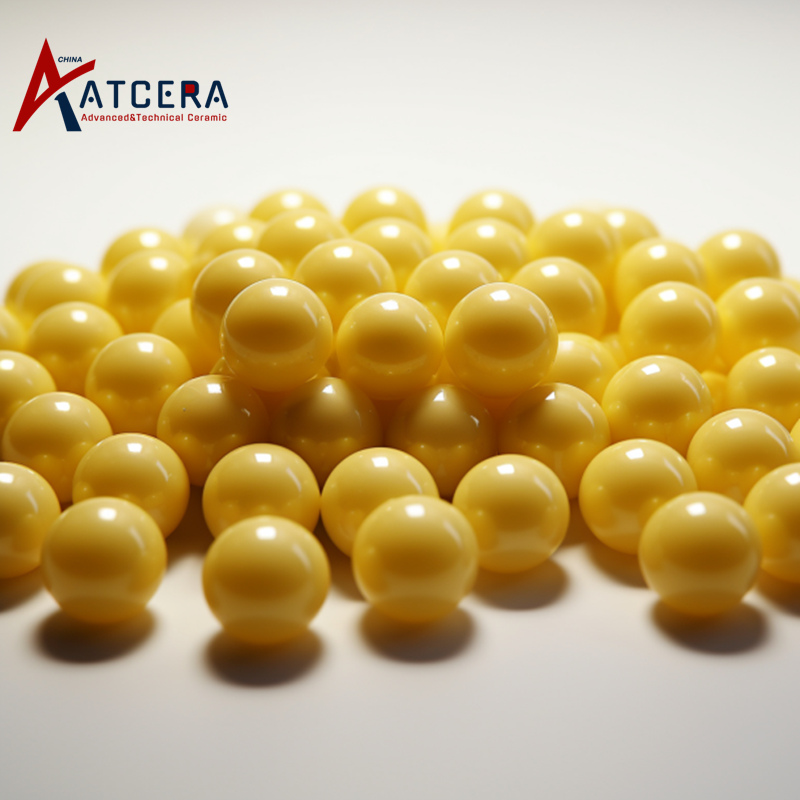

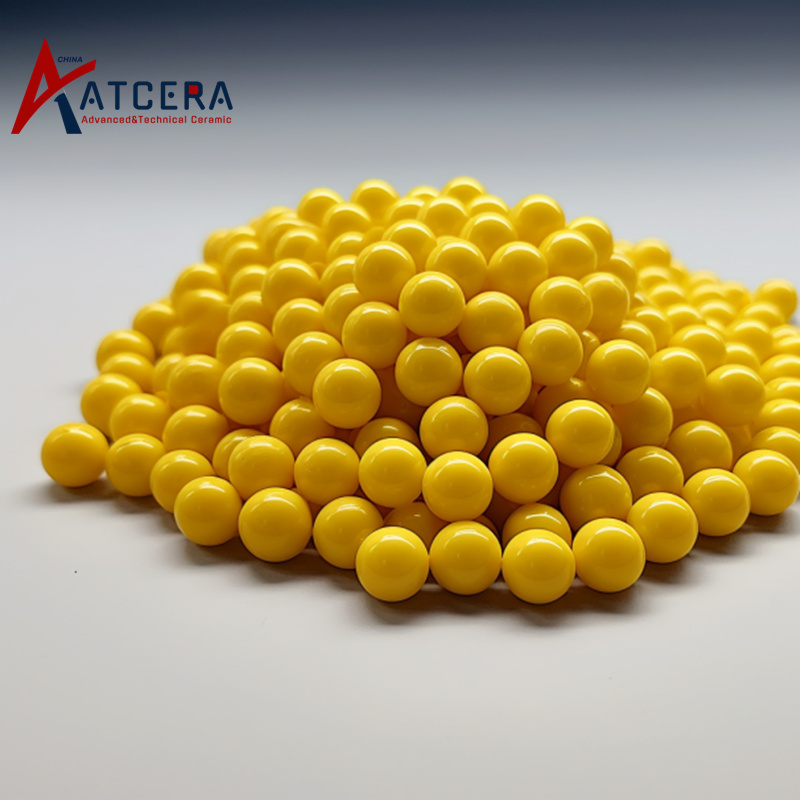

Cerin stabilized zirconium dioxide ceramic beads

Cerin Stabilized Zirconium Dioxide Beads Ceramic Balls for High Energy Intensity Mills

Cerin stabilized zirconium dioxide beads are sintered in a leading manufacturing process. The compact and homogenous tetragonal zirconia polyerystal result in the highenst hardness, density and excellent wear resistance. It is optimal for milling high viscosity and abrasion particles in high energy intensity mills.

Brand:
ATCERA
Item NO.:
AT-NC3-001

Materials
Zirconia
Shapes
Ball
Applications
Petrochemical Industry

Inquire Now

Cerin stabilized zirconium dioxide beads grinding media

Properties of Cerin Stabilized Zirconium Dioxide Beads

1. Long lifespan: 30 times longer life than glass beads ,6~8 times thanzirconium silicate beads.

2. High efficiency: about 30% higher than Y-TZP bead.

3. Wide visicosity range : the proceccing visicosity is up to 50,000cps.

Applications of Cerin Stabilized Zirconium Dioxide Beads

1. High solid content, high viscosity ink: offset ink, screen ink and UV ink

2. High performance coatings: automotive topcoat, aircraft coatings insulation coatings and wind power coatings.

3. Food and cosmetics: cocoa powder, chocolate, cream and nail polish.

4. Metals ores: gold, silver, copper, manganese and lead-zinc minerals.

5. Fillers: GCC, BaSiO4 and TiO2.

Size Chart of Cerin Stabilized Zirconium Dioxide Beads

We are committed to delivering optimal zirconia beads customized to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Content	ZrO2	CeO2
wt%	80%	20%

Cerin Stabilized Zirconium Dioxide Beads
Item No.	Diameter (mm)
AT-NC3-001	0.3-0.4
AT-NC4-002	0.4-0.6
AT-NC6-003	0.6-0.8
AT-NC8-004	0.8-1.0
AT-NC9-005	0.9-1.1
AT-NC10-006	1.0-1.2
AT-NC1-007	1.1-1.3
AT-NC12-008	1.2-1.4
AT-NC14-009	1.4-1.6
AT-NC16-010	1.6-1.8
AT-NC18-011	1.8-2.0
AT-NC20-012	2.0-2.2
AT-NC22-013	2.2-2.5
AT-NC25-014	2.5-2.8
AT-NC28-015	2.8-3.2

Technical Data of Cerin Stabilized Zirconium Dioxide Materials

Material	Cerin Stabilized Zirconium Dioxide
Specific Gravity	＞6.1kg/dm³
Bulk Density	＞3.8kg/L
Mohs hardness	9
Vickers hardness	＞1100kg/mm²
Fracture toughness	＞15MPa-m^1/2
Compressive Strength	1000N（2mm）
Tonnage wear	＜0.01kg/T

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Selection of zirconia beads

Zirconia bead filling amount shall be determined according to operating parameters, appropricate size and ratio of is selected based on the type of grinding materials and its target particle size.

2. Grinding speed

Control the grinding speed during operation, can not overspeed operation, so as to avoid excessive loss of zirconia beads.

3. Cleaning

Zirconia beads need to be cleaned regularly to ensure their service life and the quality of the grinding material, and it is recommended to use intermittent cleaning method, that is, to shut down the equipment after a period of time operation and then start again.

4. Adding zirconia beads

After a long time operation zirconia beads will have a certain loss due to collision with each other, need to be supplemented regularly, before supplement broken beads should be screened out, and then fill the same weight of zirconia beads.

5. Increase the filling amount of zirconia beads

When need to extend the grinding time, or the grinding fineness cannot achieve the expected effect, the filling amount of zirconia beads can be increased.

Valuable Information

Packaging of Cerin Stabilized Zirconium Dioxide Beads

Cerin stabilized zirconium dioxide beads are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
