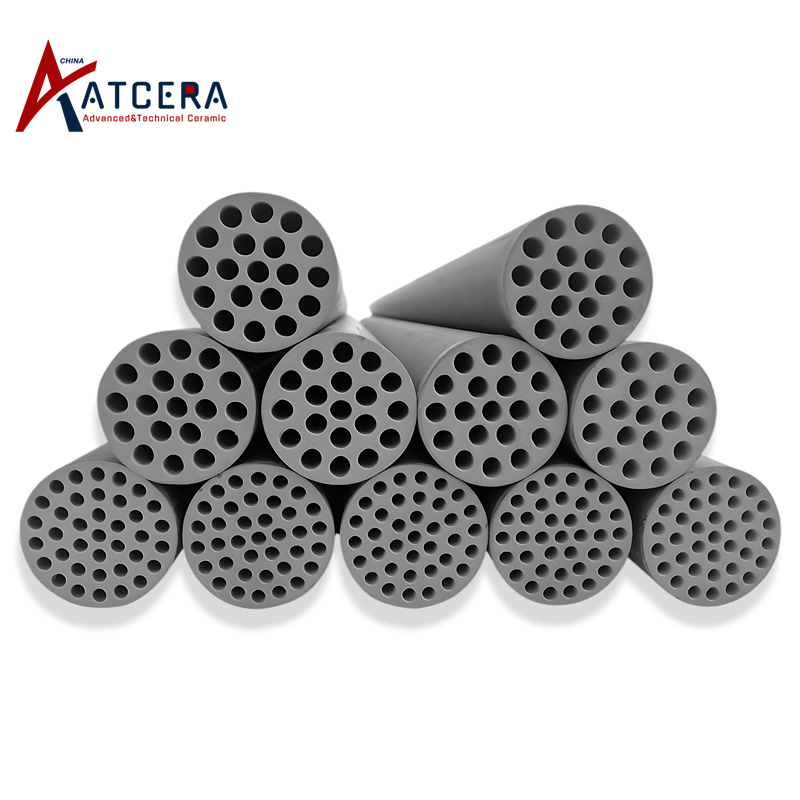

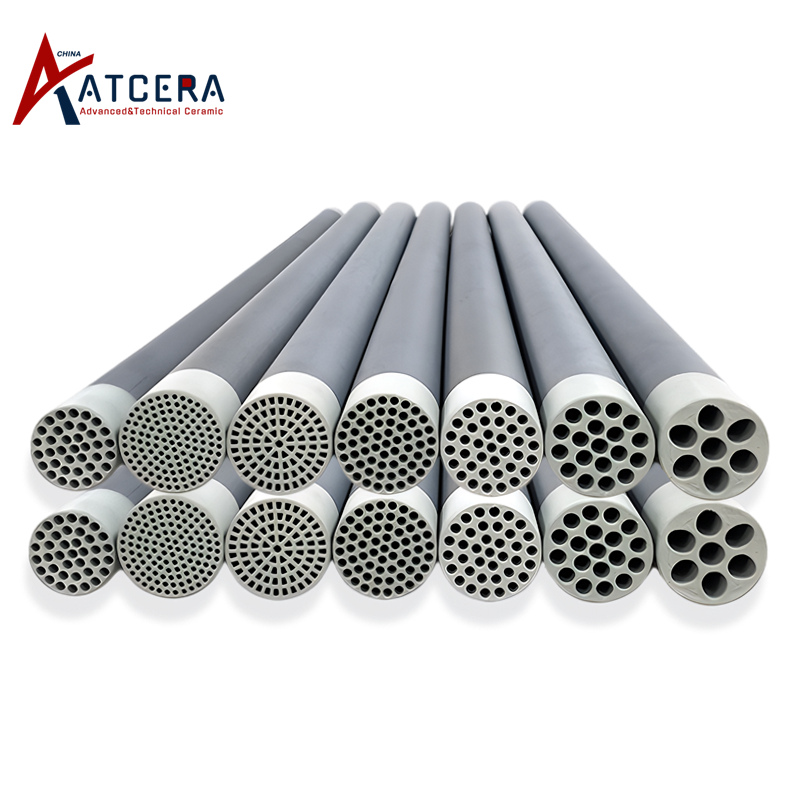

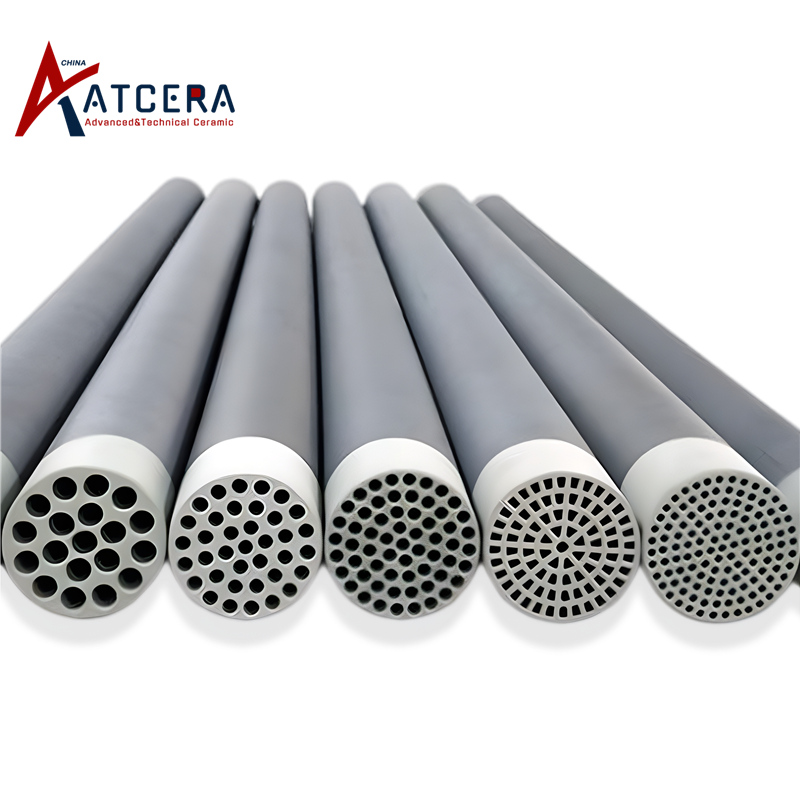

Silicon Carbide Membrane Tube SiC Ceramic Membrane Filter

Silicon carbide ceramic membrane tube is formed by recrystallization technology through high temperature sintering, its working principle is that the raw material liquid flows at high speed in the film tube, driven by pressure difference, the clarifying liquid containing small molecular components passes through the dense layer of the membrane, the suspended substances, colloidal particles and macromolecules in the fluid are trapped and adsorbated in the micropores, so as to achieve the purpose of fluid clarification, separation, concentration and purification. Silicon carbide membrane tube has high strength, good wear resistance, high temperature resistance, corrosion resistance, no pollution, uniform porosity distribution, long service life and easy regeneration, especially suitable for all kinds of gas and liquid filtration.

Brand:
ATCERA
Item NO.:
AT-THG-MG001

Materials
Silicon Carbide (SiC) Ceramic
Shapes
Tube
Applications
Petrochemical Industry , Food Processing , Biology and Medicine

Inquire Now

Properties of Silicon Carbide Membrane Tube

1. High filtration accuracy, can be applied to various media precision filtration, filtration particle size can reach to 0.1um, and efficiency can be higher than 95%;

2. Good acid and alkali resistance, oxidation resistance, oil resistance, suitable for filtration of various fluid media, including strong acid (such as sulfuric acid, hydrochloric acid, etc.), strong alkali (such as sodium hydroxide, etc.) media and various organic solvents;

3. High mechanical strength, suitable for high-pressure fluid filtration, the highest working pressure up to 16MPa, is conducive to improving filtration efficiency and speed;

4. Good thermal stability, can be applied to high temperature gas filtration, and high temperature sterilization treatment is available;

5. Long service life, the general service life can reach more than 5 years;

6. Easy operation, long-term continuous operation, and cleaning cycle is long, the permeability can still be restored after cleaning;

7. Silicon carbide material itself is tasteless, non-toxic, no foreign matter falls off, can be used for sterile media filtration.

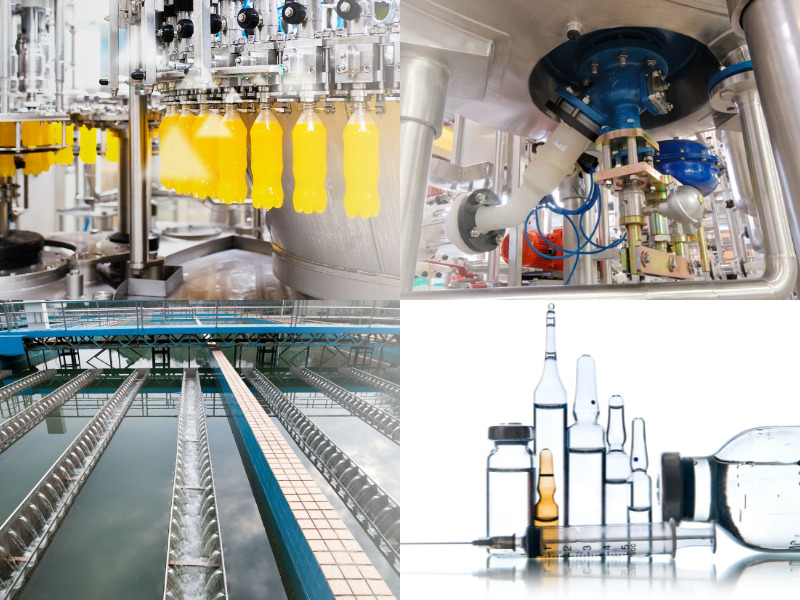

Applications of SiC Ceramic Membrane Filter

Applications of SiC Membrane Tube

Silicon carbide membrane tube has a very important application in food and beverage manufacturing, biomedicine, fine chemical industry and many other fields, it can be used in the process of separation, clarification, purification, concentration, sterilization, desalt, etc.

1. Food and beverage industry

Silicon carbide membrane tube can be used in milk filtration, juice concentration, natural plant extract, wine/tea beverage production, etc.

2. Chemical industry

Silicon carbide membrane tube is widely used for solid-liquid separation, gas-solid separation, and organics separation and purification, such as benzene, phenol, alcohol, various pigments.

[ATCERA's SiC membrane cuts Chemical plant costs 65%]

3. Environmental protection

It is used for purifying oily wastewater, textile wastewater, urban sewage and paper-making wastewater, as well as high temperature waste gas purification.

4. Biomedical field

Silicon carbide membrane tube can be used to seperate particles, bacteria and macromolecular impurities in the medicine, and decolor medicine, or refine and concentrate medicine liquid, extract the active ingredients, effective monomers, etc.

Size Chart for Silicon Carbide Membrane Tube

We are committed to delivering optimal silicon carbide membrane tube tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Please provide the requirements listed below at least, if the customized design needed:

1. Application scenario

2. The liquid and impurity composition to be filtered, impurity particle size

3. Designed fluid flow rate

4. Membrane tube size and other requirements

Technical Specification:
Content of SiC	≥98.5%
Maximum Operating Temperature	1650℃
Density	2.6-2.74g/cm³
Elastic Modulus	240GPa
Thermal Conductivity	12W/m*K
Compressive Strength	2000MPa
Linear Expansion Coefficient	4.8X10-6/℃

Send Requirements for Custom Design

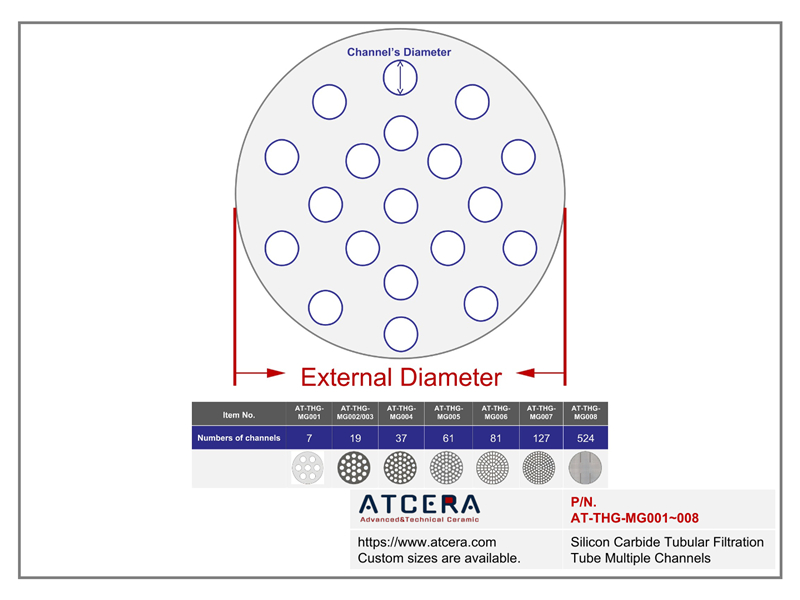

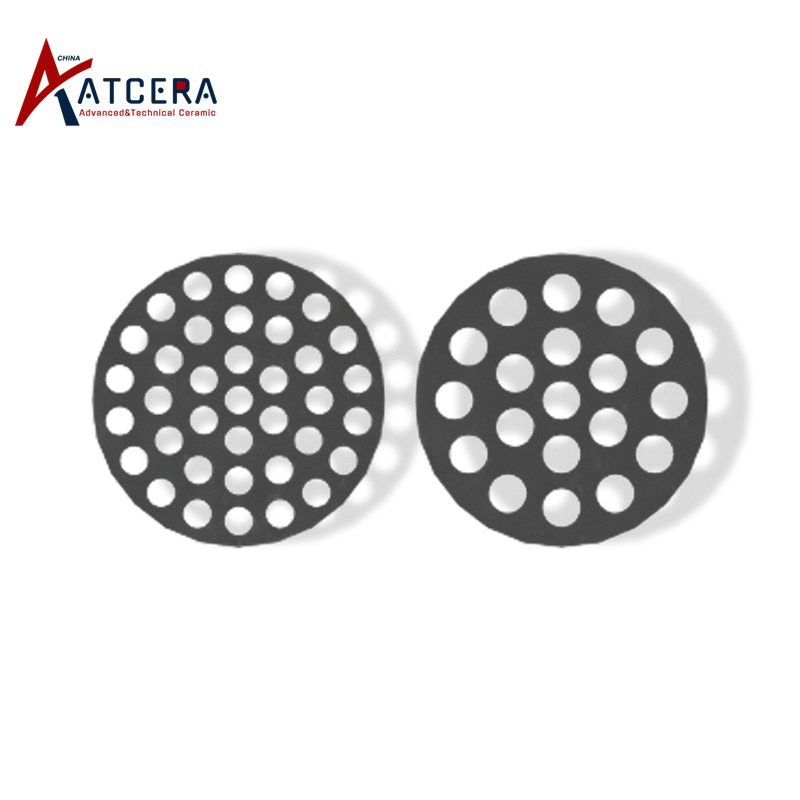

Drawing of Silicon Carbide Tubular Filtration Tube Multiple Channels

Silicon Carbide Tubular Filtration Tube Multiple Channels
Item NO.	External Diameter (mm)	Numbers of channels	Channel's Diameter (mm)	Membrane Areas (M2)	Filteration Accuracy (μm)	Toal Length (mm)
AT-THG-MG001	30	7	6	0.13	40/100/500/1000	100-1200
AT-THG-MG002	30	19	4	0.24	40/100/500/1000	100-1200
AT-THG-MG003	40	19	6	0.43	40/100/500/1000	100-1200
AT-THG-MG004	40	37	4	0.56	40/100/500/1000	100-1200
AT-THG-MG005	46	61	4	0.92	40/100/500/1000	1230
AT-THG-MG006	46	81	/	1.27	40/100/500/1000	1230
AT-THG-MG007	46	127	2.7	32.00	40/100/500/1000	1230
AT-THG-MG008	146	524	4.3	7.8	40/100/500/1000	1100

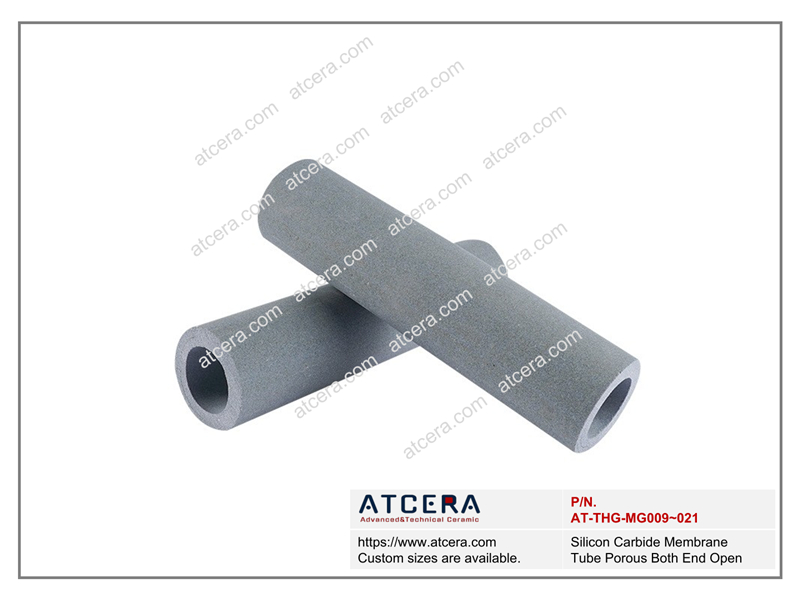

Drawing of Silicon Carbide Membrane Tube Porous Both End Open

Silicon Carbide Membrane Tube Porous Both End Open
Item NO.	External Diameter (mm)	Inner Diameter (mm)	Toal Length (mm)	Filteration Accuracy (μm)
AT-THG-MG009	30	20	1000	0.1-20
AT-THG-MG010	35	20	1000	0.1-20
AT-THG-MG011	40	20	1000	0.1-20
AT-THG-MG012	50	30	1000	0.1-20
AT-THG-MG013	60	40	1000	0.1-20
AT-THG-MG014	70	40-50	1000	0.1-20
AT-THG-MG015	80	50	1000	0.1-20
AT-THG-MG016	100	60-70	1000	0.1-20
AT-THG-MG017	150	90-100	1000	0.1-20
AT-THG-MG018	180	120	1000	0.1-20
AT-THG-MG019	200	140	1000	0.1-20
AT-THG-MG020	260	200	1000	0.1-20
AT-THG-MG021	300	230	1000	0.1-20

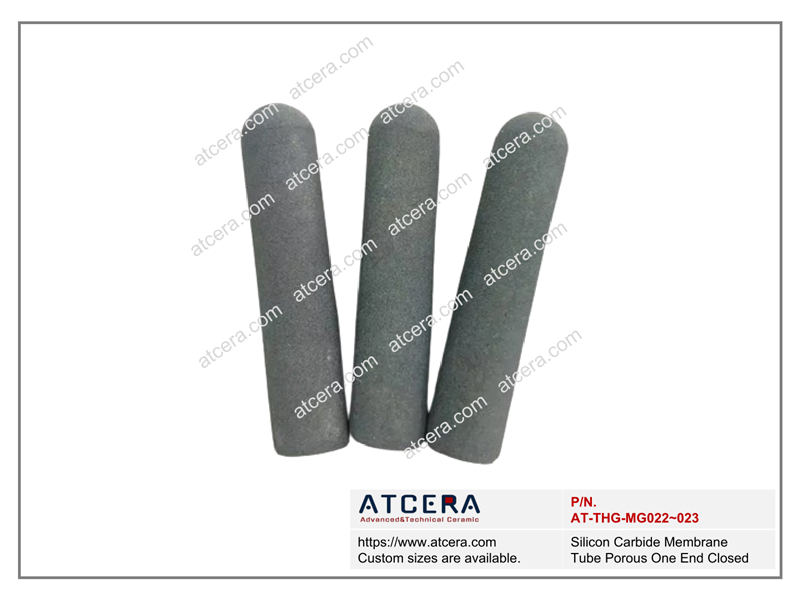

Drawing of Silicon Carbide Membrane Tube Porous One End Closed

Silicon Carbide Membrane Tube Porous One End Closed
Item NO.	External Diameter (mm)	Inner Diameter (mm)	Toal Length (mm)	Filteration Accuracy (μm)
AT-THG-MG022	60	40	200	0.1-20
AT-THG-MG023	60	40	1500	0.1-20

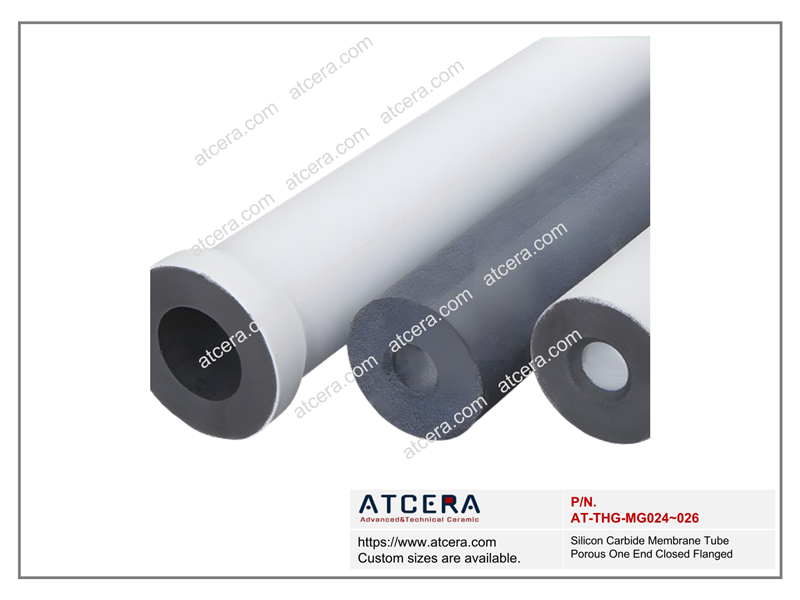

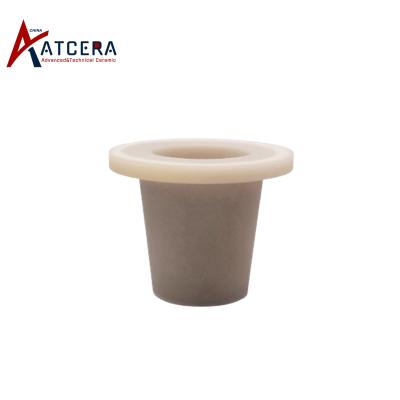

Drawing of Silicon Carbide Membrane Tube Porous One End Closed Flanged

Silicon Carbide Membrane Tube Porous One End Closed Flanged
Item NO.	External Diameter (mm)	Inner Diameter (mm)	Toal Length (mm)	Diameter of Flange (mm)	Filteration Accuracy (μm)
AT-THG-MG024	60	40	1000	75	0.1-20
AT-THG-MG025	60	40	1500	75	0.1-20
AT-THG-MG026	70	44	1000	84	0.1-20

Technical Data of Silicon Carbide Materials

Item		Unit	Index Data
Item		Unit	Reaction-sintered SiC (SiSiC)	Silicon Nitride Bonded With SiC (NBSiC)	Sintered SiCn Without Pressure (SSiC)
SiC Content		%	85	80	99
Free Silicon Content		%	15	0	0
Max. Service Temp.		℃	1380	1550	1600
Density		g/cm3	3.02	2.72	3.1
Porosity		%	0	12	0
Bending Strength	20℃	Mpa	250	160	380
Bending Strength	1200℃	Mpa	280	180	400
Modulus of Elasticity	20℃	Gpa	330	220	420
Modulus of Elasticity	1200℃	Gpa	300	/	/
Thermal Conductivity	1200℃	W/m.k	45	15	74
Coefficient of Thermal Expansion		K-1×10-6	4.5	5	4.1
Vickers Hardness	HV	kg/mm2	2500	2500	2800

*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Prepare

Before using the silicon carbide membrane tube, it needs to be cleaned and disinfected. Generally use hot water or detergent to clean, and use steam for disinfection. If there is damage or defect, it should be replaced or repaired.

2. Use method

(1) Selection: choose appropriate silicon carbide membrane tube specification, to get the best filtration accuracy;

(2) Installation: when install silicon carbide membrane tube in the corresponding filter equipment, operation shall be carried out in strict accordance with the instructions;

(3) Starting and closing of the membrane tube: Before starting the membrane tube, make sure it is well connected to pipeline and water pump in the equipment, and be sure to turn on the water pump first, and then start the filter membrane; After the membrane is closed, it's better to clean it to get the best service life.

3. Maintenance precautions

(1) Check the membrane tube regularly, and deal with problems such as blockage or damage;

(2) Regularly clean and disinfect the filter membrane to ensure its normal operation;

(3) Record maintenance and replancement of the membrane tube, to decide reasonable maintenance cycle and service life.

(4) Replace the membrane tube or filter membrane accessories regularly to ensure its filtration effect and stability.

Valuable Information

Specification of Silicon Carbide Filtration Tube

SiC content	≥98.5%
Porosity	5-50%
Density	1.4-2.55g/cm3
Pore size	0.1-50μm
Maximum operating pressure	2MPa
Flexural strength	10-18Mpa
Compressive strength	25-45MPa
Maximum operating temperature	800℃ (for higher temperature request please contact ATCERA)
In compliance with EU ROHS environmental standards

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
