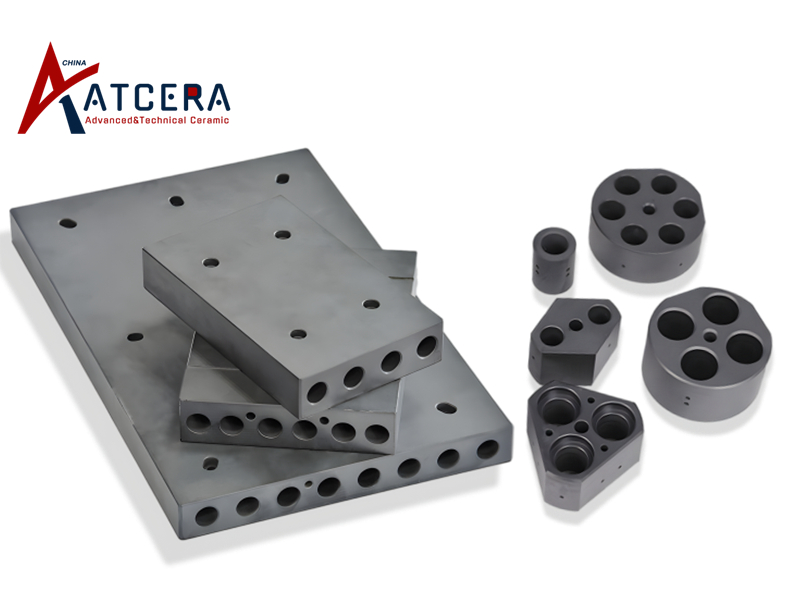

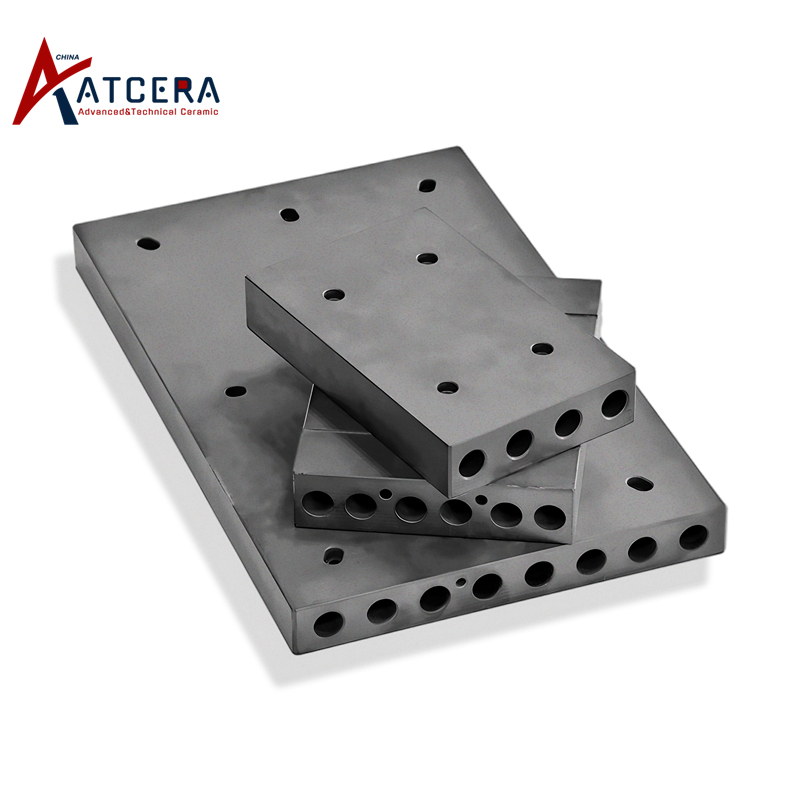

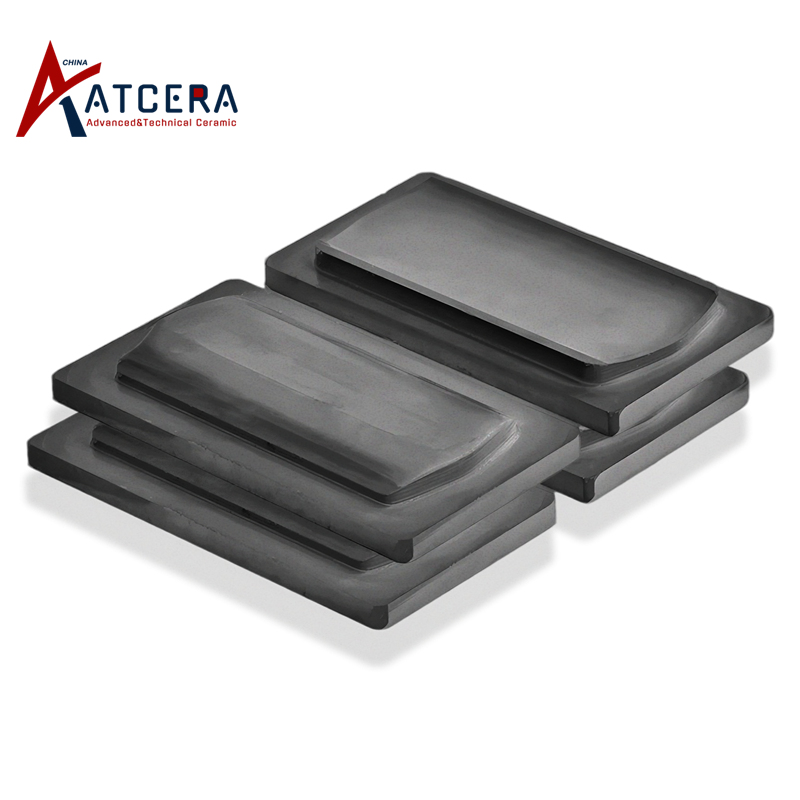

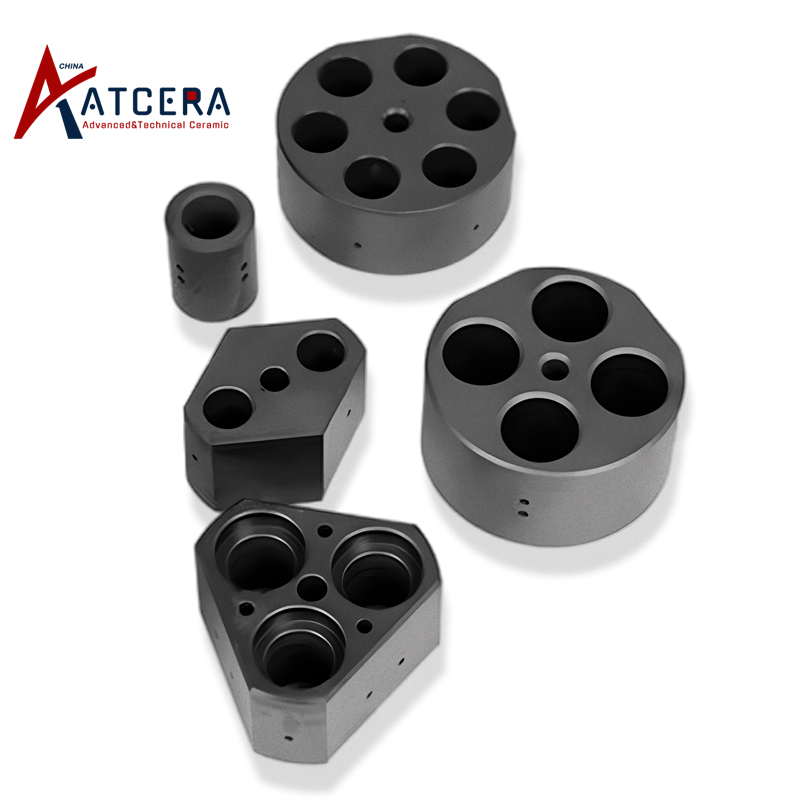

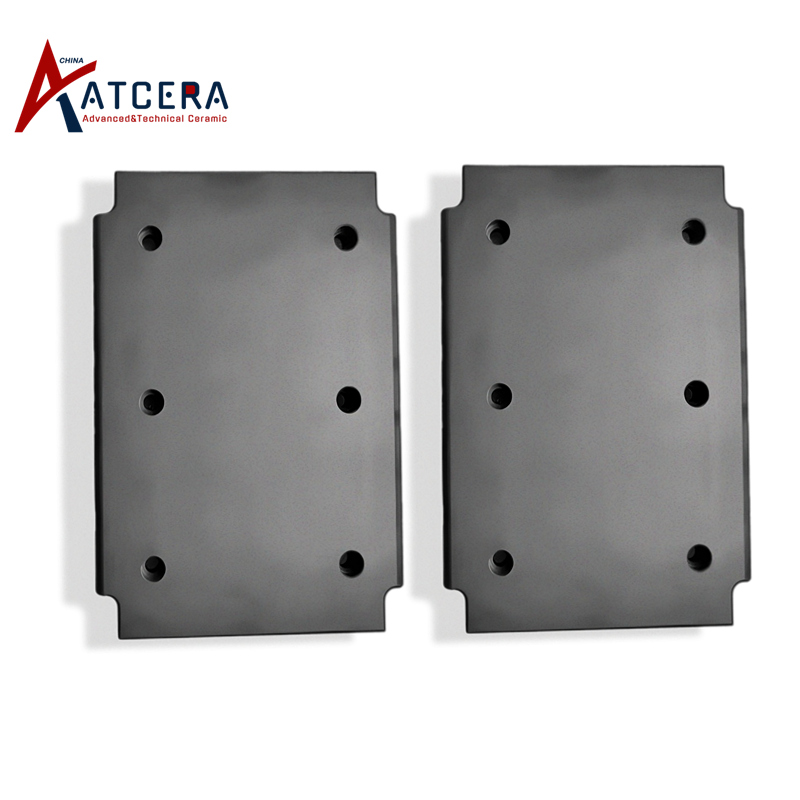

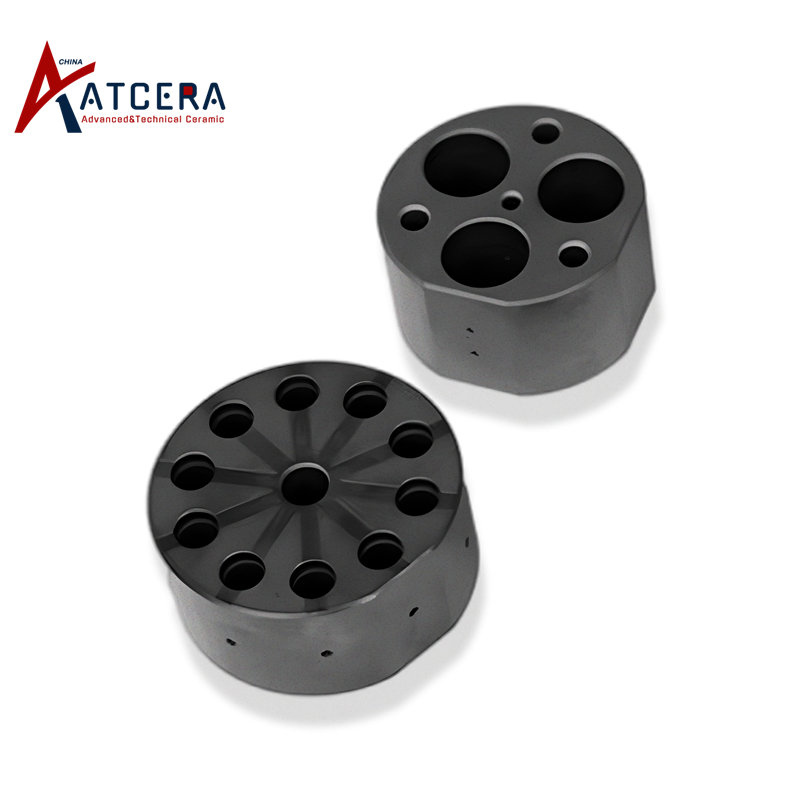

Silicon Carbide Mold SiC Mold For Glass Moulding

Silicon carbide mould is sintered with high purity silicon carbide powder as raw material, mainly used for glass molding (hot pressing).

  • Brand:

    ATCERA
  • Item NO.:

    AT-SIC-MJ1001
  • Materials

    Silicon Carbide (SiC) Ceramic
  • Shapes

    Mechanical Parts
  • Applications

    Electronics and Electricity , Mechanical Parts
SiC mold

Properties of Silicon Carbide Mould



Silicon carbide mould has high temperature resistance, good thermal stability and oxidation resistance, high thermal conductivity, small thermal expansion coefficient, high hardness and good wear resistance, also with high strength and good corrosion resistance.



1. High surface finish, no reaction or bonding with glass, good demoulding performance;



2. High temperature resistance, good stability and oxidation resistance at high temperature, and no deformation;



3. High thermal conductivity, good temperature equalization, fast heat transfer and heat dissipation, fast thermal response speed (heating and cooling speed);



4. High hardness, good wear resistance, will not produce dust pollutants.

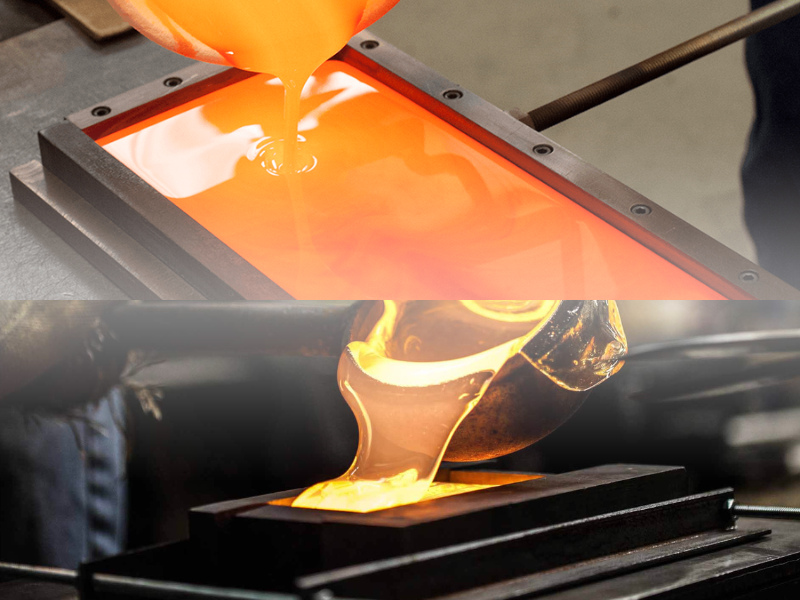

Applications of SiC Mould

Applications of SiC Mould



Silicon carbide mold is used for hot press and hot bending of various glass components, including mobile phones, flat panel display 3D glass, automotive display 3D glass, optical lens, and aspherical glass.









































Customized Design for Silicon Carbide Mould

We are committed to delivering optimal silicon carbide mould tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.



Drawing and specification requirement shall be provided if customized design request.



Machining Tolerance:
1. Diameter: ±1μm
2. Surfance Roughness:Ra0.01
3. Perpendicularity:±1μm
4. Parallelism: ±1μm







Customized Design for Silicon Carbide Mould





Technical Data of Silicon Carbide Materials



Item Unit Index Data
Reaction-sintered SiC
(SiSiC)
Silicon Nitride Bonded With SiC
(NBSiC)
Sintered SiCn Without Pressure
(SSiC)
SiC Content % 85 80 99
Free  Silicon Content % 15 0 0
Max. Service Temp. 1380 1550 1600
Density g/cm3 3.02 2.72 3.1
Porosity % 0 12 0
Bending Strength 20℃ Mpa 250 160 380
1200℃ Mpa 280 180 400
Modulus of Elasticity 20℃ Gpa 330 220 420
1200℃ Gpa 300 / /
Thermal Conductivity 1200℃ W/m.k 45 15 74
Coefficient of Thermal Expansion K-1×10-6 4.5 5 4.1
Vickers Hardness HV kg/mm2 2500 2500 2800



*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.



Usage Instructions




1. Before using the silicon carbide mould, it needs to be placed in a dry environment for a few days to ensure that it will not be affected by moisture;


2. Dust and fine particles may affect the performance of the silicon carbide mold, so contact between silicon carbide and dust or other fine particles should be avoided during storage;


3. The silicon carbide mould should avoid collision and violent vibration during transportation to prevent fragmentation;


4. Long-term contact with strong acid or alkali substances may reduce the performance of silicon carbide mould, thus affecting the protective effect, so long-term contact with strong acid and alkali substances should be avoided.


Valuable Information

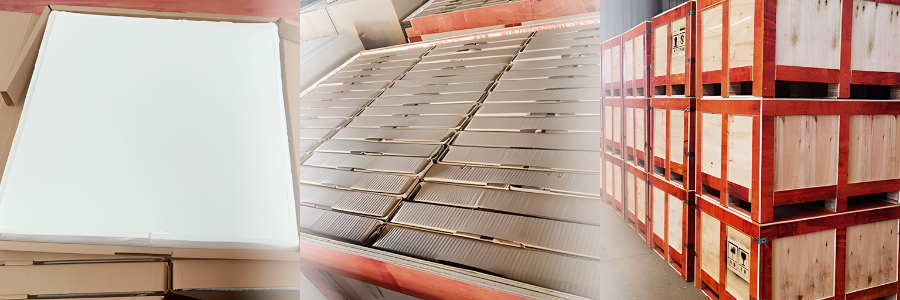

SiC Mold Packing

SiC Mold Packing



Silicon carbide moulds are carefully packaged in appropriate containers to avoid any potential damage













Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
