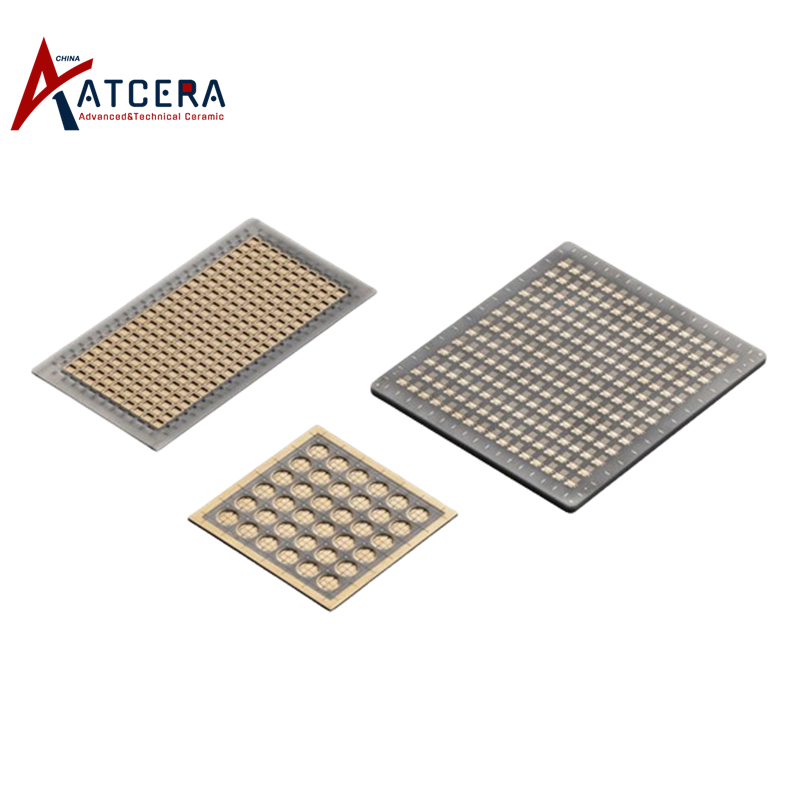

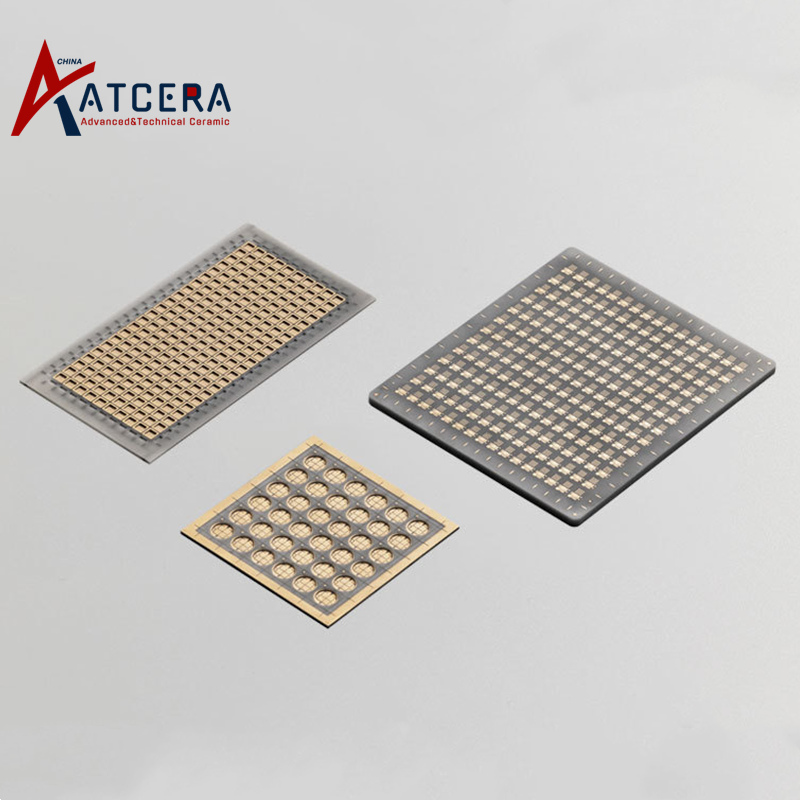

UVLED VCSEL Support AlN HTCC Substrate

Aluminum nitride HTCC substrate is made of aluminum nitride as raw material with accurate thickness and good densification of raw ceramic sheet, using tungsten, molybdenum, manganese and other metal slurry, and the designed circuit diagram is formed on the raw ceramic sheet through drilling, micro-hole grouting, printing and other processes, and then laminated together and sintered at 1500℃~1850℃. Finally through electroplating, brazing and other processes, a monolithic structure of three-dimensional wiring system is formed. Aluminum nitride HTCC substrate has high mechanical strength, good heat dissipation performance, high temperature and corrosion resistance, high wiring density, it 's suitable for electronic components those need to work at high temperature environment, with high thermal stability requirements and large power.

Brand:
ATCERA
Item NO.:
AT-3535-01

Materials
AlN
Shapes
Substrate
Applications
Semiconductor , Electronics and Electricity

Inquire Now

Properties of Aluminum Nitride UVLED VCSEL Support

Because of its excellent heat dissipation performance, aluminum nitride can be used in the packaging of more powerful chips in the consumer electronics field, such as the packaging of UVLED (ultraviolet LED) and VCSEL (vertical cavity surface emitting laser) chips.

Applications of AlN UVLED VCSEL Support

Aluminum nitride HTCC substrate is suitable for electronic components those need to work at high temperature environment, with high thermal stability requirements and large power, usually used as a high-voltage, high-power device packaging substrate, including power module, high-frequency switching power supply, relay, communication module, LED module, etc., widely used in new energy vehicles, rail transit, smart grid, aerospace and other fields.

Product Parameters
Material Parameters

Size Chart for UVLED VCSEL Support

We are committed to delivering prime aluminum nitride UVLED VCSEL support tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Please inquire ATCera for information or requesst.

Send Requirements for Custom Design

UVLED VCSEL Support
Item no.	Model	Overall substrate size	Product size	Cavity size	Cavity shape	Cavity depth	Metallization of the seal
AT-3535-01	3535-01	88.945.50.8	SQ3.5	SQ2.4	square	0.4	yes
AT-3535-02	3535-02	88.945.50.8	SQ3.5	SQ2.4	square	0.4	no
AT-3535-03	3535-03	88.945.51.0	SQ3.4	SQ2.4	square	0.5	yes
AT-6868-01	6868-01	48481.0	SQ6.8	4.9	circle	0.2+0.4	no
AT-V3535-04	V3535-04	88.945.52.0	SQ3.5	SQ2.4	square	0.45+1.0	no

Technical Data of Aluminum Nitride Materials

AlN Type	ALN-170	ALN-200	ALN-230
Density (g/cm³)	3.3	3.28	3.25
Flexture strength (MPa)	450	400	350
Young Modulus (GPa)	320	/	/
Hardness (Hv)	1100	1100	1100
Fracture toughness (MPa*m^1/2)	3	2.6	2.4
Maximum working temperature (℃)	1100	1100	1100
Thermal conductivity (W/m*K)	180	200	230
Thermal expansion coefficient (/℃)	4*10^-6	4*10^-6	4*10^-6
Dielectric Constant (at 1MHz)	9	8.7	8.5
Breakdown Voltage (kV/mm)	>15	>15	>15

*This chart illustrates the standard characteristics of the aluminum nitride materials commonly employed in the manufacturing of our AlN products and parts. Please be aware that the attributes of customized aluminum nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Valuable Information

UVLED VCSEL Support Packing

Aluminum nitride UVLED VCSEL supports are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Evolution Of Ceramic Substrate Materials: Breakthroughs From Alumina To Aluminum Nitride And Silicon Nitride

In today's rapidly changing electronics industry, ceramic substrate materials as a key basis for supporting high-performance electronic devices, its performance and characteristics directly affect the overall performance and reliability of electronic products. From the early alumina ceramics to the later aluminum nitride, silicon nitride and other new materials, the development of ceramic substrat...

The Applicability of Aluminum Nitride Substrate as a Packaging Material for Enhancing Heat Dissipation in Power Devices

With the rapid development of electronic technology, the comprehensive performance of electronic chips is improving day by day, but the overall size is shrinking. This trend brings significant performance improvements, but it also comes with a serious challenge - a dramatic increase in heat flux. For electronic devices, even a small increase in temperature can have a significant impact on their pe...

Thermal Conductivity Improvement of Silicon Nitride Substrate

In the field of advanced ceramic materials, silicon nitride (Si3N4) has attracted much attention for its excellent mechanical strength, chemical stability and high temperature properties. However, the thermal conductivity of silicon nitride ceramics, as one of the key factors affecting its wide application, has been an important subject in materials science research. This paper aims to investigate...

Exploring Lattice Vibration Mechanism And Sintering Assistant Strategy Of Silicon Nitride Substrates

In cutting-edge technologies such as high-performance electronic packaging, aerospace and energy conversion, silicon nitride (Si3N4) substrate materials are highly regarded for their excellent mechanical properties, chemical stability and high temperature resistance. However, the thermal conductivity of silicon nitride, as one of the key factors affecting its wide application, has always been...

Optimization of Thermal Conductivity of Silicon Nitride Substrate

In exploring silicon nitride (Si3N4) substrate materials as core to a high-performance thermal management solution, our understanding of their heat transfer mechanisms is critical. The main heat transfer mechanism of silicon nitride is known to rely on lattice vibration, a process that transfers heat through quantized hot charge carriers called phonons. The propagation of phonons in th...

Application Potential of Silicon Nitride Substrate in Semiconductor Device Heat Dissipation Field

After entering the intelligent information age, semiconductor devices have quickly occupied our lives. Because the heat generated by the workpiece is a key factor causing the failure of semiconductor devices, in order to avoid many troubles caused by device failure and ensure its long-term effective and safe operation, it is necessary to be equipped with an efficient heat dissipation system. ...

Optimize Sintering Additives to Improve the Performance of AlN Substrate

In practical applications, in addition to high thermal conductivity and high electrical insulation properties, aluminum nitride substrates are also required to have high bending strength in many fields. At present, the three-point bending strength of aluminum nitride in circulation on the market is usually 400~500MPa, which seriously limits the promotion and application of aluminum nitri...

Fabrication Technology of Thick Film Resistors on AlN Substrate

With the continuous progress of microelectronics packaging technology, the power and integration of electronic components have significantly increased, which has led to a significant increase in the heat generation per unit volume, which has put forward more stringent requirements for the heat dissipation efficiency (that is, its heat conduction performance) of the new generation of circuit boards...

Advancements in Resistor Fabrication on Aluminum Nitride (AlN) Substrates for Enhanced Thermal Management in Microelectronics

With the continuous evolution of microelectronics packaging technology, the power density of electronic components has increased significantly, resulting in a sharp increase in heat generation per unit volume, which has put forward more stringent standards for the performance of the new generation of circuit boards in terms of heat dissipation efficiency (thermal conductivity). At present, researc...

Research on Fabrication Process of AlN Substrate

With the development of microelectronics packaging technology, the power and density of electronic components are increasing, and the heat per unit volume is increasing, and the requirements for the heat dissipation capacity (that is, thermal conductivity) of the new generation of circuit board are also more stringent. At present, the high thermal conductivity ceramic substrates developed are...

Aluminum Nitride Ceramic Substrate AlN Substrate

CDIP Ceramic Dual In-Line Housing AlN HTCC Substrate

CFP Ceramic Flat Housing AlN HTCC Substrate

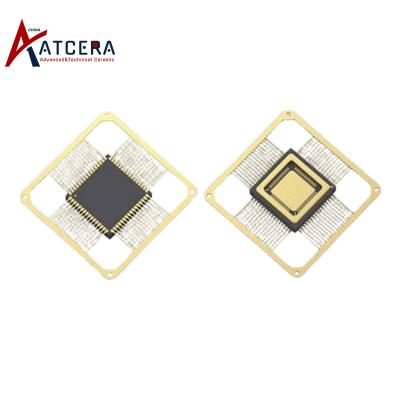

CQFP Ceramic Four-Sided Flat Housing AlN HTCC Substrate
