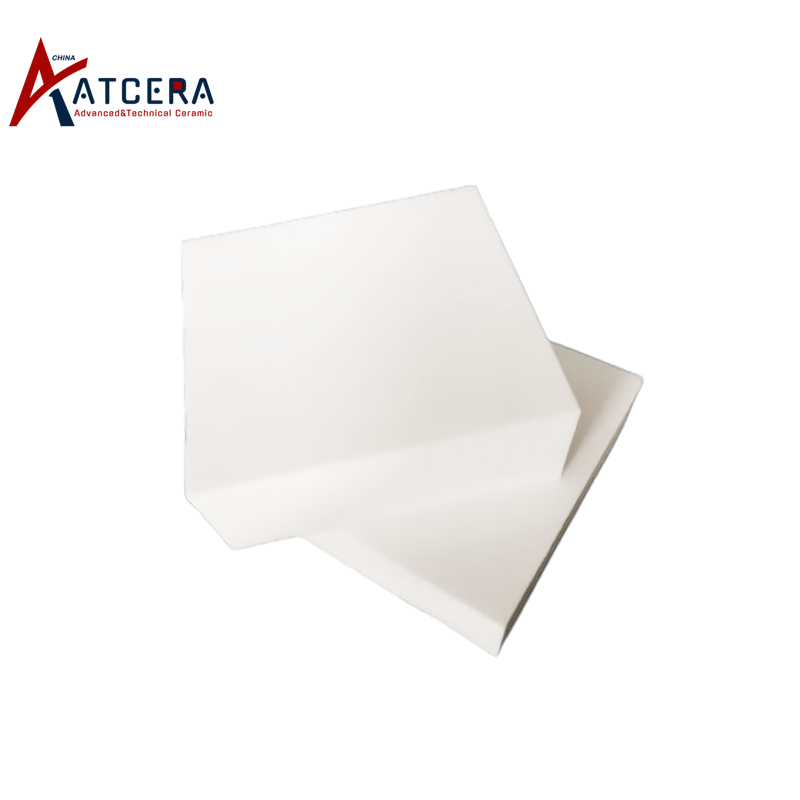

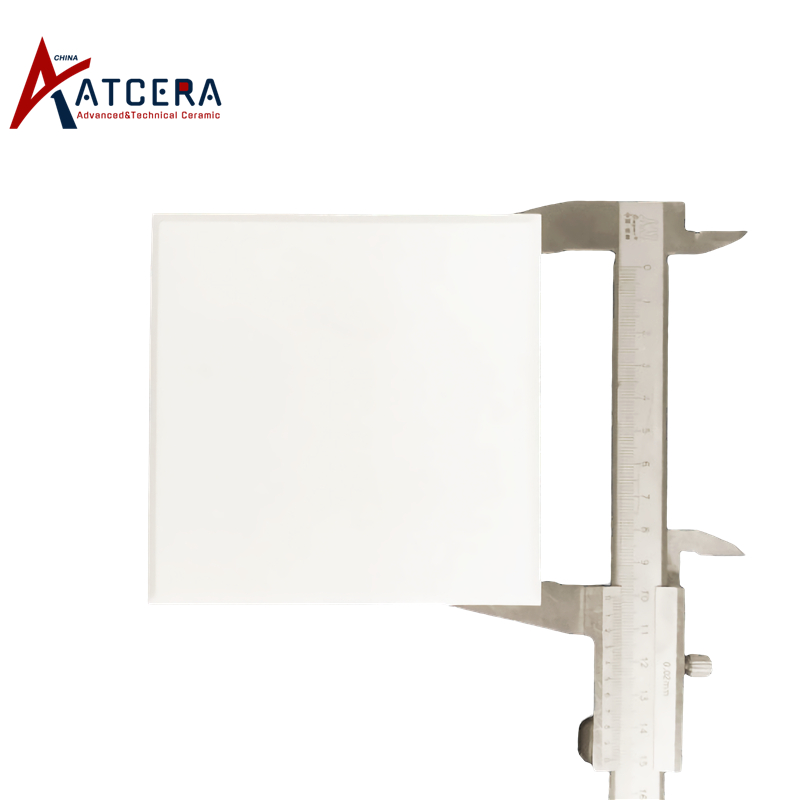

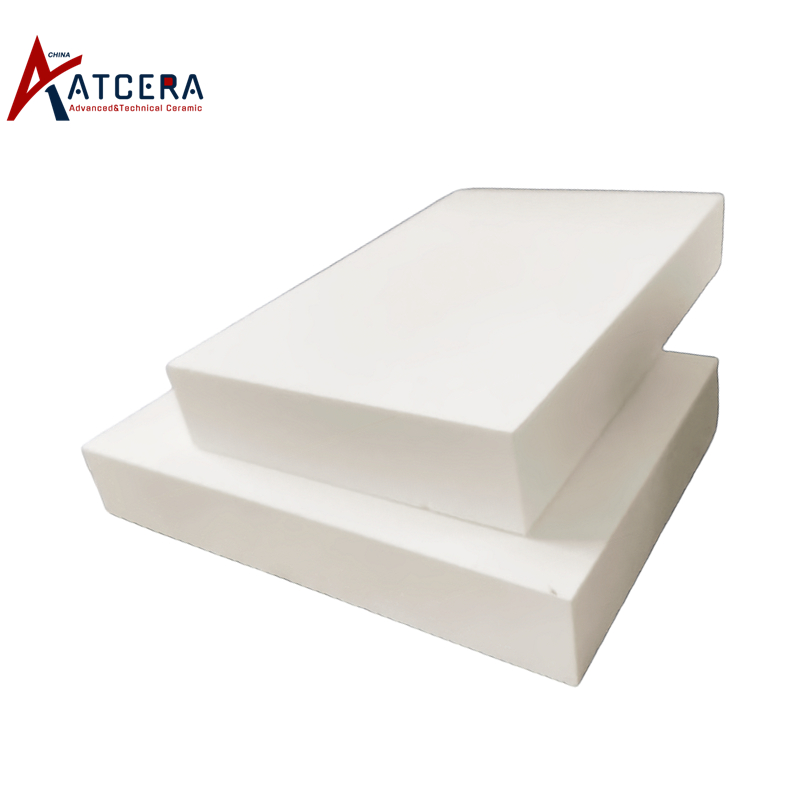

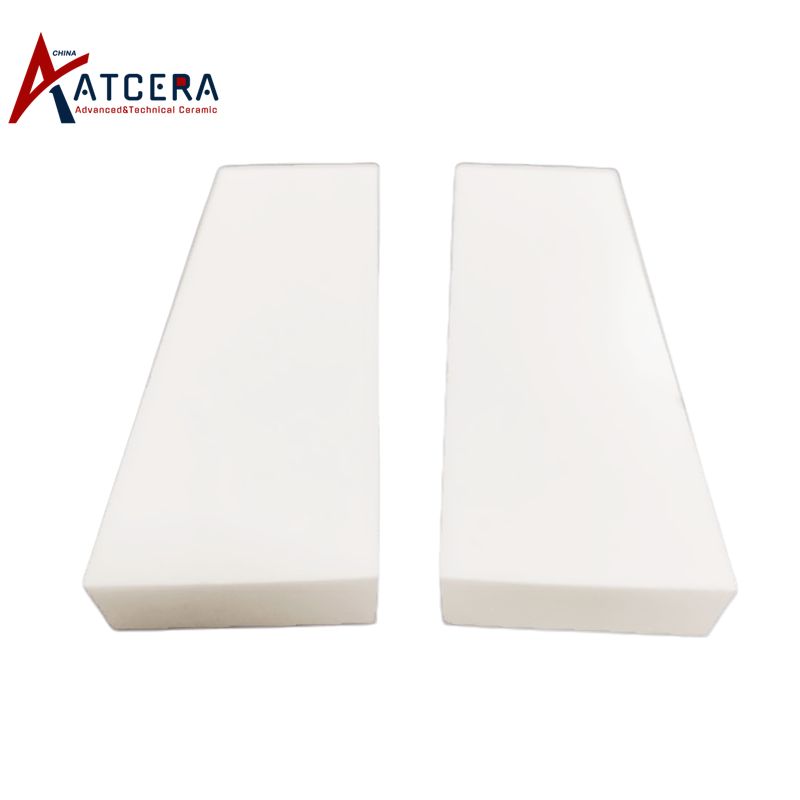

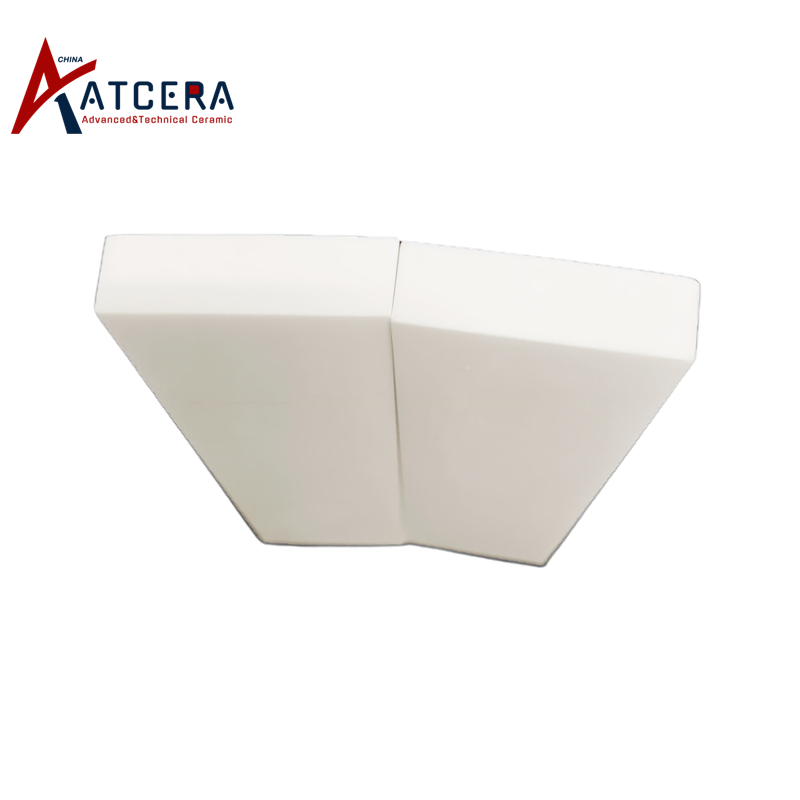

Zirconia Toughened Alumina Ceramic Lining Board

Zirconia toughened alumina (ZTA) ceramic lining has high temperature resistance, acid and alkali resistance, good chemical stability, both high hardness of alumina ceramics, high wear resistance, but also the toughness of ZTA ceramics, in mechanical engineering, high temperature fire resistance, chemical, metallurgy and other industries have important applications.

Brand:
ATCERA
Item NO.:
AT-ZR-CB001

Materials
Zirconia Toughened Alumina (ZTA) Ceramic
Shapes
Plate
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Zirconia Toughened Alumina Lining Board

ZTA ceramic lining board has the characteristics of high hardness, high toughness, good wear resistance, high temperature resistance, acid & alkali and chemical corrosion resistance, good electrical insulation,etc.

1. High hardness, good wear resistance, long service life

2. High mechanical strength, good toughness, good resistance to pressure and impact

3. High temperature resistance, good thermal stability

4. Resist to Acid and alkali corrosion, good chemical stability

5. Excellent electrical insulation properties, high breakdown voltage, and small dielectric constant.

Applications of ZTA Ceramic Lining Board

ZTA ceramic lining board can be used as a wear-resistant lining plate, widely used in high-temperature refractory, metallurgy, electric power, chemical and other industries, also used in mechanical engineering industry, used to manufacture various gaskets, heat dissipation plate, etc.

1. Metallurgy and Coal Power Industry

ZTA ceramic lining board has high hardness, good wear resistance, and can withstand high temperature working environment, it can be used as pipe liner for conveying powder, and service life of the pipeline can be significantly extended.

2. Chemical Industry

ZTA ceramic lining board has very good corrosion resistance and high temperature resistance, can meet the requirements of various chemical media, while the surface finish of the ceramic substrate is high, help to reduce the resistance of electrochemical reaction, the application in the chemical industry is mainly used for electrochemical production, and the manufacture of sewage treatment, metal electrolysis, electroplating and other equipment components.

3.Machinery Industry and High Temperature Refractory

ZTA ceramic lining board has high compressive strength, good wear resistance and toughness, stable performance at high temperature, good air tightness, and can be used to process high temperature mechanical structure components, and as gaskets, seals, heat dissipation plate, burning plates, etc.

Size Chart of Zirconia Toughened Alumina Lining Board

We are committed to delivering optimal zta lining boards tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

1. Application information

2. Drawing and specification requirements, shall be provided if customized design request.

Machining Precision

1. diameter tolerance: ±0.01mm

2. hole depth tolerance: ±0.005mm

3. surfance roughness: Ra0.5

4. cylindricity: ±0.004mm

5. concentricity: ±0.003mm

6. parallelism: ±0.002mm

Send Requirements for Custom Design

Zirconia Toughened Alumina Lining Board
Item No.	L x W (mm)	Thickness (mm)
AT-ZR-CB001	50X25	5-12
AT-ZR-CB002	50X50	5-20
AT-ZR-CB003	100X100	6-30
AT-ZR-CB004	120X80	8-30
AT-ZR-CB005	150X100	6-50
AT-ZR-CB006	100X25	5-15
AT-ZR-CB007	100X50	6-30
AT-ZR-CB008	100X75	12-50
AT-ZR-CB009	150X50	6-50
AT-ZR-CB010	70X70	10-25
AT-ZR-CB011	75X50	6-15
AT-ZR-CB012	120X100	6-25
AT-ZR-CB013	120X50	6-25
AT-ZR-CB014	100X80	6-25
AT-ZR-CB015	150X75	6-50
AT-ZR-CB016	27X27	5-18
AT-ZR-CB017	37.5X37.5	5-18
AT-ZR-CB018	39.2X39.2	6-18
AT-ZR-CB019	50X30	5-15

Technical Data of Zirconia Toughened Alumina (ZTA)

Material	Zirconia Toughened Alumina (ZTA)
Density (g/cm³)	≧4.1
Flexture Strength (MPa)	330
Young Modulus (GPa)	72
Poisson's Ratio	0.25
Compressive strength (MPa)	2300
Hardness (Hv)	67
Fracture toughness (MPa*m^1/2)	7
Maximum working temperature ( ℃)	1200
Thermal conductivity (W/m*K)	18
Thermal expansion coefficient (/℃)	8*10^-6
Thermal shock resistance (ΔT ℃)	250

*This chart illustrates the standard characteristics of the ZTA materials commonly employed in the manufacturing of our ZTA products and parts. Please be aware that the attributes of customized zirconia toughened alumina products and parts may vary depending on the specific processes involved.

Usage Instructions

1.ZTA ceramic rod should avoid violent collision and falling to prevent cracking or damage.

2.ZTA ceramic rod should be stored in a dry, ventilated environment to avoid moisture, also need to avoid long-term exposure to direct sunlight or high temperature environment, so as not to affect its performance.

3. Keep the ZTA ceramic rod clean during storage, clean the dust and dirt on the surface before use.

4. Check regularly during use, if any cracks and other defects begin to appear, it is necessary to stop continuing use and replace in time.

00:00 / 00:00

ZTA Lining Board for Metallurgical Industries

Valuable Information

Zirconia Toughened Alumina Lining Board Packing

Zirconia toughened alumina lining boards are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
