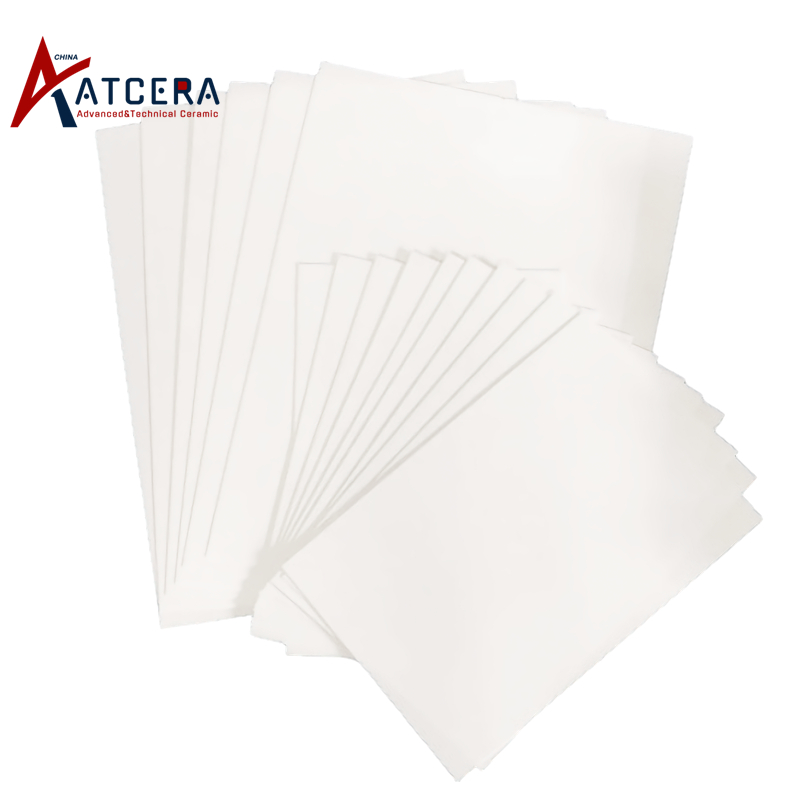

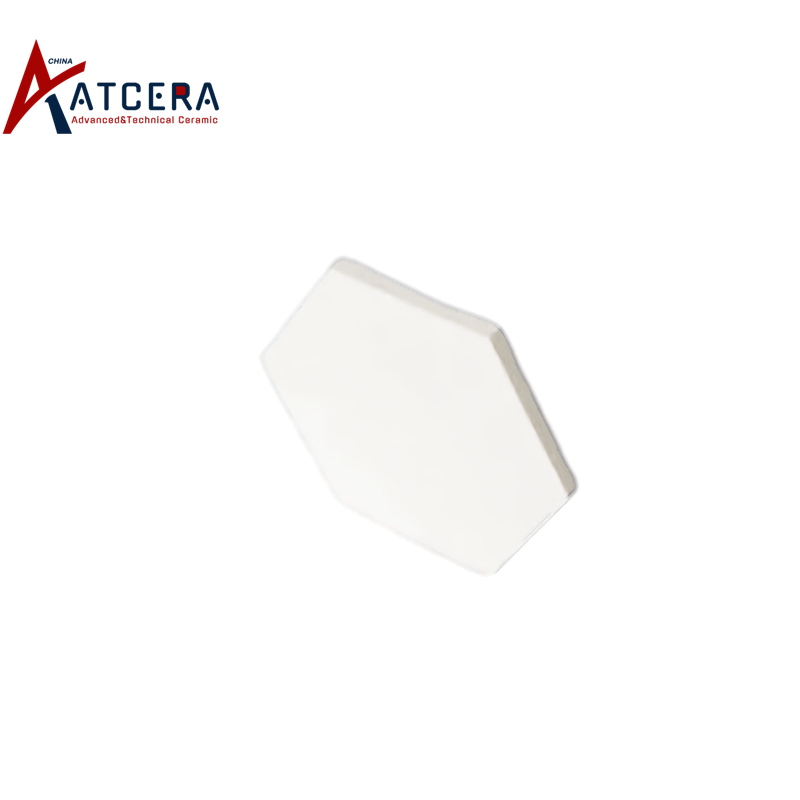

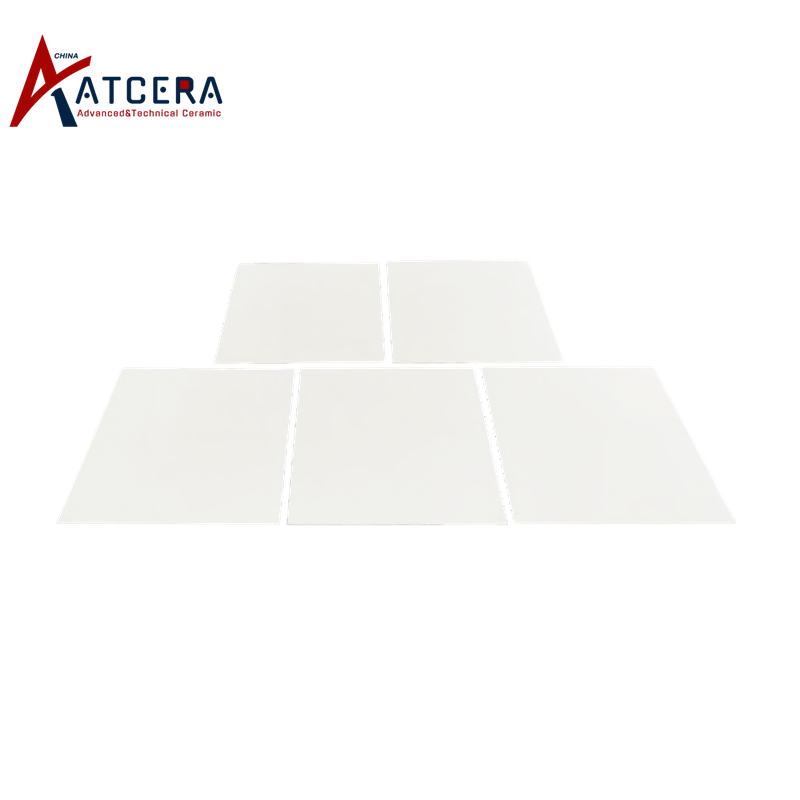

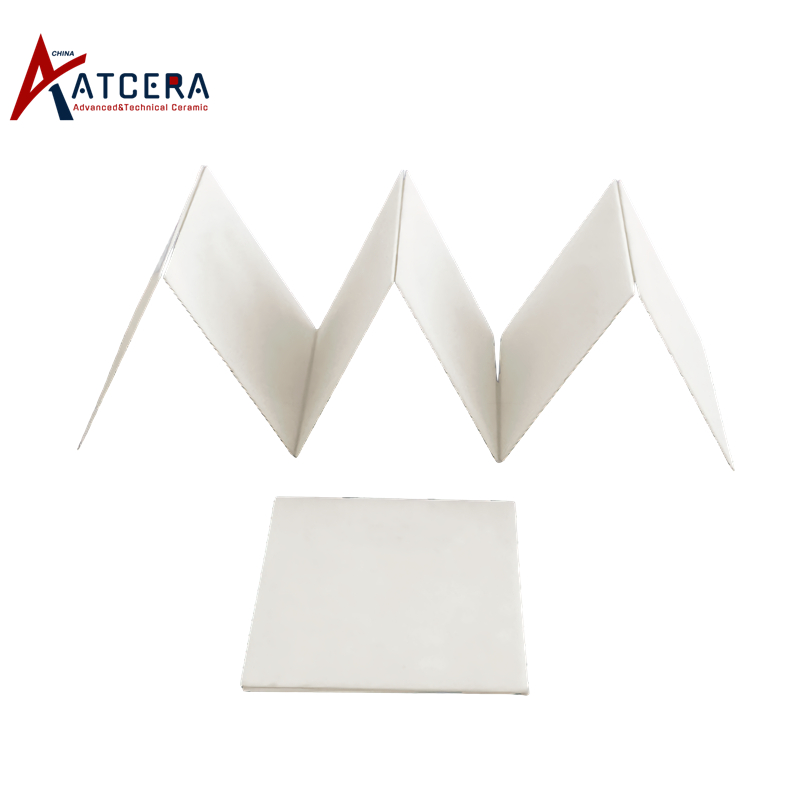

Zirconia Toughened Alumina Ceramic Lining Plate

The ZTA ceramic lining plate is crafted from alumina as the primary raw material, enhanced with a precise proportion of zirconia, and sintered at high temperatures after molding. Its hardness and tenacity fall between alumina ceramics and zirconia ceramics, boasting remarkable resistance to high temperatures and corrosion, exceptional wear resistance, and superior toughness. When adhered to the working surface of equipment, it safeguards the surface from abrasion and mitigates mechanical impacts.

Brand:
ATCERA
Item NO.:
AT-ZTA-CL0001

Materials
Zirconia Toughened Alumina (ZTA) Ceramic
Shapes
Plate
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Zirconia Toughened Alumina Lining Plate

1. With its high hardness and excellent wear resistance, the ZTA ceramic lining plate effectively safeguards pipelines and other equipment from abrasion, ensuring a prolonged service life.

2. The ZTA ceramic lining plate boasts a low specific gravity and lightweight design, facilitating easy installation while significantly reducing equipment load.

3. Its superior tenacity and impact resistance significantly reduce the impact of materials on equipment.

4. The smooth surface of the ZTA ceramic lining plate minimizes material transportation resistance, preventing accumulation within the equipment.

Applications of ZTA Ceramic Lining Plate

The ZTA ceramic lining plate is suitable for coal transportation systems, material handling systems, pulverizing systems, ash removal and dust extraction systems in industries such as thermal power, steel, metallurgy, coal mining, mining, chemicals, and cement. It safeguards pipelines from material abrasion, extending their service life.

Size Chart of Zirconia Toughened Alumina Lining Plate

We are committed to delivering optimal zta lining plates tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

1. Application information

2. Drawing and specification requirements, shall be provided if customized design request.

Dimensional Tolerance: ±1mm.

Send Requirements for Custom Design

Zirconia Toughened Alumina Lining Plate
Item No.	Length (mm)	Width (mm)	Thickness (mm)	Purity (Al2O3+ZrO2)
AT-ZTA-CL0001	10	10	1.5	74%+23.5%
AT-ZTA-CL0002	10	10	3	74%+23.5%
AT-ZTA-CL0003	10	10	4	74%+23.5%
AT-ZTA-CL0004	10	10	5	74%+23.5%
AT-ZTA-CL0005	10	10	8	74%+23.5%
AT-ZTA-CL0006	10	10	10	74%+23.5%
AT-ZTA-CL0007	12	12	3	74%+23.5%
AT-ZTA-CL0008	12	12	4	74%+23.5%
AT-ZTA-CL0009	12	12	5	74%+23.5%
AT-ZTA-CL0010	12	12	6	74%+23.5%
AT-ZTA-CL0011	12	12	8	74%+23.5%
AT-ZTA-CL0012	12	12	10	74%+23.5%
AT-ZTA-CL0013	17.5	17.5	3	74%+23.5%
AT-ZTA-CL0014	17.5	17.5	4	74%+23.5%
AT-ZTA-CL0015	17.5	17.5	5	74%+23.5%
AT-ZTA-CL0016	17.5	17.5	6	74%+23.5%
AT-ZTA-CL0017	17.5	17.5	8	74%+23.5%
AT-ZTA-CL0018	17.5	17.5	10	74%+23.5%
AT-ZTA-CL0019	20	20	3	74%+23.5%
AT-ZTA-CL0020	20	20	4	74%+23.5%
AT-ZTA-CL0021	20	20	5	74%+23.5%
AT-ZTA-CL0022	20	20	6	74%+23.5%
AT-ZTA-CL0023	20	20	8	74%+23.5%
AT-ZTA-CL0024	20	20	10	74%+23.5%
AT-ZTA-CL0025	25	25	3	74%+23.5%
AT-ZTA-CL0026	25	25	5	74%+23.5%
AT-ZTA-CL0027	25	25	8	74%+23.5%
AT-ZTA-CL0028	25	25	10	74%+23.5%
AT-ZTA-CL0029	25	25	12	74%+23.5%
AT-ZTA-CL0030	25	25	15	74%+23.5%
AT-ZTA-CL0031	30	37	4	74%+23.5%
AT-ZTA-CL0032	45	25	5	74%+23.5%
AT-ZTA-CL0033	70	62	10	74%+23.5%
AT-ZTA-CL0034	100	75	8	74%+23.5%
AT-ZTA-CL0035	200	175	4	74%+23.5%
AT-ZTA-CL0036	205	130	4.5	74%+23.5%
AT-ZTA-CL0037	25-800	25-800	3-40	74%+23.5%

Technical Data of Zirconia Toughened Alumina (ZTA)

Material	Zirconia Toughened Alumina (ZTA)
Density (g/cm³)	≧4.1
Flexture Strength (MPa)	330
Young Modulus (GPa)	72
Poisson's Ratio	0.25
Compressive strength (MPa)	2300
Hardness (Hv)	67
Fracture toughness (MPa*m^1/2)	7
Maximum working temperature ( ℃)	1200
Thermal conductivity (W/m*K)	18
Thermal expansion coefficient (/℃)	8*10^-6
Thermal shock resistance (ΔT ℃)	250

*This chart illustrates the standard characteristics of the ZTA materials commonly employed in the manufacturing of our ZTA products and parts. Please be aware that the attributes of customized zirconia toughened alumina products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Ensure that the ZTA ceramic lining plate is properly adhered to the equipment surface during installation, avoiding any gaps or loose connections.

2. Regularly inspect the wear condition of the ZTA ceramic lining plate and promptly replace severely worn parts to ensure its effectiveness.

3. Avoid prolonged exposure of the ZTA ceramic lining plate to corrosive media to prevent any impairment to its corrosion resistance.

4. Pay attention to the temperature range of the ZTA ceramic lining plate and avoid exceeding its heat resistance limit.

ZTA Lining Plate for Equipment Load Reducing

Valuable Information

Zirconia Toughened Alumina Lining Plate Packing

Zirconia toughened alumina lining plates are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
