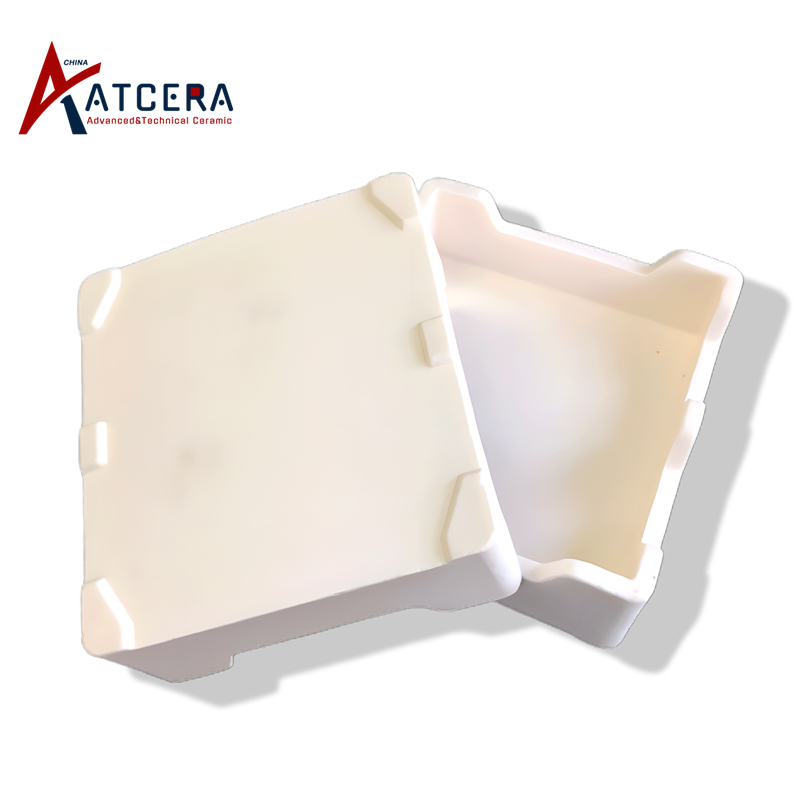

Alumina Tray Aluminum Oxide Ceramic Flat Bottom Crucible

The alumina crucible can withstand extreme temperatures, acids, and alkalis, offering remarkable corrosion resistance and thermal shock resistance. It is frequently utilized in both high-temperature chemical analysis experiments as well as industrial material testing and analysis, utilized to heat and melt various materials for the purpose of analyzing their physical and chemical properties.

  • Brand:

    ATCERA
  • Item NO.:

    TE-AS-205
  • Materials

    Alumina
  • Shapes

    Crucible
  • Applications

    Petrochemical Industry , Metallurgy Industry , Laboratory Equipment and Instruments
alumina crucible

Advantages of Aluminum Oxide Tray Crucible



1. Using grouting molding process, so the product compactness is quite good.



2. High temperature resistance, long-term use temperature of higher than 1600℃, and short-term right can be up to 1800℃.



3. Alumina tray has fast heating speed, easy to operate and clean.

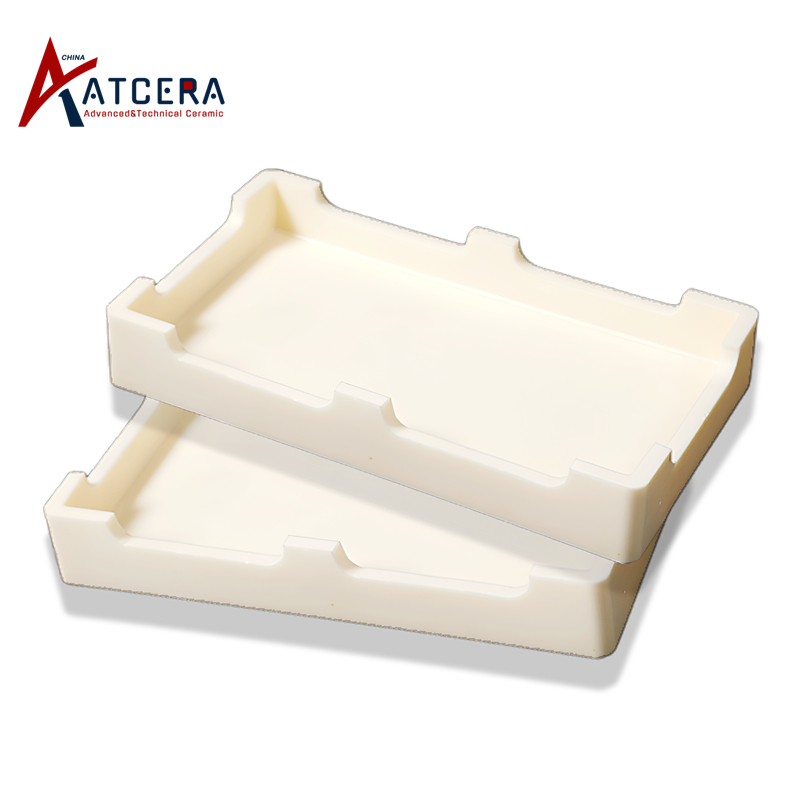

alumina tray

Applications of Alumina Tray



1. In the field of scientific research, alumina crucible can be used as a high temperature stove to study the physical and chemical properties of various materials, such as the phase change behavior of different materials at different temperatures, chemical reaction kinetics, etc.



2. In the laboratory, alumina crucible can be used to heat and melt various materials, including metal and non-metal material. By observing the changes and behavior of materials at high temperatures, their physical and chemical properties can be studied and identified.



3. Alumina tray is mainly used for material thermal analysis tests such as burning and sublimation.



Size Chart of Aluminum Oxide Tray Crucible



We are committed to delivering flawless alumina tray tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Requirements for Custom Design
1. Drawing (can attach material requirements, purity, size, tolerance standard)
2. High temperature resistance requirements
3. Application scenario

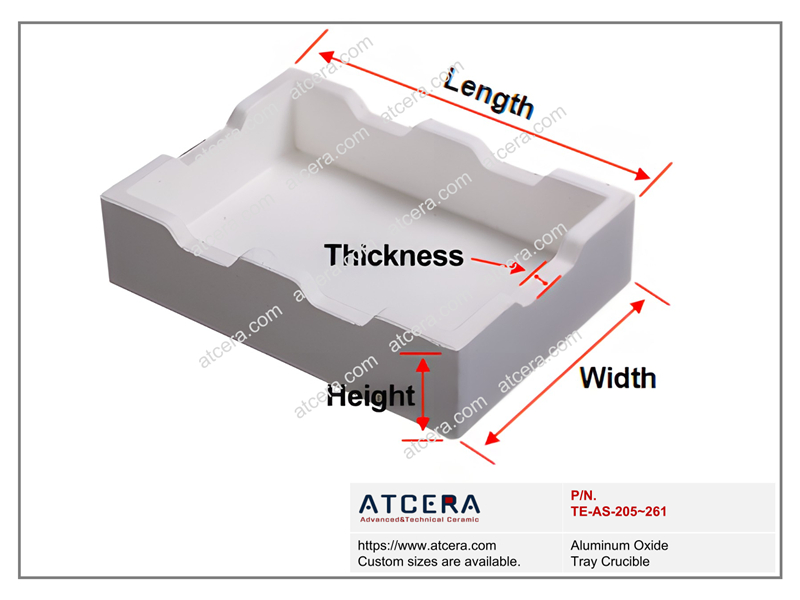

Drawing of Aluminum Oxide Tray Crucible

Aluminum Oxide Tray Crucible
Item No. Volume (ml) Length (mm) Width (mm) Height (mm) Thickness (mm)
TE-AS-205 64 100 100 13 5
TE-AS-206 80 100 100 15 5
TE-AS-207 120 100 100 20 5
TE-AS-208 64 100 81 28 5
TE-AS-209 22 100 100 15 6
TE-AS-210 60 115 60 9 6
TE-AS-211 58 115 60 7 6
TE-AS-212 297 120 120 40 6.5
TE-AS-213 161 127 127 21 5
TE-AS-214 270 128 128 25 5
TE-AS-215 355 135 135 35 9
TE-AS-216 575 145 145 55 11
TE-AS-217 49 150 150 18 10
TE-AS-218 300 155 155 28 10
TE-AS-219 350 200 105 30 10
TE-AS-220 1634 220 180 80 14
TE-AS-221 1400 230 230 45 12
TE-AS-222 1752 230 300 50 12
TE-AS-223 1080 230 165 60 12
TE-AS-224 1467 248 155 62 13
TE-AS-225 3000 250 250 100 10
TE-AS-226 1137 295 195 55 10
TE-AS-227 2565 315 158 83 13
TE-AS-228 4100 320 320 60 10
TE-AS-229 6000 320 320 75 10
TE-AS-230 6500 320 320 85 10
TE-AS-231 8900 320 320 110 10
TE-AS-232 7500 320 320 110 14
TE-AS-233 3900 320 320 60 14
TE-AS-234 5000 320 320 75 15
TE-AS-235 5000 320 320 80 15
TE-AS-236 6000 320 320 85.5 14
TE-AS-237 7000 320 320 100 15
TE-AS-238 5186 320 320 85 15
TE-AS-239 10000 330 330 120 13
TE-AS-240 10700 330 330 130 13
TE-AS-241 7900 330 330 100 12.5
TE-AS-242 8000 330 330 100 13
TE-AS-243 8200 330 330 100 12
TE-AS-244 50 63 57 30 6
TE-AS-245 56 100 100 12 5
TE-AS-246 507 150 150 50 10
TE-AS-247 100 160 160 15 8.5
TE-AS-248 350 200 100 30 8.5
TE-AS-249 6900 210 210 200 10
TE-AS-250 4000 220 220 120 10
TE-AS-251 2500 225 161 104 11
TE-AS-252 8000 285 285 160 12.5
TE-AS-253 7600 300 300 110 10
TE-AS-254 11000 300 300 200 10
TE-AS-255 7000 300 300 100 10
TE-AS-256 6000 300 300 175 12
TE-AS-257 5400 300 300 110 12
TE-AS-258 8000 300 300 150 12.5
TE-AS-259 3000 320 320 48 10
TE-AS-260 2800 320 320 48 14
TE-AS-261 12000 330 330 150 10

Specification of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions

1. Initial Cleaning: Before usage, it is essential to cleanse the alumina crucible to eliminate impurities and surface dust. Employ a soft cloth or brush for a gentle wipe, refraining from using hard objects or metal brushes to prevent any scratching on the crucible surface.

2. Minimize Vibrations: While utilizing the crucible, steer clear of excessive vibration or collisions to prevent any harm to the structural integrity of the crucible.

3. Chemical Interaction Caution: Despite the alumina crucible's robust resistance to strong acids and alkalis, prolonged contact may induce chemical reactions, impacting its lifespan. Endeavor to avoid prolonged exposure to potent acids and bases during usage, opting for milder reagents whenever possible.

4. Optimal Preheating Guidelines: Set the preheating temperature at approximately 105℃, ensuring a gradual and uniform heating process. Exercise control over the heating rate and refrain from frequently opening the furnace door. Maintain a heating rate below 1200℃ at <5℃/min and above 1200℃ at <4℃/min.

5. Heating Precautions: Avoid using gasoline spray guns, acetylene guns, or alcohol spray burners for direct heating to prevent explosive cracking due to uneven heat distribution. Maintain a distance of no less than 2cm between the crucible and the heating element, and ideally, avoid direct contact between the bottom of large crucibles and the furnace bottom. Elevate the crucible using temperature-resistant materials like corundum sheets to facilitate air convection and extend the crucible's service life.

6. Residue Removal: It is permissible to clear residue from the crucible surface while it is still hot, but refrain from using acidic or alkaline substances for cleaning.

7. Molten Sample Compatibility: Alumina crucibles are suitable for molten samples of weakly alkaline substances such as anhydrous Na2CO3. However, avoid using strongly alkaline substances or acidic substances like Na2O2, NaOH, and potassium pyrosulfate (K2S2O7).

8. Safety Measures: Given the high operating temperatures, always wear personal protective equipment such as heat-releasing gloves and protective glasses during usage to prevent burns or eye injuries.

9. Proper Storage: Store alumina crucibles in dry and well-ventilated areas, minimizing friction or collision with other items to prevent surface damage or scratches.

Valuable Information



Production Process Flow

Production Process Flow



1. Raw material processing



2. Compression mouduling



3. High temperature sintering



4. Primary grinding



5. CNC processing



6. Product inspection

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
