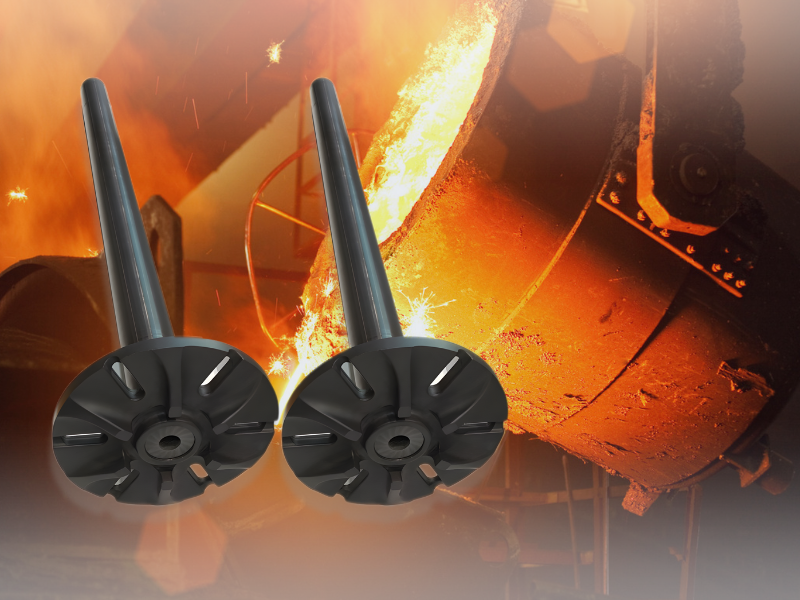

Silicon nitride degassing rotor ceramic
Silicon nitride degassing rotor ceramic
Silicon nitride degassing rotor ceramic
Silicon nitride degassing rotor ceramic
Silicon nitride degassing rotor ceramic

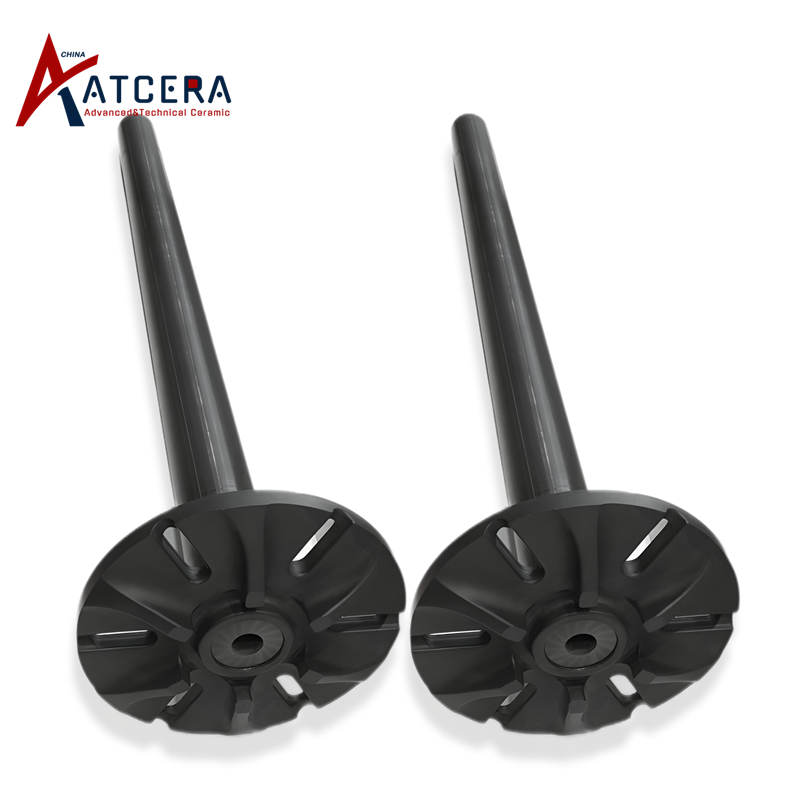

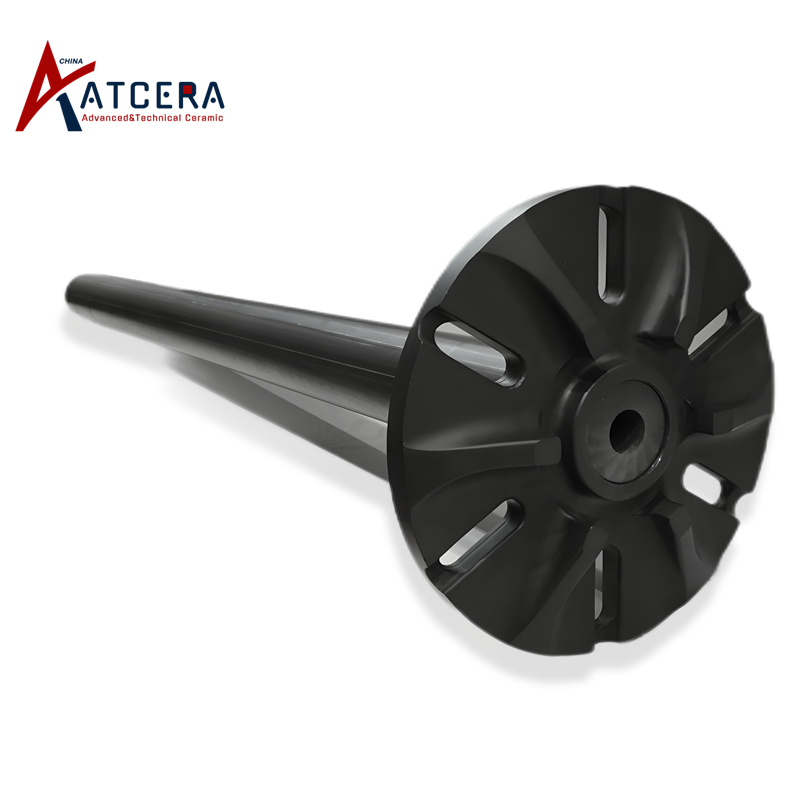

Silicon Nitride Degassing Rotor

The silicon nitride degasing rotor is composed of two parts: the rotor rod and the nozzle. The transmission system drives the rotor to rotate, argon or nitrogen gas is blown into the aluminum melting liquid through the rotor rod and the nozzle to discharge the hydrogen and oxidation slag in the melt, so that the melt can be purified.

  • Brand:

    ATCERA

  • Item NO.:

    AT-DHG-G3001

  • Materials

    Silicon Nitride (Si3N4) Ceramic

  • Shapes

    Tube

  • Applications

    Metallurgy Industry
Inquire Now

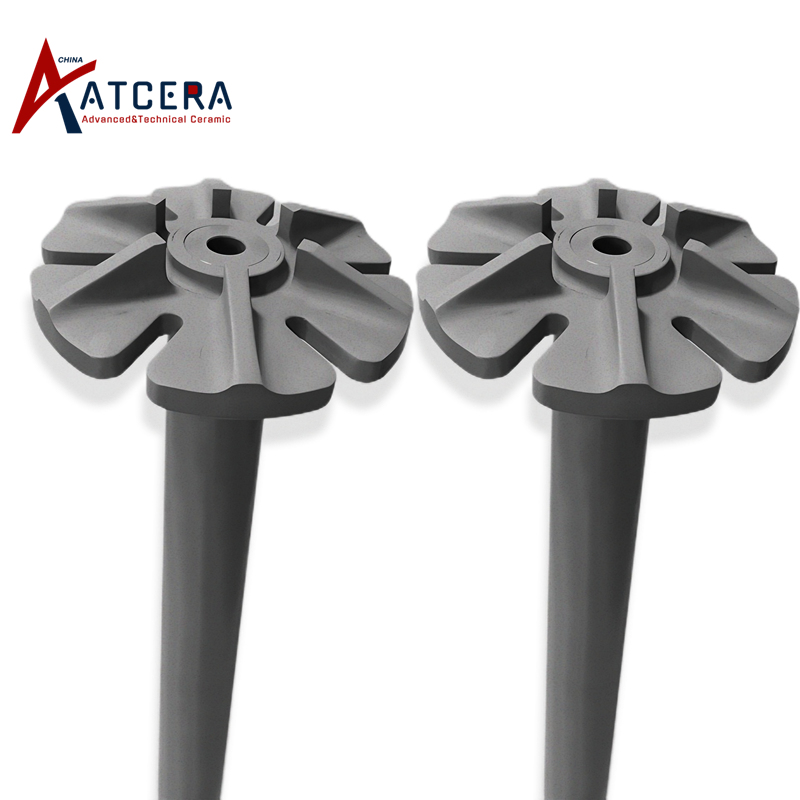

Si3N4 degassing rotor

Properties of Silicon Nitride Degassing Rotor



1. Silicon nitride degassing rotor has good oxidation resistance and abrasion resistance, and stable degassing effect.







2. The silicon nitride degassing rotor is light in weight and can easily achieve high speed, it can disperse the bubbles to all corners of the inner cavity to improve the degassing efficiency.







3. Silicon nitride degassing rotor has strong resistance to molten metal erosion, good corrosion resistance, and no pollution to liquid metal.







4. The surface of silicon nitride degassing rotor is smooth, non-stick aluminum, and non-slag, which can minimize the disturbance to the melt surface, thereby reducing the liquid level fluctuation.

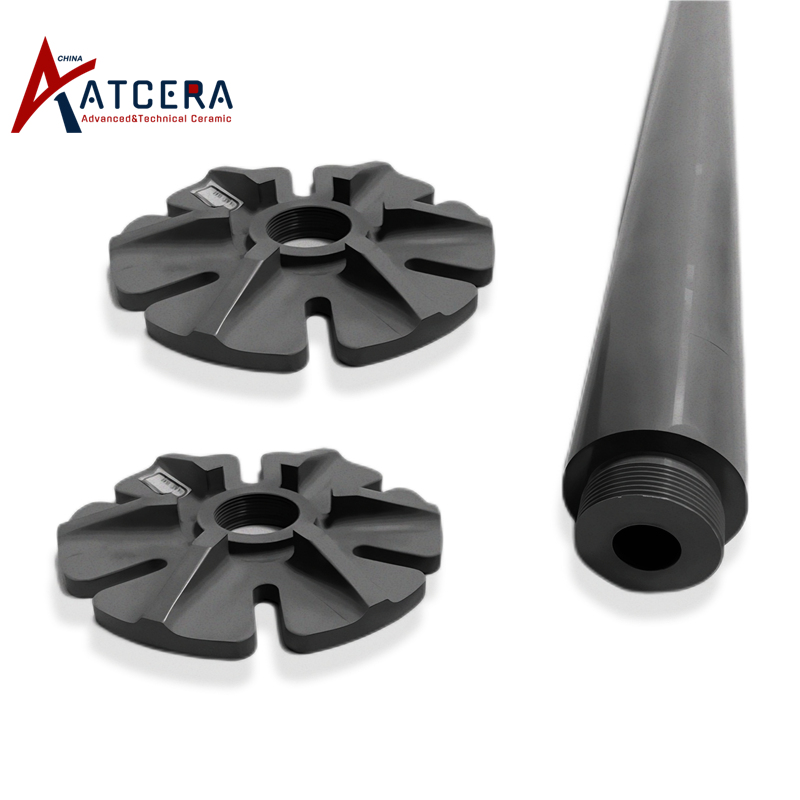

Applications of Si3N4 Degassing Rotor

Applications of Si3N4 Degassing Rotor



Silicon nitride rotor is used in aluminum smelting industry.





Its function is to feed nitrogen or argon into the aluminum melting liquid, disperse the gas through high-speed agitation, discharge hydrogen and oxidizing slag.



































Size Chart of Silicon Nitride Degassing Rotor

We are committed to delivering optimal silicon nitride degassing rotor tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.



Drawing and specification requirements shall be provided if customized design request.



Machining Tolerance:
Length: ±1~2mm



Send Requirements for Custom Design

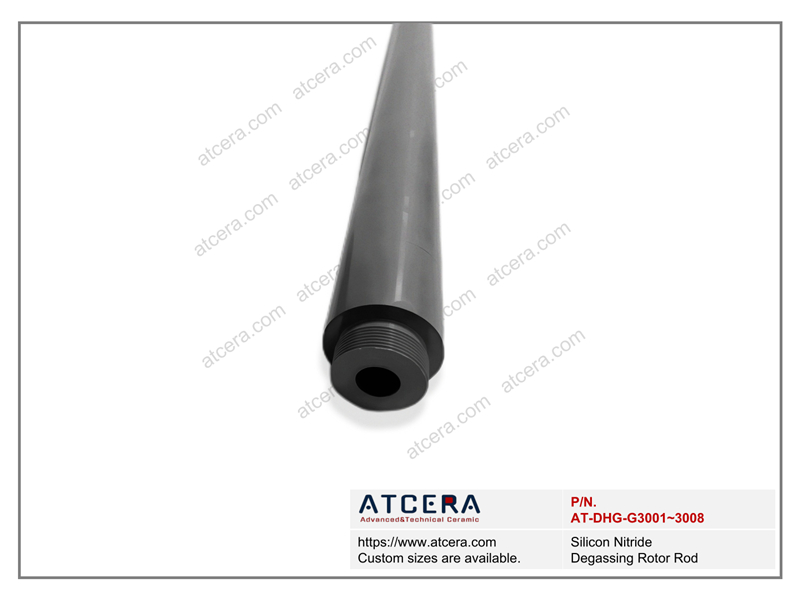

Drawing of Silicon Nitride Degassing Rotor Rod

Silicon Nitride Degassing Rotor Rod
Item NO. External Diameter
(mm)		 Inner Diameter
(mm)		 Length
(mm)
AT-DHG-G3001 50 30 400-1500
AT-DHG-G3002 68.5 38 400-1500
AT-DHG-G3003 75 55 400-1500
AT-DHG-G3004 85 64.5 400-1500
AT-DHG-G3005 105 84 400-1500
AT-DHG-G3006 135 110 400-1500
AT-DHG-G3007 150 136 400-1500
AT-DHG-G3008 200 174 400-1500

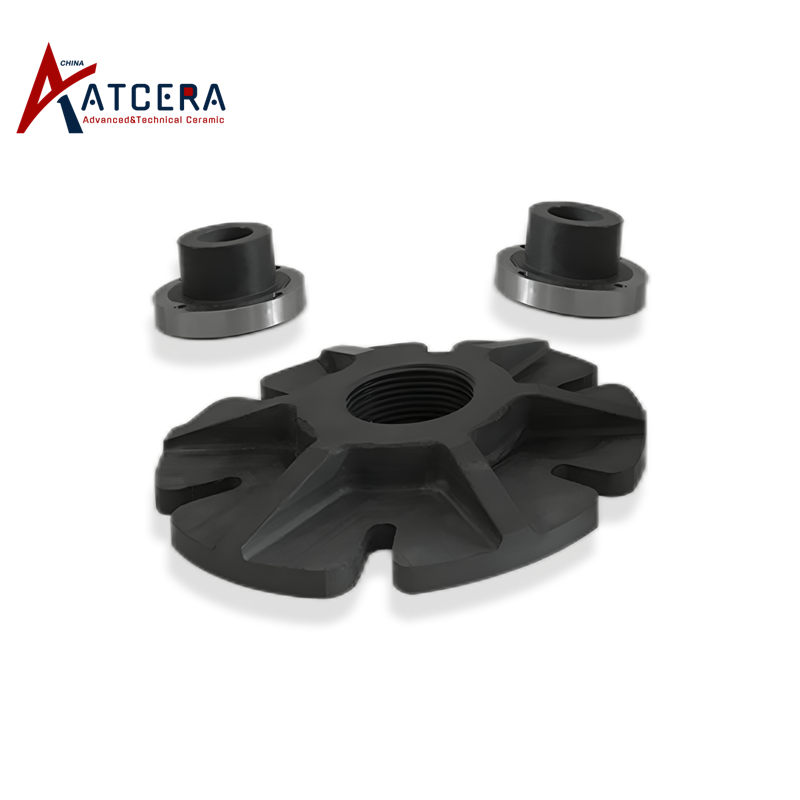

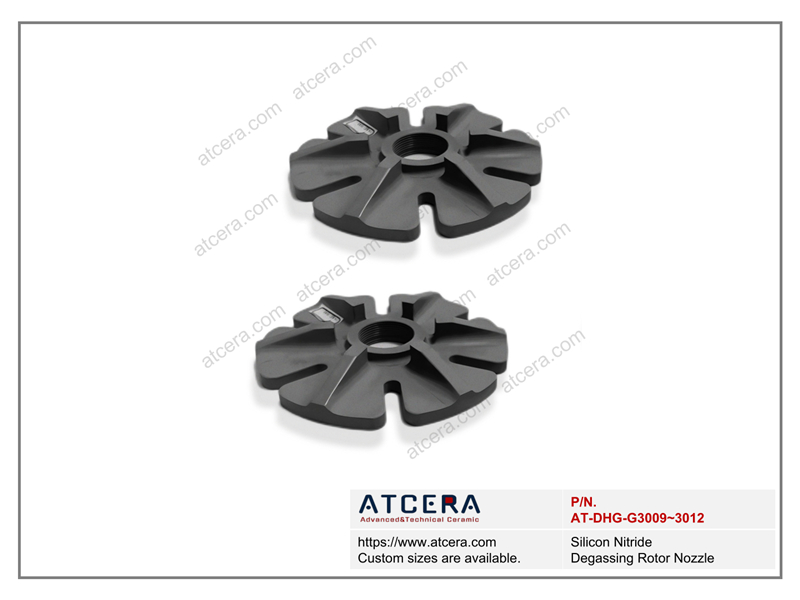

Drawing of Silicon Nitride Degassing Rotor Nozzle



Silicon Nitride Degassing Rotor Nozzle
Item NO. External Diameter
(mm)		 Inner Diameter
(mm)
AT-DHG-G3009 180 35
AT-DHG-G3010 200 40
AT-DHG-G3011 210 40
AT-DHG-G3012 220 40



Technical Data of Silicon Nitride Materials

Si3N4 Type Gas pressure sintering Si3N4 Hot pressing sintering Si3N4
Density (g/cm3) 3.2 3.3
Flexture strength (MPa) 700 900
Young Modulus (GPa) 300 300
Poisson's ratio 0.25 0.28
Compressive strength (MPa) 2500 3000
Hardness (GPa) 15 16
Fracture toughness (MPa*m1/2) 5~7 6~8
Maximum working temperature (℃) 1100 1300
Thermal conductivity (W/m*K) 20 25
Thermal expansion coefficient (/℃) 3*10-6 3.1*10-6
Thermal shock resistance (ΔT ℃) 550 800



*This chart illustrates the standard characteristics of the silicon nitride materials commonly employed in the manufacturing of our Si3N4 products and parts. Please be aware that the attributes of customized silicon nitride products  and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.



Usage Instructions




1. In order to ensure the long-term stable operation of the silicon nitride rotor, it is necessary to adjust the concentricity of the sub-shaft and the drive shaft during the initial installation.



2. The product should be evenly preheated above 400℃ before use.



3. In order to extend the rotor service life, it is recommended to clean and maintain the surface regularly (12-15 days), and check the fastening flange bolts.



4. When the rotor shaft is found to have visible swing, be sure to stop and readjust the concentricity of the rotor shaft to make it within a reasonable error range.



Silicon Nitride Rotor for Melt Purification

Valuable Information

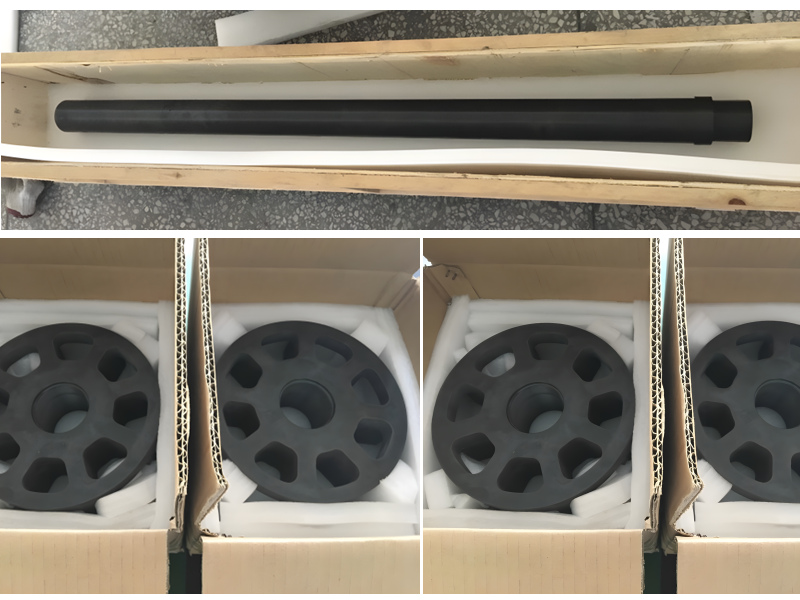

Si3N4 Degassing Rotor Packing

Si3N4 Degassing Rotor Packing



Silicon nitride degassing rotos are carefully packaged in appropriate containers to avoid any potential damage.





























Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
Related Blog
Silicon Carbide Tubes: 15-Yr Corrosion Solution for Chemicals
Revolutionizing Chemical Processing: How Silicon Carbide Tubes Solve $20k/Day Downtime Challenges   The chemical industry loses $5.3 billion annually to corrosion-related equipment failures (NACE International, 2022). At the heart of this crisis lies inadequate material performance in extreme environments. This article reveals why silicon carbide (SiC) tubes are replacing traditiona...
Read More
The Role of Zirconia Rods in Modern Industrial Applications
  In today’s fast-paced industrial world, the demand for materials that combine strength, durability, and versatility is higher than ever. From high-performance equipment to critical components used in challenging environments, industries across the globe rely on advanced materials to meet their complex needs. One such material that has gained significant traction in modern manufacturin...
Read More

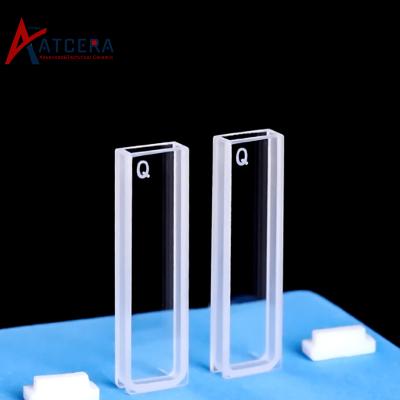

Why Quartz Glass Cuvettes Are Essential for Accurate Spectroscopy Measurements
In scientific research, spectroscopy plays a vital role in analyzing the properties of various substances by examining how light interacts with them. Whether it's determining the concentration of a solution or identifying chemical compounds, the accuracy of spectroscopy measurements is crucial. One of the most important factors in ensuring precise spectroscopic results is the choice of cuvette. Wh...
Read More
Applications of Alumina Substrates in the Automotive Industry
In recent years, the automotive industry has seen significant technological advancements, driven by the need for higher efficiency, sustainability, and performance. One of the materials playing a crucial role in this evolution is alumina. This ceramic material, known for its excellent thermal, mechanical, and electrical properties, has become indispensable in a range of automotive applications. Fr...
Read More
Why Silicon Nitride Tubes Are the Future of High-Temperature Applications
In the world of high-performance materials, the demand for solutions that can withstand extreme conditions is ever-growing. From aerospace and automotive to energy and electronics, industries are increasingly relying on materials that can handle not only high stress and pressure but also high temperatures. One such material that has emerged as a game-changer in these applications is silicon nitrid...
Read More
How Alumina Mechanical Parts Help Achieve Precision in High-Stress Environments
In industries that rely on high-performance machinery and equipment, precision and durability are critical. From aerospace to medical devices and semiconductor manufacturing, components must withstand extreme conditions while maintaining accuracy and reliability. One material that excels in these demanding environments is alumina, a form of aluminum oxide (Al2O3) used in the production of mechanic...
Read More
Comparing Silicon Carbide Crucibles to Other Crucible Materials: Which is Best for Your Process?
Crucibles are essential tools used in various industrial processes, particularly in metallurgy, casting, and chemical manufacturing. They provide a vessel for melting or holding high-temperature materials, and selecting the right crucible material is crucial to achieving optimal results. Among the wide variety of crucible materials available, Silicon Carbide (SiC) crucibles are often regarded as o...
Read More
Why is High-Purity Quartz Crucible Vital for Semiconductor Manufacturing and ATCERA's Innovation?
High-Purity Quartz Crucible: Essential for Semiconductor Manufacturing by ATCERA   With the rapid development of science and technology, the semiconductor industry, as the cornerstone of modern information technology, is facing unprecedented challenges and opportunities. In the semiconductor manufacturing process, quartz glass crucible with its unique thermal stability and low reactivity, has...
Read More
Why is High-Purity Quartz Crucible Essential for Semiconductor & Solar PV Manufacturing?
High-Purity Quartz Crucible: Essential for Semiconductor & Solar PV Fields   The purity of quartz crucible has a direct effect on the quality of its internal processing materials. In the high-tech industry, especially in the semiconductor and solar photovoltaic fields, the purity of the quartz crucible is directly related to the performance and reliability of the final product. As a brand...
Read More
How is High Purity Quartz Crucible Prepared and Why is it Crucial for High-Tech Industries?
High Purity Quartz Crucible: Preparation & Applications by ATCERA   In the field of modern high-tech material preparation, high purity quartz (HPQ) crucible plays a crucial role. These crucibles are made of natural quartz minerals, mainly silica (SiO2), and are deeply purified to achieve the desired purity level. With its excellent technical strength, ATCERA brand focuses on the productio...
Read More

Related Products

Silicon nitride thermocouple protection tube
Silicon Nitride Thermocouple Protection Tube Si3N4 Protection Tube For Thermocouple
Silicon nitride heater protection tube
Silicon Nitride Heater Protection Tube For Aluminum Smelting Industry
Silicon Nitride Riser Tube
Silicon Nitride Riser Tube Si3N4 Lift Tube
Silicon nitride heater protection tube
Silicon Nitride Heater Protection Tube For Aluminum Smelting Industry

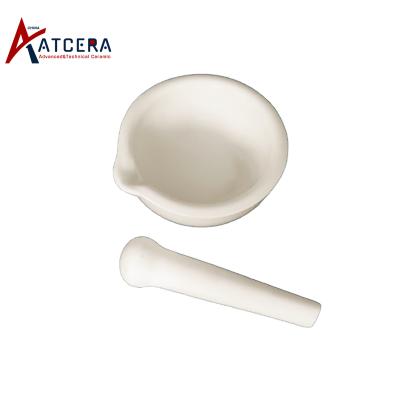

aluminum oxide mortar and pestle
Alumina Mortar and Pestle for Grinding
Silicon nitride heater protection tube
Silicon Nitride Heater Protection Tube For Aluminum Smelting Industry
zirconum oxide refractory plate
Zirconia Ceramic Refractory Plate

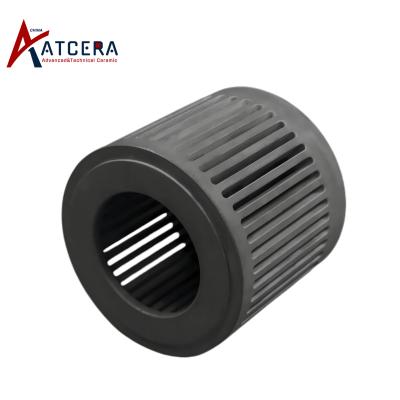

Si3N4 ceramic grading wheel
