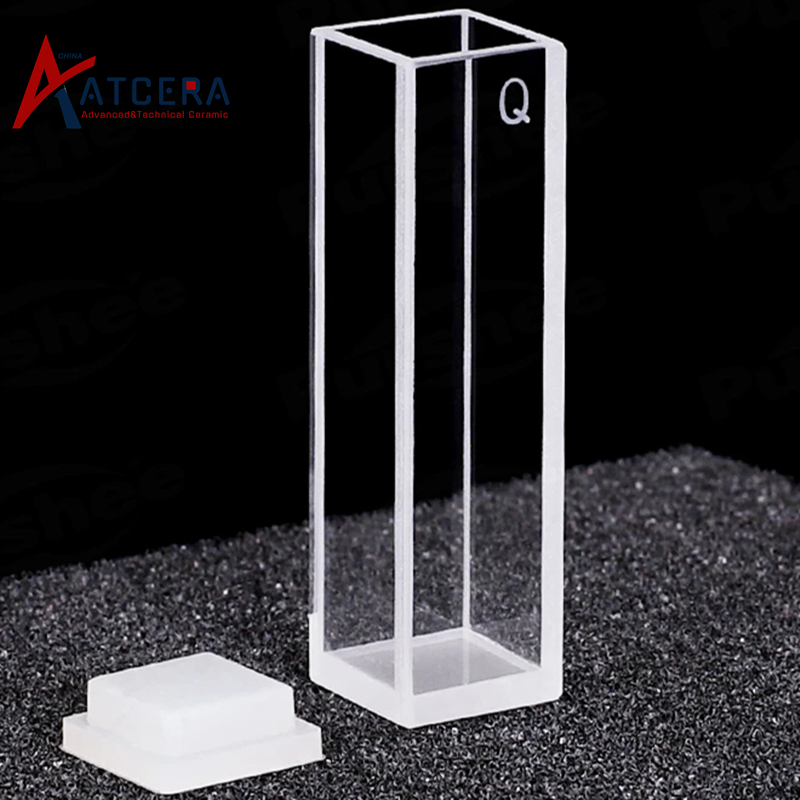

Quartz fluorescence cuvette

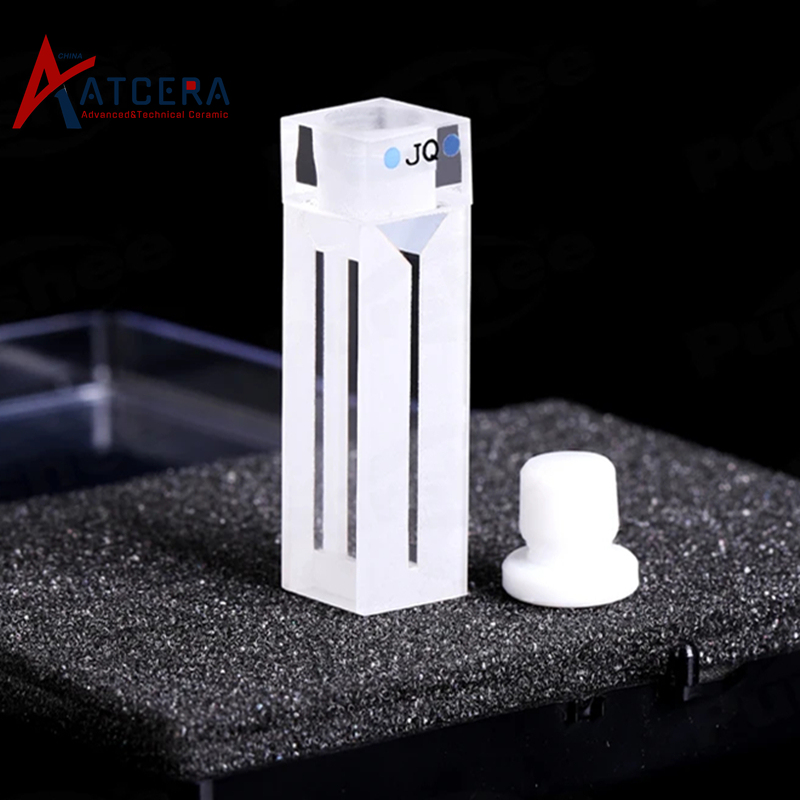

Quartz fluorescence cuvette

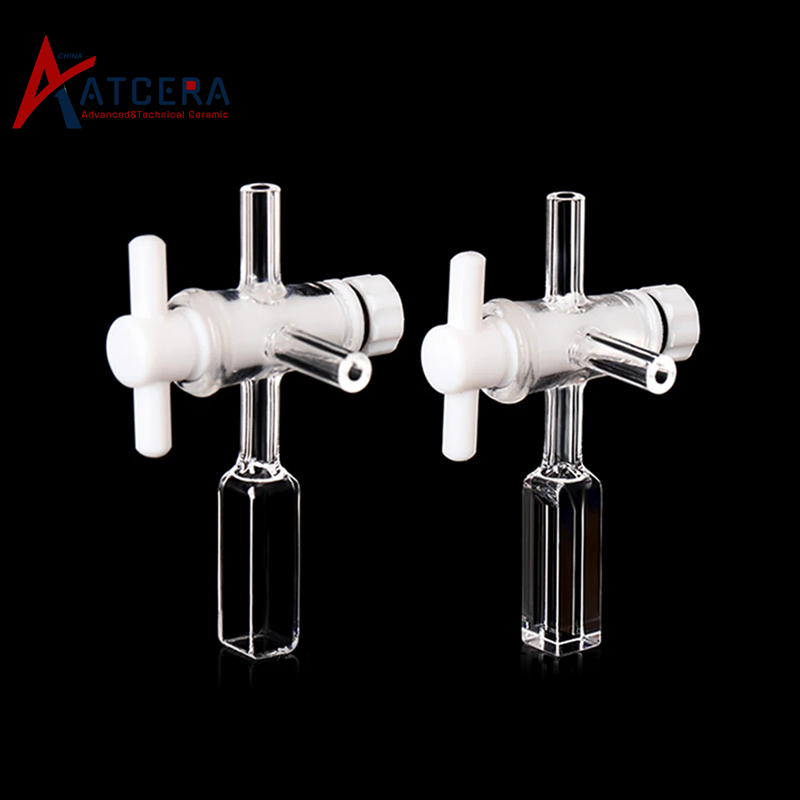

Quartz fluorescence cuvette

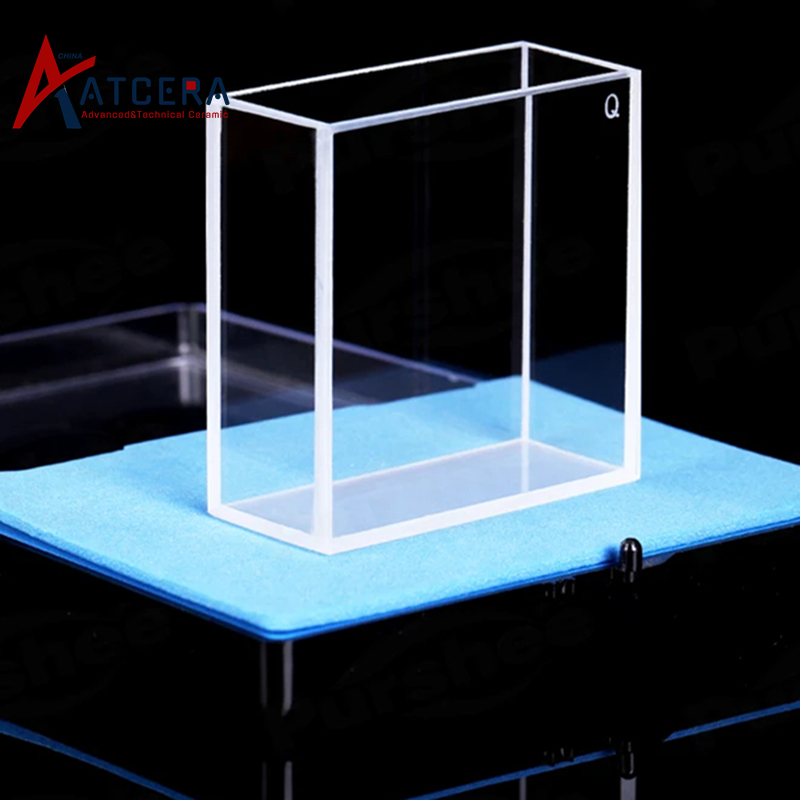

Quartz fluorescence cuvette
Quartz fluorescence cuvette

4-Sided Transparent Quartz Fluorescence Cuvettes for Fluorescence Analysis

A key tool for fluorescence analysis in the lab, Quartz fluorescence cuvette is made of a high-purity quartz material with excellent light transmission and chemical stability. The four-sided light transmission design ensures that the light penetrates in all directions, greatly improving the accuracy and sensitivity of fluorescence detection. The colorimetric dish is equipped with a sealed cover to effectively prevent sample volatilization and external contamination, and is suitable for a variety of fluorescence analysis experiments.

  • Brand:

    ATCERA

  • Item NO.:

    AT-BSM-6001

  • Materials

    Quartz Glass

  • Shapes

    Cuvette

  • Applications

    Metallurgy Industry , Biology and Medicine , Laboratory Equipment and Instruments
Inquire Now
Quartz fluorescence cuvette

Properties of Fluorescence Quartz Cuvettes



1. High transparent quartz material

The use of high quality and high purity quartz glass, light transmittance of up to 90%, to ensure the efficient transmission of fluorescence signal, reduce light loss.



2. Corrosion resistance, high temperature resistance

Quartz material has very high corrosion resistance and high temperature resistance, suitable for a variety of corrosive samples and high temperature conditions of fluorescence analysis.



3. Exquisite technology, high-precision manufacturing

The use of advanced melting process, without any binder, to ensure the high precision and durability of the cuvets, long-term use can still maintain excellent performance.



Quartz fluorescence cell

Applications of  Fluorescence Cuvette Cells





1. Biomedical research

Fluorescent labeling for biological samples (e.g. proteins, nucleic acids) helps scientists better understand the structure and function of biomolecules.



2. Environmental monitoring

In the fluorescence analysis of water quality, soil and other environmental samples, it is used to detect pollutants and pollutant degradation products, and provide data support for environmental protection.



3. Materials science

It is suitable for the study of fluorescence properties of polymer materials, nanomaterials and other new materials, and provides key information for material development.



4. Food safety

It is used for fluorescence detection of harmful substances such as additives and pesticide residues in food to ensure food safety and quality control.

Size Chart of  Fluorescence Quartz Cuvettes

We are committed to delivering prime fluorescence quartz cuvettes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.



Drawing and specification requirements shall be provided if customized design request.



Send Requirements for Custom Design



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6001 Quartz cuvette cell with screw cap/10mm/two channel/3.5ml/700ul 700ul/3.5ml 10mm 12.5x4.5x55mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6001-1 Quartzfluorescence  cuvette cell sealed customized 700ul/3.5ml 10mm 12.5*12.5*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6002 Quartz fluorescence cuvette with lid(five windows)/10mm 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6002-1 Quartzfluorescence  cuvette 2.1/3.5/5.6/7ml 3/5/8/10mm / 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6003 1pcs Standard quartz fluorescence cuvette cell with lid(10mm) four surfaces are transparent High transmittance without glue 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6004 1pcs 4.5ml glass fluorescence cell with lid(10mm) 3.5ml 10mm 12.5x12.5x45mm 350nm-2000nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6004-1 Malvern glass sample cell 3.5ml 10mm 12*12*45mm 350nm-2000nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6004-2 Quartz square cell with thread hole in  bottom 24ml 20mm/40mm
(4 way light)		 42*22*31mm 350nm-2000nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6004-3 Glass fluorescence cell 9ml 8mm/28mm 30*45*10mm 350nm-2000nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6004-4 Glass fluorescence cell customized 1.4ml 1mm/25mm 55*31*11mm 350nm-2000nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6005 Standard quartz fluorescence cell with lid(40mm) 14ml 10mm/40mm 12.5x42.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6006 20mm/30mm/40mm/50mm Quartz fluorescence reaction cell cuvette 8ml/27ml/64ml/125ml 20mm/30mm/40mm/50mm 24x24x22mm(8ml)/ 34x34x32mm(27ml)
44x44x42mm(64ml)/54x54x52mm(125ml)		 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6006-1 Quartz fluorescence cuvette cell 8ml 20mm 24x24x22mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6006-2 Quartz fluorescence cuvette cell 125ml 50mm 54x54x54mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6007 50mm Quartz fluorescence cuvette cell 17.5ml 10/50mm 12.5x52.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6008 350ul Quartz Micro Fluorescence Sealed Cuvette 350ul 1mm/10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6009 53ml Quartz fluorescent cuvette cell 53ml 20mm/50mm 24x54x55mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6010 Quartz fluorescence cuvette with lid(Special products)1.75mlx2 1.75ml+1.75ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6011 20mm Quartz reaction cuvette cell 16ml 20mm 20x20x40mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6012 Standard quartz fluorescence cell with lid (10mm) 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6013 Standard quartz fluorescence cell with lid(30mm) 10.5ml 10mm/30mm 12.5x32.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6014 Standard quartz fluorescence cell with lid(20mm) 7ml 10mm/20mm 12.5x22.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6015 1pcs Standard quartz fluorescence cell with lid(5mm) no glue 1.75ml 5mm 7.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6016 Quartz cell with stopper(10mm)/350ul/slit 1mm/fluorescence 350ul 10mm
slit 1mm		 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6016-1 Quartz fluorescence cell sealed 3.5ml 10mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6016-2 Quartz micron fluorescence cell sealed 700ul 10mm/2mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6016-3 Quartz micron fluorescence cell 1400ul 10mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6016-4 Quartz micron fluorescence cell 1750ul 5mm/10mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6017 Quartz cuvette cell with screw cap(10mm)/Four way light/1.75ml/Slit 5mm 1.75ml 10mm
(4 way light)
slit 5mm		 12.5x12.5x52mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6018 Quartz micron fluorescence cell with thread cap 700ul 2mm/10mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6019 Quartz micron fluorescence cell with black wall 45ul 3*3mm
center height 15mm		 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6020 Quartz micron fluorescence cell 2/3/4/5/10/13ul 1/1.5/2/2.5/5/6.5mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6021 Quartz funnel fluorescent cell 3.5ml 10mm 12.5x12.5x46 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6022 Quartz micron fluorescence cell with thread cap 600ul 3/10mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6023 Quartz fluorescence cell with 4 polished sides customized customized 10mm 40x40x83 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6024 Quartz micron fluorescence cell 1.75ml 5mm/10mm
(2 polished sides)		 12.5*12.5*75mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6025 Quartz micron fluorescence cell 110ul 4mm 6*6*10mm
interior size:
4*3.5*10mm
4*4*10mm		 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6026 Quartz micron fluorescence cell 400ul 4mm/10mm
window size: 4*5mm		 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6027 Quartz micron fluorescence cell 1050ul 3mm/10mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6028 Quartz cuvettes 5 way light 350ul 1mm 12.5*3.5*45mm 200nm-2500nm
AT-BSM-6028-1 700ul 1mm 12.5*3.5*45mm 200nm-2500nm
AT-BSM-6028-2 1.75ml 5mm 12.5*7.5*45mm 200nm-2500nm
AT-BSM-6028-3 3.5ml 10mm 12.5*12.5*45mm 200nm-2500nm
AT-BSM-6028-4 7ml 20mm 22.5*12.5*45mm 200nm-2500nm
AT-BSM-6028-5 10.5ml 30mm 32.5*12.5*45mm 200nm-2500nm
AT-BSM-6028-6 14ml 40mm 42.5*12.5*45mm 200nm-2500nm
AT-BSM-6028-7 17.5ml 50mm 52.5*12.5*45mm 200nm-2500nm
AT-BSM-6028-8 35ml 100mm 102.5*12.5*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6029 Quartz triangle cuvette 1.75ml / 13*13*18.4*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6030 Quartz triangle cuvette / / 40mm /



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-6031 Quartz atomic gas chamber   1mm/3mm/6mm/10mm/18mm/customized 1mm: 45*5*2mm
3mm: 4*4mm
6mm: 8*8mm
10mm: 12*12mm
18mm: 20*20mm
customized: 45*25*2mm
Double hole air chamber:7*7*7mm		 200nm-2500nm





Technical Data of Fused Quartz Materials

Density (g/cm3) 2.2
Flexture Strength (MPa) 48
Elastic Modulus (GPa) 72
Poisson's Ratio 0.14-0.17
Compressive strength (MPa) 1100
Bending strength (MPa) 67
Moh's hardness 5.5~6.5
Maximum working temperature (long-term, ℃) 1100
Maximum working temperature (short-term, ℃) 1350
Thermal conductivity (W/m*K) 1.4
Thermal expansion coefficient (/℃) 5.5*10-7
Specific resistance (Ω*cm) 7*107



*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.








Transparent Quartz Fluorescence Cuvettes for Fluorescence Analysis

Valuable Information



Sealable Quartz Cuvettes Packing

Sealable Quartz Packing



Sealable quartz cuvettes are carefully packaged in appropriate containers to avoid any potential damage.























Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
Related Blog
Silicon Carbide Tubes: 15-Yr Corrosion Solution for Chemicals
Revolutionizing Chemical Processing: How Silicon Carbide Tubes Solve $20k/Day Downtime Challenges   The chemical industry loses $5.3 billion annually to corrosion-related equipment failures (NACE International, 2022). At the heart of this crisis lies inadequate material performance in extreme environments. This article reveals why silicon carbide (SiC) tubes are replacing traditiona...
Read More
The Role of Zirconia Rods in Modern Industrial Applications
  In today’s fast-paced industrial world, the demand for materials that combine strength, durability, and versatility is higher than ever. From high-performance equipment to critical components used in challenging environments, industries across the globe rely on advanced materials to meet their complex needs. One such material that has gained significant traction in modern manufacturin...
Read More
Why Quartz Glass Cuvettes Are Essential for Accurate Spectroscopy Measurements
In scientific research, spectroscopy plays a vital role in analyzing the properties of various substances by examining how light interacts with them. Whether it's determining the concentration of a solution or identifying chemical compounds, the accuracy of spectroscopy measurements is crucial. One of the most important factors in ensuring precise spectroscopic results is the choice of cuvette. Wh...
Read More
Applications of Alumina Substrates in the Automotive Industry
In recent years, the automotive industry has seen significant technological advancements, driven by the need for higher efficiency, sustainability, and performance. One of the materials playing a crucial role in this evolution is alumina. This ceramic material, known for its excellent thermal, mechanical, and electrical properties, has become indispensable in a range of automotive applications. Fr...
Read More
Why Silicon Nitride Tubes Are the Future of High-Temperature Applications
In the world of high-performance materials, the demand for solutions that can withstand extreme conditions is ever-growing. From aerospace and automotive to energy and electronics, industries are increasingly relying on materials that can handle not only high stress and pressure but also high temperatures. One such material that has emerged as a game-changer in these applications is silicon nitrid...
Read More
How Alumina Mechanical Parts Help Achieve Precision in High-Stress Environments
In industries that rely on high-performance machinery and equipment, precision and durability are critical. From aerospace to medical devices and semiconductor manufacturing, components must withstand extreme conditions while maintaining accuracy and reliability. One material that excels in these demanding environments is alumina, a form of aluminum oxide (Al2O3) used in the production of mechanic...
Read More
Comparing Silicon Carbide Crucibles to Other Crucible Materials: Which is Best for Your Process?
Crucibles are essential tools used in various industrial processes, particularly in metallurgy, casting, and chemical manufacturing. They provide a vessel for melting or holding high-temperature materials, and selecting the right crucible material is crucial to achieving optimal results. Among the wide variety of crucible materials available, Silicon Carbide (SiC) crucibles are often regarded as o...
Read More
Why is High-Purity Quartz Crucible Vital for Semiconductor Manufacturing and ATCERA's Innovation?
High-Purity Quartz Crucible: Essential for Semiconductor Manufacturing by ATCERA   With the rapid development of science and technology, the semiconductor industry, as the cornerstone of modern information technology, is facing unprecedented challenges and opportunities. In the semiconductor manufacturing process, quartz glass crucible with its unique thermal stability and low reactivity, has...
Read More
Why is High-Purity Quartz Crucible Essential for Semiconductor & Solar PV Manufacturing?
High-Purity Quartz Crucible: Essential for Semiconductor & Solar PV Fields   The purity of quartz crucible has a direct effect on the quality of its internal processing materials. In the high-tech industry, especially in the semiconductor and solar photovoltaic fields, the purity of the quartz crucible is directly related to the performance and reliability of the final product. As a brand...
Read More
How is High Purity Quartz Crucible Prepared and Why is it Crucial for High-Tech Industries?
High Purity Quartz Crucible: Preparation & Applications by ATCERA   In the field of modern high-tech material preparation, high purity quartz (HPQ) crucible plays a crucial role. These crucibles are made of natural quartz minerals, mainly silica (SiO2), and are deeply purified to achieve the desired purity level. With its excellent technical strength, ATCERA brand focuses on the productio...
Read More

Related Products

Quartz Cuvette for Absorption and Fluorescence Spectra
UV Quartz Cuvettes & Quartz Spectrophotometer Cells for Superior Transmittance
Optical measurement cuvettes
High Transmittance Glass Cuvettes for Laboratory Use
Infrared Quartz Cuvette
IR Quartz Cuvette for Professional Spectral Analysis
Sub-Micro Quartz Cuvette
Sub-Micro Quartz Cuvette for Precision Micro-Volume Spectrophotometry
Quartz Sealable Cuvettes
Quartz Cuvettes with Airtight Seal for Accurate Spectral Analysis
Quartz cuvette with lid
Quartz Cuvette Cells with Lid JGS1 for Spectrophotometer Labs 1mm Optical Path
JGS1 quartz cuvette cells
Premium Quartz Cuvette Cells JGS1 No Lid for Spectrophotometer Labs
Quartz cuvette cells with lid
Quartz Cuvette Cells with Lid 14ml JGS1for Spectrophotometer Labs

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.

All FAQs

Send Your inquiry

Subject:
4-Sided Transparent Quartz Fluorescence Cuvettes for Fluorescence Analysis
Upload
* File ONLY PDF/JPG./PNG. Available.
Submit Now
About My Brand
Products
Resources
Hot Tags

Copyright © 2025 Custom Advanced Ceramic Solutions | HUNAN ATCERA CO.,LTD All Rights Reserved.

XML | Privacy Policy IPv6

Contact With Us
Contact With Us
Simply fill out the form below as best you can. And don't sweat the details.
Submit
Looking for Video?
Contact Us #
19311583352

Office Hours

  • Monday to Friday: 9:00 AM - 12:00 PM, 2:00 PM - 5:30 PM

Please note that our office hours are based on Beijing Time, which is eight hours ahead of Greenwich Mean Time (GMT). We appreciate your understanding and cooperation in scheduling your inquiries and meetings accordingly. For any urgent matters or queries outside our regular hours, feel free to contact us via email, and we will get back to you as soon as possible. Thank you for your business, and we look forward to serving you.

Home

Products

whatsApp

contact
