Quartz Cuvette for Absorption and Fluorescence Spectra
Quartz Cuvette for Absorption and Fluorescence Spectra
Quartz Cuvette for Absorption and Fluorescence Spectra
Quartz Cuvette for Absorption and Fluorescence Spectra
Quartz Cuvette for Absorption and Fluorescence Spectra

UV Quartz Cuvettes & Quartz Spectrophotometer Cells for Superior Transmittance

Quartz Spectrophotometer Cells & UV Quartz Cuvettes offering exceptional transmittance from 200nm to 2500nm and chemical resistance.

Ideal for precise measurements in absorption and fluorescence spectroscopy.

  • Brand:

    ATCERA

  • Item NO.:

    AT-BSM-001

  • Materials

    Quartz Glass

  • Shapes

    Cuvette

  • Applications

    Metallurgy Industry , Biology and Medicine , Laboratory Equipment and Instruments
Inquire Now
Excellent Transmittance Quartz Cell

Properties of  Quartz Cuvettes



1. Excellent transmittance:

Unmatched transmittance in the full spectrum range from ultraviolet to near-infrared (200nm-2500nm) ensures measurement accuracy.



2. Chemical inertness:

Resistant to various common solvents and chemicals, no test tube degradation, to ensure the repeatability of experimental results.



3. Multiple design:

Provide double-sided transparent and four-sided transparent two styles to meet the different needs of absorption spectrum and fluorescence spectrum.



Quartz Cuvette for UV Spectral Analysis

Applications of  Quartz Spectrophotometer Cells





1. Spectral analysis:

Suitable for fluorescence and absorbance research in ultraviolet, visible and near-infrared regions to ensure the reliability and accuracy of experimental data.



2. Materials research:

In materials science, it is used to evaluate the optical properties of different materials over a wide spectral range.



3. Environmental monitoring:

Help scientists analyze the chemical composition of environmental samples, monitor water quality, air quality, etc.



4. Biomedical:

In biomedical fields such as drug development and biomolecular analysis, it is used to accurately measure the optical properties of biological samples.



5. Quality control:

In industrial production, it is used to monitor the consistency of product batches to ensure that product quality meets standards.

Size Chart of  UV Quartz Cuvettes

We are committed to delivering prime quartz cuvettes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.



Drawing and specification requirements shall be provided if customized design request.



Send Requirements for Custom Design



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-001 1pcs Quartz cuvette cell with screw cap(10mm) 3.5ml 10mm 12.5x12.5x55mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-002 40mm Quartz cuvette cell （large area photopermeability） 14ml 10mm 12.5x42.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-003 30mm Quartz cuvette cell （large area photopermeability） 10.5ml 10mm 12.5x32.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-004 2 PCS quartz cuvette cells with lid 50mm path length JGS1 for spectrophotometer lab 17.5ml 50mm 12.5x52.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-005 2PCS 1ml Micro JGS1 Quartz Cuvette Cell With Black Walls And Lid 3mm Inside Width 1.05ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-006 quartz cuvette with lid(100mm) 35ml 100mm 12.5x102.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-007 50mm Quartz cuvette cell （large area photopermeability） 17.5ml 50mm 12.5x52.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-008 1pcs quartz cuvette with lid(50mm)/quartz cell 17.5ml 50mm 12.5x52.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-009 Micro quartz cuvette with lid(560ul) 560ul 4mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-010 2pcs Standard quartz cuvette with lid corrosion resisting 10mm path length without glue 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-011 1PCS Standard quartz cuvette(0.5mm)/quartz cell/Spectrophotometers No matching lid 170ul 0.5mm 12.5x3x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-011-1 1mm quartz fluorescent colorimetric dish 350ul 1mm / 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-012 1pcs Micro quartz cuvette with lid(700ul) 700ul 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-013 2PCS 350ul Micro JGS1 Quartz Cuvette Cell With Black Walls And Lid 1mm Inside Width 0.35ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-014 1pcs Micro quartz cuvette with lid(350ul) 350ul 10mm 12.5*12.5*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-015 2 PCS quartz cuvette cells with lid 10mm path length JGS1 for spectrophotometer lab 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-016 1pcs Micro quartz cuvette with lid(1050ul) 1050ul 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-017 1pcs quartz cuvette with lid(2mm)/quartz cell/Spectrophotometers no glue 700ul 2mm 12.5x4.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-018 1pcs Micro quartz cuvette with lid(1400ul) 1400ul 10mm 12.5*12.5*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-019 Standard quartz cell with lid and round bottom(10mm) 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-020 Quartz flow cell/six-way light colorimetric dish 125ml 50mm 54x54x54mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-021 1PCS 350ul Quartz fluorescence cuvette cell with PTFE stopper(1mm) 350ul 1mm 12.5x3.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-022 0.5mm path length Optical UV flow quartz cuvette cell with two tubes 1pcs 150ul 0.5mm 12.5x3x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-023 1PCS 700ul Quartz fluorescence cuvette cell with PTFE stopper(2mm) 700ul 2mm 12.5x4.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-024 Quartz cuvette cell with screw cap(40mm) 14ml 40mm 12.5x42.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-025 1pcs 70ul Quartz quartz cuvette （path length 0.2mm） 70ul 0.2mm 12.5x2.7x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-026 Quartz cuvette cell with screw cap(1mm) 0.35ml 1mm 12.5x3.5x55mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-027 Quartz cuvette cell with screw cap(2mm) 700ul 2mm 12.5*4.5*55mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-028 Quartz cuvette cell with PTFE stopper(350ul) 350ul 1mm 12.5x3.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-029 3.5ml Malvern quartz cuvette (10mm) 350ul 10mm 12x12x45 mm 190nm-2500nm



Item no. Description Clear Windows Path Length LxWxH Wavelength Range
AT-BSM-030 Quartz cuvette(Can be customized)Custom-made specifications 2 2mm/0.5mm 35x5x42mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-031 1pcs Quartz cuvette cell with screw cap(2mm) 700ul 2mm 12.5x4.5x55mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-032 Quartz cuvette cell with PTFE stopper(700ul) 700ul 2mm 12.5x4.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-033 2 PCS quartz cuvette cells with lid 100mm path length JGS1 for spectrophotometer lab 35ml 100mm 12.5x102.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-034 14.5ml Quartz Reflectance Cuvette Cell φ16mm 14.5ml 16mm 16x100mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-035 10mm Quartz band tube cuvette cell 3.5ml 10mm 12.5x12.5x45x95mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-035-1 10mm quartz cuvette (400ul) 400ul / 12*12*58*138mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-036 Quartz cuvette(special requirement) 7ml 5mm 45x7x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-037 Micro quartz fluorescence cuvette with lid(50-200ul) 50ul/100ul/200ul 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-038 16ml Chromatic Aberration Cuvette（10mm） 16ml 10mm 32x14x62.5mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-039 1PCS quartz cuvette (80mm) 28ml 80mm 12.5x82.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-040 20mm Quartz Cuvette Cell （large area photopermeability） 7ml 10mm 12.5x22.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-041 Quartz cuvette for measuring reflected light(64mm) 85ml 64mm 64x38mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-042 Micro quartz cuvette cell with stopper(700ul) 700ul 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-043 Quartz cuvette(special requirement) 250ul 5mm 7x7x15mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-044 1PCS quartz cuvette (60mm) 21ml 60mm 12.5x62.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-045 Standard quartz cell with lid and leve bottom(10mm) 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-046 40ml quartz reflection  cuvette φ35mm 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-047 100ul Protein determination cuvette cell 100ul 10mm 12.5x12.5x25mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-048 20ml Quartz Reflectance Cuvette φ44mm 20ml / φ44x20mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-049 2PCS 1.4ml Micro JGS1 Quartz Cuvette Cell With Black Walls And Lid 4mm Inside Width 1.4ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-050 2PCS 1.75ml Micro JGS1 Quartz Cuvette Cell With Black Walls And Lid 5mm Inside Width 1.75ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-051 16ml Quartz reflectance cuvette cell φ29mm 16ml / φ29x38mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-052 2 PCS quartz cuvette cells with lid 20mm path length JGS1 for spectrophotometer lab 7ml 20mm 12.5x22.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-053 Micro quartz cuvette(Can be customized) 100ul 10mm 12.5x12.5x8mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-054 Quartz cuvette for measuring reflected light(250ul) 250ul / φ7x15mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-055 Quartz cuvette for measuring reflected light(15mm) 4.5ml 15mm φ15x35mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-055-1 Quartz cuvette for measuring reflected light(3ml) 3ml / φ15x35mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-055-2 Quartz cuvette for measuring reflected light(0.7ml) 0.7ml / φ17*5mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-055-3 Quartz cuvette for measuring reflected light(customization) customization / φ12*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-055-4 Quartz cuvette for measuring reflected light(φ30mm) 14ml / φ30*30mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-056 Standard quartz cell with lid and leve bottom(10mm) 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-057 10mm Quartz Scale Cuvette Cell 3.5ml Customization 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-058 1pcs quartz cuvette with lid/quartz cell 350ul 1mm 12.5*3.5*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-059 2 PCS quartz cuvette cells with lid 5mm path length JGS1 for spectrophotometer lab 1.75ml 5mm 12.5x7.5x45 mm 200nm-2500nm



Item no. Description Clear Windows Path Length LxWxH Wavelength Range
AT-BSM-060 Quartz cuvette(special requirement) 2 10mm 12.5x12.5x44mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-061 Standard quartz cuvette with lid/721 4ml 10mm 13.5x14.5x43mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-062 1pcs quartz cuvette with lid(3mm)/quartz cell 1.05ml 3mm 12.5*5.5*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-063 1pcs quartz cuvette with lid(20mm) 7ml 20mm 12.5x22.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-064 1pcs quartz cuvette with lid(5mm)/quartz cell/Spectrophotometers no glue 1.75ml 5mm 12.5*7.5*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-065 2PCS quartz cuvette (90mm)/quartz cell 31.5ml 90mm 12.5x92.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-066 2PCS quartz cuvette (70mm)/quartz cell 24.5ml 70mm 12.5x72.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-067 2PCS quartz cuvette (60mm)/quartz cell 21ml 60mm 12.5x62.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-068 2PCS quartz cuvette (80mm)/quartz cell 28ml 80mm 12.5x82.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-069 1PCS quartz cuvette (90mm)/quartz cell 31.5ml 90mm 12.5x92.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-070 1PCS 350ul Quartz Fluorescent Cuvette Cell (path length 1mm) 350ul 1mm 12.5x3.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-071 1PCS quartz cuvette (70mm)/quartz cell 24.5ml 70mm 12.5x72.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-072 1pcs quartz cuvette with lid(40mm)/quartz cell 14ml 40mm 12.5x42.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-073 1pcs quartz cuvette with lid(30mm)/quartz cell 10.5ml 30mm 12.5*32.5*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-074 Quartz cuvette for automatic biochemical analyzer(6mm) 0.54ml 6mm 7x8x27mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-075 1pcs Micro quartz cuvette with lid(1750ul) 1750ul 10mm 12.5x12.5x45mm 200nm-2500nm





Technical Data of Fused Quartz Materials

Density (g/cm3) 2.2
Flexture Strength (MPa) 48
Elastic Modulus (GPa) 72
Poisson's Ratio 0.14-0.17
Compressive strength (MPa) 1100
Bending strength (MPa) 67
Moh's hardness 5.5~6.5
Maximum working temperature (long-term, ℃) 1100
Maximum working temperature (short-term, ℃) 1350
Thermal conductivity (W/m*K) 1.4
Thermal expansion coefficient (/℃) 5.5*10-7
Specific resistance (Ω*cm) 7*107



*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.








UV Quartz Cuvettes for Superior Transmittance

Valuable Information

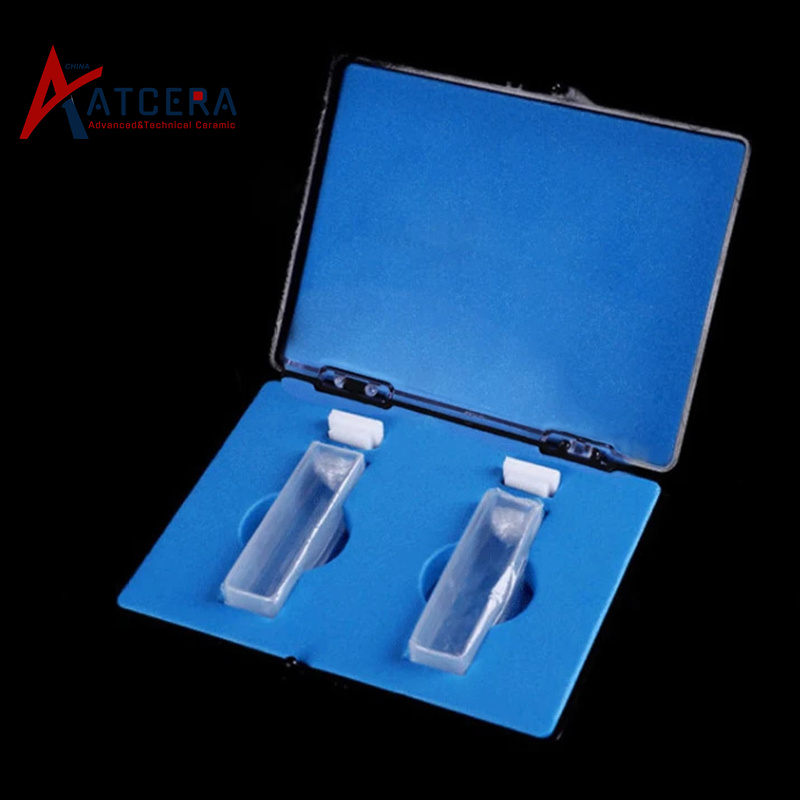

Quartz Cuvettes Packing

Quartz Cuvettes Packing



Quartz cuvettes are carefully packaged in appropriate containers to avoid any potential damage.























Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
Related Blog
Silicon Carbide Tubes: 15-Yr Corrosion Solution for Chemicals
Revolutionizing Chemical Processing: How Silicon Carbide Tubes Solve $20k/Day Downtime Challenges   The chemical industry loses $5.3 billion annually to corrosion-related equipment failures (NACE International, 2022). At the heart of this crisis lies inadequate material performance in extreme environments. This article reveals why silicon carbide (SiC) tubes are replacing traditiona...
Read More
The Role of Zirconia Rods in Modern Industrial Applications
  In today’s fast-paced industrial world, the demand for materials that combine strength, durability, and versatility is higher than ever. From high-performance equipment to critical components used in challenging environments, industries across the globe rely on advanced materials to meet their complex needs. One such material that has gained significant traction in modern manufacturin...
Read More
Why Quartz Glass Cuvettes Are Essential for Accurate Spectroscopy Measurements
In scientific research, spectroscopy plays a vital role in analyzing the properties of various substances by examining how light interacts with them. Whether it's determining the concentration of a solution or identifying chemical compounds, the accuracy of spectroscopy measurements is crucial. One of the most important factors in ensuring precise spectroscopic results is the choice of cuvette. Wh...
Read More
Applications of Alumina Substrates in the Automotive Industry
In recent years, the automotive industry has seen significant technological advancements, driven by the need for higher efficiency, sustainability, and performance. One of the materials playing a crucial role in this evolution is alumina. This ceramic material, known for its excellent thermal, mechanical, and electrical properties, has become indispensable in a range of automotive applications. Fr...
Read More
Why Silicon Nitride Tubes Are the Future of High-Temperature Applications
In the world of high-performance materials, the demand for solutions that can withstand extreme conditions is ever-growing. From aerospace and automotive to energy and electronics, industries are increasingly relying on materials that can handle not only high stress and pressure but also high temperatures. One such material that has emerged as a game-changer in these applications is silicon nitrid...
Read More
How Alumina Mechanical Parts Help Achieve Precision in High-Stress Environments
In industries that rely on high-performance machinery and equipment, precision and durability are critical. From aerospace to medical devices and semiconductor manufacturing, components must withstand extreme conditions while maintaining accuracy and reliability. One material that excels in these demanding environments is alumina, a form of aluminum oxide (Al2O3) used in the production of mechanic...
Read More
Comparing Silicon Carbide Crucibles to Other Crucible Materials: Which is Best for Your Process?
Crucibles are essential tools used in various industrial processes, particularly in metallurgy, casting, and chemical manufacturing. They provide a vessel for melting or holding high-temperature materials, and selecting the right crucible material is crucial to achieving optimal results. Among the wide variety of crucible materials available, Silicon Carbide (SiC) crucibles are often regarded as o...
Read More
Why is High-Purity Quartz Crucible Vital for Semiconductor Manufacturing and ATCERA's Innovation?
High-Purity Quartz Crucible: Essential for Semiconductor Manufacturing by ATCERA   With the rapid development of science and technology, the semiconductor industry, as the cornerstone of modern information technology, is facing unprecedented challenges and opportunities. In the semiconductor manufacturing process, quartz glass crucible with its unique thermal stability and low reactivity, has...
Read More
Why is High-Purity Quartz Crucible Essential for Semiconductor & Solar PV Manufacturing?
High-Purity Quartz Crucible: Essential for Semiconductor & Solar PV Fields   The purity of quartz crucible has a direct effect on the quality of its internal processing materials. In the high-tech industry, especially in the semiconductor and solar photovoltaic fields, the purity of the quartz crucible is directly related to the performance and reliability of the final product. As a brand...
Read More
How is High Purity Quartz Crucible Prepared and Why is it Crucial for High-Tech Industries?
High Purity Quartz Crucible: Preparation & Applications by ATCERA   In the field of modern high-tech material preparation, high purity quartz (HPQ) crucible plays a crucial role. These crucibles are made of natural quartz minerals, mainly silica (SiO2), and are deeply purified to achieve the desired purity level. With its excellent technical strength, ATCERA brand focuses on the productio...
Read More

Related Products

Optical measurement cuvettes
High Transmittance Glass Cuvettes for Laboratory Use
Infrared Quartz Cuvette
IR Quartz Cuvette for Professional Spectral Analysis
Sub-Micro Quartz Cuvette
Sub-Micro Quartz Cuvette for Precision Micro-Volume Spectrophotometry
Quartz Sealable Cuvettes
Quartz Cuvettes with Airtight Seal for Accurate Spectral Analysis
Quartz fluorescence cuvette
4-Sided Transparent Quartz Fluorescence Cuvettes for Fluorescence Analysis
Quartz cuvette with lid
Quartz Cuvette Cells with Lid JGS1 for Spectrophotometer Labs 1mm Optical Path
JGS1 quartz cuvette cells
Premium Quartz Cuvette Cells JGS1 No Lid for Spectrophotometer Labs
Quartz cuvette cells with lid
Quartz Cuvette Cells with Lid 14ml JGS1for Spectrophotometer Labs

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.

All FAQs

Send Your inquiry

Subject:
UV Quartz Cuvettes & Quartz Spectrophotometer Cells for Superior Transmittance
Upload
* File ONLY PDF/JPG./PNG. Available.
Submit Now
About My Brand
Products
Resources
Hot Tags

Copyright © 2025 Custom Advanced Ceramic Solutions | HUNAN ATCERA CO.,LTD All Rights Reserved.

XML | Privacy Policy IPv6

Contact With Us
Contact With Us
Simply fill out the form below as best you can. And don't sweat the details.
Submit
Looking for Video?
Contact Us #
19311583352

Office Hours

  • Monday to Friday: 9:00 AM - 12:00 PM, 2:00 PM - 5:30 PM

Please note that our office hours are based on Beijing Time, which is eight hours ahead of Greenwich Mean Time (GMT). We appreciate your understanding and cooperation in scheduling your inquiries and meetings accordingly. For any urgent matters or queries outside our regular hours, feel free to contact us via email, and we will get back to you as soon as possible. Thank you for your business, and we look forward to serving you.

Home

Products

whatsApp

contact
