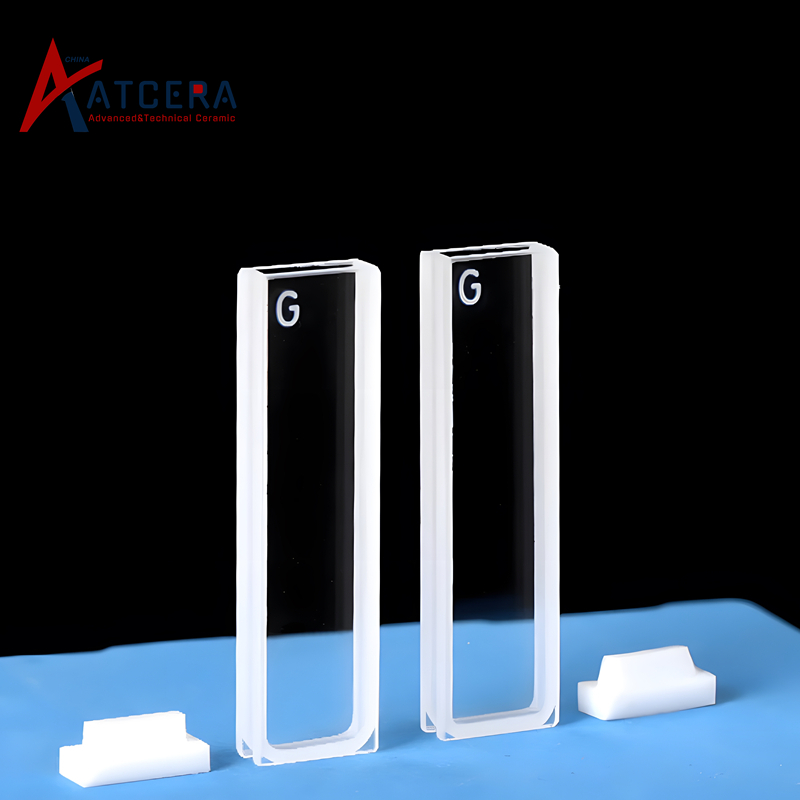

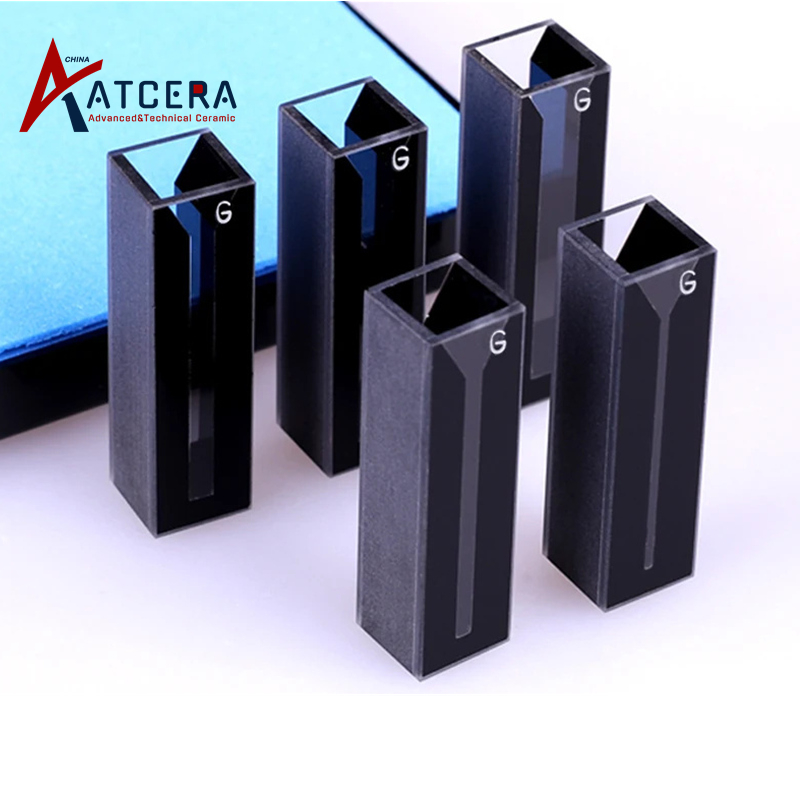

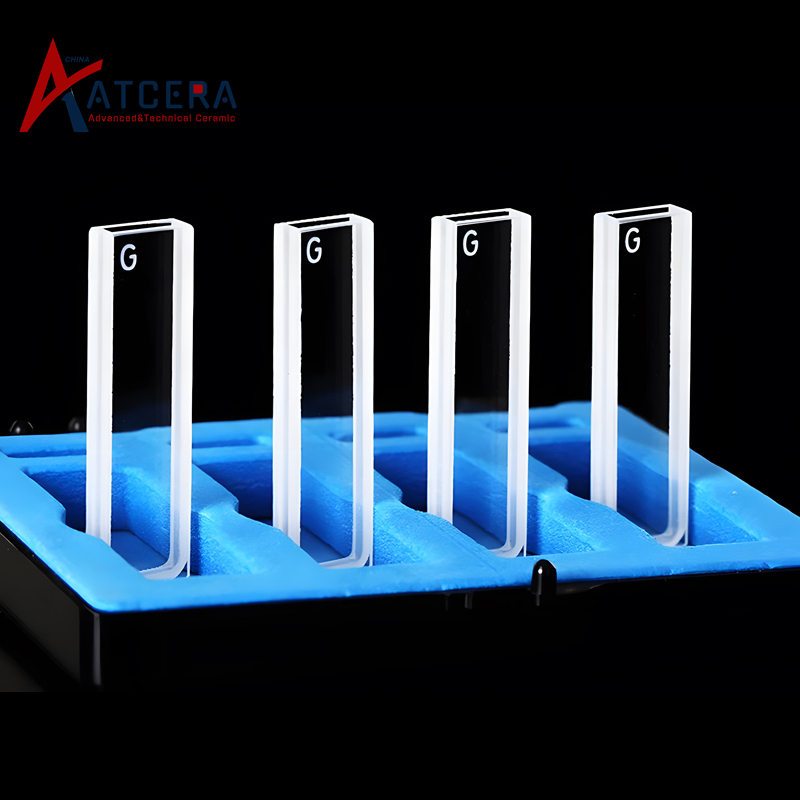

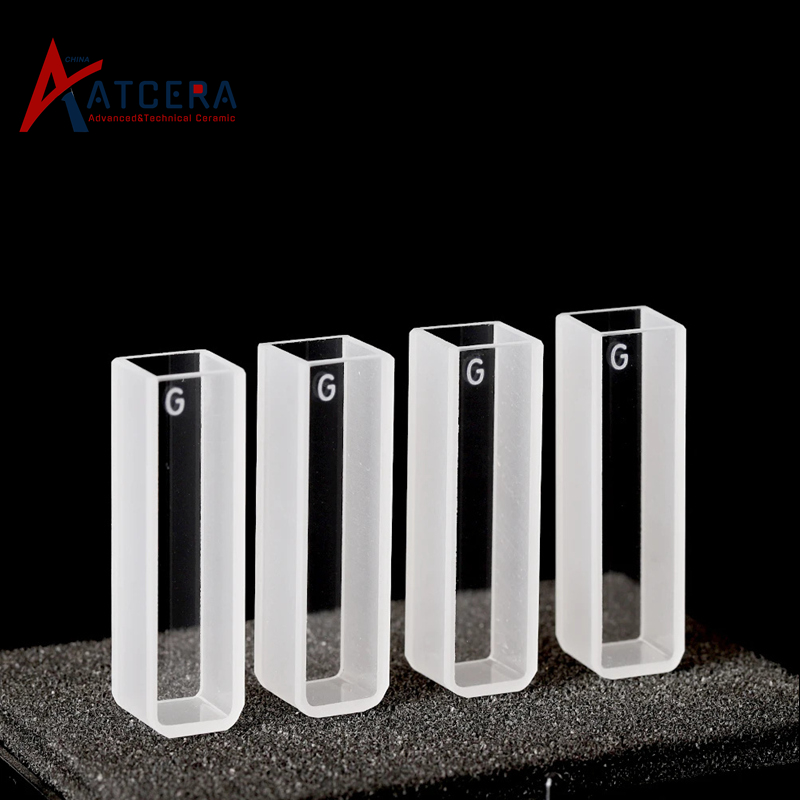

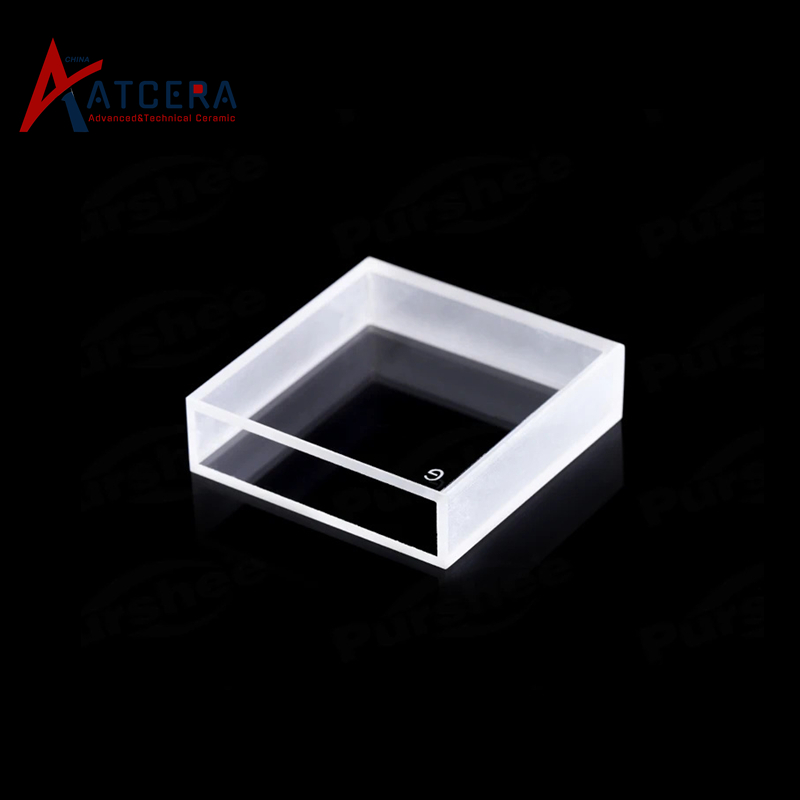

Optical measurement cuvettes
Optical measurement cuvettes
Optical measurement cuvettes
Optical measurement cuvettes
Optical measurement cuvettes

High Transmittance Glass Cuvettes for Laboratory Use

Glass cuvette is a common optical instrument component in the laboratory. It is made of high-quality glass material and has excellent acid and alkali resistance and high temperature resistance. It is widely used in optical measurement in various fields, and is an important tool for substance composition detection and analysis.

  • Brand:

    ATCERA

  • Item NO.:

    AT-BSM-1001

  • Materials

    Quartz Glass

  • Shapes

    Cuvette

  • Applications

    Metallurgy Industry , Biology and Medicine , Laboratory Equipment and Instruments
Inquire Now
Laboratory cuvettes

Properties of  Glass Cuvettes



1. High light transmission:

The glass cuvette is made of high-quality quartz glass and optical glass to ensure no bubbles, no streaks and excellent light transmission performance. At the wavelength of 340nm, the transmittance is greater than 80%, ensuring the accuracy and reliability of the measurement.



2. Strong corrosion resistance:

The sample cell is sealed with low melting point glass technology, which has strong corrosion resistance and can withstand the etching of 6mol/L sodium hydroxide, 6mol/L hydrochloric acid, anhydrous ethanol, carbon tetrachloride and benzene for 24 hours without degluing and leakage..



3. High mechanical strength:

The cuvette has large mechanical strength, strong ability to adapt to temperature changes, very firm bonding part, and can withstand several atmospheres of pressure, ensuring the smooth progress of the experiment and the long-term service life of the instrument.



Optical cuvettes

Applications of  Glass Cuvette Cells





1. Field of spectral analysis:

Glass cuvette can be used for spectroscopic instrument and sample observation, and is one of the important tools for substance composition detection and analysis.



2. Chemical analysis field:

It can be used for qualitative identification and quantitative analysis by measuring the reflectance or transmittance of samples with light sources of different wavelengths.



3. Biomedical imaging technology:

In biomedical imaging technology, glass cuvettes also play an important role, providing accurate and reliable measurement tools for scientific research and medical fields.



4. Environmental monitoring field:

Glass sample cells are also widely used in monitoring water quality and air quality, such as the use of UV-visible spectrophotometers to help people understand the degree of pollution and water quality in water bodies.

Size Chart of  Glass Cuvettes

We are committed to delivering prime glass cuvettes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.



Drawing and specification requirements shall be provided if customized design request.



Send Requirements for Custom Design



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1001 4 PCS Standard cell with lid and leve bottom(2mm) 700ul 2mm 12.5x4.5x45mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1002 4 PCS Standard cell with lid and leve bottom(1mm) 350ul 1mm 12.5x3.5x45 mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1002-1 0.2mm short range quartz glass cuvette 70ul 0.2mm 12.5x3.5x45 mm / JGS1



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1002-2 0.5mm short range quartz glass cuvette 170ul 0.5mm 12.5x3.5x45 mm / JGS1



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1002-3 2mm short range quartz glass cuvette 700ul 2mm 12.5x3.5x45 mm / JGS1



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1002-4 3mm short range quartz glass cuvette 1050ul 3mm 12.5x3.5x45 mm / JGS1



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1002-5 5mm short range quartz glass cuvette 1750ul 5mm 12.5x3.5x45 mm / JGS1



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1003 6ml Glass Sample cell cuvette （path length 10mm） Customization 6ml 10mm 15x16.5x75mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1004 10pcs standard glass cuvette (no lid) and leve bottom with 10mm path length 3.5ml 10mm 12.5x12.5x45mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1005 glass cuvettes 14.5ml 10mm 50x14x50mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1005-1 glass cuvettes 14ml 10mm 12.5*42.5*45mm / optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1006 4 PCS glass cuvettes cells with lid and round bottom(10mm)/Matching with spectrophotometer without glue 3.5ml 10mm 12.5x12.5x45mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1007 Glass micro cuvette /350ul-1.75ml/ two-way light 0.35-1.75ml 10mm 12.5x12.5x45mm 350nm-2000nm glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1008 Glass square cylinder threaded hole with cap/Glass reaction cell/four-way light/cap with threaded hole 24ml 20/40mm 44x22x31mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1009 Glass fluorescent cuvette cell  9ml 8/28mm 30x45x10mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1010 1.4ml Glass Sample cell （path length 1mm/25mm） 1.4ml 1mm/25mm 55x31x11mm / /



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1011 4 PCS Standard cell with lid and leve bottom(100mm) 35ml 100mm 125x102.5x45mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1012 4 PCS Standard cell with lid and leve bottom(50mm) 17.5ml 50mm 12.5x52.5x45mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1013 4 PCS Standard cell with lid and leve bottom(40mm) 14ml 40mm 12.5x42.5x45 mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1014 4 PCS Standard cell with lid and leve bottom(3mm) 1.05ml 3mm 12.5x5.5x45 mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1015 40mm Glass cuvette cell （14ml） 14ml 40mm 12.5x42.5x45mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1015-1 glass cuvettes 14ml 10mm 12.5x42.5x45mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1016 Square glass container 5ml 10mm 12.5x12.5x62mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1016-1 Square glass container 7ml 10mm 12.5x12.5x82mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1017 4PCS Standard cell with lid and leve bottom(30mm) 10.5ml 30mm 12.5x32.5x45 mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1018 4PCS Standard cell with lid and leve bottom(20mm) 7ml 20mm 12.5x22.5x45 mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1018-1 glass cuvette standard 35ml 100mm 12.5*102.5*45mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1019 Glass micro cuvette /350ul-1.75ml/Semi-micro micro diagonal slit sample cell 350ul-1.75ml 10mm 12.5*12.5*45mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1020 4 PCS Standard cell with lid and leve bottom(5mm) 1.75ml 5mm 12.5x7.5x45mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1021 581 Glass cuvette cell 4ml 5mm 65x17.5x9mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1022 Residual chlorine cuvette 20ml 25mm 29x16x70mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1022-1 Residual chlorine cuvette 10ml 12mm 23*16*54mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1023 1 PCS Standard cell with lid and leve bottom(5mm) 1.75ml 5mm 12.5x7.5x45mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1024 quartz glass cuvette 2.5ml 10mm 12.5*12.5*45mm / optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1025 glass cuvettes customization 1.4ml 1mm/25mm 53*31*11mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1026 glass cuvettes with positioning block 67ml 21mm/46mm / 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1027 glass cuvettes customization 7ml-51ml 5mm-51mm / 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1027-1 glass cuvettes customization 72ul 3mm 5*5*10mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1027-2 glass cuvettes customization 1ml 1.5mm 30*3.5*30mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1027-3 glass cuvettes customization 9ml 8mm/28mm 30*10*45mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1027-4 glass cuvettes customization 100ml 37mm/57mm 60*40*50mm 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1027-5 glass cuvettes customization 200ml 66mm 70*70*48mm,
hole φ 8mm		 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1027-6 glass cuvettes customization / / / 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1028 photoelectric cuvettes 3.5ml-70ml 5mm-100mm 24*9*40mm
24*14*40mm
24*24*40mm
34*24*40mm
54*24*40mm
104*24*40mm		 350nm-2000nm German optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1029 Roverpen cuvette / 133.4mm 137.4*20*40m / optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1030 Roverpen cuvette 30ml 50.8mm 54.8*20*40mm / optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1031 Roverpen cuvette 3.8ml 6.4mm 10.4*20*40mm / optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1032 Roverpen cuvette 15ml 25.4mm 29.4*20*40mm / optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1033 Roverpen cuvette 7ml 12.7mm 16.7*20*40mm / optical glass



Item no. Description Capacity Path Length LxWxH Wavelength Range Material
AT-BSM-1034 Roverpen cuvette 6ml 10mm 14*20*40mm / optical glass





Technical Data of Fused Quartz Materials

Density (g/cm3) 2.2
Flexture Strength (MPa) 48
Elastic Modulus (GPa) 72
Poisson's Ratio 0.14-0.17
Compressive strength (MPa) 1100
Bending strength (MPa) 67
Moh's hardness 5.5~6.5
Maximum working temperature (long-term, ℃) 1100
Maximum working temperature (short-term, ℃) 1350
Thermal conductivity (W/m*K) 1.4
Thermal expansion coefficient (/℃) 5.5*10-7
Specific resistance (Ω*cm) 7*107



*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.








High Transmittance Glass Cuvettes for Laboratory Use

Valuable Information



Glass Cuvettes Packing

Glass Cuvettes Packing



Glass cuvettes are carefully packaged in appropriate containers to avoid any potential damage.























Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
Related Blog
Silicon Carbide Tubes: 15-Yr Corrosion Solution for Chemicals
Revolutionizing Chemical Processing: How Silicon Carbide Tubes Solve $20k/Day Downtime Challenges   The chemical industry loses $5.3 billion annually to corrosion-related equipment failures (NACE International, 2022). At the heart of this crisis lies inadequate material performance in extreme environments. This article reveals why silicon carbide (SiC) tubes are replacing traditiona...
Read More
The Role of Zirconia Rods in Modern Industrial Applications
  In today’s fast-paced industrial world, the demand for materials that combine strength, durability, and versatility is higher than ever. From high-performance equipment to critical components used in challenging environments, industries across the globe rely on advanced materials to meet their complex needs. One such material that has gained significant traction in modern manufacturin...
Read More
Why Quartz Glass Cuvettes Are Essential for Accurate Spectroscopy Measurements
In scientific research, spectroscopy plays a vital role in analyzing the properties of various substances by examining how light interacts with them. Whether it's determining the concentration of a solution or identifying chemical compounds, the accuracy of spectroscopy measurements is crucial. One of the most important factors in ensuring precise spectroscopic results is the choice of cuvette. Wh...
Read More
Applications of Alumina Substrates in the Automotive Industry
In recent years, the automotive industry has seen significant technological advancements, driven by the need for higher efficiency, sustainability, and performance. One of the materials playing a crucial role in this evolution is alumina. This ceramic material, known for its excellent thermal, mechanical, and electrical properties, has become indispensable in a range of automotive applications. Fr...
Read More
Why Silicon Nitride Tubes Are the Future of High-Temperature Applications
In the world of high-performance materials, the demand for solutions that can withstand extreme conditions is ever-growing. From aerospace and automotive to energy and electronics, industries are increasingly relying on materials that can handle not only high stress and pressure but also high temperatures. One such material that has emerged as a game-changer in these applications is silicon nitrid...
Read More
How Alumina Mechanical Parts Help Achieve Precision in High-Stress Environments
In industries that rely on high-performance machinery and equipment, precision and durability are critical. From aerospace to medical devices and semiconductor manufacturing, components must withstand extreme conditions while maintaining accuracy and reliability. One material that excels in these demanding environments is alumina, a form of aluminum oxide (Al2O3) used in the production of mechanic...
Read More
Comparing Silicon Carbide Crucibles to Other Crucible Materials: Which is Best for Your Process?
Crucibles are essential tools used in various industrial processes, particularly in metallurgy, casting, and chemical manufacturing. They provide a vessel for melting or holding high-temperature materials, and selecting the right crucible material is crucial to achieving optimal results. Among the wide variety of crucible materials available, Silicon Carbide (SiC) crucibles are often regarded as o...
Read More
Why is High-Purity Quartz Crucible Vital for Semiconductor Manufacturing and ATCERA's Innovation?
High-Purity Quartz Crucible: Essential for Semiconductor Manufacturing by ATCERA   With the rapid development of science and technology, the semiconductor industry, as the cornerstone of modern information technology, is facing unprecedented challenges and opportunities. In the semiconductor manufacturing process, quartz glass crucible with its unique thermal stability and low reactivity, has...
Read More
Why is High-Purity Quartz Crucible Essential for Semiconductor & Solar PV Manufacturing?
High-Purity Quartz Crucible: Essential for Semiconductor & Solar PV Fields   The purity of quartz crucible has a direct effect on the quality of its internal processing materials. In the high-tech industry, especially in the semiconductor and solar photovoltaic fields, the purity of the quartz crucible is directly related to the performance and reliability of the final product. As a brand...
Read More
How is High Purity Quartz Crucible Prepared and Why is it Crucial for High-Tech Industries?
High Purity Quartz Crucible: Preparation & Applications by ATCERA   In the field of modern high-tech material preparation, high purity quartz (HPQ) crucible plays a crucial role. These crucibles are made of natural quartz minerals, mainly silica (SiO2), and are deeply purified to achieve the desired purity level. With its excellent technical strength, ATCERA brand focuses on the productio...
Read More

Related Products

Quartz Cuvette for Absorption and Fluorescence Spectra
UV Quartz Cuvettes & Quartz Spectrophotometer Cells for Superior Transmittance
Infrared Quartz Cuvette
IR Quartz Cuvette for Professional Spectral Analysis
Sub-Micro Quartz Cuvette
Sub-Micro Quartz Cuvette for Precision Micro-Volume Spectrophotometry
Quartz Sealable Cuvettes
Quartz Cuvettes with Airtight Seal for Accurate Spectral Analysis
Quartz fluorescence cuvette
4-Sided Transparent Quartz Fluorescence Cuvettes for Fluorescence Analysis
Quartz cuvette with lid
Quartz Cuvette Cells with Lid JGS1 for Spectrophotometer Labs 1mm Optical Path
JGS1 quartz cuvette cells
Premium Quartz Cuvette Cells JGS1 No Lid for Spectrophotometer Labs
Quartz cuvette cells with lid
Quartz Cuvette Cells with Lid 14ml JGS1for Spectrophotometer Labs

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.

All FAQs

Send Your inquiry

Subject:
High Transmittance Glass Cuvettes for Laboratory Use
Upload
* File ONLY PDF/JPG./PNG. Available.
Submit Now
About My Brand
Products
Resources
Hot Tags

Copyright © 2025 Custom Advanced Ceramic Solutions | HUNAN ATCERA CO.,LTD All Rights Reserved.

XML | Privacy Policy IPv6

Contact With Us
Contact With Us
Simply fill out the form below as best you can. And don't sweat the details.
Submit
Looking for Video?
Contact Us #
19311583352

Office Hours

  • Monday to Friday: 9:00 AM - 12:00 PM, 2:00 PM - 5:30 PM

Please note that our office hours are based on Beijing Time, which is eight hours ahead of Greenwich Mean Time (GMT). We appreciate your understanding and cooperation in scheduling your inquiries and meetings accordingly. For any urgent matters or queries outside our regular hours, feel free to contact us via email, and we will get back to you as soon as possible. Thank you for your business, and we look forward to serving you.

Home

Products

whatsApp

contact
