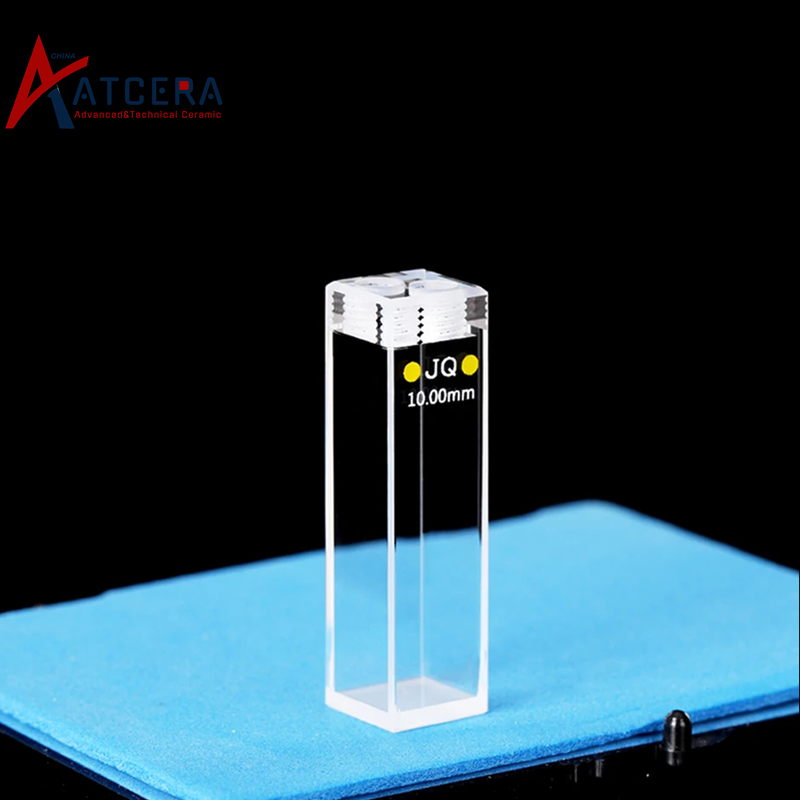

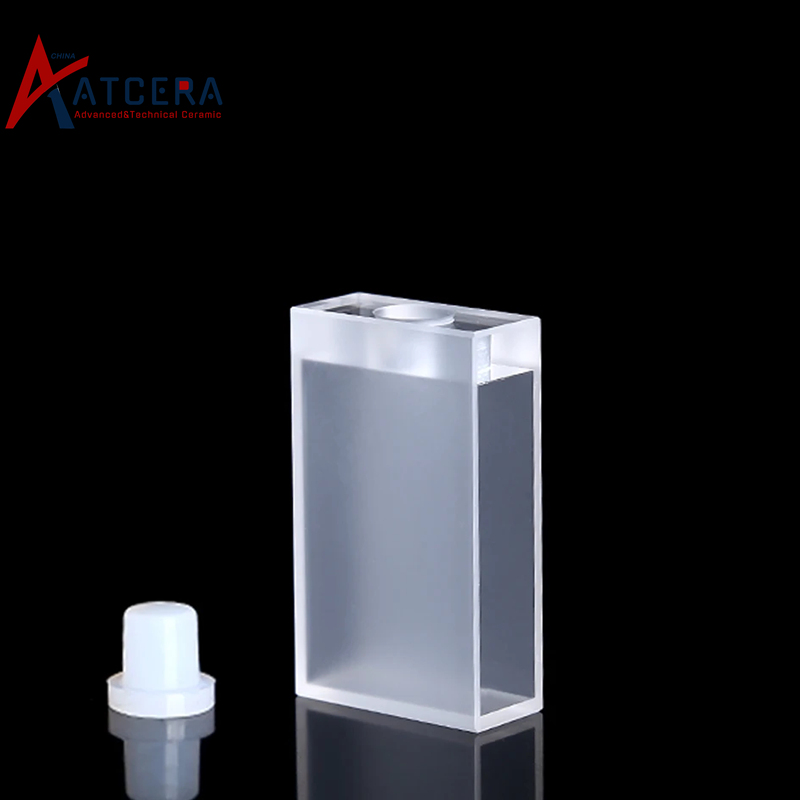

Quartz Sealable Cuvettes
Quartz Sealable Cuvettes
Quartz Sealable Cuvettes
Quartz Sealable Cuvettes
Quartz Sealable Cuvettes

Quartz Cuvettes with Airtight Seal for Accurate Spectral Analysis

Sealable Quartz Cuvettes are high-precision experimental instruments used primarily for fluorescence analysis and other chemical experiments. The use of high-quality quartz material, with good light transmission and chemical stability, can withstand high temperature and corrosive substances, while the sealable design to ensure the stability of the internal environment, avoid external interference, improve the accuracy and repeatability of the experiment.

  • Brand:

    ATCERA

  • Item NO.:

    AT-BSM-5001

  • Materials

    Quartz Glass

  • Shapes

    Cuvette

  • Applications

    Metallurgy Industry , Biology and Medicine , Laboratory Equipment and Instruments
Inquire Now
Quartz Sample Cells

Properties of Sealable Quartz Cuvettes



1. High light transmission

The quartz material has high light transmission, ranging from 0.12 to 4.5 microns, without any absorption peaks in a wide spectrum range, ensuring the accurate transmission of fluorescence signals and improving the sensitivity of the experiment.



2. Chemical stability

Quartz material has a good tolerance to most chemical substances, can withstand 6mol/L hydrochloric acid, 6mol/L sodium hydroxide, 98% alcohol, carbon tetrachloride and benzene five media each immersed for 24 hours without leakage phenomenon, suitable for a variety of complex chemical experimental environment.



3. Design for tightness

The sealable design can effectively isolate the interference of external light and gas, ensure the reliability of the experimental results, and is especially suitable for holding volatile solutions.



Spectral Analysis Cuvettes

Applications of  Sealable Cuvette Cells





1. Fluorescence analysis

In fluorescence spectrum analysis, quartz sealable cuphor can provide a stable fluorescence signal, which helps to accurately determine the fluorescence characteristics of samples, and is widely used in biomedicine, environmental monitoring and other fields.



2. Chemical reaction monitoring

Due to its good chemical stability and light transmission, quartz sealable cuvette is suitable for monitoring various chemical reactions, such as solution preparation, reaction rate determination, etc., to provide strong support for chemical research.



3. Spectral analysis

In the field of drug development, Sub-Micro Quartz Cuvette can be used for quantitative analysis of drug molecules, supporting the process of new drug discovery and drug optimization.



4. Environmental monitoring

Quartz sealable cuphors can be used for ultraviolet and visible light analysis, a wide range of wavelengths, can be as small as 210nm, suitable for nucleic acids, proteins and other biological macromolecules analysis, as well as other experiments requiring high-precision spectral analysis.

Size Chart of  Sealable Quartz Cuvettes

We are committed to delivering prime sealable quartz cuvettes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.



Drawing and specification requirements shall be provided if customized design request.



Send Requirements for Custom Design



Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.

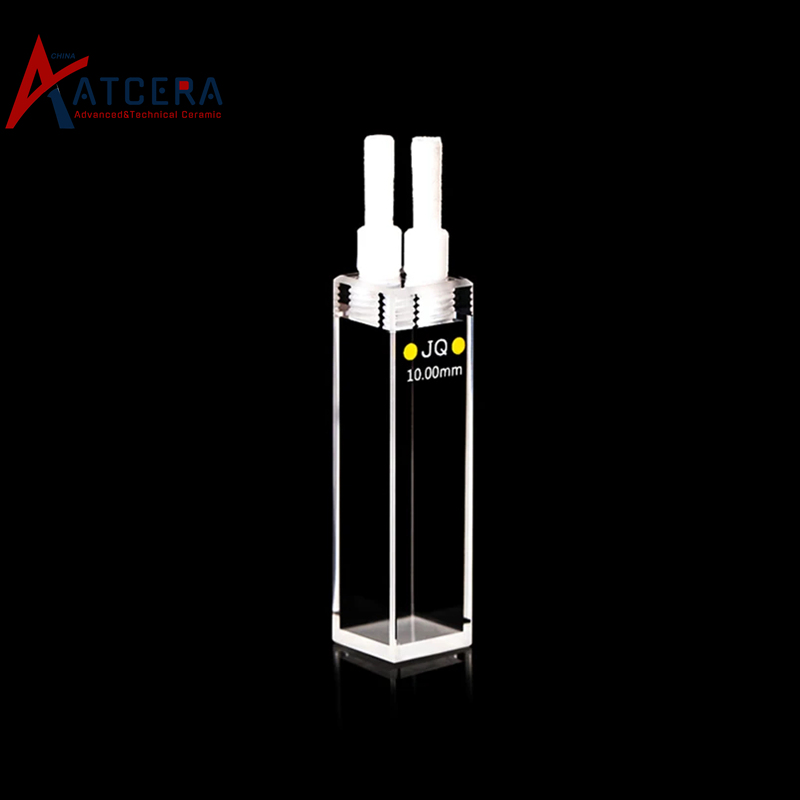

AT-BSM-5001 3.5ml Quartz fluorometer flow cuvette（10mm） 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm 600℃/1200℃





Item no. Description Capacity Path Length LxWxH Wavelength Range

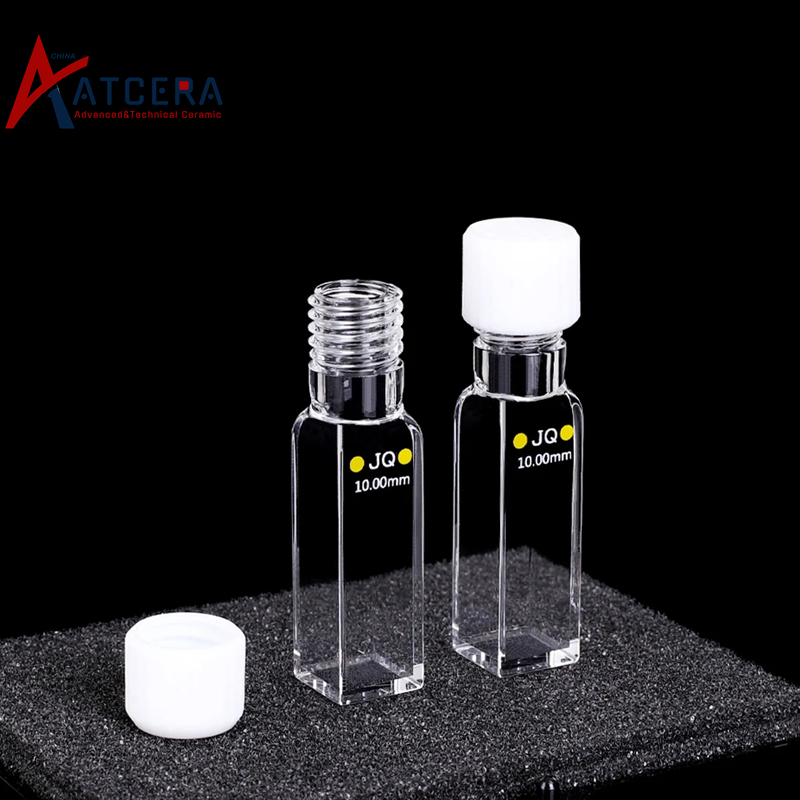

AT-BSM-5002 1pcs Quartz fluorescence cuvette cell with screw cap(10mm) for lab 3.5ml 10mm 12.5x12.5x60mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5003 1pcs Quartz cuvette cell with screw cap(10mm) 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5004 1pcs Standard quartz fluorescence cuvette cell with stopper(10mm) corrosion resisting without glue 3.5ml 10mm
(4 polished sides)		 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5005 1PCS 10mm quartz closed fluorescent cuvette airtight 1cm paired UV quartz band plug 3.5ml 10mm
(4 polished sides)		 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5006 1PCS 10mm quartz closed cuvette airtight 1cm paired UV quartz band plug two pass light 3.5ml 10mm
(2 polished sides)		 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5007 Quartz cell with stopper(10mm)/3.5ml 3.5ml 10mm 12.5x12.5x45 mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5008 Quartz cell with stopper(10mm)/Trace colorimetric dish/350ul 350ul 10mm 12.5x12.5x45 mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5009 Quartz cell with stopper(10mm)/700ul/slit 2mm/fluorescence 700ul 10mm 12.5x12.5x45 mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5010 Quartz cuvette cell with screw cap(10/32mm)/11ml/six way light 11ml 10/30mm
(6 polished sides)		 12.5x32.5x45mm /





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5011 Quartz cuvette cell with screw cap(10mm)/Four way light/700ul/Slit 2mm 700ul 10mm
(4 polished sides)
slit 2mm		 12.5x12.5x52mm /





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5012 Quartz spiral cuvette/10mm/spiral cell/ Four way light 3.5ml 10mm 12.5*12.5*60mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5012-1 Quartz fluorescence cuvette cell with screw cap/ Five way light 3.5ml 10mm 12.5*12.5*60mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5013 Quartz micro fluorescent cuvette/spiral groove/UV seal/four-way light 350ul-1.75ml 10mm 12.5*12.5*53mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5014 Quartz cuvette cell with screw cap(10mm)/350ul/400ul/600ul/Slit 1/2/3mm 350ul/400ul/600ul 10mm
(slit 1/2/3mm)		 12.5x12.5x45mm /





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5015 Quartz cell with screw cap(20mm)/Quartz screw bottle/17ml 17ml 20mm 24*24*62mm /





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5016 Quartz trace fluorescence cell with stopper(10mm)/1.05ml/ Slit 3mm 1.05ml 20mm 12.5x12.5x45 mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5017 1PCS 350ul Quartz fluorescence cuvette cell with PTFE stopper(1mm) 350ul 1mm 12.5x3.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5018 Quartz closed cuvette airtight/25mm/8.8ml/two pass light 8.8ml 25mm 12.5*27.5*45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5019 1PCS 700ul Quartz fluorescence cuvette cell with PTFE stopper(2mm) 700ul 2mm 12.5x4.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5019-1 Quartz fluorescence closed cuvette cell 1050ul 3mm 12.5x5.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5020 350ul-1750ul quartz fluorescent closed colorimetric dish/micro four-way light/ultraviolet acid and alkali resistance 350ul-1750ul 10mm
slit 1/2/3/4/5mm		 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5020-1 350ul-1750ul glass micron cuvette with stopper 350ul-1750ul 10mm 12.5x12.5x45mm /





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5021 Quartz fluorescence cuvette cell with screw cap(10mm) 3.5ml 10mm 12.5x12.5x58mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5022 350ul Quartz Sealed Cuvette Cell （Path Length 1mm） 350ul 1mm 26x20x5mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5023 50mm Quartz sealed cuvette cell （17.5ml） 17.5ml 50mm 12.5x52.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5024 1.75ml Quartz Fluorescent Micro sealed cuvette cell 1750ul 5mm/10mm 12.5x12.5x45mm /





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5025 Quartz fluorescence cuvette cell with screw cap(10mm) for lab/3.5ml 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5026 1PCS 5mm quartz closed fluorescent cuvette airtight paired UV quartz band plug 1.75ml 5mm
(4 polished sides)		 7.5x12.5x55mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5027 Quartz cuvette cell with screw cap(3mm)/1.05ml/Two-way light 1050ul 3mm
(2 light ways)		 12.5x5.5x53mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5028 Quartz cuvette cell with PTFE stopper(700ul) 700ul 2mm 12.5x4.5x45 mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5029 Micro quartz fluorescence cuvette cell with stopper(700ul) 0.7ml 10mm/2mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5029-1 Micro quartz cuvette cell closed with stopper(350ul) 350ul 10mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5030 5mm quartz thread colorimetric dish/UV spiral spiral spiral quartz bottle 1.75ml 5mm 12.5*7.5*55mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5031 Quartz cell with screw cap(5mm) 1.75ml 5mm 12.5*7.5*55mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5031-1 Quartz cell with screw cap(1mm) 0.35ml 1mm 12.5*3.5*55mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5031-2 Micro quartz fluorescence cuvette cell(10mm) 350ul-1.75ml 10mm
slit 1/2/3/4/5mm		 12.5*12..5*53mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5032 Quartz fluorescence cell with stopper /Tape notch(10mm)/3.5ml 350ul 10mm 12.5x12.5x45 mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5033 1PCS 10mm quartz closed cuvette airtight 1cm paired UV quartz band plug two pass light 3.5ml 10mm
(2 polished sides)		 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5034 Quartz closed ultramicro cuvette colorimeter/two-pass light/acid, alkali and organic resistance 350ul-1.75ml 10mm
(2 polished sides)		 12.5*12.5*45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5035 Quartz sealed flow cell cuvette 1.3ml 10mm 12.5x12.5x22mm /





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5036 Quartz cuvette cell with screw cap(10mm)/Four way light/1.75ml/Slit 5mm 1.75ml 10mm
(4 polished sides)
slit 5mm		 12.5x12.5x52mm /





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5037 Quartz thread trace colorimetric dish/350ul-1.75ml/Two way light/Fully fution technology 350ul/700ul/1.05ml/1.4ml/1.75ml 10mm 12.5*12.5*53mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5038 Quartz sealed fluorescent cuvette with double channel 3.5ml 10mm 12.5*12.5*62mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5039 Infrared quartz fluorescent closed cuvette with thread cap 3.5ml 10mm 12.5*12.5*57mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-5040 Quartz cuvette with thread cap 110ul 1mm 12.5*3.5*26mm 200nm-2500nm





Technical Data of Fused Quartz Materials

Density (g/cm3) 2.2
Flexture Strength (MPa) 48
Elastic Modulus (GPa) 72
Poisson's Ratio 0.14-0.17
Compressive strength (MPa) 1100
Bending strength (MPa) 67
Moh's hardness 5.5~6.5
Maximum working temperature (long-term, ℃) 1100
Maximum working temperature (short-term, ℃) 1350
Thermal conductivity (W/m*K) 1.4
Thermal expansion coefficient (/℃) 5.5*10-7
Specific resistance (Ω*cm) 7*107



*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.








Quartz Cuvettes with Airtight Seal for Accurate Spectral Analysis

Valuable Information



Sealable Quartz Cuvettes Packing

Sealable Quartz Packing



Sealable quartz cuvettes are carefully packaged in appropriate containers to avoid any potential damage.























Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
Related Blog
Silicon Carbide Tubes: 15-Yr Corrosion Solution for Chemicals
Revolutionizing Chemical Processing: How Silicon Carbide Tubes Solve $20k/Day Downtime Challenges   The chemical industry loses $5.3 billion annually to corrosion-related equipment failures (NACE International, 2022). At the heart of this crisis lies inadequate material performance in extreme environments. This article reveals why silicon carbide (SiC) tubes are replacing traditiona...
Read More
The Role of Zirconia Rods in Modern Industrial Applications
  In today’s fast-paced industrial world, the demand for materials that combine strength, durability, and versatility is higher than ever. From high-performance equipment to critical components used in challenging environments, industries across the globe rely on advanced materials to meet their complex needs. One such material that has gained significant traction in modern manufacturin...
Read More
Why Quartz Glass Cuvettes Are Essential for Accurate Spectroscopy Measurements
In scientific research, spectroscopy plays a vital role in analyzing the properties of various substances by examining how light interacts with them. Whether it's determining the concentration of a solution or identifying chemical compounds, the accuracy of spectroscopy measurements is crucial. One of the most important factors in ensuring precise spectroscopic results is the choice of cuvette. Wh...
Read More
Applications of Alumina Substrates in the Automotive Industry
In recent years, the automotive industry has seen significant technological advancements, driven by the need for higher efficiency, sustainability, and performance. One of the materials playing a crucial role in this evolution is alumina. This ceramic material, known for its excellent thermal, mechanical, and electrical properties, has become indispensable in a range of automotive applications. Fr...
Read More
Why Silicon Nitride Tubes Are the Future of High-Temperature Applications
In the world of high-performance materials, the demand for solutions that can withstand extreme conditions is ever-growing. From aerospace and automotive to energy and electronics, industries are increasingly relying on materials that can handle not only high stress and pressure but also high temperatures. One such material that has emerged as a game-changer in these applications is silicon nitrid...
Read More
How Alumina Mechanical Parts Help Achieve Precision in High-Stress Environments
In industries that rely on high-performance machinery and equipment, precision and durability are critical. From aerospace to medical devices and semiconductor manufacturing, components must withstand extreme conditions while maintaining accuracy and reliability. One material that excels in these demanding environments is alumina, a form of aluminum oxide (Al2O3) used in the production of mechanic...
Read More
Comparing Silicon Carbide Crucibles to Other Crucible Materials: Which is Best for Your Process?
Crucibles are essential tools used in various industrial processes, particularly in metallurgy, casting, and chemical manufacturing. They provide a vessel for melting or holding high-temperature materials, and selecting the right crucible material is crucial to achieving optimal results. Among the wide variety of crucible materials available, Silicon Carbide (SiC) crucibles are often regarded as o...
Read More
Why is High-Purity Quartz Crucible Vital for Semiconductor Manufacturing and ATCERA's Innovation?
High-Purity Quartz Crucible: Essential for Semiconductor Manufacturing by ATCERA   With the rapid development of science and technology, the semiconductor industry, as the cornerstone of modern information technology, is facing unprecedented challenges and opportunities. In the semiconductor manufacturing process, quartz glass crucible with its unique thermal stability and low reactivity, has...
Read More
Why is High-Purity Quartz Crucible Essential for Semiconductor & Solar PV Manufacturing?
High-Purity Quartz Crucible: Essential for Semiconductor & Solar PV Fields   The purity of quartz crucible has a direct effect on the quality of its internal processing materials. In the high-tech industry, especially in the semiconductor and solar photovoltaic fields, the purity of the quartz crucible is directly related to the performance and reliability of the final product. As a brand...
Read More
How is High Purity Quartz Crucible Prepared and Why is it Crucial for High-Tech Industries?
High Purity Quartz Crucible: Preparation & Applications by ATCERA   In the field of modern high-tech material preparation, high purity quartz (HPQ) crucible plays a crucial role. These crucibles are made of natural quartz minerals, mainly silica (SiO2), and are deeply purified to achieve the desired purity level. With its excellent technical strength, ATCERA brand focuses on the productio...
Read More

Related Products

Quartz Cuvette for Absorption and Fluorescence Spectra
UV Quartz Cuvettes & Quartz Spectrophotometer Cells for Superior Transmittance
Optical measurement cuvettes
High Transmittance Glass Cuvettes for Laboratory Use
Infrared Quartz Cuvette
IR Quartz Cuvette for Professional Spectral Analysis
Sub-Micro Quartz Cuvette
Sub-Micro Quartz Cuvette for Precision Micro-Volume Spectrophotometry
Quartz fluorescence cuvette
4-Sided Transparent Quartz Fluorescence Cuvettes for Fluorescence Analysis
Quartz cuvette with lid
Quartz Cuvette Cells with Lid JGS1 for Spectrophotometer Labs 1mm Optical Path
JGS1 quartz cuvette cells
Premium Quartz Cuvette Cells JGS1 No Lid for Spectrophotometer Labs
Quartz cuvette cells with lid
Quartz Cuvette Cells with Lid 14ml JGS1for Spectrophotometer Labs

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.

All FAQs

Send Your inquiry

Subject:
Quartz Cuvettes with Airtight Seal for Accurate Spectral Analysis
Upload
* File ONLY PDF/JPG./PNG. Available.
Submit Now
About My Brand
Products
Resources
Hot Tags

Copyright © 2025 Custom Advanced Ceramic Solutions | HUNAN ATCERA CO.,LTD All Rights Reserved.

XML | Privacy Policy IPv6

Contact With Us
Contact With Us
Simply fill out the form below as best you can. And don't sweat the details.
Submit
Looking for Video?
Contact Us #
19311583352

Office Hours

  • Monday to Friday: 9:00 AM - 12:00 PM, 2:00 PM - 5:30 PM

Please note that our office hours are based on Beijing Time, which is eight hours ahead of Greenwich Mean Time (GMT). We appreciate your understanding and cooperation in scheduling your inquiries and meetings accordingly. For any urgent matters or queries outside our regular hours, feel free to contact us via email, and we will get back to you as soon as possible. Thank you for your business, and we look forward to serving you.

Home

Products

whatsApp

contact
