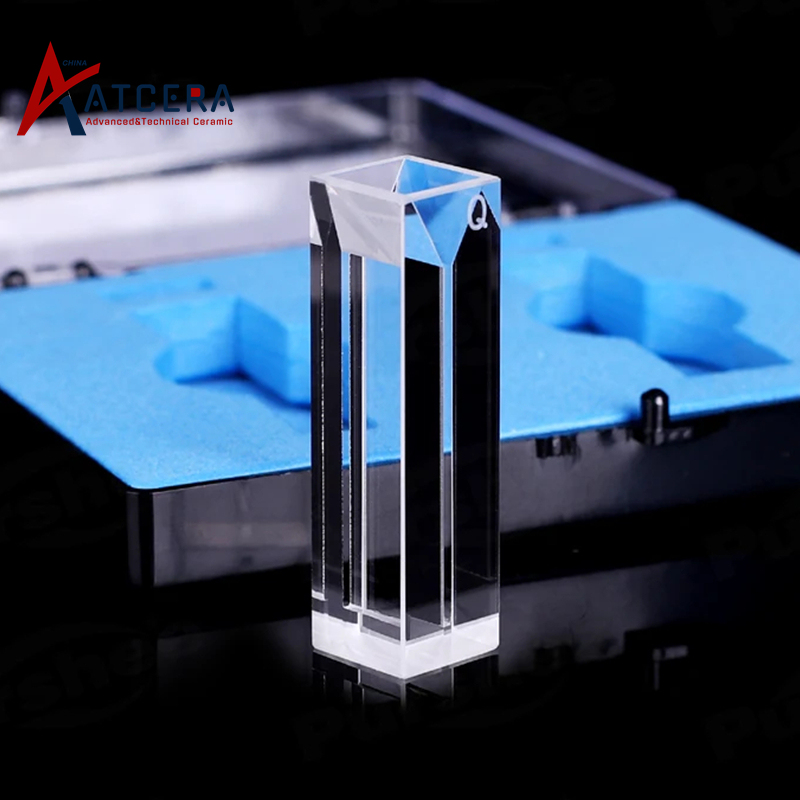

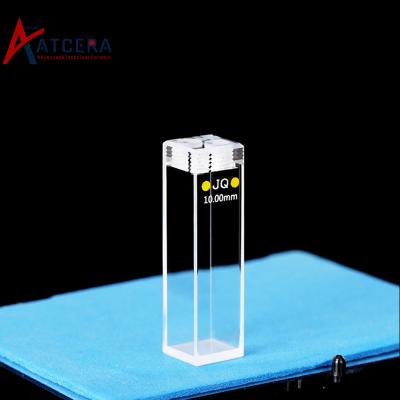

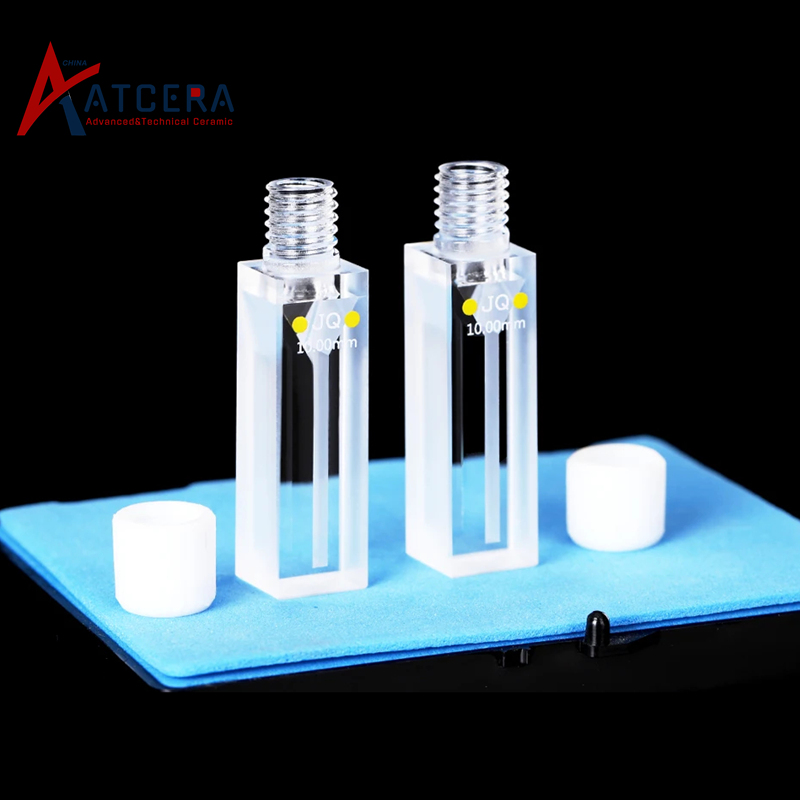

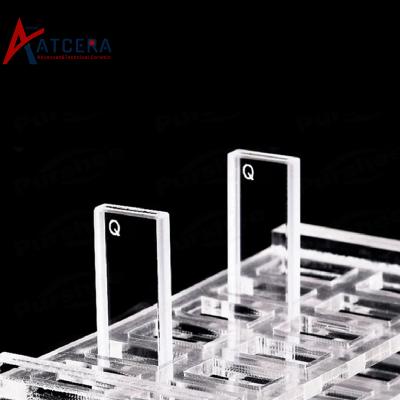

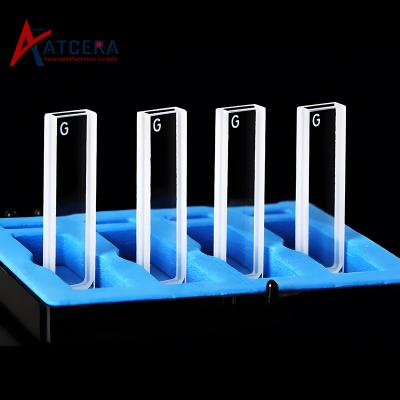

Sub-Micro Quartz Cuvette
Sub-Micro Quartz Cuvette
Sub-Micro Quartz Cuvette
Sub-Micro Quartz Cuvette
Sub-Micro Quartz Cuvette

Sub-Micro Quartz Cuvette for Precision Micro-Volume Spectrophotometry

The Sub-Micro Quartz Cuvette is a high-performance, ultra-small capacity glass cuvette that is widely used in precision optical measurement and analysis. Its high transparency makes it suitable for a variety of laboratory applications, especially in spectral analysis and chemical reaction monitoring.

  • Brand:

    ATCERA

  • Item NO.:

    AT-BSM-4001

  • Materials

    Quartz Glass

  • Shapes

    Cuvette

  • Applications

    Metallurgy Industry , Biology and Medicine , Laboratory Equipment and Instruments
Inquire Now
Sub-Micro Quartz Cuvette

Properties of Sub-Micro Quartz Cuvettes



1. High precision measurement

The Sub-Micro Quartz Cuvette offers extremely high measurement accuracy and is suitable for the analysis of small samples to ensure data accuracy.



2. High quality quartz

The use of high-quality quartz material, with excellent light transmission and chemical stability, can withstand the erosion of a variety of chemical reagents, extend the service life.



3. Widely applicable

Suitable for a variety of laboratory equipment such as fluorescence photometers and spectrophotometers, compatible with most standard size sample holders.



Precision Spectrophotometry Cuvette

Applications of  Sub-Micro Cuvette Cells





1. Microfluorescence analysis

Sub-Micro Quartz Cuvette is especially suitable for fluorescence analysis of small samples, and can accurately measure the fluorescence intensity of samples at low concentrations, providing reliable data for scientific research.



2. Spectral measurement

It is suitable for a variety of spectral measurements, including UV-VIS and infrared spectroscopy, to help researchers analyze the chemical composition and structure of samples.



3. Drug research and development

In the field of drug development, Sub-Micro Quartz Cuvette can be used for quantitative analysis of drug molecules, supporting the process of new drug discovery and drug optimization.



4. Environmental monitoring

It is suitable for water quality analysis and air pollutant detection in environmental monitoring, providing accurate data support to help evaluate environmental quality.

Size Chart of  Sub-Micro Quartz Cuvettes

We are committed to delivering prime micron volume quartz cuvettes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.



Drawing and specification requirements shall be provided if customized design request.



Send Requirements for Custom Design



Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4001 1pcs Micro quartz fluorescence cuvette with lid(350ul) 350ul 10mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4002 1pcs Micro quartz fluorescence cuvette with lid(700ul) 700ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4002-1 Micro quartz fluorescence cuvette (300ul) 300ul 4mm/10mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.

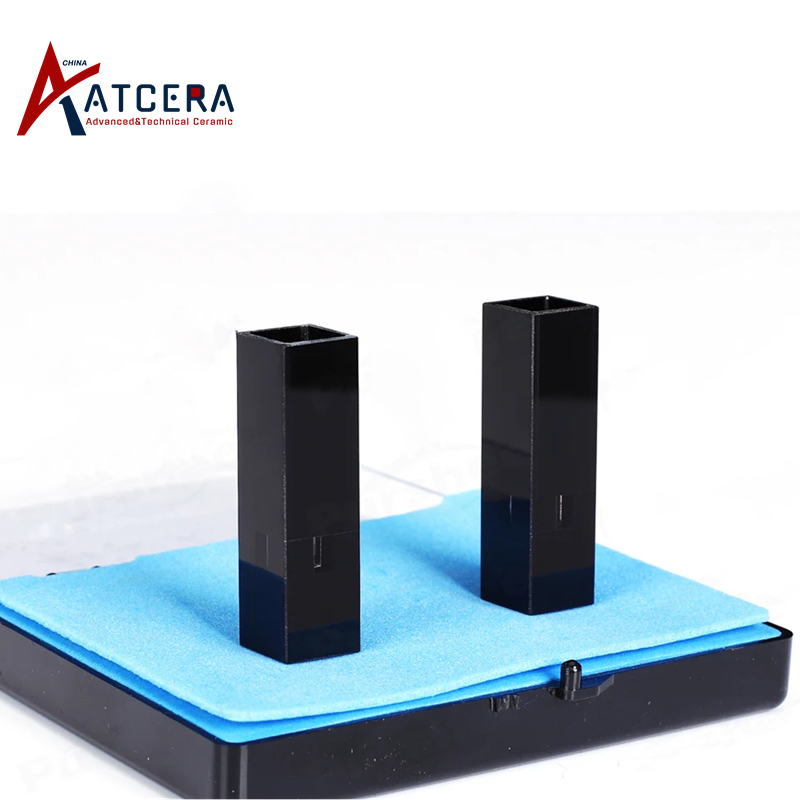

AT-BSM-4003 2pcs 700ul Micro cell with black walls and lid/ 2mm Inside Width 0.7ml 10mm 12.5x12.5x45mm 200nm-2500nm（Quartz）
350nm-2000nm(Glass）
Slit 2mm		 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4003-1 Micro cell with black walls 350ul 10mm 12.5x12.5x45mm 200nm-2500nm（Quartz）
350nm-2000nm(Glass）
Slit 1mm		 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4003-2 Micro cell with black walls 1400ul 10mm 12.5x12.5x45mm 200nm-2500nm（Quartz）
350nm-2000nm(Glass）
Slit 4mm		 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4003-3 Micro cell with black walls 1750ul 10mm 12.5x12.5x45mm 200nm-2500nm（Quartz）
350nm-2000nm(Glass）
Slit 5mm		 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4003-4 Micro cell with black walls 1050ul 10mm 12.5x12.5x45mm 200nm-2500nm（Quartz）
350nm-2000nm(Glass）
Slit 4mm		 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4004 Quartz cuvette cell with screw cap(10mm)/Two way light/700ul/Slit 2mm 700ul 10mm 12.5x12.5x50mm 200nm-2500nm
Slit 2mm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4005 Quartz cuvette cell with screw cap(10mm)/350ul/400ul/600ul/Slit 1/2/3mm 350ul/400ul/600ul 10mm 12.5x12.5x45mm 200nm-2500nm
Slit 1/2/3mm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4006 Quartz trace fluorescence cell with stopper(10mm)/1.05ml/ Slit 3mm 1.05ml 10mm 12.5x12.5x45 mm 200nm-2500nm
Slit 3mm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4007 1pc Quartz micro cuvette (10mm)700ul 700ul 10mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4007-1 Quartz micro cuvette fluorescence cell 700ul 10mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4008 20ul Quartz Fluorescent Micro Cuvette Cell (path length 10mm) 20ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4009 Micro quartz fluorescence cuvette with lid(700ul) 700ul 10mm 12.5x12.5x45 mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4010 Sub-Micro fluorescence quartz cell with black walls and lid(45ul) 45ul 3x3mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4010-1 Micro quartz cuvette 50ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4011 800ul Customized Quartz micro cuvette cell 800ul 10mm 12.5x12.5x35mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4012 Quartz trace cell with stopper(10mm)/1.4ml/ Slit 4mm 1400ul 10mm 12.5x12.5x45 mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.

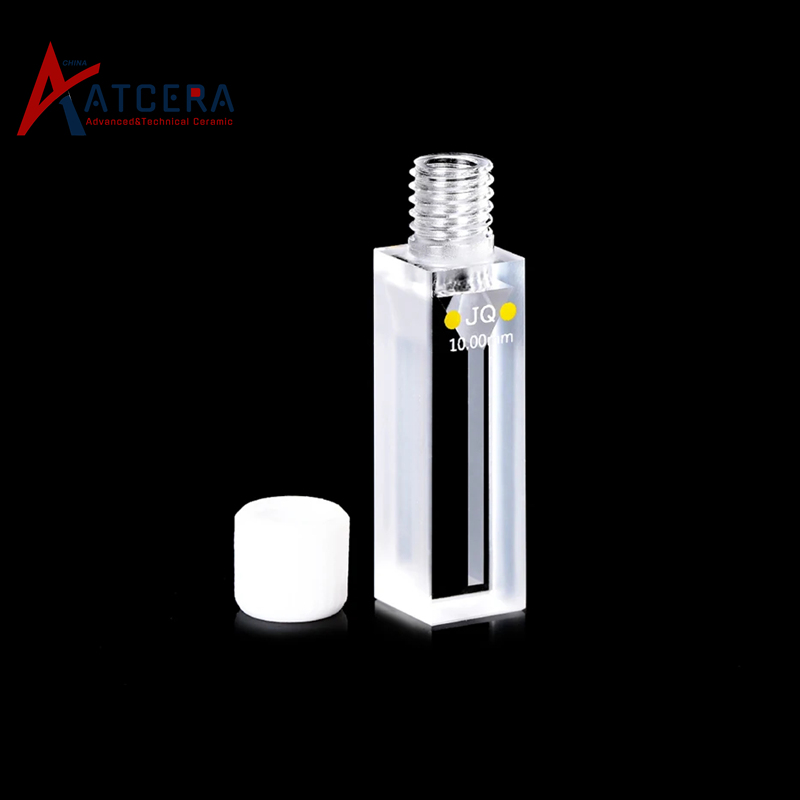

AT-BSM-4013 Micro quartz Screw Sealed Cuvette with lid (350ul-1750ul) 350ul/700ul/1050ul/1400ul/1750ul 10mm 12.5x12.5x53mm 200nm-2500nm 1200℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4014 Micro quartz fluorescence cuvette with lid(560ul) 560ul 4mm 12.5x12.5x45mm 200nm-2500nm 600℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4015 200ul Quartz micro fluorescence cuvette cell Central Height 15mm 200ul 4/10mm 12.5x12.5x45mm 200nm-2500nm 600℃





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4015-1 100ul Quartz micro fluorescence cuvette cell Central Height 15mm 100ul 2mm/10mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4016 200ul Quartz Micro Fluorescence Cuvette Cell Central Height 8.5mm 200ul 4/10mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4017 Sub-Micro fluorescence quartz cell with black walls and lid(50ul) for lab 50ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4018 200ul Quartz micro fluorescence cuvette cell Central Height15mm 200ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4019 Sub-Micro quartz fluorescence cuvette with lid(100ul) 100ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4020 Micro quartz fluorescence cuvette no lid 140ul 140ul 4mm/1mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4021 20ul Quartz micro cuvette cell （path length 10mm） 20ul-200ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4022 Sub-Micro quartz cell with black walls and lid(50ul) 50ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4023 Sub-Micro quartz cell with black walls and lid(100ul) 100ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4024 Sub-Micro quartz cell with black walls and lid(300ul) 300ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4025 Sub-Micro quartz cell with black walls and lid(200ul) 200ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4026 1pcs Micro Quartz Fluorescence Cuvette With Lid(1400ul) 1400ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4026-1 Micro Quartz Fluorescence Cuvette 1.4ml 4mm/10mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4027 Micro cell with frosted walls and lid(350ul) 350ul 10mm 12.5x12.5x45mm 200nm-2500nm 600℃







Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4028 Sub-Micro quartz cell with black walls and lid(50ul) for lab 50ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4029 1pcs Micro quartz fluorescence cuvette with lid(1050ul) 1050ul 10mm 12.5x12.5x45mm 200nm-2500nm 600℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4030 Micro cell with frosted walls and lid(1.4ml) 1.4ml 10mm 12.5x12.5x45mm 200nm-2500nm 600℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4031 Micro cell with frosted walls and lid(1.05ml) 1.05ml 10mm 12.5x12.5x45mm 200nm-2500nm 600℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4031-1 Micro cell with frosted walls and lid(1.75ml) 1.75ml 10mm 12.5x12.5x45mm 200nm-2500nm 600℃





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4032 Quartz cell with stopper(10mm)/350ul/slit 1mm/fluorescence 350ul 10mm 12.5x12.5x45 mm /





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4033 Sub-Micro fluorescence quartz cell with black walls and lid(50ul) 50ul 10mm 12.5x12.5x45 mm /





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4033-1 Micro quartz cell with black walls 2100ul 30mm 12.5*32.5*45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4034 Micro cell with frosted walls and lid(700ul) 700ul 10mm 12.5x12.5x45mm 200nm-2500nm 600℃





Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-4035 1pcs Micro quartz fluorescence cuvette with lid(1750ul) 1750ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4036 Micro quartz fluorescence cuvette(4 polished sides) 0.35ml-1.75ml 10mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4037 Micro quartz fluorescence cuvette(2 polished sides) 0.35ml-1.75ml 10mm 12.5x12.5x45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4038 Micro quartz fluorescence cuvette 1.75ml 5mm/10mm 12.5x12.5x75mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4039 Micro quartz fluorescence cuvette 500ul 5mm/10mm 12.5*7.5*45mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4040 Micro quartz fluorescence cuvette
customized		 106ul 10mm 12.5x12.5x8mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-4041 Micro quartz fluorescence cuvette 2 polished sides 50ul/100ul 50ul/100ul 10mm 12.5*12.5*45
slit 2mm		 200nm-2500nm





Technical Data of Fused Quartz Materials

Density (g/cm3) 2.2
Flexture Strength (MPa) 48
Elastic Modulus (GPa) 72
Poisson's Ratio 0.14-0.17
Compressive strength (MPa) 1100
Bending strength (MPa) 67
Moh's hardness 5.5~6.5
Maximum working temperature (long-term, ℃) 1100
Maximum working temperature (short-term, ℃) 1350
Thermal conductivity (W/m*K) 1.4
Thermal expansion coefficient (/℃) 5.5*10-7
Specific resistance (Ω*cm) 7*107



*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.








Sub-Micro Quartz Cuvette for Precision Micro-Volume Spectrophotometry

Valuable Information



Quartz Micro-Volume Cuvettes Packing

Sub-Micro Quartz Packing



Sub-Micro quartz cuvettes are carefully packaged in appropriate containers to avoid any potential damage.























Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
Related Blog
Silicon Carbide Tubes: 15-Yr Corrosion Solution for Chemicals
Revolutionizing Chemical Processing: How Silicon Carbide Tubes Solve $20k/Day Downtime Challenges   The chemical industry loses $5.3 billion annually to corrosion-related equipment failures (NACE International, 2022). At the heart of this crisis lies inadequate material performance in extreme environments. This article reveals why silicon carbide (SiC) tubes are replacing traditiona...
Read More
The Role of Zirconia Rods in Modern Industrial Applications
  In today’s fast-paced industrial world, the demand for materials that combine strength, durability, and versatility is higher than ever. From high-performance equipment to critical components used in challenging environments, industries across the globe rely on advanced materials to meet their complex needs. One such material that has gained significant traction in modern manufacturin...
Read More
Why Quartz Glass Cuvettes Are Essential for Accurate Spectroscopy Measurements
In scientific research, spectroscopy plays a vital role in analyzing the properties of various substances by examining how light interacts with them. Whether it's determining the concentration of a solution or identifying chemical compounds, the accuracy of spectroscopy measurements is crucial. One of the most important factors in ensuring precise spectroscopic results is the choice of cuvette. Wh...
Read More
Applications of Alumina Substrates in the Automotive Industry
In recent years, the automotive industry has seen significant technological advancements, driven by the need for higher efficiency, sustainability, and performance. One of the materials playing a crucial role in this evolution is alumina. This ceramic material, known for its excellent thermal, mechanical, and electrical properties, has become indispensable in a range of automotive applications. Fr...
Read More
Why Silicon Nitride Tubes Are the Future of High-Temperature Applications
In the world of high-performance materials, the demand for solutions that can withstand extreme conditions is ever-growing. From aerospace and automotive to energy and electronics, industries are increasingly relying on materials that can handle not only high stress and pressure but also high temperatures. One such material that has emerged as a game-changer in these applications is silicon nitrid...
Read More
How Alumina Mechanical Parts Help Achieve Precision in High-Stress Environments
In industries that rely on high-performance machinery and equipment, precision and durability are critical. From aerospace to medical devices and semiconductor manufacturing, components must withstand extreme conditions while maintaining accuracy and reliability. One material that excels in these demanding environments is alumina, a form of aluminum oxide (Al2O3) used in the production of mechanic...
Read More
Comparing Silicon Carbide Crucibles to Other Crucible Materials: Which is Best for Your Process?
Crucibles are essential tools used in various industrial processes, particularly in metallurgy, casting, and chemical manufacturing. They provide a vessel for melting or holding high-temperature materials, and selecting the right crucible material is crucial to achieving optimal results. Among the wide variety of crucible materials available, Silicon Carbide (SiC) crucibles are often regarded as o...
Read More
Why is High-Purity Quartz Crucible Vital for Semiconductor Manufacturing and ATCERA's Innovation?
High-Purity Quartz Crucible: Essential for Semiconductor Manufacturing by ATCERA   With the rapid development of science and technology, the semiconductor industry, as the cornerstone of modern information technology, is facing unprecedented challenges and opportunities. In the semiconductor manufacturing process, quartz glass crucible with its unique thermal stability and low reactivity, has...
Read More
Why is High-Purity Quartz Crucible Essential for Semiconductor & Solar PV Manufacturing?
High-Purity Quartz Crucible: Essential for Semiconductor & Solar PV Fields   The purity of quartz crucible has a direct effect on the quality of its internal processing materials. In the high-tech industry, especially in the semiconductor and solar photovoltaic fields, the purity of the quartz crucible is directly related to the performance and reliability of the final product. As a brand...
Read More
How is High Purity Quartz Crucible Prepared and Why is it Crucial for High-Tech Industries?
High Purity Quartz Crucible: Preparation & Applications by ATCERA   In the field of modern high-tech material preparation, high purity quartz (HPQ) crucible plays a crucial role. These crucibles are made of natural quartz minerals, mainly silica (SiO2), and are deeply purified to achieve the desired purity level. With its excellent technical strength, ATCERA brand focuses on the productio...
Read More

Related Products

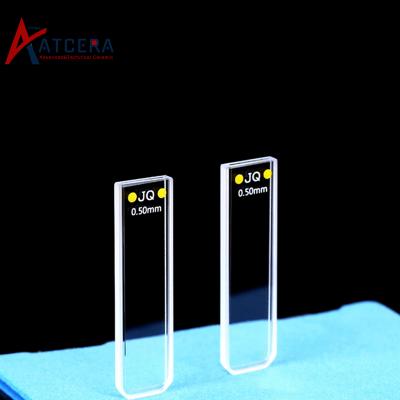

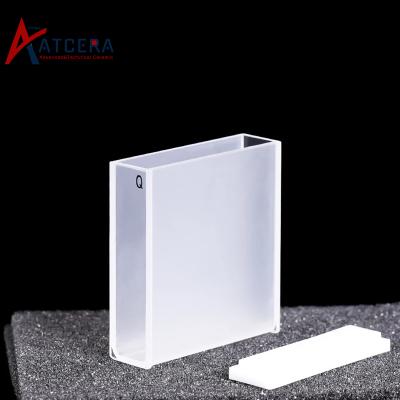

Quartz Cuvette for Absorption and Fluorescence Spectra
UV Quartz Cuvettes & Quartz Spectrophotometer Cells for Superior Transmittance
Optical measurement cuvettes
High Transmittance Glass Cuvettes for Laboratory Use
Infrared Quartz Cuvette
IR Quartz Cuvette for Professional Spectral Analysis

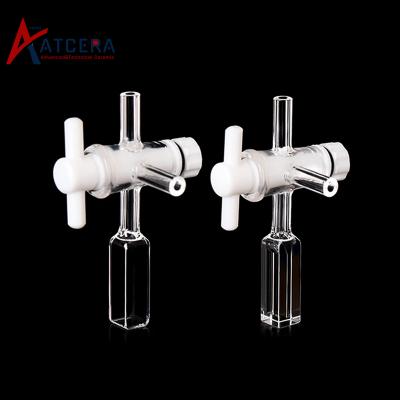

Quartz Sealable Cuvettes
Quartz Cuvettes with Airtight Seal for Accurate Spectral Analysis

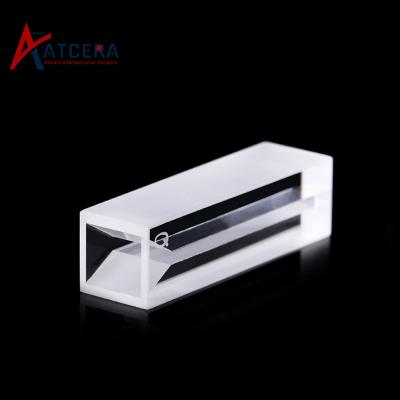

Quartz fluorescence cuvette
4-Sided Transparent Quartz Fluorescence Cuvettes for Fluorescence Analysis

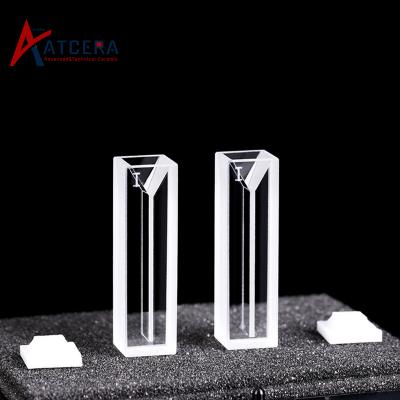

Quartz cuvette with lid
Quartz Cuvette Cells with Lid JGS1 for Spectrophotometer Labs 1mm Optical Path

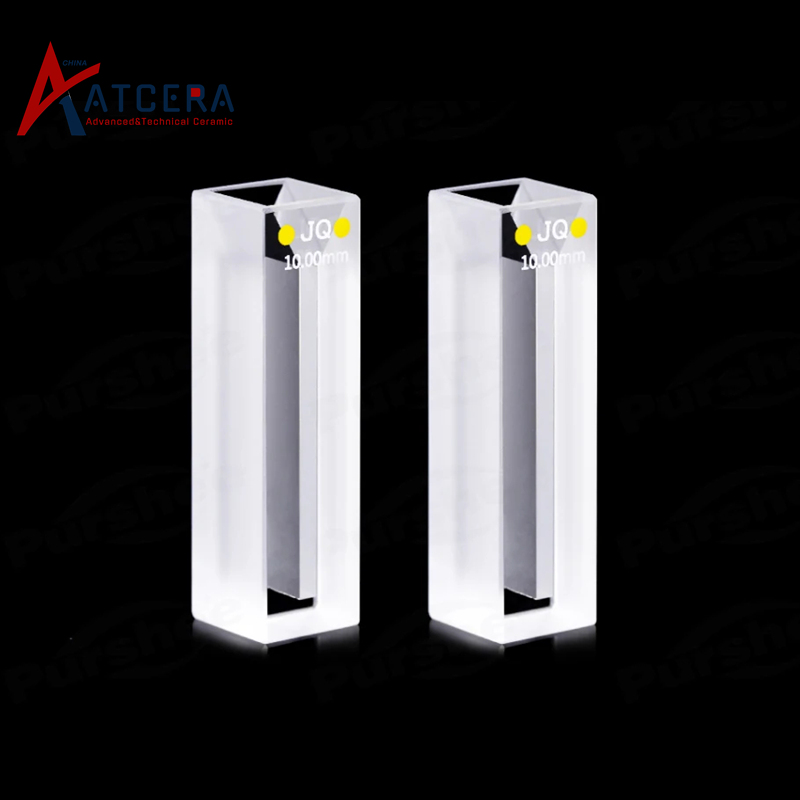

JGS1 quartz cuvette cells
Premium Quartz Cuvette Cells JGS1 No Lid for Spectrophotometer Labs
Quartz cuvette cells with lid
Quartz Cuvette Cells with Lid 14ml JGS1for Spectrophotometer Labs

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.

All FAQs

Send Your inquiry

Subject:
Sub-Micro Quartz Cuvette for Precision Micro-Volume Spectrophotometry
Upload
* File ONLY PDF/JPG./PNG. Available.
Submit Now
About My Brand
Products
Resources
Hot Tags

Copyright © 2025 Custom Advanced Ceramic Solutions | HUNAN ATCERA CO.,LTD All Rights Reserved.

XML | Privacy Policy IPv6

Contact With Us
Contact With Us
Simply fill out the form below as best you can. And don't sweat the details.
Submit
Looking for Video?
Contact Us #
19311583352

Office Hours

  • Monday to Friday: 9:00 AM - 12:00 PM, 2:00 PM - 5:30 PM

Please note that our office hours are based on Beijing Time, which is eight hours ahead of Greenwich Mean Time (GMT). We appreciate your understanding and cooperation in scheduling your inquiries and meetings accordingly. For any urgent matters or queries outside our regular hours, feel free to contact us via email, and we will get back to you as soon as possible. Thank you for your business, and we look forward to serving you.

Home

Products

whatsApp

contact
