Flow-Through Quartz Cuvettes
Flow-Through Quartz Cuvettes
Flow-Through Quartz Cuvettes
Flow-Through Quartz Cuvettes
Flow-Through Quartz Cuvettes

Flow-Through Quartz Cuvettes for Precision Spectrophotometry

High performance flowing quartz cuvettes are high precision containers designed for spectral analysis and are suitable for a wide range of analytical instruments. Made of high quality quartz glass, these glasses offer excellent light transmission and chemical stability, ensuring the accuracy and reliability of the analytical results. Flow design facilitates sample flow, improves analytical efficiency, and is an indispensable laboratory tool in scientific research, medical treatment, environmental protection and other fields.

  • Brand:

    ATCERA

  • Item NO.:

    AT-BSM-8001

  • Materials

    Quartz Glass

  • Shapes

    Cuvette

  • Applications

    Metallurgy Industry , Biology and Medicine , Laboratory Equipment and Instruments
Inquire Now
Quartz Flow-Through Cuvettes

Properties of Flow-Through Quartz Cuvettes



1. Strong chemical stability

Quartz glass material can withstand the erosion of a variety of chemical media, including 6mol/L hydrochloric acid, sodium hydroxide, as well as anhydrous ethanol, carbon tetrachloride and benzene, to ensure the stability of long-term use.



2. High mechanical strength

The quartz cuphor has large mechanical strength, strong ability to adapt to temperature changes, very firm bonding part, and internal pressure can withstand several air pressures, which is suitable for various experimental environments.



3. Multiple design options

It provides two kinds of double-sided light and four-sided light, as well as a variety of types with plug, without plug, with cover and without cover to meet different experimental needs.



Quartz Cuvettes for Spectral Analysis

Applications of Quartz Cuvette CellsFlow-Through Quartz Cuvettes





1. Spectral analysis

High-performance mobile quartz cuphors are widely used in spectrophotometers, blood line protein analyzers, particle size analyzers and other spectral analysis instruments for quantitative and qualitative analysis of substances.



2. Scientific research field

It is suitable for chemical, metallurgy, medical, pharmaceutical, food, environmental protection and other scientific research fields, as well as testing and laboratory use in colleges and universities and scientific research institutions.



3. Ultraviolet region analysis

It is especially suitable for the determination of substances that have absorption in the ultraviolet region, such as fluorescence analysis, etc., to provide accurate and reliable analysis results.



4. Industrial inspection

In power plants, water plants, oil and other industries, used for composition analysis and quality control of various chemical substances to ensure product quality and production safety.

Size Chart of Flow-Through Quartz Cuvettes

We are committed to delivering high performance flowing quartz cuvettes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.



Drawing and specification requirements shall be provided if customized design request.



Send Requirements for Custom Design







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8001 3.5ml Quartz fluorescence flow cuvette with glass tube 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8002 Quartz flow cuvette with M6 threaded connectors for lab 200ul 10mm 12.5x12.5x35mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8003 32ul Quartz flow cuvette cell （10mm）Central Height 8.5mm 32ul 10mm 12.5x12.5x35mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8003-1 800ul Quartz flow cuvette cell 800ul 10mm 12.5x12.5x35mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8004 Quartz flow cuvette with glass tube(100ul) 100ul 10mm 12.5x12.5x45 mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8004-1 Quartz flow cuvette with glass tube(200ul) 200ul 6mm 15*8.5*30mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8005 ba88a flow quartz cell with steel tube 0.03ml for Mindray BA-88A Chemistry Analyzer Cuvettes 32ul 10mm 12.5x12.5x35mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8006 Quartz flow cuvette with M6 threaded connectors(200ul) 200ul 10mm 12.5x12.5x35mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8007 3.5ml Quartz Fluorescent Flow Cuvette Cell Threaded Pipe 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8008 2mm Quartz flow cuvette cell （700ul） 700ul 2mm(2 light way) 12.5x4.5x45mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8008-1 Quartz flow cuvette cell 350ul/700ul 1mm/2mm 12.5x3.5x35mm
12.5x4.5x35mm		 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8008-2 Quartz flow cuvette cell 35ul/70ul 10mm 45*12.5*81mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8009 Quartz microflow cell/spiral colorimetric dish/UV transparent 200ul-1ml 10mm 12.5*12.5*20mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8009-1 Quartz microflow cell/spiral colorimetric dish/UV transparent 2ml 10mm(2 light ways) 12.5*12.5*20mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8009-2 Quartz microflow cell/spiral colorimetric dish/UV transparent 2ml 10mm(4 light ways) 12.5*12.5*20mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8009-3 Quartz microflow cell/spiral colorimetric dish/UV transparent 200ul-1ml 10mm
slit 1-5mm		 12.5*12.5*20mm 200nm-2500nm







Item no. Description Windows Path Length LxWxH Wavelength Range Thermostability
AT-BSM-8010 Quartz counting cell(Dual channel) 2 0.2mm 75x25x4mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range Thermostability
AT-BSM-8011 Quartz fluorescence flow cuvette with M6 threaded connectors(450ul) 450ul 10mm 12.5x12.5x35mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8011-1 Quartz fluorescence flow cuvette with M6 threaded connectors(70ul) 70ul 10mm 12.5x12.5x35mm
Apertur: 3mm
Centre hight: 15mm		 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8012 0.6mm Quartz Fluorescent Flow cuvette Cell （14ul） 14ul 0.6mm 12x12x40mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8013 3.5ml Quartz flow cuvette with M6 threaded connectors 3.5ml 10mm 12.5x12.5x45 mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8014 1.5ml Quartz fluorescent flow cuvette cell （10mm） 1.5ml 10mm 12.5x12.5x25mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8014-1 Quartz fluorescent flow cuvette cell / 10mm 12*12*20mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8015 3.5ml Quartz flow cuvette with glass tube(Improved) 3.5ml 10mm 12.5x12.5x45 mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8016 Quartz Flow Cell cuvette /path length 10mm/27ml/Two way light 27ml 10mm 51.5x14x60mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8017 0.5mm path length Optical UV flow quartz cuvette cell with two tubes 1pcs 150ul 0.5mm 12.5x3x45mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8017-1 0.1mm path length  flow quartz cuvette cell with two tubes 1pcs 30ul 0.1mm 12.5*2.6*45mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8017-2 0.2mm path length  flow quartz cuvette cell with two tubes 1pcs 60ul 0.2mm 12.5*2.7*45mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8017-3 0.3mm path length  flow quartz cuvette cell with two tubes 1pcs 90ul 0.3mm 12.5*2.8*45mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8017-4 1mm path length  flow quartz cuvette cell with two tubes 1pcs 300ul 1mm 12.5*3.5*45mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8017-5 2mm path length  flow quartz cuvette cell with two tubes 1pcs 600ul 2mm 12.5*4.5*45mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8018 quartz flow cuvette(1mm) 860ul 1mm 25x4x45 mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8018-1 quartz flow cuvette(2mm) 1720ul 2mm 25x5x45 mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8019 1mm quartz flow cuvette for lab 1.2ml 1mm 25x5x66mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8020 0.2-10mm quartz flow cuvette A variety of styles good fluidity specifications complete 70ul-3.5ml 0.2-10mm 10x3.5x45mm
12.5x3.5x40mm
12.5x3.5x36mm
12.5x3.5x45mm
12.5x3x40mm
12.5x4.5x40mm
12.5x5.5x40mm
12.5x7.5x40mm
12.5x12.5x25mm
12.5x12.5x30mm		 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8021 Quartz fluorescent flow colorimetric dish/Four-way light/ultraviolet (01)2ml
(02) 2.5ml
(03)2ml
(04)2ml
(05)10mm
(06)10mm
(07)slit 5mm		 10mm 12.5*12.5*20mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8021-1 Quartz fluorescent flow colorimetric dish/Four-way light/ultraviolet 2.5ml 10mm 12.5*12.5*25mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8022 Quartz flow cuvette A variety of styles good fluidity specifications complete 70ul-3.5ml 0.2-10mm (03)12.5x12.5x45mm
(04)13x13x45mm
(05)25.4x25.4x13mm
(06)40x10x10mm
(07)40x20x8mm
(08)42.5x12.5x45mm
(09)43x43x13mm
(10)45x25x4mm
(11)50x20x10mm
(12)12x22x86mm
(13)60x35x6mm
(14)66x25x5mm		 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8023 2mm Quartz flow fluorescence cuvette cell （700ul） 700ul 2mm
(4 light ways)		 12.5x4.5x45mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8024 Quartz flow cuvette with stainless tube(96ul) 96ul 30mm 12.5x32.5x35mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8025 Quartz counting cell 16ul 0.2mm 30x15x4mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8025-1 Quartz counting cell splitted / 0.2mm
(2 light ways)		 30*15*3.7mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8025-2 Quartz counting cell splitted / 5mm
(2 light ways)		 32*17*8.5mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8026 Light resistant quartz fluorescence flow cuvette with stainless tube 32ul 10mm 12.5x12.5x35mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Window size Material
AT-BSM-8026-1 80ul quartz fluorescence flow cuvette 80ul 10mm
(3 light ways)		 12.5x12.5x35mm
Centre hight: 15mm		 2*4mm JGS-1







Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-8027 64ul Quartz Flow Cuvette Cell （Path Length 20mm） 64ul 20mm 12.5x22.5x35mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-8028 180ul Quartz flow cuvette cell （path length 20mm） 180ul 20mm 12.5x22.5x45mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8028-1 Quartz flow cuvette cell 16ul 5mm 12.5*7.5*25mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-8029 5mm Separate Quartz Sample Cell Cuvette 40x20x5mm 5mm 60x35x7mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-8029-1 2mm Separate Quartz Sample Cell Cuvette / 2mm 60x35x3mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-8030 Quartz fluorescence flow cuvette with glass tube(250ul) 250ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
AT-BSM-8031 16ml Quartz Fluorescent Flow Cell cuvette （path length 10mm/40mm） 16ml 10mm/40mm 43x43x13mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8031-1 Quartz Flow Cell cuvette 14ml 10mm 42.5*12.5*45mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8031-2 Quartz Fluorescent Flow Cell cuvette 4ml 10mm
(4 light ways)		 13*13*45mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8032 Quartz flow cuvette(60ul)Custom-made specifications 60ul 2mm 6x10x18mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range Thermostability
AT-BSM-8033 Quartz flow cuvette with glass tube(400ul) 400ul 10mm 12.5x12.5x45mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range Thermostability
AT-BSM-8034 0.5mm Quartz sample cell cuvette （120ul） 120ul 0.5mm 12.5x45x1.8mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range Thermostability
AT-BSM-8035 Quartz Sample Flow Cell Cuvette 3.5ml 3mm 40x40x9mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range Thermostability
AT-BSM-8035-1 Quartz Sample Flow Cell Cuvette 6.2ml 5mm 40x40x11mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Material
AT-BSM-8035-2 Quartz Sample Flow Cell Cuvette 2.5ml 2.5mm 50*30*10.5mm Glass







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8035-3 Quartz Sample Flow Cell Cuvette 3ml 3mm 55*26*9mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8035-4 Quartz Sample Flow Cell Cuvette 5ml 26/4mm
(4 light ways )		 40*30*9mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Material
AT-BSM-8035-5 Quartz Sample Flow Cell Cuvette 9.7ml 2.5mm 70*70*12.5mm Glass







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8035-6 Quartz Sample Flow Cell Cuvette 16ml 5mm
(2 light ways)		 80*40*9mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8035-7 Quartz Sample Flow Cell Cuvette / 18mm
(4 light ways)		 22*22*6.3mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8035-8 Quartz Sample Flow Cell Cuvette 46ml 30mm 111*17*33mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range Thermostability
AT-BSM-8036 Quartz flow cuvette cell 60ul-600ul 1mm/2mm/5mm/10mm 12.5x12.5x35mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range Thermostability

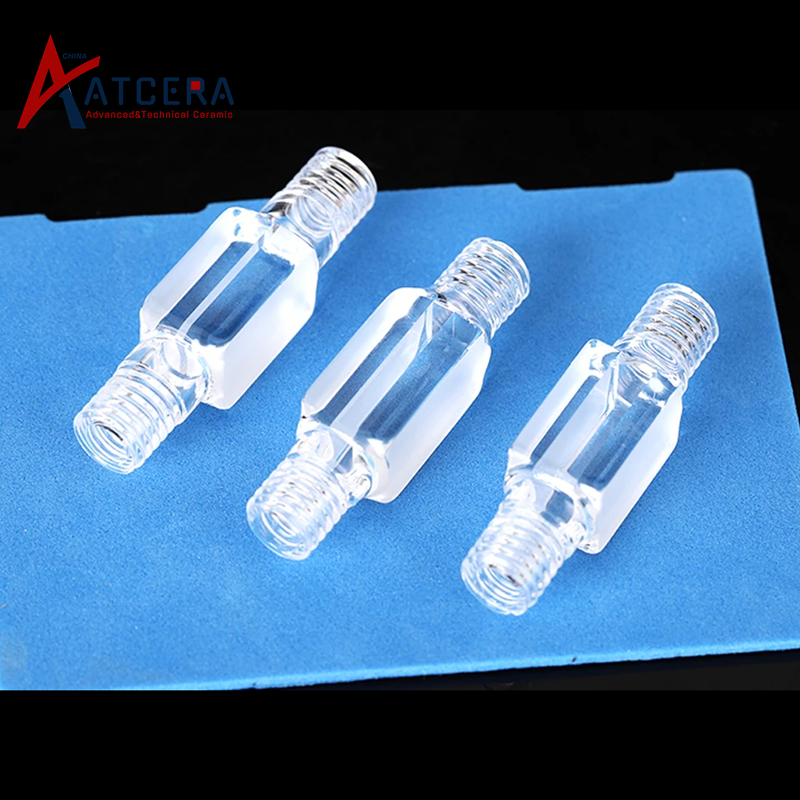

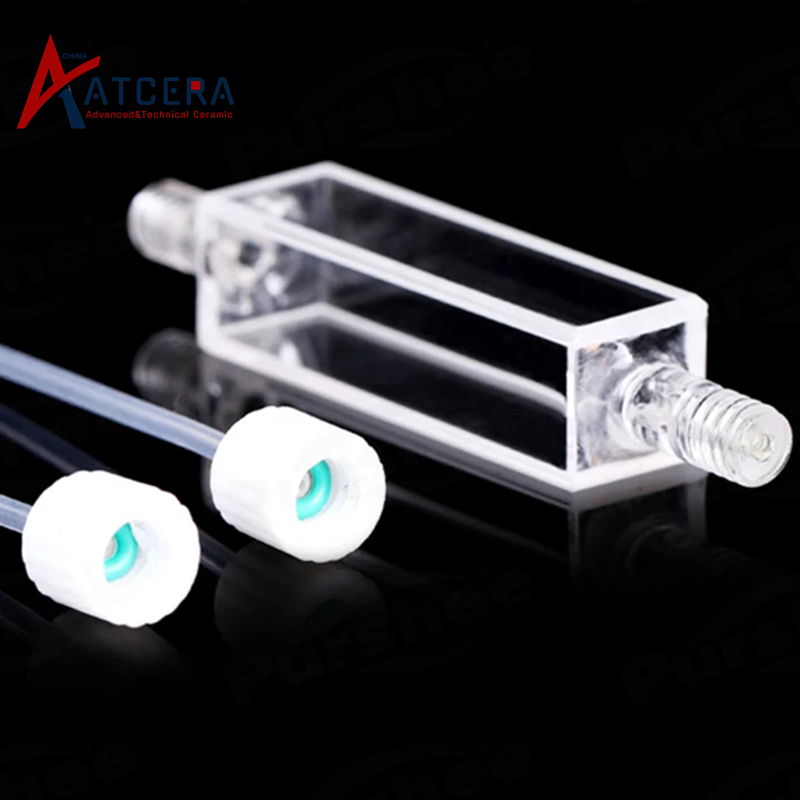

AT-BSM-8037 Quartz flow cuvette with M6 threaded connectors 400ul 10mm 12.5x12.5x35mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range Thermostability
AT-BSM-8037-1 Quartz flow cuvette with M6 threaded connectors 800ul 10mm 12.5x12.5x35mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range Thermostability
AT-BSM-8037-2 Quartz flow cuvette with M6 threaded connectors 200ul 10mm 12.5x12.5x35mm 200nm-2500nm 100℃









Item no. Description Capacity Path Length LxWxH Wavelength Range Thermostability
AT-BSM-8037-3 Quartz flow cuvette with M6 threaded connectors 32ul 10mm 12.5x12.5x35mm 200nm-2500nm 100℃









Item no. Description Capacity Path Length LxWxH Wavelength Range Thermostability
AT-BSM-8037-4 Quartz flow cuvette with M6 threaded connectors 450ul 10mm 12.5x12.5x35mm 200nm-2500nm 100℃







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8038 Quartz spiral cuvette/10mm/EU/Sealed fluorescent thread/spiral cell 350ul-1.75ml 10mm
(4 light ways)		 12.5*12.5*60mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8039 3.5ml quartz flow cuvette cell Brownloo fluid cell 3.5ml 10mm 40*12.5*12.5mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8039-1 3.5ml quartz flow cuvette cell Brownloo fluid cell 3.5ml 10mm
2 light ways
two-end nozzle		 40*12.5*12.5mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8039-2 3.5ml quartz flow cuvette cell Brownloo fluid cell 3.5ml 1mm
2 light ways
two-end nozzle		 40*12.5*12.5mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8039-3 3.5ml quartz flow cuvette cell Brownloo fluid cell 3.5ml 1mm
4 light ways
two-end nozzle		 40*12.5*12.5mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8039-4 3.5ml quartz flow cuvette cell Brownloo fluid cell 3.5ml 2mm
2 light ways
two-end nozzle		 40*12.5*12.5mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8039-5 3.5ml quartz flow cuvette cell Brownloo fluid cell 3.5ml 2mm
4 light ways
two-end nozzle		 40*12.5*12.5mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8039-6 3.5ml quartz flow cuvette cell Brownloo fluid cell 3.5ml 3mm
2 light ways
two-end nozzle		 40*12.5*12.5mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8039-7 3.5ml quartz flow cuvette cell Brownloo fluid cell 3.5ml 3mm
4 light ways
two-end nozzle		 40*12.5*12.5mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8039-8 3.5ml quartz flow cuvette cell Brownloo fluid cell 3.5ml 5mm
2 light ways
two-end nozzle		 40*12.5*12.5mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8039-9 3.5ml quartz flow cuvette cell Brownloo fluid cell 3.5ml 5mm
4 light ways
two-end nozzle		 40*12.5*12.5mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8039-10 3.5ml quartz flow cuvette cell Brownloo fluid cell 3.5ml 4/16mm
4 light ways
two-end nozzle		 40*12.5*12.5mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8040 Quartz flow cuvette cell 150ul / 20*20*3mm
Inter Size: 10*2mm		 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8040-1 Quartz flow cuvette cell with stainless steel tube 150ul / 20*20*3mm
Inter Size: 10*2mm		 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8041 ZETA point meter flow cell 130ul 1mm/5mm 21*20*26mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8042 Customized quartz flow cuvette cell M6 threaded / 0.2mm 56*12*20mm 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range
AT-BSM-8043 Customized quartz flow cuvette cell / / 38*38*18mm
wall thickness: 4mm		 200nm-2500nm







Item no. Description Capacity Path Length LxWxH Wavelength Range Windows
AT-BSM-8044 Micron volume quartz flow cuvette cell diamond shaped / 5mm 10*5*15mm
Centre hight: 10mm		 200nm-2500nm diamond shaped







Item no. Description Capacity Path Length Nozzle Length Wavelength Range
AT-BSM-8045 Quartz flow cuvette cell with nozzle / 1mm
(2 light ways)		 35mm 200nm-2500nm





Technical Data of Fused Quartz Materials

Density (g/cm3) 2.2
Flexture Strength (MPa) 48
Elastic Modulus (GPa) 72
Poisson's Ratio 0.14-0.17
Compressive strength (MPa) 1100
Bending strength (MPa) 67
Moh's hardness 5.5~6.5
Maximum working temperature (long-term, ℃) 1100
Maximum working temperature (short-term, ℃) 1350
Thermal conductivity (W/m*K) 1.4
Thermal expansion coefficient (/℃) 5.5*10-7
Specific resistance (Ω*cm) 7*107



*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.








Flow-Through Quartz Cuvettes for Precision Spectrophotometry

Valuable Information



Flow-Through Quartz Cuvettes Packing

Flow-Through Quartz Cuvettes Packing



Flow-Through Quartz Cuvettes are carefully packaged in appropriate containers to avoid any potential damage.























Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
Related Blog
Silicon Carbide Tubes: 15-Yr Corrosion Solution for Chemicals
Revolutionizing Chemical Processing: How Silicon Carbide Tubes Solve $20k/Day Downtime Challenges   The chemical industry loses $5.3 billion annually to corrosion-related equipment failures (NACE International, 2022). At the heart of this crisis lies inadequate material performance in extreme environments. This article reveals why silicon carbide (SiC) tubes are replacing traditiona...
Read More
The Role of Zirconia Rods in Modern Industrial Applications
  In today’s fast-paced industrial world, the demand for materials that combine strength, durability, and versatility is higher than ever. From high-performance equipment to critical components used in challenging environments, industries across the globe rely on advanced materials to meet their complex needs. One such material that has gained significant traction in modern manufacturin...
Read More
Why Quartz Glass Cuvettes Are Essential for Accurate Spectroscopy Measurements
In scientific research, spectroscopy plays a vital role in analyzing the properties of various substances by examining how light interacts with them. Whether it's determining the concentration of a solution or identifying chemical compounds, the accuracy of spectroscopy measurements is crucial. One of the most important factors in ensuring precise spectroscopic results is the choice of cuvette. Wh...
Read More
Applications of Alumina Substrates in the Automotive Industry
In recent years, the automotive industry has seen significant technological advancements, driven by the need for higher efficiency, sustainability, and performance. One of the materials playing a crucial role in this evolution is alumina. This ceramic material, known for its excellent thermal, mechanical, and electrical properties, has become indispensable in a range of automotive applications. Fr...
Read More
Why Silicon Nitride Tubes Are the Future of High-Temperature Applications
In the world of high-performance materials, the demand for solutions that can withstand extreme conditions is ever-growing. From aerospace and automotive to energy and electronics, industries are increasingly relying on materials that can handle not only high stress and pressure but also high temperatures. One such material that has emerged as a game-changer in these applications is silicon nitrid...
Read More
How Alumina Mechanical Parts Help Achieve Precision in High-Stress Environments
In industries that rely on high-performance machinery and equipment, precision and durability are critical. From aerospace to medical devices and semiconductor manufacturing, components must withstand extreme conditions while maintaining accuracy and reliability. One material that excels in these demanding environments is alumina, a form of aluminum oxide (Al2O3) used in the production of mechanic...
Read More
Comparing Silicon Carbide Crucibles to Other Crucible Materials: Which is Best for Your Process?
Crucibles are essential tools used in various industrial processes, particularly in metallurgy, casting, and chemical manufacturing. They provide a vessel for melting or holding high-temperature materials, and selecting the right crucible material is crucial to achieving optimal results. Among the wide variety of crucible materials available, Silicon Carbide (SiC) crucibles are often regarded as o...
Read More
Why is High-Purity Quartz Crucible Vital for Semiconductor Manufacturing and ATCERA's Innovation?
High-Purity Quartz Crucible: Essential for Semiconductor Manufacturing by ATCERA   With the rapid development of science and technology, the semiconductor industry, as the cornerstone of modern information technology, is facing unprecedented challenges and opportunities. In the semiconductor manufacturing process, quartz glass crucible with its unique thermal stability and low reactivity, has...
Read More
Why is High-Purity Quartz Crucible Essential for Semiconductor & Solar PV Manufacturing?
High-Purity Quartz Crucible: Essential for Semiconductor & Solar PV Fields   The purity of quartz crucible has a direct effect on the quality of its internal processing materials. In the high-tech industry, especially in the semiconductor and solar photovoltaic fields, the purity of the quartz crucible is directly related to the performance and reliability of the final product. As a brand...
Read More
How is High Purity Quartz Crucible Prepared and Why is it Crucial for High-Tech Industries?
High Purity Quartz Crucible: Preparation & Applications by ATCERA   In the field of modern high-tech material preparation, high purity quartz (HPQ) crucible plays a crucial role. These crucibles are made of natural quartz minerals, mainly silica (SiO2), and are deeply purified to achieve the desired purity level. With its excellent technical strength, ATCERA brand focuses on the productio...
Read More

Related Products

Quartz Cuvette for Absorption and Fluorescence Spectra
UV Quartz Cuvettes & Quartz Spectrophotometer Cells for Superior Transmittance
Optical measurement cuvettes
High Transmittance Glass Cuvettes for Laboratory Use
Infrared Quartz Cuvette
IR Quartz Cuvette for Professional Spectral Analysis
Sub-Micro Quartz Cuvette
Sub-Micro Quartz Cuvette for Precision Micro-Volume Spectrophotometry
Quartz Sealable Cuvettes
Quartz Cuvettes with Airtight Seal for Accurate Spectral Analysis
Quartz fluorescence cuvette
4-Sided Transparent Quartz Fluorescence Cuvettes for Fluorescence Analysis
Quartz cuvette with lid
Quartz Cuvette Cells with Lid JGS1 for Spectrophotometer Labs 1mm Optical Path
JGS1 quartz cuvette cells
Premium Quartz Cuvette Cells JGS1 No Lid for Spectrophotometer Labs

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.

All FAQs

Send Your inquiry

Subject:
Flow-Through Quartz Cuvettes for Precision Spectrophotometry
Upload
* File ONLY PDF/JPG./PNG. Available.
Submit Now
About My Brand
Products
Resources
Hot Tags

Copyright © 2025 Custom Advanced Ceramic Solutions | HUNAN ATCERA CO.,LTD All Rights Reserved.

XML | Privacy Policy IPv6

Contact With Us
Contact With Us
Simply fill out the form below as best you can. And don't sweat the details.
Submit
Looking for Video?
Contact Us #
19311583352

Office Hours

  • Monday to Friday: 9:00 AM - 12:00 PM, 2:00 PM - 5:30 PM

Please note that our office hours are based on Beijing Time, which is eight hours ahead of Greenwich Mean Time (GMT). We appreciate your understanding and cooperation in scheduling your inquiries and meetings accordingly. For any urgent matters or queries outside our regular hours, feel free to contact us via email, and we will get back to you as soon as possible. Thank you for your business, and we look forward to serving you.

Home

Products

whatsApp

contact
