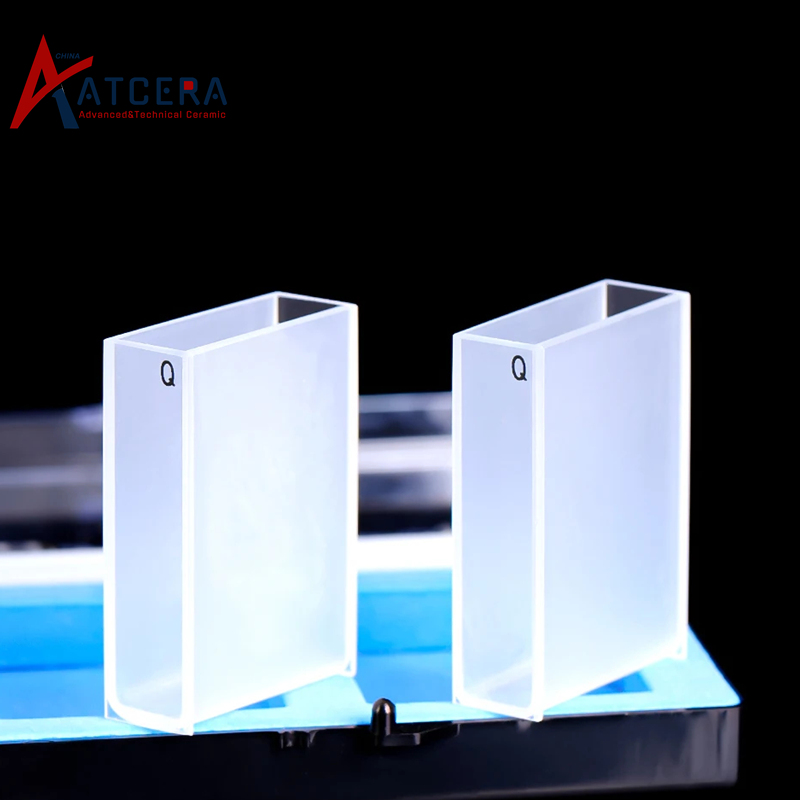

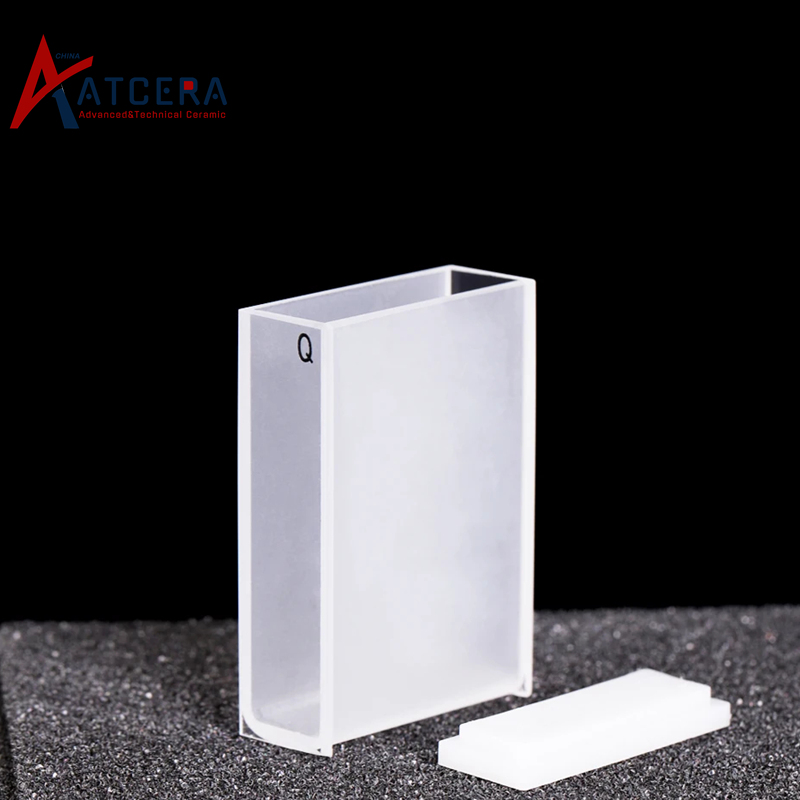

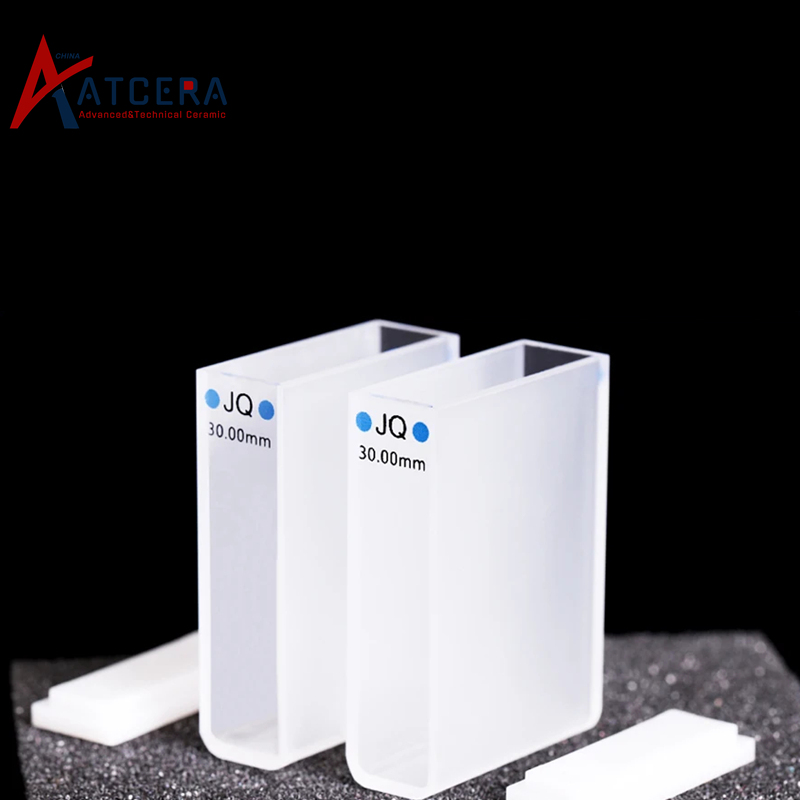

Quartz Cuvette Cells with Lid 30mm Path Length JGS1 for Spectrophotometer Labs

Quartz cuvette cells are essential tools in spectrophotometer labs, enabling precise optical measurements. ATCERA quartz cuvette cells with lids, designed with a 30mm path length and made from high-grade JGS1 Japanese quartz glass, provide unmatched optical performance and durability. Suitable for a variety of spectrophotometric applications, these cuvettes are a must-have for any lab seeking accurate and reliable results.

Brand:
ATCERA
Item NO.:
AT-BSM-7005

Materials
Quartz Glass
Shapes
Cuvette
Applications
Metallurgy Industry , Biology and Medicine , Laboratory Equipment and Instruments

Inquire Now

Properties of Quartz Cuvette Cells

1. Long Path Length for Sensitivity

The 30mm path length allows for highly sensitive measurements, making these cuvettes ideal for applications requiring detailed spectral analysis.

2. Broad Spectral Range Compatibility

Compatible with wavelengths from 200nm to 2500nm, suitable for UV-Vis and near-infrared spectroscopy, catering to a wide range of analytical needs.

3. Large Sample Capacity

Each cuvette holds 10.5ml of sample, enabling efficient and cost-effective analysis, especially for applications requiring larger volumes of sample.

Applications of Quartz Cuvette Cells

1. Biochemical Analysis

These cuvettes are perfect for biochemical research, where they are used to study the optical properties of biomolecules such as proteins and nucleic acids.

2. Environmental Monitoring

Ideal for environmental health assessments, our cuvettes measure the concentration of pollutants in water and air samples with precision.

3. Material Science Research

In material science, these cuvettes are applied to analyze the optical properties of various materials, including thin films, coatings, and composites.

4. Pharmaceutical Quality Control

Our cuvettes are utilized in pharmaceutical labs for rigorous quality control testing of drugs and excipients.

Size Chart of Quartz Cuvette Cells

We are committed to delivering prime quartz cuvette cells tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and specification requirements shall be provided if customized design request.

Send Requirements for Custom Design

Item no.	Description	Capacity	Path Length	LxWxH	Wavelength Range	Material
AT-BSM-7005	quartz cuvette cells with lid 30mm path length JGS1 for spectrophotometer lab	10.5ml	30mm	12.5x32.5x45 mm	200nm-2500nm	JGS1

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Quartz Cuvette Cells for Spectrophotometer Labs

Valuable Information

Quartz Cuvette Cells Packing

Quartz Cuvette Cells are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
